1241.6824.1111000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 1241.6824.1111000

1241.6824.1111000: Descriptionilluminated pushbutton switches msm19 LA RI SF 12 A @250vac 1P RT; CategoryMechanical and electronic products switch; File Size1MB，7 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

1241.6824.1111000 Overview

illuminated pushbutton switches msm19 LA RI SF 12 A @250vac 1P RT

1241.6824.1111000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	10 weeks
body width	16.6 mm
body height	27.9 mm
Body length or diameter	22 mm
Contact (AC) maximum rated R load	12A@250VAC
Maximum contact current (AC)	12 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Electrical life	50000 Cycle(s)
illumination	RED LED
Installation features	PANEL MOUNT-THREADED
Maximum operating force	10 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
method of packing	BULK
seal	IK07; IP00; IP64
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

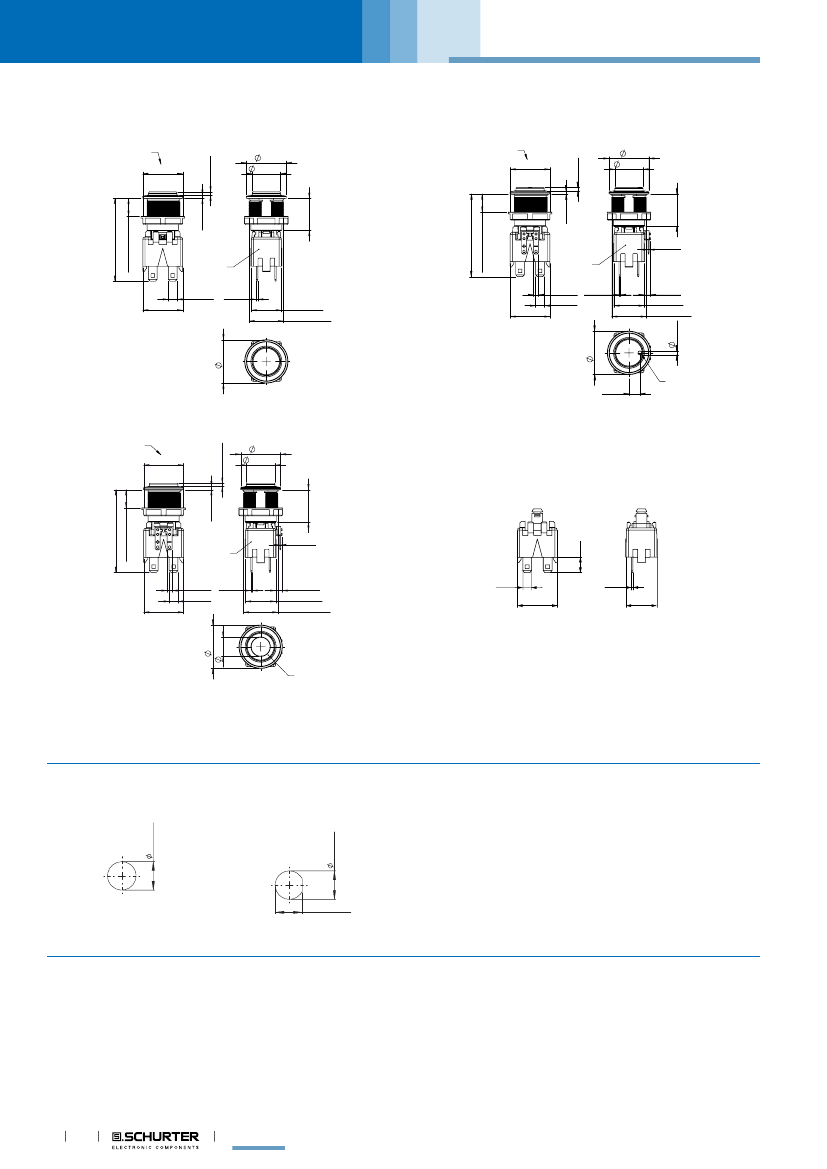

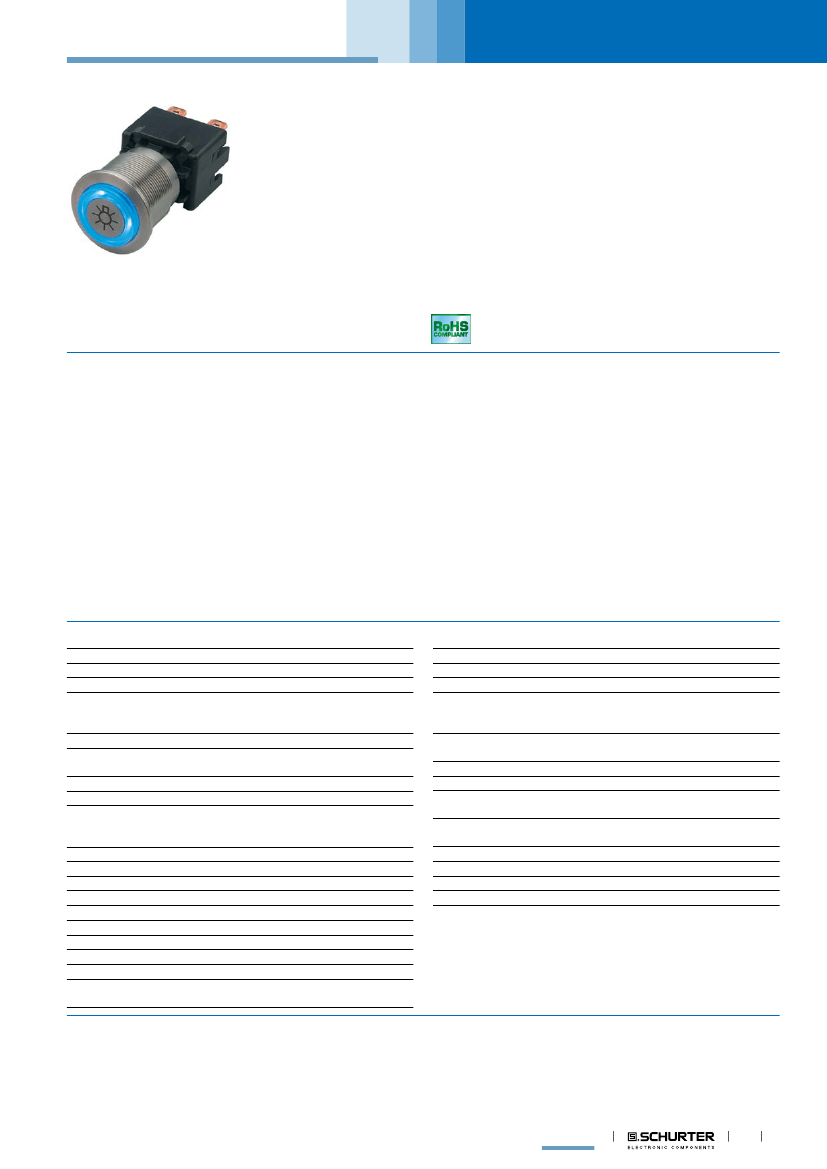

Metal Line Switches

www.schurter.com/PG70

Metal Switch, Latching Action, Switching Voltage up to 125 VDC / 250 VAC

MSM LA 19

MSM 19 LA LE RI blue

Description

- Switch available in version: Standard (ST), with Lettering (LE), with

Point Illumination (PI), with Ring Illumination (RI)

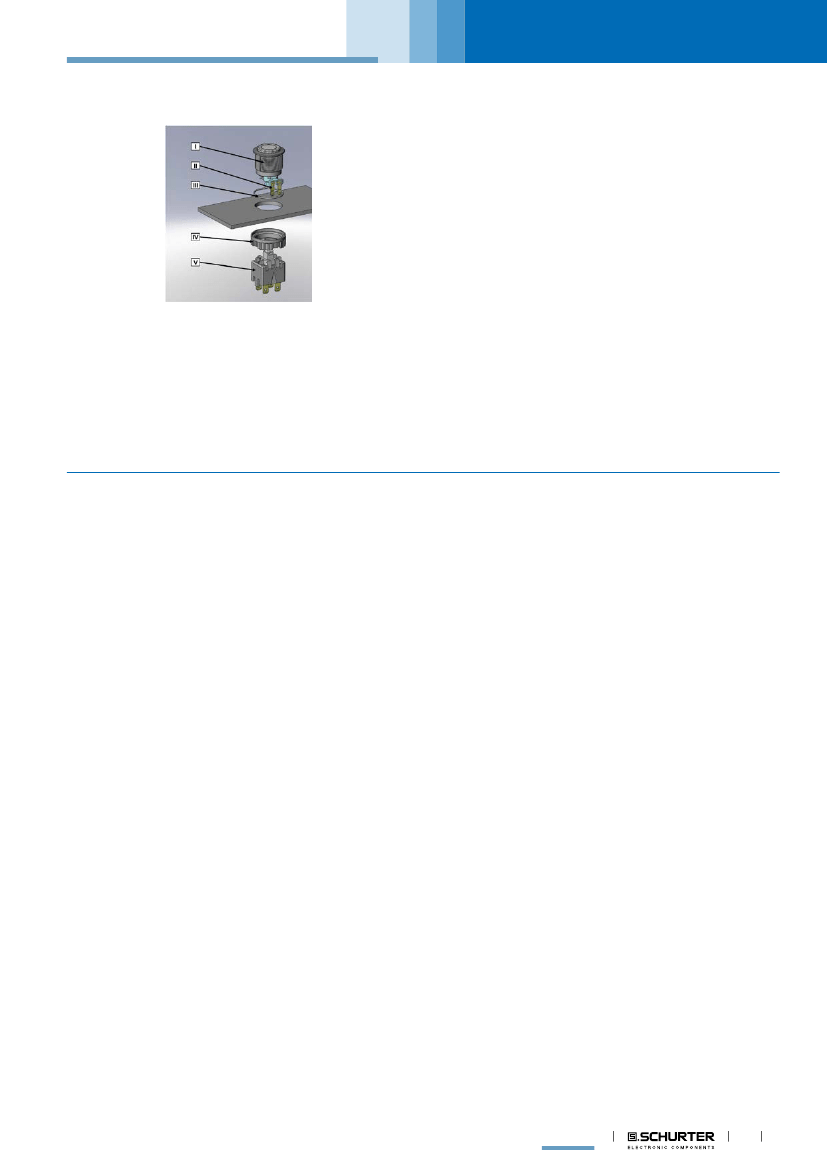

- Assembly by mounting with nut and subsequent clipping of the swit-

ching element

- Equipped with flat-pin plugs to permit fast connection

Characteristics

Standards

Approvals

- DIN EN 61058-1

- UL 1054

- Low Voltage Directive 2006/95/EC Low Voltage Directive 2006/95/EC

- KEMA / ENEC File Number (Marquardt): 2106068.01

- UL / CSA File Number (Marquardt): E41791

- Housing and actuator material: high-quality stainless steel

- Variety of design options regarding size, colour, illumination, connec-

tion or lettering

- Switching voltage up to 125 VDC respectively 250 VAC, switching cur-

rent up to 12 A

- optional with point or ring illumination

- available with single-pole and double-pole switching system, switching

status is easy to discern by looking at or feeling the resting position of

the actuator

- for use in harsh environments

References

Alternative: Standard version

MSM 19

Alternative: double-pole switch:

MSM DP 19

Alternative: switch with backlighted illumination:

MSM CS 19

Weblinks

html-datasheet, General Product Information, CE declaration of

conformity, RoHS, CHINA-RoHS, e-Shop, CAD-Drawings, Product

News, Detailed request for product

Technical Data

Electrical Data

Switching Function

Number of Poles

Supply Voltage

N.O.

1 pole and 2 pole

24 VDC Ring Illumination, without series

resistor Point Illumination, LED operating

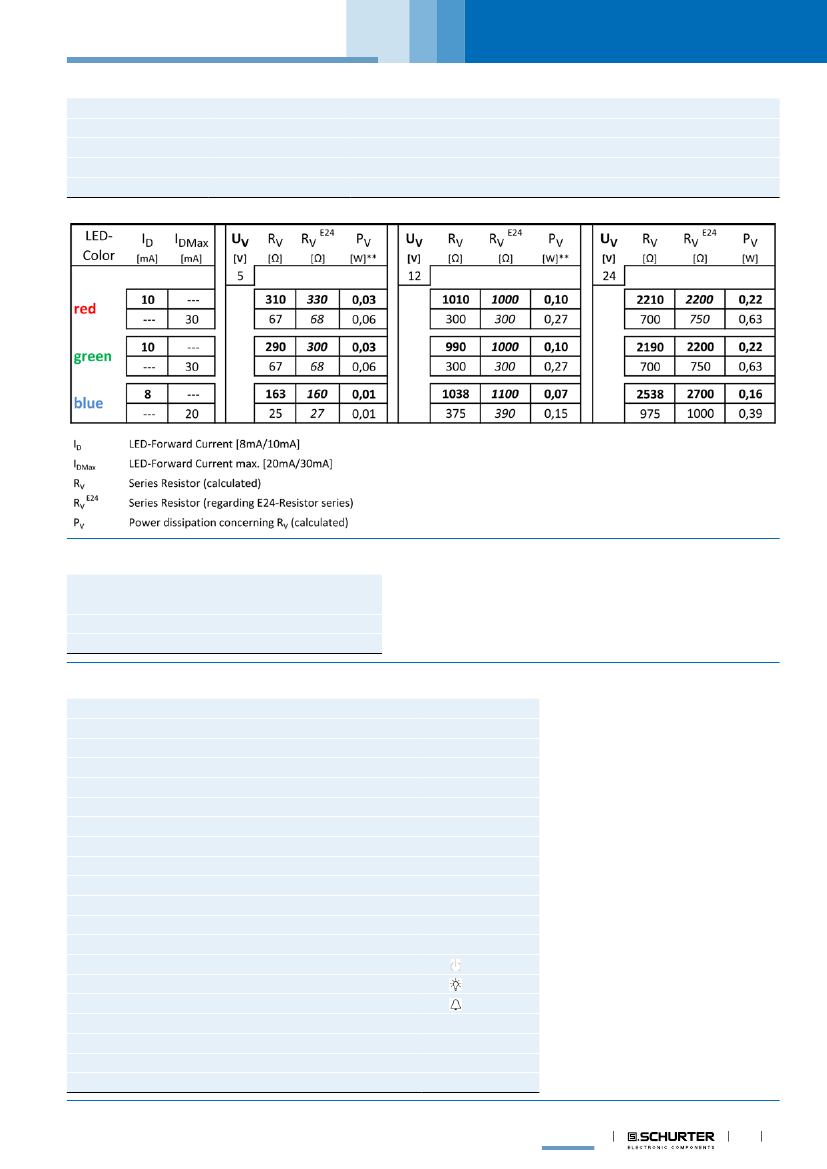

data are listed in a separate table

4 kV MSM ST / MSM LE

max. 250 VAC 30 VDC (125 VDC at

0.5 A),

max. 12 A AC

3000 W

0.05 million actuations (250 VAC / 8

A), 0.1 million actuations (125 VDC /

0.5 A)

< 100 mΩ (12 VDC / 1 A)

> 100 MΩ 500 VDC

10 N

5.2 mm,

0.1 million actuations

3 mm

IK 07

4.5 Nm for thread M19, 3.5 Nm for M22

12 Nm for thread M19, 16 Nm for M22

Climatical Data

Operating Temperature

Storage Temperature

IP-Protection

-20 to +85 °C

IP 64 Front Side Contact Area, IP

40 Front Side mechanical, IP 00 Rear

Side

24 h / 48 h / 96 h Residence Time

Surge Strength

Switching Voltage

Switching Current

Rated Switching Capacity

Lifetime

Contact Resistance

Insulation Resistance

Mechanical Data

Actuating Force

Actuating Travel

Lifetime

Contact Gap

Shock Protection

Tightening Torque Plastic Nut

Tightening Torque Stainless

Steel Nut

Salt Spray Test (acc. to DIN

50021-SS)

Material

Housing

Actuator (disc, outside hou-

sing)

Illuminated Ring (die-casting,

inside housing)

Gasket

Switcher Collet

Intermediate Connector

Contact Pin Adapter

Stainless Steel

NBR70

PA66 (UL94-V0 related to d

≥

1.6 mm)

PA66 (UL94-V0 related to d

≥

1.6 mm)

PA66 (UL94-V0 related to d

≥

1.6 mm)

Switches

1241.6824.1111000 Related Products

	1241.6824.1111000	1241.6823.1122000
Description	illuminated pushbutton switches msm19 LA RI SF 12 A @250vac 1P RT	illuminated pushbutton switches msm19 LA PI SF 12a @250vac 2P GN
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Factory Lead Time	10 weeks	10 weeks
body width	16.6 mm	16.6 mm
body height	27.9 mm	27.9 mm
Body length or diameter	22 mm	22 mm
Contact (AC) maximum rated R load	12A@250VAC	12A@250VAC
Maximum contact current (AC)	12 A	12 A
Maximum contact current (DC)	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@30VDC	.5A@30VDC
Maximum contact voltage (AC)	250 V	250 V
Maximum contact voltage (DC)	30 V	30 V
Electrical life	50000 Cycle(s)	50000 Cycle(s)
illumination	RED LED	GREEN LED
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating force	10 N	10 N
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C
method of packing	BULK	BULK
seal	IK07; IP00; IP64	IK07; IP00; IP64
surface mount	NO	NO
Switch action	LATCHED	LATCHED
switch function	SPST	DPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT
Base Number Matches	1	1
