8D711W05SC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D711W05SC

8D711W05SC: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size332KB，2 Pages; ManufacturerEsterline Technologies Corporation

Download Datasheet Parametric Compare View All

8D711W05SC Overview

MIL Series Connector,

8D711W05SC Parametric

Parameter Name	Attribute value
Maker	Esterline Technologies Corporation
Reach Compliance Code	unknow
Connector type	MIL SERIES CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

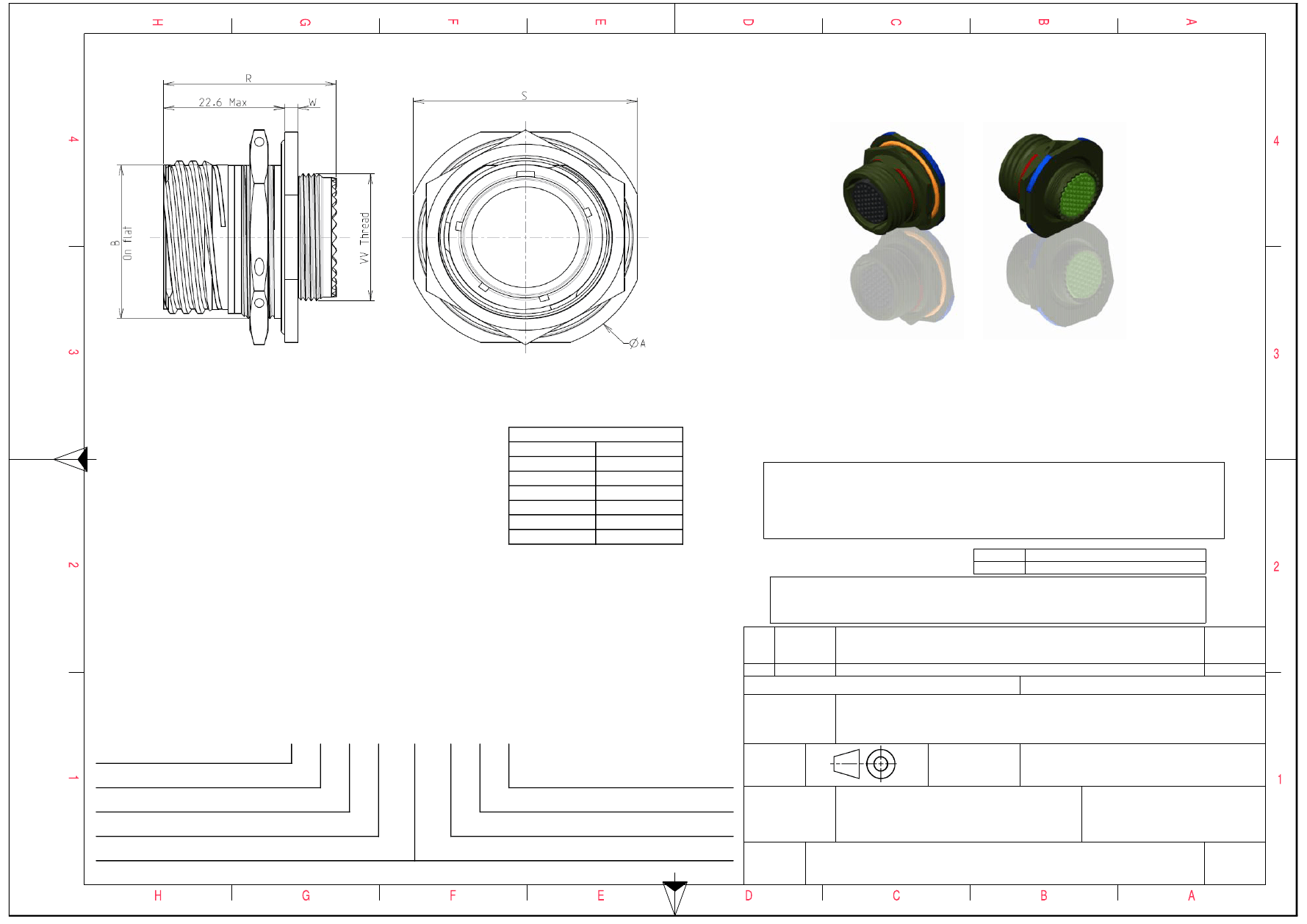

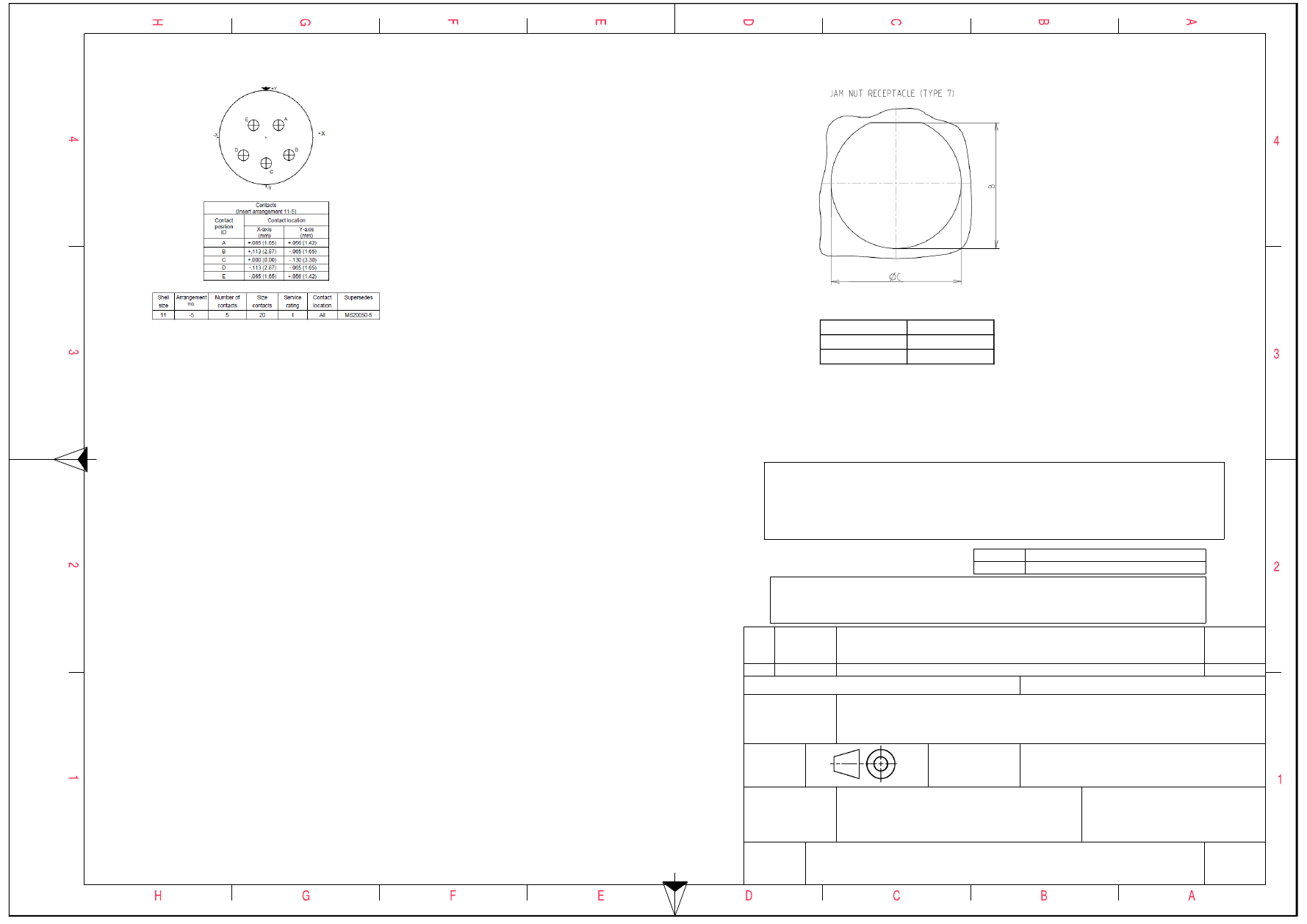

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Aluminium

: Olive drab Cadmium

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

Connector dimension

Dim

Nominal

34.9±0.3

19.07+0.1/-0.15

32.5Max

31.8±0.4

2.2+0.9/-0.1

VV THREAD

M15x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +175°C

: 500 hours

: 21.23 g ± 10%

PN: 8D711W05SC

ISS

01-10-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : Jam nut Receptacle

CONTACT TYPE

SHELL SIZE : 11

PLATING

: W =

Olive drab Cadmium

: Standard Crimp Contact

ORIENTATION : C

CONTACT TYPE : SOCKET(500 Matings)

CONTACT LAYOUT : 11-05

FORMAT

Aluminium Receptacle 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D711W05SC-C

SHEET

1/2

8D711W05SC Related Products

	8D711W05SC
Description	MIL Series Connector,
Maker	Esterline Technologies Corporation
Reach Compliance Code	unknow
Connector type	MIL SERIES CONNECTOR
Base Number Matches	1
