SURFACE MOUNT LED LAMP

STANDARD BRIGHT 1206 (Inner Lens)

QTLP651C-2

HER

QTLP651C-7

AlGaAs Red

PACKAGE DIMENSIONS

0.126 (3.2)

0.110 (2.8)

0.079 (2.0)

)

0.070 (1.8)

QTLP651C-3

Yellow

QTLP651C-B

Blue

QTLP651C-4

Green

0.067 (1.7)

0.051 (1.3)

TOP

Ø0.020 (0.5)

POLARITY MARK

(See Note 2)

0.043 (1.1)

Ø0.035 (0.9)

0.035 (0.9)

0.024 (0.6)

SIDE

0.063 (1.6)

0.051 (1.3)

BOTTOM

POLARITY

for -2, -3, -4 and -B

for -7

APPLICATIONS

• Keypad backlighting

• Push-button backlighting

• LCD backlighting

NOTE:

1. Dimensions for all drawings are in inches (mm).

2. Cathode for -2, -3, -4 and B. Anode for -7.

DESCRIPTION

These surface mount chip LEDs are designed to ﬁt industry standard footprint. The package features a recessed, inner lens that

focuses light output, offering greater luminous intensity for direct viewing.

FEATURES

• Small footprint - 3.0(L) X 1.5(W) X 1.5(H) mm

• Narrow viewing angle of 20°

• Water clear optics

• Moisture-proof packaging

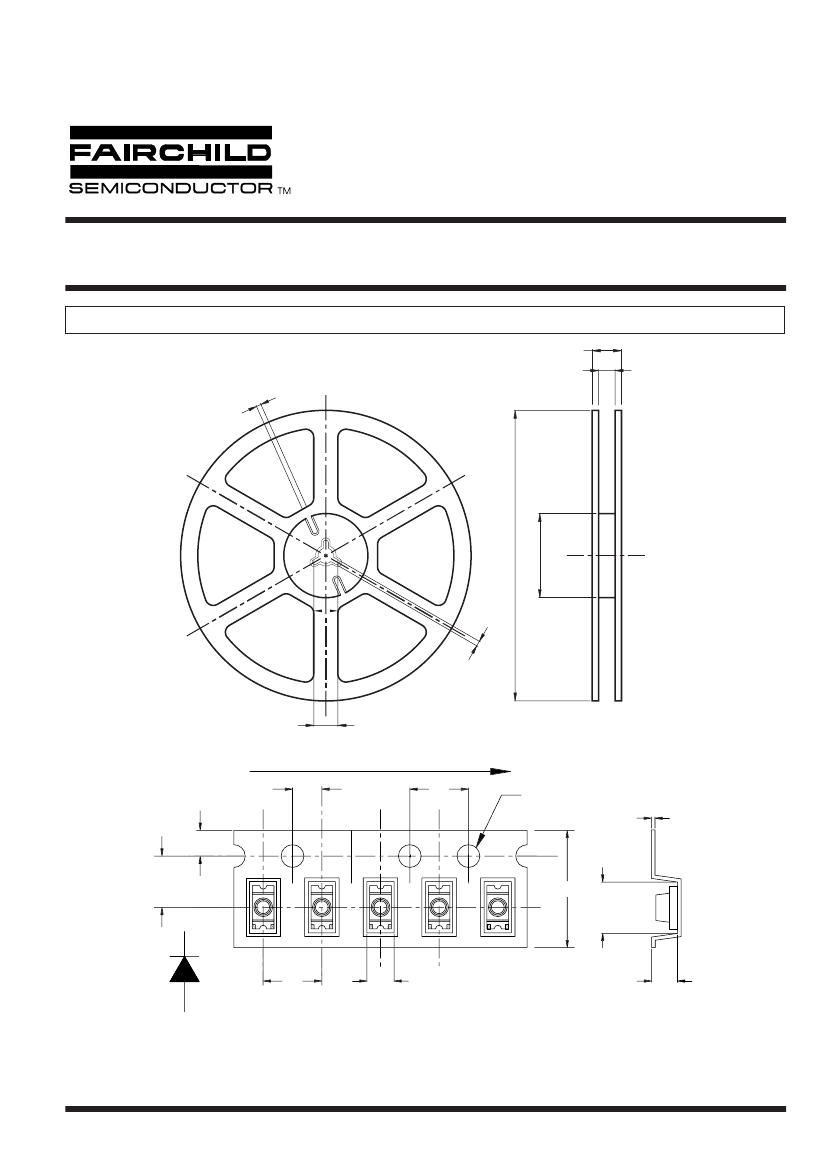

• Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel;

2,000 units per reel

Page 1 of 7

4/16/02

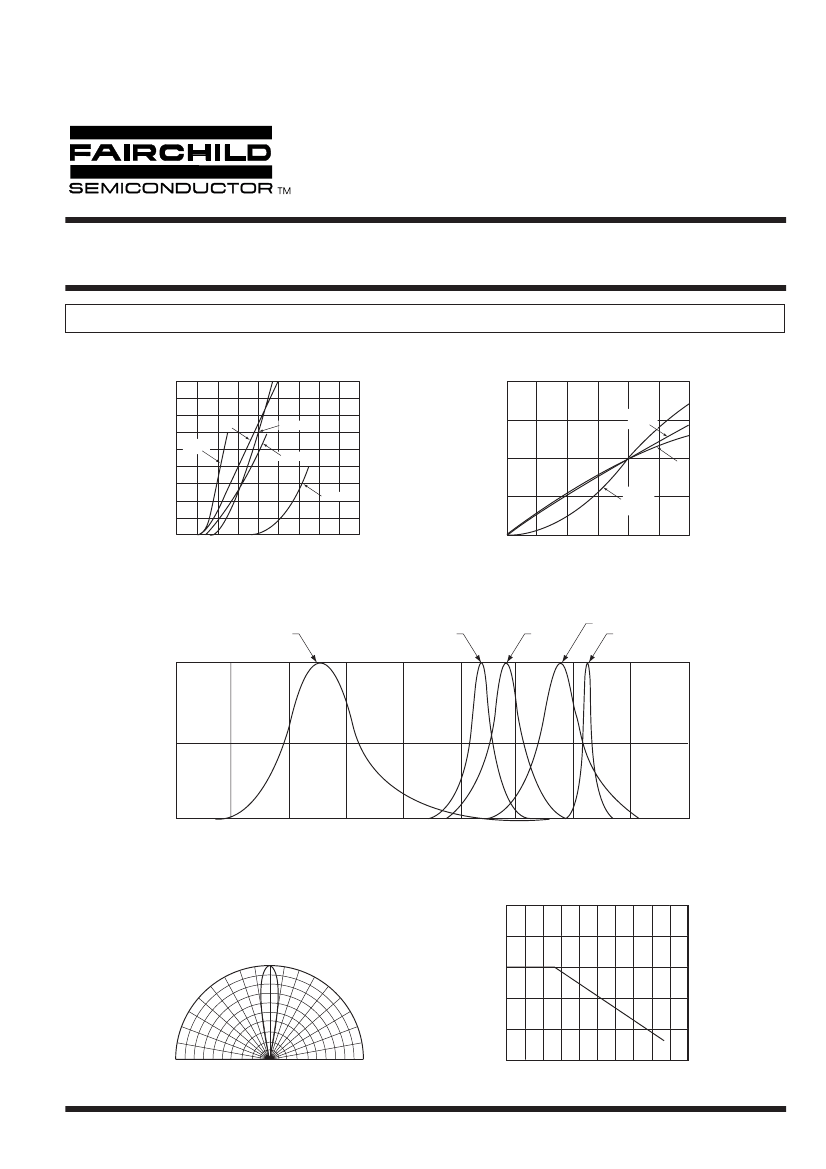

QTLP651C Related Products

	QTLP651C	QTLP651C-B	QTLP651C-7	QTLP651C-4	QTLP651C-3	QTLP651C-2
Description	SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens	SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens	SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens	SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens	SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens	SURFACE MOUNT LED LAMP STANDARD BRIGHT 1206 Inner Lens
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	-	3.0 X 1.5 X 1.5 MM, SURFACE MOUNT PACKAGE-2	3.0 X 1.5 X 1.5 MM, SURFACE MOUNT PACKAGE-2	3.0 X 1.5 X 1.5 MM, SURFACE MOUNT PACKAGE-2	3.0 X 1.5 X 1.5 MM, SURFACE MOUNT PACKAGE-2	3.0 X 1.5 X 1.5 MM, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	-	compli	compli	compli	compli	compli
color	-	BLUE	RED	GREEN	YELLOW	HIGH EFFICIENCY RED
color@wavelength	-	Blue	Red	Gree	Yellow	Orange-Red
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	-	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Maximum forward voltage	-	4.5 V	2.4 V	2.8 V	2.8 V	2.8 V
JESD-609 code	-	e0	e0	e0	e0	e0
Lens type	-	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	-	35.0 mcd	50.0 mcd	35.0 mcd	18.0 mcd	15.0 mcd
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	-	1	1	1	1	1
Number of terminals	-	2	2	2	2	2
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	-	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
method of packing	-	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7"	TAPE AND REEL 7\"	TAPE AND REEL 7\"
peak wavelength	-	430 nm	660 nm	565 nm	585 nm	635 nm
Maximum reverse voltage	-	5 V	5 V	5 V	5 V	5 V
shape	-	ROUND	ROUND	ROUND	ROUND	ROUND
size	-	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm
surface mount	-	YES	YES	YES	YES	YES
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	-	3 mm	3 mm	3 mm	3 mm	3 mm
perspective	-	20 deg	20 deg	20 deg	20 deg	20 deg
