2M804-003-07NF12-201P-501 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2M804-003-07NF12-201P-501

2M804-003-07NF12-201P-501: DescriptionCircular Connector, 12 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size228KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

2M804-003-07NF12-201P-501 Overview

Circular Connector, 12 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

2M804-003-07NF12-201P-501 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	8067569089
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.35
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM CHROMATE PLATED
Shell material	ALUMINUM ALLOY
Housing size	12
Termination type	CRIMP
Total number of contacts	12

Preview

Download Datasheet

View All

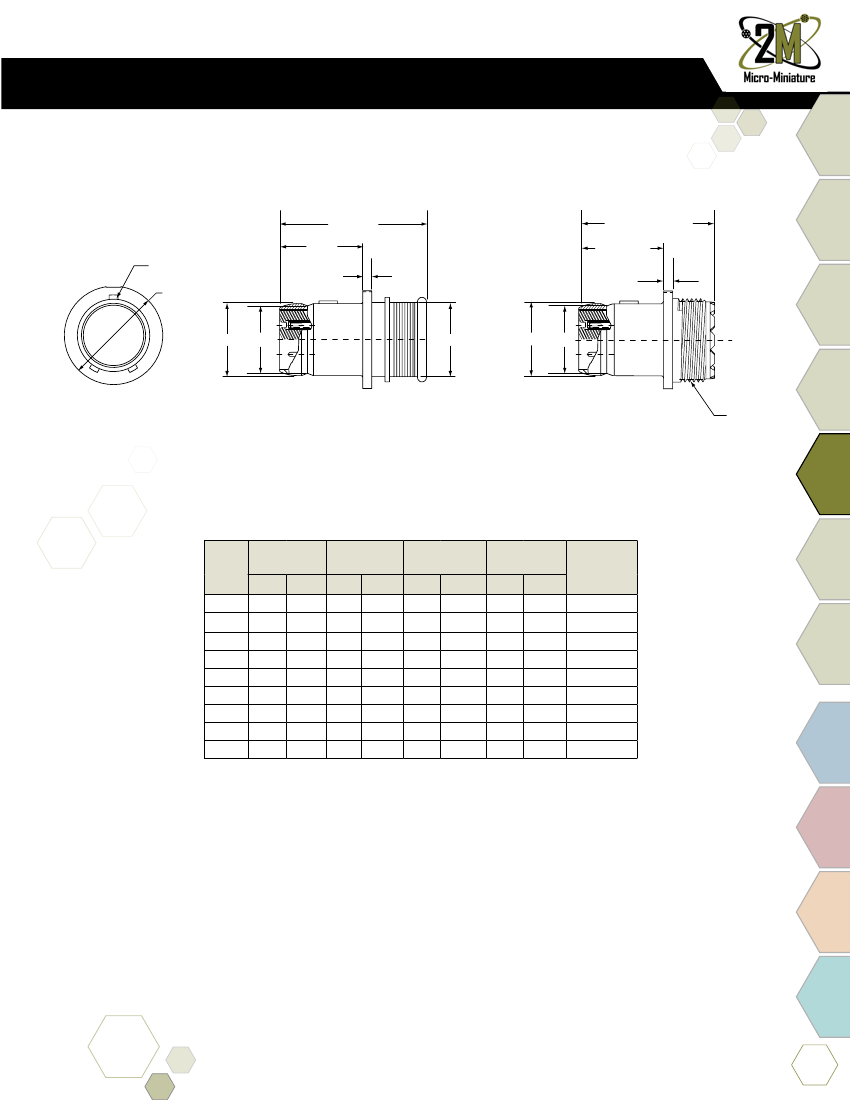

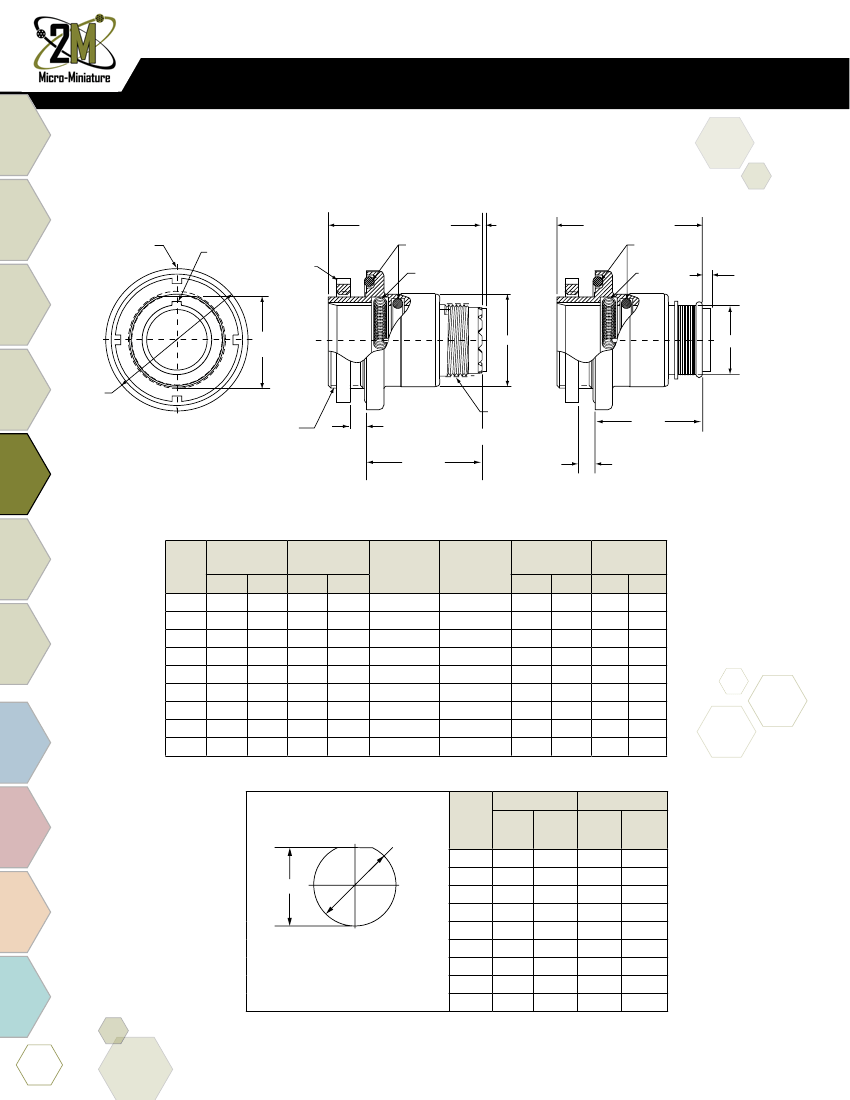

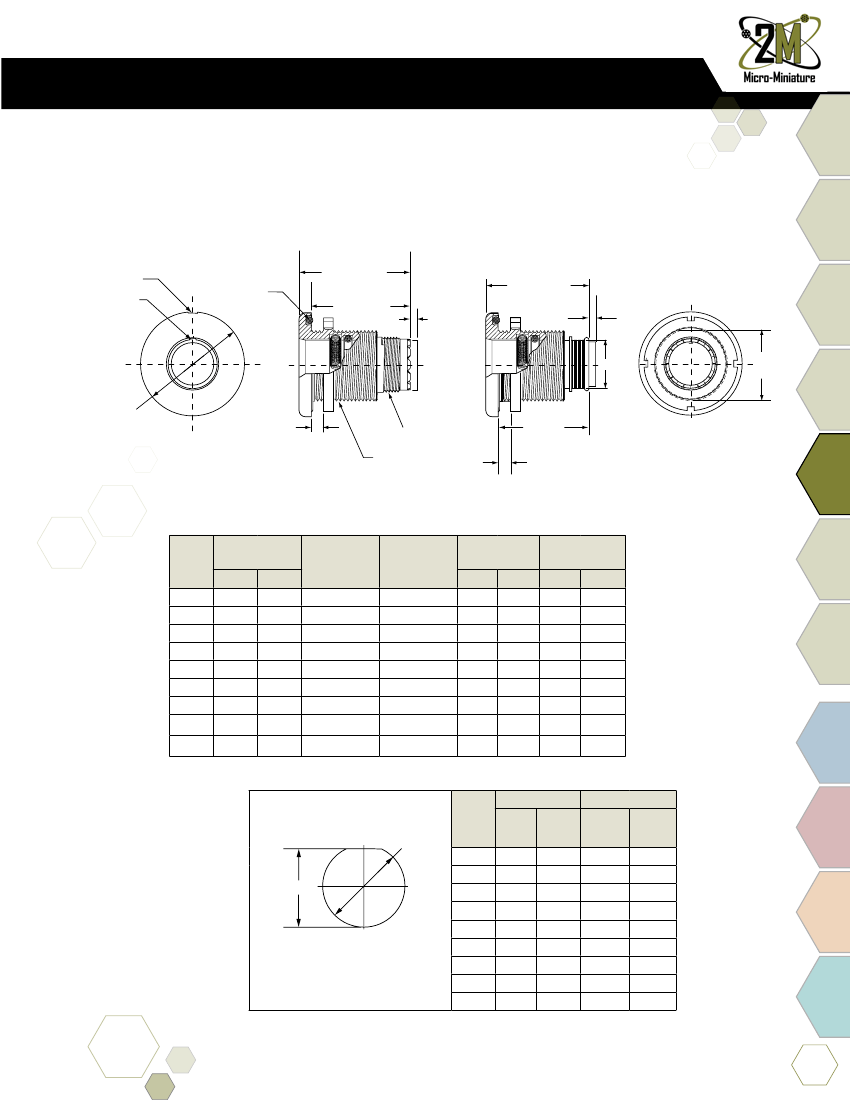

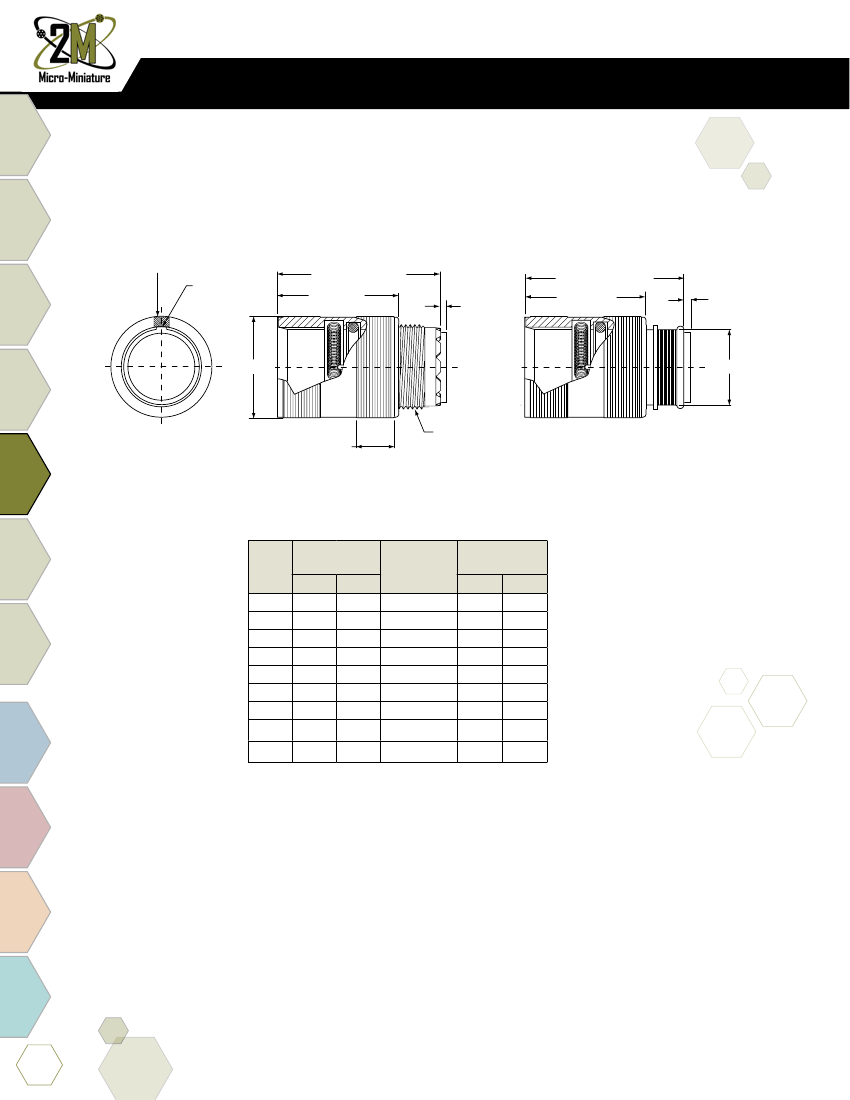

2M804 Push-Pull Crimp Receptacles

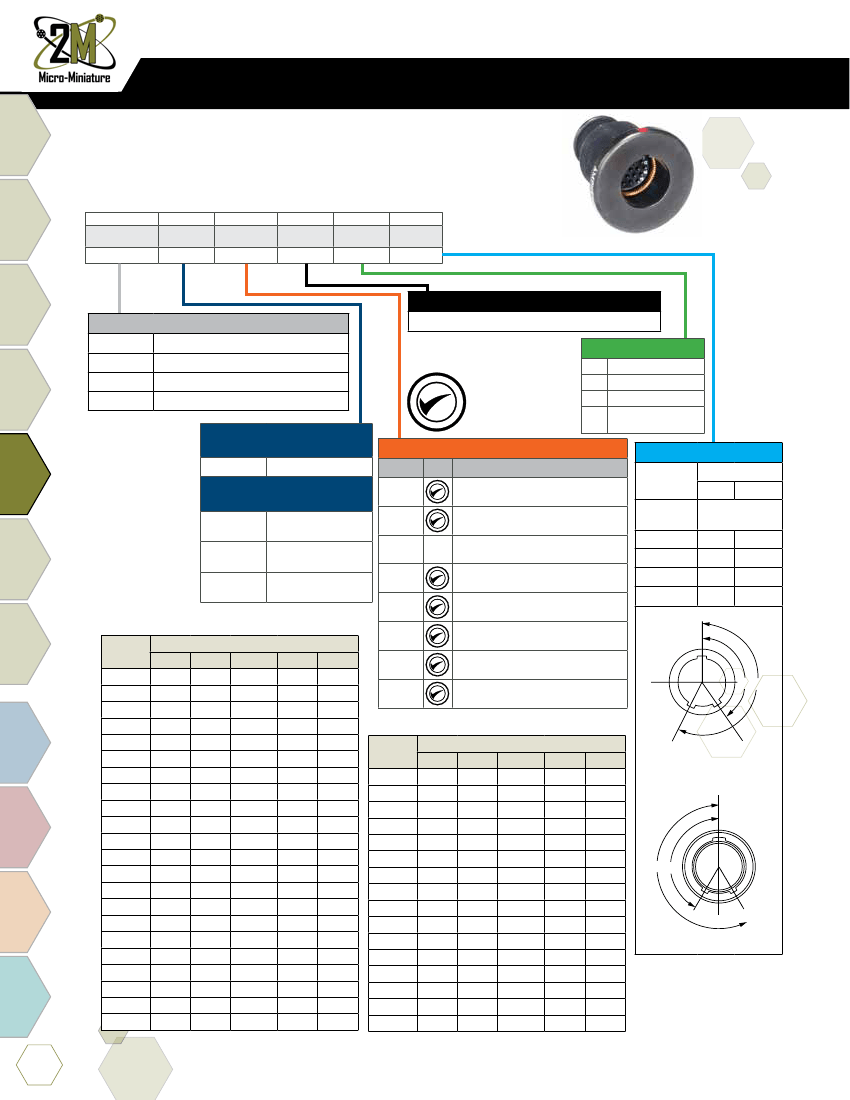

Ordering Guide for 2M804-001, 002, 003, 004

Contacts

& Tools

2M Specs

Series

Shell Style

Service Class

2M804-00X

-06

ZNU

Shell Size-

Contact Type

Insert Arrg.

6-7

Alternate

Position

*add "-501" to the suffix of Jam Nut version to

include a Hex Nut instead of a Spanner Nut.

2M801

SHELL SIZE - INSERT ARRANGEMENTS

SERIES

2M804-001

Plug with Integral Backshell

Plug with Accessory Thread

Receptacle with Integral Backshell

Receptacle with Accessory Thread

See Insert Arrangements on Pages 13-15

CONTACTS

pheno

2M803

2M804-002

2M804-003

2M804-004

Socket

Pin, less contacts

Socket, less

contacts

SHELL STYLE

2M804-001 2M804-002

002

SERVICE CLASS

Finish

2M804

KEYING

Key

Position

Omit

Key Rotation

Single

Master Key

150°

75°

95°

140°

210°

230°

275°

-06

Plug

pheno

SHELL STYLE

2M804-003 2M804-004

-00

Jam Nut* for Front

Panel Mounting

In-Line for Free-

Hanging Cable

Jam Nut* for Rear

Panel Mounting

002

Aluminum/Black Anodize

(Non-Conductive)

Aluminum/Electroless Nickel

Aluminum/Cadmium with Olive

Drab Chromate

pheno

002

2M805

-01

-07

002

pheno

Aluminum/Nickel-PTFE (Durmalon)

Stainless Steel/Passivated

Stainless Steel/Electroless Nickel

Aluminum/Zinc-Nickel w/Olive

Drab Chromate

Aluminum/Zinc-Nickel with Black

Chromate

2M Filter &

Accessories

002

INSERT ARRANGEMENTS

Insert

Arrg.

No. of Contacts

#23

#20

#20HD

#16

#12

ZNU

pheno

002

pheno

5-3

6-1

6-4

6-6

6-7

6-23

7-1

7-10

002

HD38999

INSERT ARRANGEMENTS

Insert

Arrg.

No. of Contacts

#23

#20

#20HD

#16

#12

pheno

A° B°

Receptacle View

10-201

10-202

12-2

12-3

12-7

12-37

12-200

12-201

12-220

14-5

14-12

14-55

14-235

15-7

15-14

15-85

Micro-D

7-25

8-2

8-28

8-13

8-200

9-4

9-19

9-200

9-201

9-210

10-2

10-5

10-26

10-200

B° A°

Terrapin

Plug View

For single master key

omit (leave blank)

Nexus

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
