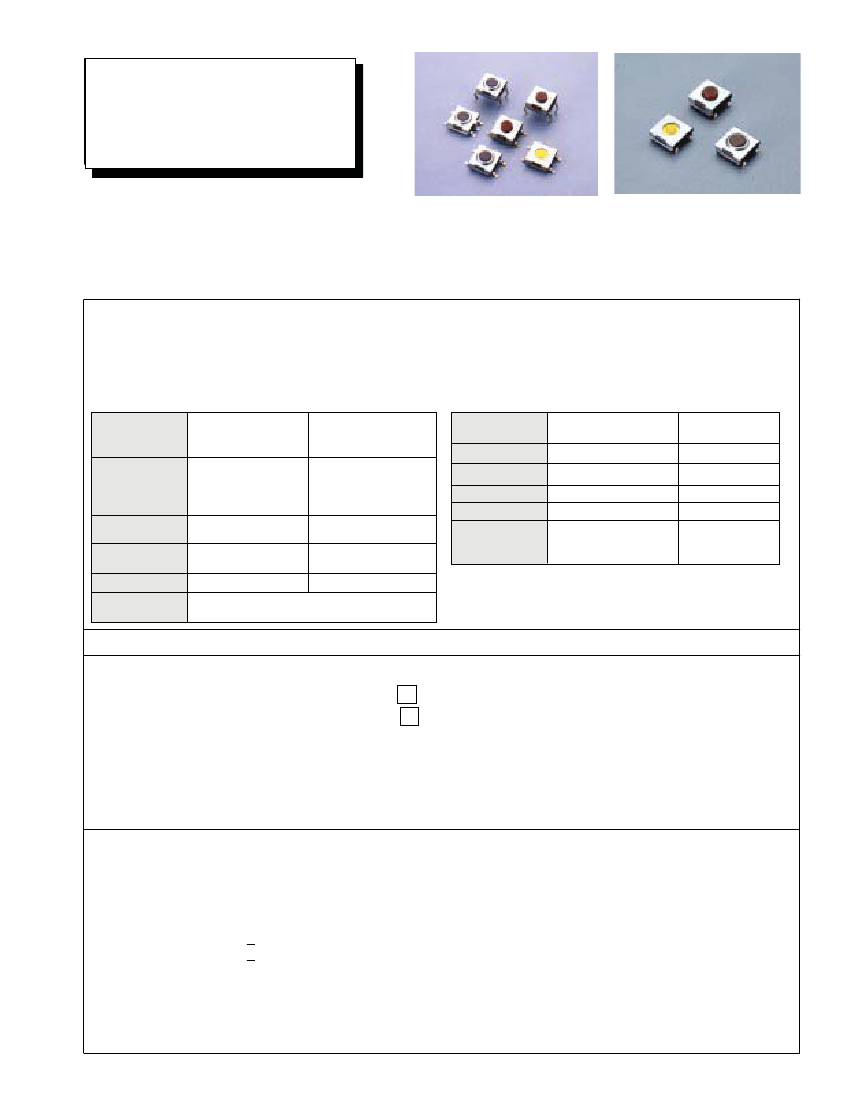

WASHABLE TACT SWITCH
FEATURES
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
O
O
O
O
Sharp click feel with a positive tactile feedback.
Ultraminiature structure suitable for high density mounting. Economic but high reliability.
Insert molded contacts with special treatment prevents flux build-up during soldering and permits auto-dipping.
Allows submersed washing after soldering.
MATERIALS
COVER:
Stainless Steel.
TERMINALS: Brass with silver plating.
BASE:
UL94V-0 Nylon, High Temperature Thermoplastic.
Color:Black

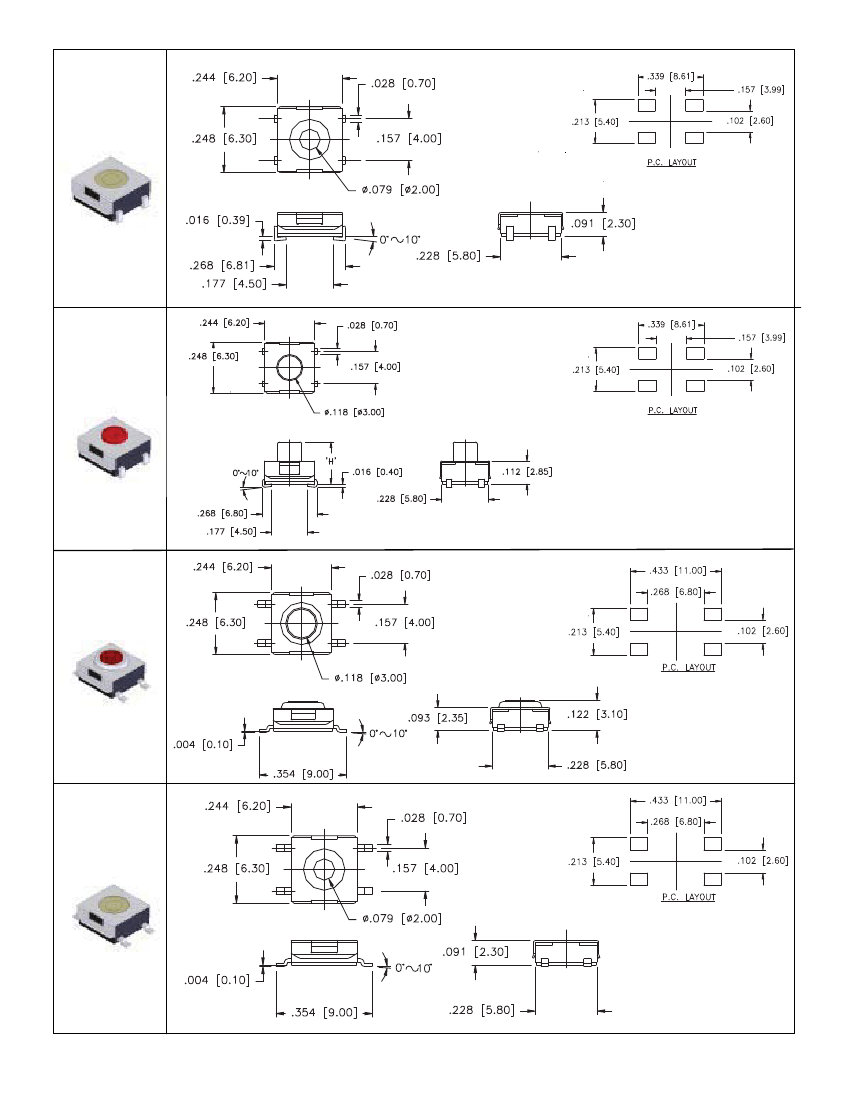

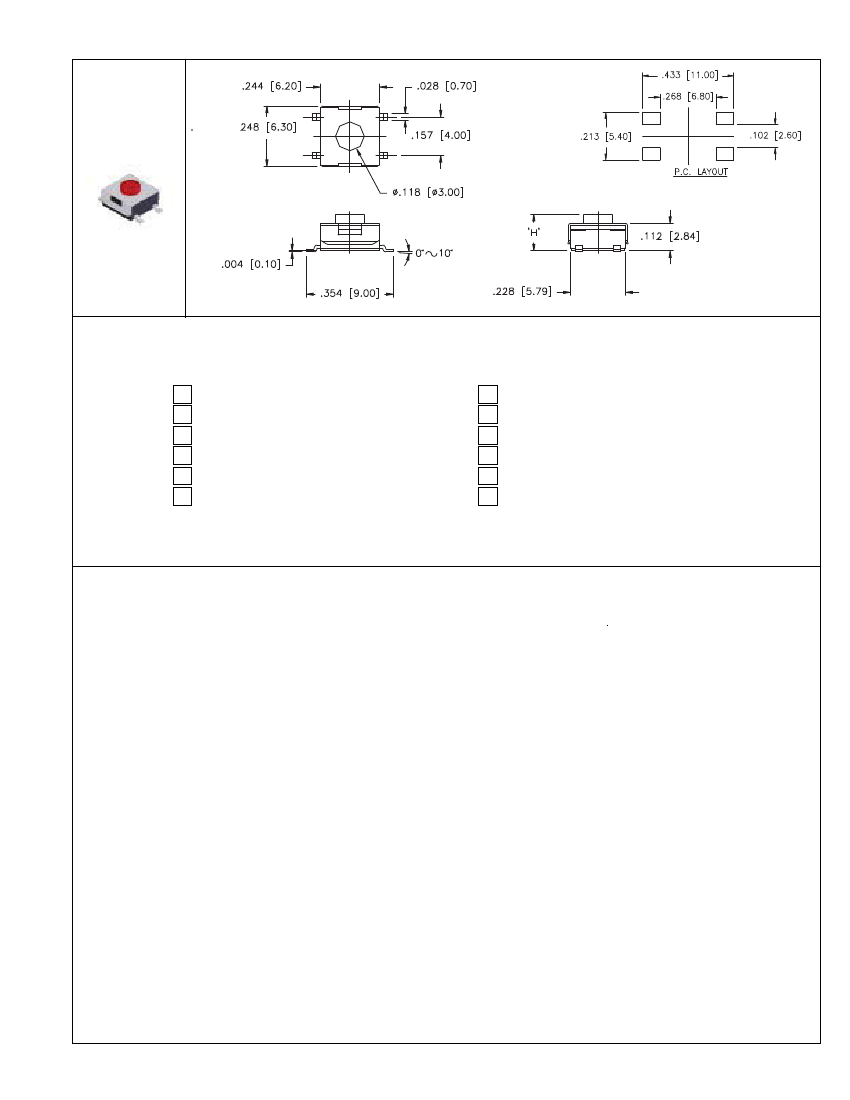

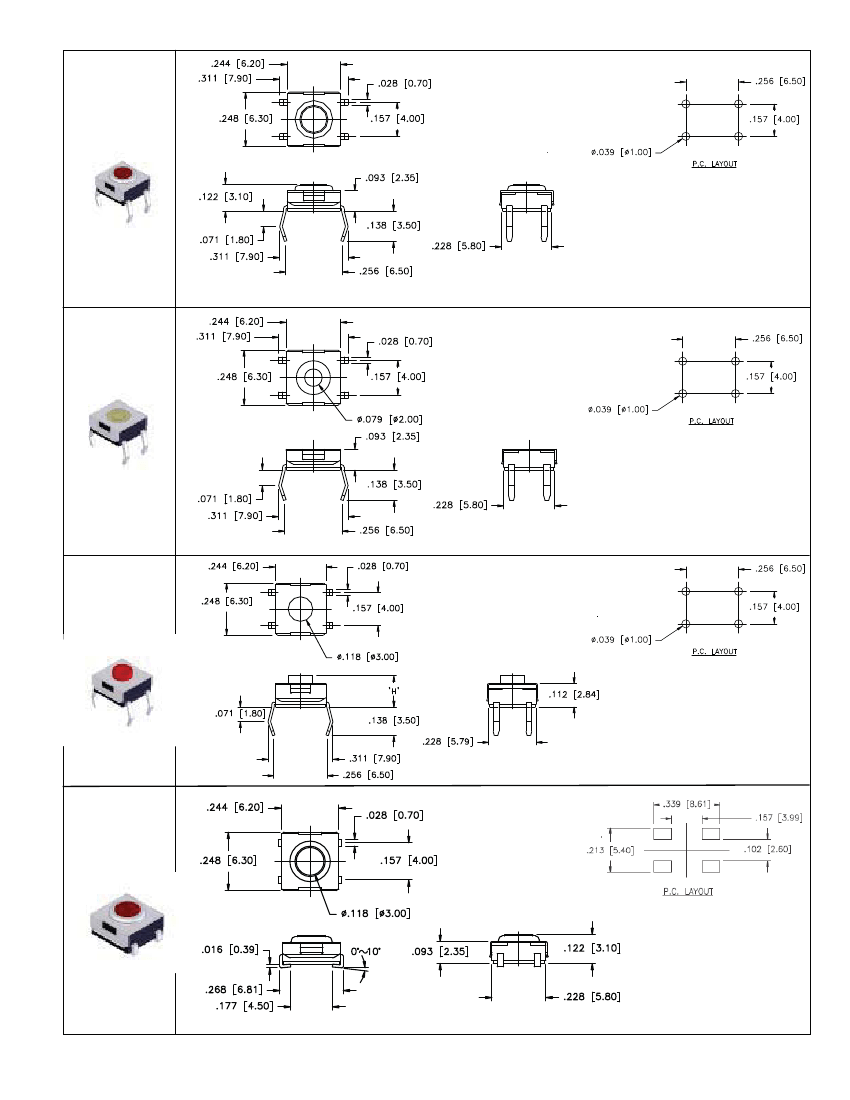

ADTSHW66N
ADTSMW66N
ADTSJW66N
ADTSHW68S
ADTSMW68S
ADTSJW68S
ITEM NO.
STEM
ADTS(H)MW69,65N (R)T ADTS(H)MW67N(R)T
ADTSJW69,65N (R)T
ADTSJW67N(R)T
Silicone Rubber
Silicone Rubber
None
None
Nylon
ITEM NO.
STEM
High-Temp.
None
Thermoplastic
Nylon UL 94V-0
Color: Brown(N), 160gf
TEFLON (Standard)
ADHESIVE TAPE TEFLON
KAPTON (V-option)
Brass with
Brass with
METAL STEM
Nickel plating
Nickel plating
FILLER
CONTACT
None
None
Phosphor bronze with silver cladding (Standard)
Stainless steel (V-option)
ADHESIVE TAPE None
METAL STEM
FILLER
CONTACT
None
None
M
Phosphor bronze with
silver cladding(Standard) Stainless Steel
Stainless steel(V-option)
GENERAL SPECIFICATIONS
ELECTRICAL
Electrical life:
500,000 cycles for ADTS
100,000 cycles for ADTS
W 69, 67N(R)T, 65N(R)T, 64N(R)
W 66N,68S
Rating:
Contact resistance:
Insulation resistance:
Dielectric Strength:
Contact Arrangement:
MECHANICAL
Stop Strength:
Stroke:
50 mA,12 VDC.
100 m
illiohms
max.
100 megohms min. 500 VDC.
250 VAC /1 minute.
1 pole 1 throw.
3kgf max, continuous vertical static load.
+ 0.2 mm
66N, 68S
0.25 - 0.1 mm
0.6 + 0.2 mm, 69, 67T
0.45 + 0.2 mm, 69, 67, 65N(R), 65T, 64, J=64N(R)
-25ºC to +70ºC
Operation Temperature Range:
Storage Temperature: -30ºC to +80ºC
Shock Resistance: 50G per method 213B, MIL - STD - 202F
Vibration Resistance: Passes method 201A, MIL - STD - 202F
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SOLDERING PROCESSES
HAND SOLDERING:
WAVE SOLDERING:
350ºC max. for 5 seconds max. (30 watt iron max).
260ºC max. for 5 seconds max.
REFLOW SOLDERING: 255ºC max.(see profile)
CIRCUIT
HOW TO ORDER
M
ADTS
W
V
B = Tube Package
T/R = Tape & Reel
= Bulk ( J Type only)
V = Lead Free Solderable
Color Of Stem For Operating Force:
N = Brown, 160gf ( 66N )
180gf ( 69N. 67N, 65N, 64)
S = Silver, 160gf
R = Red, 260gf
T = Transparent, 360gf (69T, 67T, 65T )
Dimension H:
64 = 4.5mm ( N, R )
65 = 3.5mm ( N, R, T )
66 = 3.1mm ( N )
67 = 5.2mm ( N, R, T )
68 = 2.3mm ( S )
69 = 3.8mm ( N, R, T )
H: Through Hole Terminals
J: Surface Mounting Type
M: Surface Mounting Type
APEM
, 63 NECK ROAD, HAVERHILL, MA USA 01835 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
