SPRING-LOADED
CONNECTORS
SERIES 811 & 813 • 2,54 GRID SURFACE MOUNT, LOW PROFILE •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, available in five heights from 3,48 to 5,99, supplied
in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle
life durability
•
Pistons have a long stroke relative to the low profile of the assembly
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 811 & 813 series, contact styles 1 through 4, are available on 32mm wide carrier tape
and fitted with vacuum pick-up clips for automated pick and place assembly. Tape and Reel
packaging per EIA-481. See page 12 for strip lengths available and ordering information
SINGLE ROW Series 811
Number of Pins X 2,54
2,54
2,54
ORDERING INFORMATION
Single Row Series 811
811-22-0XX-30-00X101
Stroke
1,07 DIA.
Specify number of contacts
01-64
Specify contact style
0-4
Stroke
B
A
1,8
2,79
Double Row Series 813
813-22-0XX-30-00X101
Specify number of contacts
04-72
CONTACT STYLE
0
1
2
3
4
INITIAL HEIGHT A
3,48
4,50
5,0
5,51
5,99
Specify contact style
0-4
MAX. STROKE B
0,99
1,14
1,39
1,39
1,39
For 811 and 813 Tape & Reel packaging, see page 12
B
A
Style 0 only
0,41
1,83 DIA.
DOUBLE ROW Series 813
Number of Pins X 2,54 / 2
2,54
5,08
2,54
Style 0 only
B
A
1,8
2,54
1,07 DIA.
B
A
2,79
0,41
1,83 DIA.
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 7 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm
gold over
2,54μm
nickel
Spring: Beryllium copper-plated 0,25μm
gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (B/2): 60 grams
Durability: 1,000,000 cycles
Coplanarity: 0,13 (Single Row up to 10 pins; Double Row up to 20 pins),
For higher pin counts, contact Technical Support
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW
max.
RoHS - 2
Insulation resistance: 10,000MW
min.
2011/65/EU
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
Stroke
Stroke
SPRING-LOADED
CONNECTORS

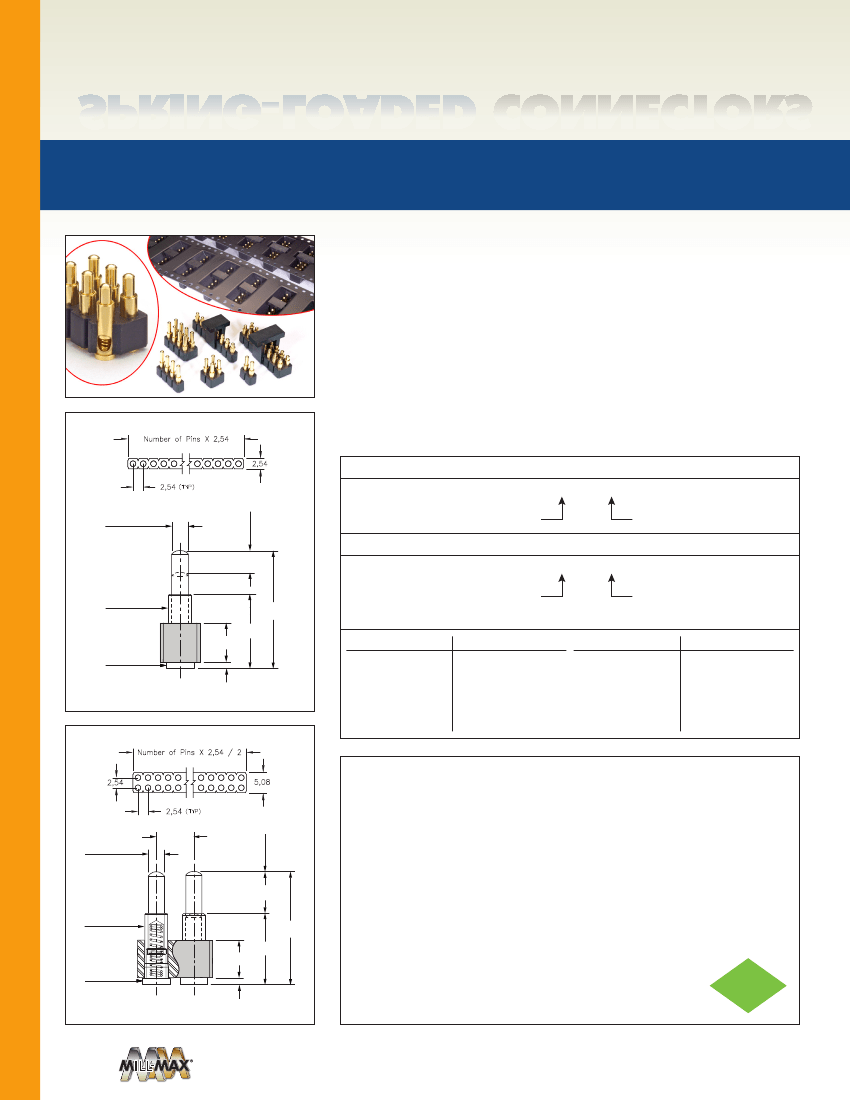

SERIES 812 & 814 • 2,54 GRID SURFACE MOUNT, MID PROFILE •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, available in ten heights from 6,48 to 10,92, supplied
in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle
life durability
•
Extended body provides greater bearing surface for increased strength & plunger protection
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 812 & 814 series, contact styles 0 through 9, are available on 32mm or 44mm wide carrier
tape and fitted with vacuum pick-up clips for automated pick and place assembly. Tape and
Reel packaging per EIA-481. See page 12 for strip lengths available and ordering information
SINGLE ROW Series 812
Number of Pins X 2,54
2,54
2,54
ORDERING INFORMATION
Single Row Series 812
812-22-0XX-30-00X101
1,07 DIA.
Stroke
Specify number of contacts
02-64
Specify contact style
0-9
Double Row Series 814
814-22-0XX-30-00X101
Specify number of contacts
04-72
A
1,4
1,5 DIA.
5,03
2,79
1,83 DIA.
0,41
Specify contact style
0-9
CONTACT STYLE
5
6
7
8
9
INITIAL HEIGHT A
8,89
9,4
9,91
10,41
10,92
For 812 and 814 Tape & Reel packaging, see page 12
CONTACT STYLE
0
1
2
3
4
INITIAL HEIGHT A
6,48
6,99
7,49
8,0
8,51
DOUBLE ROW Series 814
Number of Pins X 2,54 / 2
PAGE 8 | SPRING-LOADED CONNECTORS
2,54
5,08
2,54
1,07 DIA.
1,5 DIA.
5,03
2,79
1,83 DIA.
0,41
Stroke
2,54
1,4
A
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm
gold over
2,54μm
nickel
Spring: Beryllium copper-plated 10μm
gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (0,7): 60 grams
Durability: 1,000,000 cycles
Coplanarity: 0,13 (Single Row up to 10 pins; Double Row up to 20 pins),
For higher pin counts, contact Technical Support
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW
max.
RoHS - 2
Insulation resistance: 10,000MW
min.
2011/65/EU
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
SPRING-LOADED
CONNECTORS

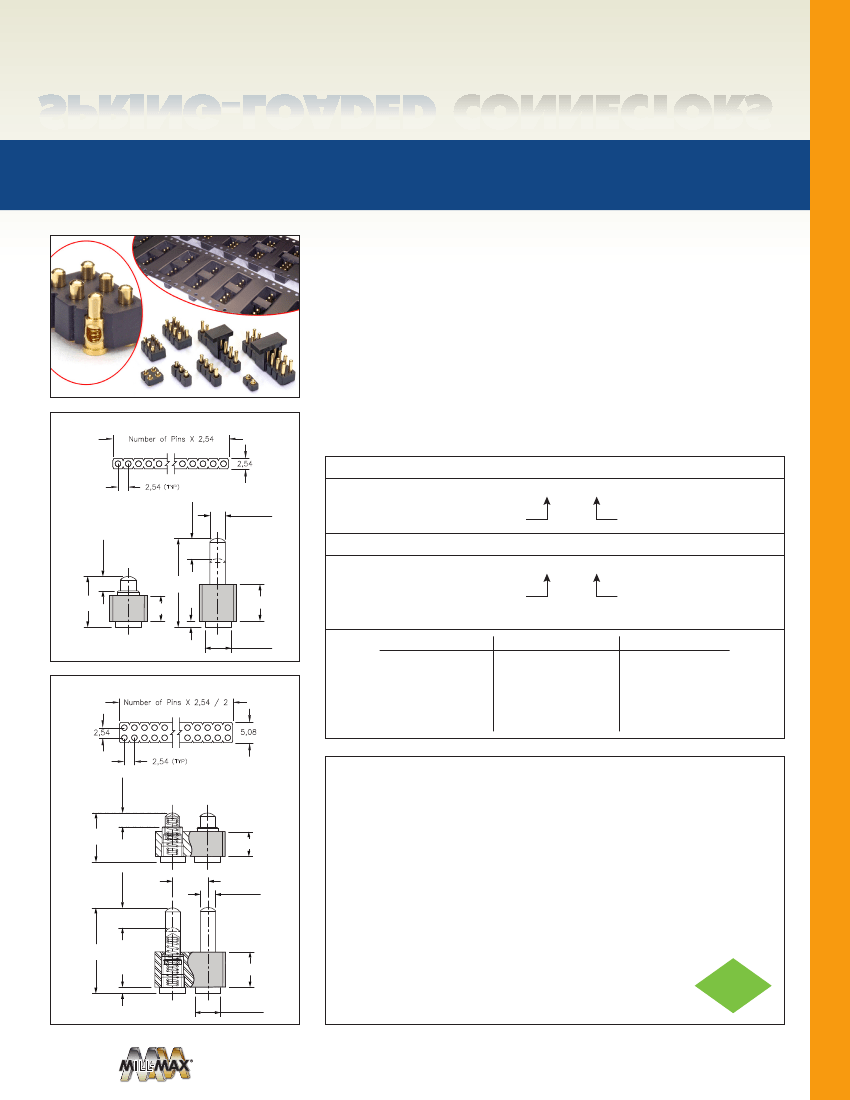

SERIES 819 & 820 • 2,54 GRID SURFACE MOUNT, LONG STROKE •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, available in a height of 7,32, supplied in single and
double row contact strips
• Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle
life durability
• Pistons have a 1,14 mid. stroke and a 2,29 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 819 & 820 series contact strips are designed for placement onto a Ø 2,08 solder pad
prior to reflow soldering
SINGLE ROW Series 819
Number of Pins X 2,54
2,54
2,54
•
Tape and Reel packaging available, contact Technical Support
ORDERING INFORMATION
Single Row Series 819
819-22-0XX-30-001101
Specify number of contacts
01-64
1,07 DIA.
Max.
Stroke
2,29
Double Row Series 820
1,5 DIA.
5,03
2,79
1,83 DIA.
0,41
7,32
820-22-0XX-30-001101
Specify number of contacts
04-72
DOUBLE ROW Series 820
Number of Pins X 2,54 / 2
2,54
5,08
2,54
1,07 DIA.
Max.
Stroke
2,54
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (1,14): 60 grams
Durability: 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW
max.
Insulation resistance: 10,000MW
min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
2,29
1,5 DIA.
5,03
7,32
2,79
1,83 DIA.
0,41
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 9 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm
gold over
0,25μm
nickel
Spring: Beryllium copper-plated 0,25μm
gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Technical Specifications
SPRING-LOADED
CONNECTORS

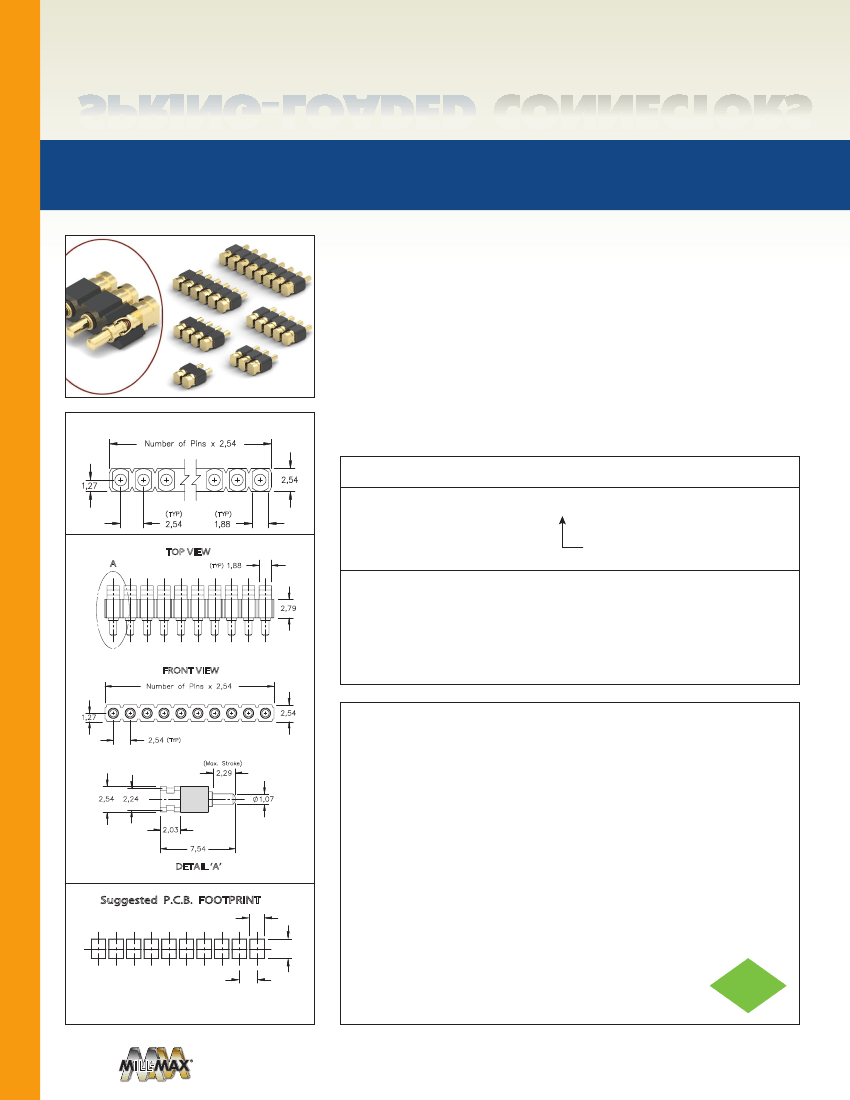

SERIES 810 • 2,54 GRID HORIZONTAL SURFACE MOUNT •
SINGLE ROW STRIPS
• Modular contacts for use on 2,54 grid, supplied in single row contact strips. Piston action
is parallel to the board surface
• Ideal for daisy chaining of P.C.B.’s when mated with right angle target connectors (series
399...10-008) or for mating boards in a perpendicular orientation
• Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle
life durability
• Pistons have a 1,14 mid. stroke & 2,29 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• 810 series contact strips are designed for manual placement onto solder pads
SINGLE ROW Series 810
Number of Pins x 2,54
ORDERING INFORMATION
Single Row Series 810
810-22-0XX-40-001101
TOP VIEW
A
(TYP)
Specify number of contacts
01-10
1,88
2,79
FRONT VIEW
Number of Pins x 2,54
1,27
2,54
(TYP)
2,54
(Max. Stroke)
PAGE 10 | SPRING-LOADED CONNECTORS
2,29
2,54
2,24
1,07
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm
gold over
2,54μm
nickel
Spring: Beryllium copper-plated 0,25μm
gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (1,14): 60 grams
Durability: 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW
max.
Insulation resistance: 10,000MW
min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
2,03
7,54
DETAIL ‘A’
Suggested P.C.B. FOOTPRINT
2,13
2,54
2,54
Coplanarity 0,13. For Pin Counts >10 positions
consult Technical Support
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
SPRING-LOADED
CONNECTORS
SERIES 812 & 814 • 2,54 GRID SURFACE MOUNT WITH ALIGNMENT PINS •
SINGLE AND DOUBLE ROW STRIPS
• Modular contacts for use on 2,54 grid, available in ten heights from 6,48 to 10,92, supplied
in single and double row contact strips
• Precision-machined piston / base and gold-plated components assure a 1,000,000 cycle
life durability
• Pistons have a 0,7 mid stroke & 1,4 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for surface mount processes
• Both 812 & 814 series contact strips are designed for manual placement, Ø 0,56±0,08
plated through-holes in the circuit board are required for the alignment pins prior to
intrusive reflow soldering
SINGLE ROW Series 812
Number of Pins X 2,54
2,54
2,54
ORDERING INFORMATION
Single Row Series 812...01X101
812-22-0XX-30-01X101
Stroke
Specify number of contacts
03-64
Specify contact style
0-9
1,07 DIA.
1,5 DIA.
0,41
1,83 DIA.
0,43 DIA.
1,4
Double Row Series 814...01X101
5,03
A
814-22-0XX-30-01X101
Specify number of contacts
06-72
Specify contact style
0-9
CONTACT STYLE
5
6
7
8
9
INITIAL HEIGHT A
8,89
9,4
9,91
10,41
10,92
2,79
1,75
CONTACT STYLE
0
1
2
3
4
INITIAL HEIGHT A
6,48
6,99
7,49
8,0
8,51
2,54
(TYP)
DOUBLE ROW Series 814
Number of Pins X 2,54 / 2
2,54
5,08
2,54
Stroke
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm
gold over
2,54μm
nickel
Spring: Beryllium copper-plated 0,25μm
gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height (A): 25 grams
Spring force @ mid stroke (0,7): 60 grams
Durability: 1,000,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW
max.
Insulation resistance: 10,000MW
min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
1,07 DIA.
1,5 DIA.
0,41
1,83 DIA.
0,43 DIA.
1,4
2,79
5,03
A
1,75
2,54
(TYP)
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 11 | SPRING-LOADED CONNECTORS
Technical Specifications
