FEA121700G1S0N2K1A1A4A2B4A1: DescriptionSensor/Transducer,; CategoryThe sensor; File Size9MB，16 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric View All

FEA121700G1S0N2K1A1A4A2B4A1 Overview

Sensor/Transducer,

FEA121700G1S0N2K1A1A4A2B4A1 Parametric

Parameter Name	Attribute value
Objectid	145181562350
Reach Compliance Code	unknown
Other features	IP 67; IP68
body height	80 mm
Body length or diameter	100 mm
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Output range	4-20mA
Output type	ANALOG CURRENT
Package body material	ALUMINIUM
Package Shape/Form	CIRCULAR
Sensor/temperature sensor type	LIQUID FLOW SENSOR
Maximum supply voltage	26.4 V
Minimum supply voltage	16.8 V

FEA121700G1S0N2K1A1A4A2B4A1 Preview

—

A B B ME A SUREME NT & ANA LY TICS | DATA SHE ET

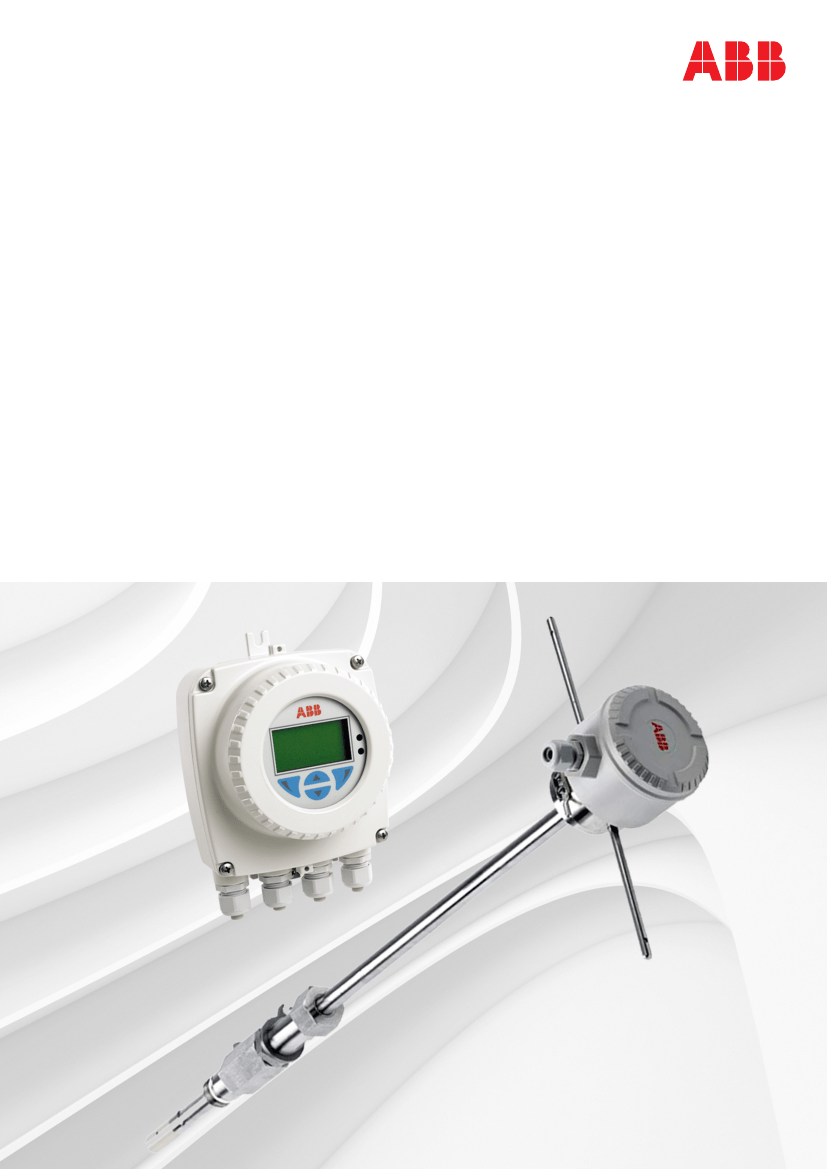

AquaProbe FEA100

Insertion-type electromagnetic flow

sensor with WaterMaster transmitter

—

Measurement made easy

Maximum performance,

minimum hassle

Suitable for permanent or temporary installation

• total user flexibility

The most stable transmitter in the world

• self-calibrating transmitter and ultra-low temperature coefficient for

highest accuracy

One solution for all your needs

• designed for use in all clean water applications

Quick transmitter exchange

• revolutionary data storage enables transmitter interchange /

commissioning without reconfiguration

Advanced infrared service port

• supports simultaneous and parallel operation of HART, remote HMI,

cyclic data output and parameter dump

OIML R49 permanent self-checking

• type P approved transmitter

• continuous self-checking of flow sensor and transmitter ensures

highest accuracy / long term performance

3-Year material defect warranty (AquaProbe sensor)

'Hot tap' capability

• enables installation with no interruption to water supply

AQ UA P R OB E F EA 100

I N S ER T I ON F LOW S E NS O R W IT H WAT E RM A ST E R T R AN SMI T TE R | D S/F EA 100- EN RE V. B

—

AquaProbe FEA100

The AquaProbe FEA100 extends the capability of the ABB

AquaProbe flowmeter by bringing together the proven

AquaProbe flow sensor with the innovative WaterMaster

transmitter.

AquaProbe has been designed, in close consultation with the

water industry, as an economic alternative to full-bore

metering. It comprises an electromagnetic sensing head

mounted on the end of a support rod. The sensing head can

be installed in existing pipelines without the need for the

major excavations or alterations to pipework associated with

full-bore meters. It can be fitted without interrupting the

water supply and can be removed easily for periodic

calibration or inspection.

AquaProbe is designed for installation in existing pipelines by

means of a small valved tapping. It is normally installed with

the sensing head on the pipe centreline, but may be located

at the critical position (the mean velocity position) a distance

of 1/8 of the pipe diameter away from the wall.

It provides an accurate local measurement of the water

velocity and, provided the flow profile is developed fully, a

good flow volume measurement.

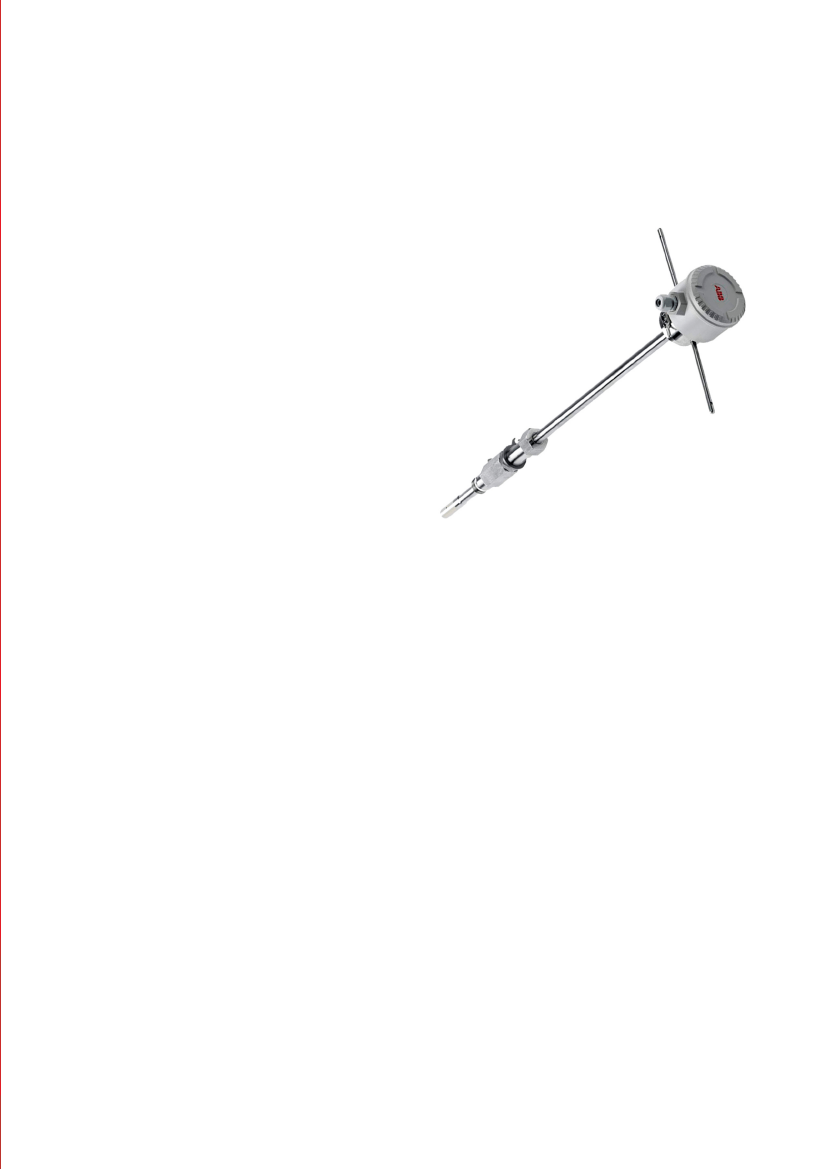

Figure 1

AquaProbe flow sensor

The high sensitivity of AquaProbe enables it to traverse the

pipe to establish the flow profile and so identify hydraulic

problems in complex systems or ensure maximum accuracy

from an AquaProbe that has been installed in a non-ideal

location.

If the profile is not fully developed, a traverse of the pipe can

be performed, enabling an accurate flow volume

measurement to be obtained in non-ideal networks.

Key features include the wide flow range with the minimum

measured velocity (well below that detected by insertion

turbine or DP devices), no moving parts resulting in increased

reliability and reduced maintenance.

AquaProbe is ideal for permanent installation to monitor

potable or clean water flow. Also through the provision of

multiple tappings on the supply pipelines, AquaProbe can be

used as a portable survey tool to assist in the building of an

accurate network model, locate leaks and check the operation

of installed full-bore meters.

Based on ABB-proven technology, AquaProbe is supported by

the expertise of ABB, the world’s leading flow meter

manufacturer with many pioneering advances in water flow

metering over the last decade – for example, AquaMag™,

WaterMaster™, AquaProbe™ and CalMaster™.

ABB operate nationally- and internationally-accredited flow

calibration facilities in the UK, Germany, USA, Australia, China

and India. We also offer comprehensive, locally based before-

and after-sales service.

AQ UA P RO B E F E A 10 0

I N S E R T I O N F LOW S E N S O R W I T H WAT E RMA STER T R A NS MIT TER | D S/F EA 100- EN REV. B

—

Comprehensive features

A wide range of features and user benefits are built into

WaterMaster as standard:

• bi-directional flow

• unique, self-calibrating transmitter (patent approval in

progress) for the ultimate in stability and repeatability

• OIML R49 Type P continuous self-checking transmitter,

with alarms, ensures both flow sensor and transmitter

accuracy

• true electrode and coil impedance measurement

• comprehensive simulation mode

• universal switch mode power supply (options are

available for AC and DC supplies)

• comprehensive self-diagnostics compliant with

NAMUR NE107

• programmable multiple alarm capability

• HART protocol over 4 to 20 mA and infrared link

• 3 configurable pulse / frequency and alarm outputs

• advanced infrared service port supports remote HMI,

HART, cyclic data out and parameter dump

• read-only switch and ultra-secure service password for

total security

• PROFIBUS DP v1 option

Easy Setup

Exit

Select

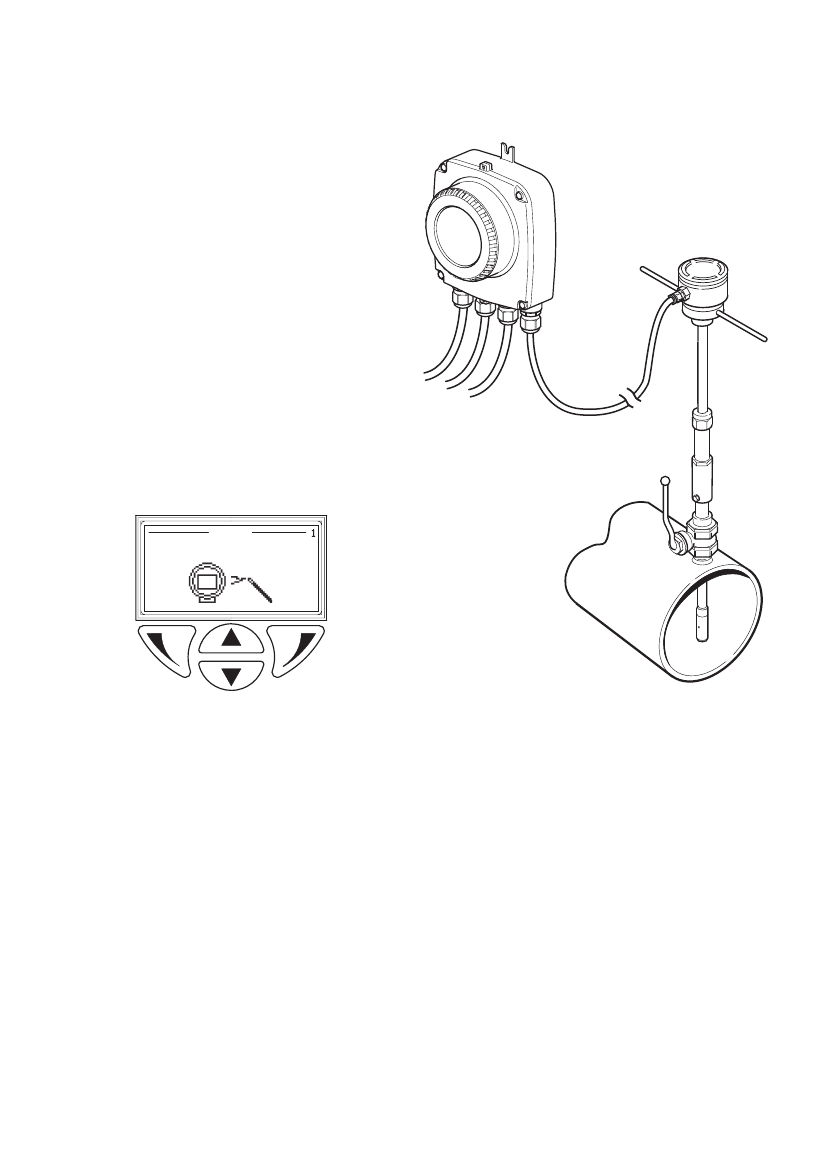

Figure 2

Comprehensive display

Figure 3 FEA100 remote system

AQ UA P R OB E F EA 100

I N S ER T I ON F LOW S E NS O R W IT H WAT E RM A ST E R T R AN SMI T TE R | D S/F EA 100- EN RE V. B

—

Support software

AquaProbe FEA100 also has on-board remote communication

ability, such as interfacing to PROFIBUS DP and HART, that

enables the user to collect data remotely.

ABB also supply ScrewDriver, an enhanced software that

provides users with all-round improved profile analysis, flow

profiling set-up, downloading and display options when used

in conjunction with a WaterMaster transmitter.

—

Improved performance through

Digital Signal Processing (DSP)

Advanced Digital Signal Processing (DSP) gives improved

performance and enables real-time measurements for

maximum reliability.

DSP enables the transmitter to separate the real signal from

the noise, providing high quality outputs especially in harsh

environments involving vibration, hydraulic noise and

temperature fluctuation.

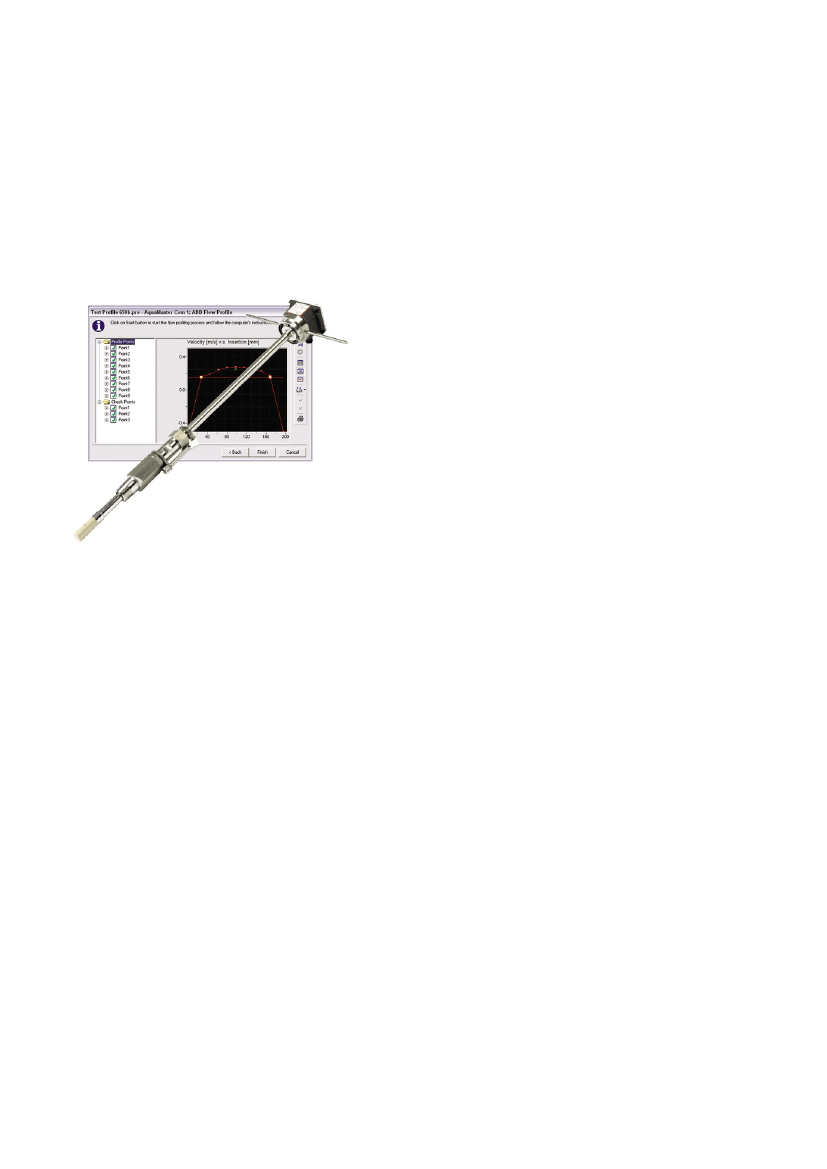

Figure 4

PC software support

Intuitive navigation and configuration

The user-friendly interface enables fast and simple data entry

for all parameters. 'Easy Setup' guides the operator step-by-

step through the menu to set parameters as quickly as

possible, simplifying the commissioning phase.
