208458030003049

Description
Board Euro Connector, 30 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector
File Size118KB，1 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

208458030003049 Overview

Board Euro Connector, 30 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, ROHS COMPLIANT

208458030003049 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresSTANDARD: DIN 41612, POLARIZED
body width0.528 inch
subject depth0.457 inch
body length1.563 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.834 N
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number8458
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.638 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts30
UL Flammability Code94V-0
Evacuation force-minimum value.139 N
Base Number Matches1

Preview

Download Datasheet

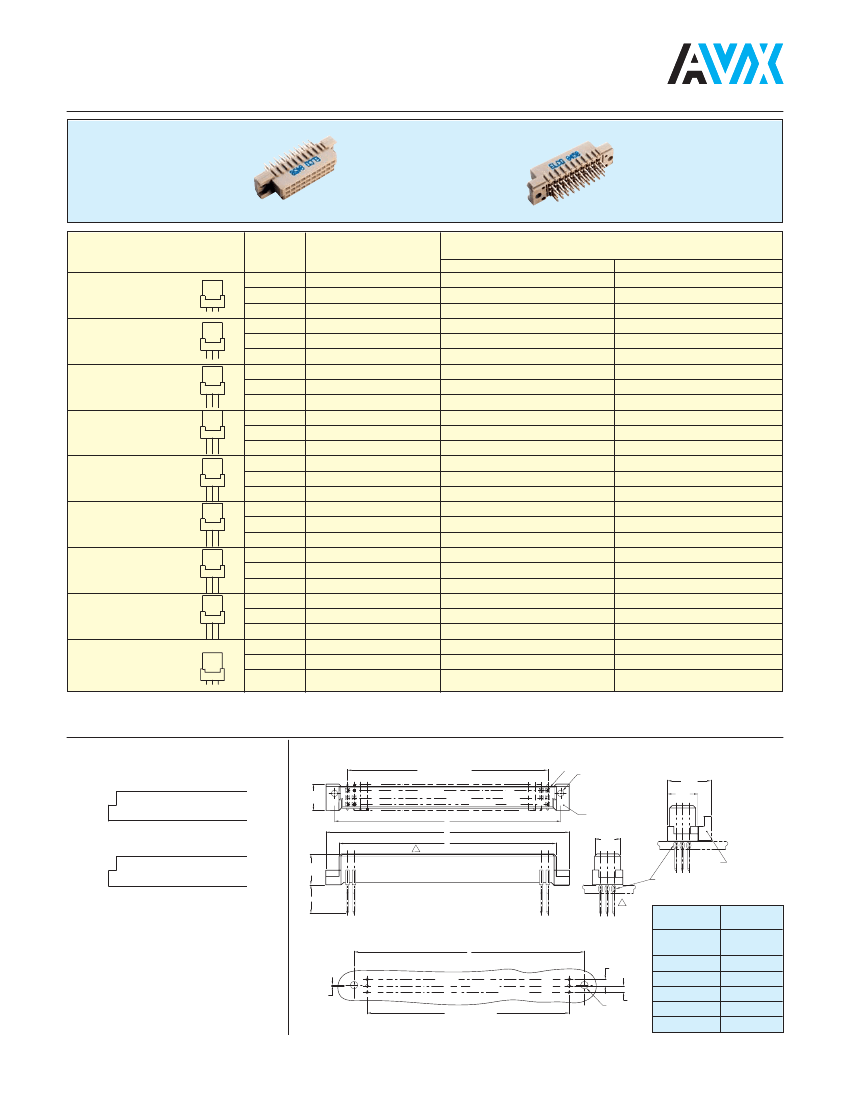

Female Style 1/3 C Press-Fit
Series 8458 – 3 rows (3 x 10)
Contact Design
and
Termination Length
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
5.3 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
9.3 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
16.2 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
23.2 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
13.2 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
12.0 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
20.3 mm (Y) Straight
for
≥
2.4 mm PCB's
0.6 x 0.6 mm Post Profile
17.0 mm (Y) Straight
for 1.6 mm PCB's
0.6 x 0.6 mm Post Profile
3.0 mm (Y) Straight
Number of
Contacts
30
20
30
20
30
20
30
20
30
20
30
20
30
20
30
20
30
20
Loading Description
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
a + b + c fully loaded
a + c fully loaded
Part Number
Performance classes according to DIN 41612
II
I
20 8458 030 001 025
20 8458 030 001 026
20 8458 030 002 025
20 8458 030 002 026
20 8458 030 003 025
20 8458 030 003 026
20 8458 030 004 025
20 8458 030 004 026
20 8458 030 005 025
20 8458 030 005 026
20 8458 030 009 025
20 8458 030 009 026
20 8458 030 010 025
20 8458 030 010 026
20 8458 030 012 025
20 8458 030 012 026
20 8458 030 031 025
20 8458 030 031 026
20 8458 030 001 049
20 8458 030 001 050
20 8458 030 002 049
20 8458 030 002 050
20 8458 030 003 049
20 8458 030 003 050
20 8458 030 004 049
20 8458 030 004 050
20 8458 030 005 049
20 8458 030 005 050
20 8458 030 009 049
20 8458 030 009 050
20 8458 030 010 049
20 8458 030 010 050
20 8458 030 012 049
20 8458 030 012 050
20 8458 030 031 049
20 8458 030 031 050
NB: Alternative Prefix Variations Available: 21, 22 & 23, please refer to Page 10.
Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.
Installed using Flat Rock method (see page 66)
LOADING DESCRIPTION
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
DIMENSIONS
A EQ.SP. @ 2.54 [0.100] = B
1
2.54 DIA
[0.100]
13.4
[0.528]
10.5
[0.413]
ROW C
MOUNTING EAR
D
ROW A
10.5
[0.413]
ROW B
c
b
a
30 contacts, rows a + b + c fully loaded
4
C
E
0
8.51
[0.335]
●
✕
●
●
✕
●
●
✕
●
●
✕
●
●
✕
●
c
b
a
KEYING
11.6
[0.457]
COMPLIANT SECTION
20 contacts, rows a + c fully loaded
Y
3
Unit: millimeters (inches)
For Y dimension see contact design
No. Contact
Positions
D
30
3 (3 x 10)
9
22.86 (0.900)
39.70 (1.563)
34.75 (1.368)
29.06 (1.144)
Contact
Rows
2.54
[0.100]
A
B
C
D
E
ROW A
ROW B
0.30
[0.010]
ROW C
2.84 DIA.
[0.112]
2.54
[0.100]
A EQ SP @ 2.54 [0.100] = B
HOLE PATTERN
72
