Note: Find additional explanation of operating range in Supplement section.
Pushbuttons
Programmable Illuminated PB
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Keylocks
Angle of Throw:
10 milliohms maximum for silver; 20 milliohms maximum for gold
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
50,000 operations minimum
25,000 operations minimum
On-to-On Position
Off-to-On Position
Single Pole
3.19N
3.92N
Double Pole
4.41N
7.06N
20°
Materials & Finishes
Bushing:
Housing:
Mounting Bracket:
Movable Contacts:
Stationary Contacts:
Lamp Contacts:
Base:
Switch Terminals:
Lamp Terminals:
Brass with nickel plating
Stainless steel
Steel with tin plating
Silver alloy or silver alloy with gold plating
Silver with silver plating or copper or brass with gold plating
Phosphor bronze
Diallyl phthalate (UL94V-0)
Copper with silver or gold plating
Brass with silver or gold plating
Slides
Rotaries
Tactiles
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Tilt
–10°C through +55°C (+14°F through +131°F)
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Installation
Touch
Mounting Torque:
Soldering Time & Temp:
Cleaning:
Indicators
1.47Nm (13 lb
•
in) for double nut; .67Nm (6 lb
•
in) for single nut
Wave Soldering (PC version): See Profile B in Supplement section.
Manual Soldering: See Profile B in Supplement section.
Note: Lever must be in center position while soldering.
PC mountable device is not process sealed. Hand clean locally using alcohol based solution.
Standards & Certifications
Flammability Standards:
UL:
CSA:
Supplement
UL94V-0 base
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” to end of part number to order UL recognized switch.
Single pole with synchronous circuits & single color LEDs & solder lug or PC recognized at
6A @ 125V AC.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” to end of part number to order CSA certified switch.
All single pole with synchronous circuits & single color LEDs certified at 6A @ 125V AC.
Accessories
A76
www.nkk.com
LED Tipped Toggles
Series M2100
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics

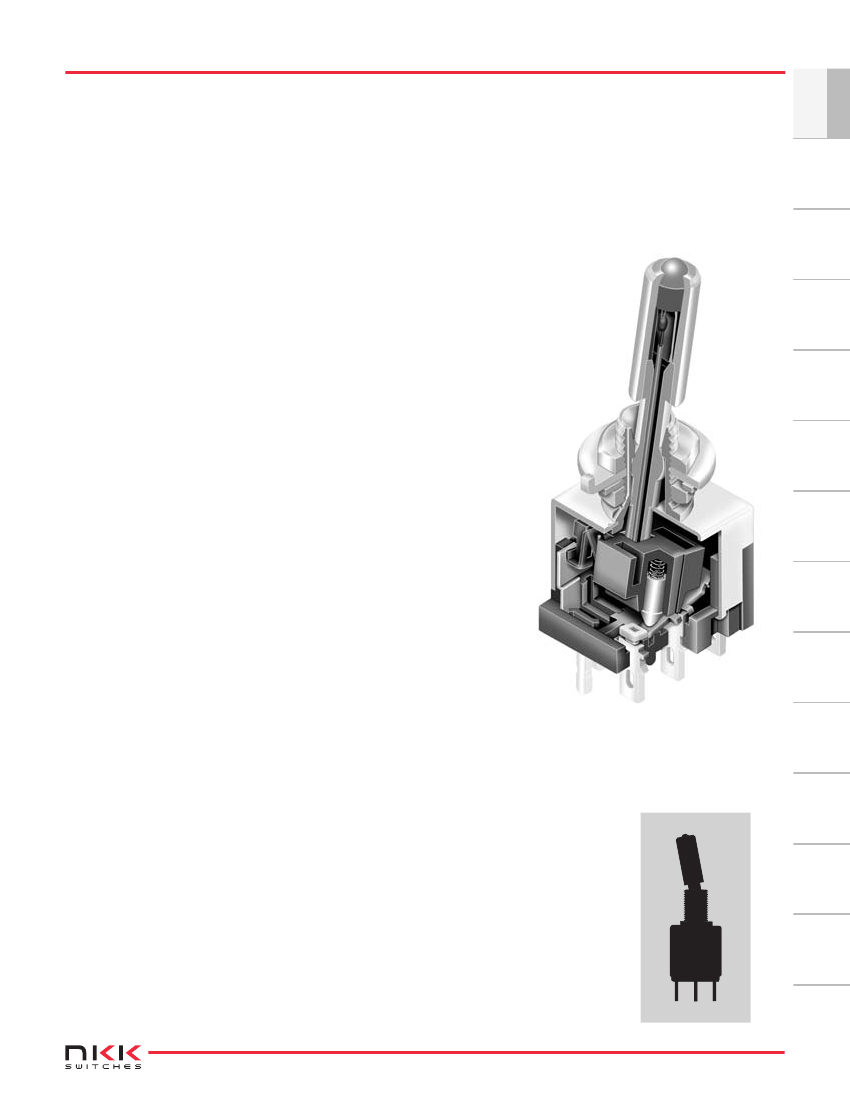

Industry’s first LED illumination at tip of toggle switches.
Single color LEDs of red, yellow, and green, plus bicolor red/green,
to meet varied design requirements.
LEDs can operate independently from or synchronously with
switching operation.
Antijamming feature to protect contacts from damage due
to excessive downward force on the toggle.
High torque bushing prevents the bushing from rotating
or separating from the metal frame during installation.
Stainless steel frame resists corrosion.
Silver contacts are of specially composed alloy for
hardness.
High insulating barriers protect against crossover
in double pole devices.
Terminals are molded in and epoxy sealed to lock
out flux, dust, and other contaminants.
1,500V dielectric strength between switch contacts
and case is accomplished by clinching the frame
away from the terminals.
Actual Size
www.nkk.com
A77
Series M2100
Toggles
LED Tipped Toggles
A
TYPICAL SWITCH ORDERING EXAMPLE
Pushbuttons
Rockers
M21
Poles
1
*
2
SPDT
DPDT
1
2
LED Circuits &
Actuator Types
L
T
Isolated
T
C
W
01
Threaded Bushings
No
Code
/M
1/4–40 Thread
(Inch)
6mm Thread
(Metric)
Contact Materials
& Ratings
W
G
Silver; Rated
6A @ 125V AC
Gold; Rated 0.4VA max
@ 28V AC/DC max
Programmable Illuminated PB
* Available only with
Terminals 01, 02, 03
Synchronous
Circuits
2
ON
ON
NONE
OFF
ON
ON
C
E
F
3
LED Colors
Single Color
Red
Yellow
Green
Bicolor
CF
Red/Green
01
02
03
30
Terminals & Mounting Types
Solder Lug with Threaded Bushing
Quick Connect with Threaded Bushing
Straight PC with Threaded Bushing
Right Angle PC with Smooth Bushing
(available with gold contacts only)
Slides
Rotaries
Keylocks
IMPORTANT:
Switches are supplied without UL & CSA marking unless specified.
UL & CSA recognized only when ordered with marking on the switch.
Specific models, ratings, & ordering instructions are noted on the
General Specifications page.
Tactiles
Tilt
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
Touch
M2112TCW01
Red LED
Indicators
Synchronous LED Circuit
in Actuator
SPDT
ON-NONE-ON
Switch Circuit
Silver Contacts with
6-Amp Rating
1/4–40 Threaded Bushing
Accessories
Solder Lug Terminals
Supplement
A78
www.nkk.com
LED Tipped Toggles
Series M2100

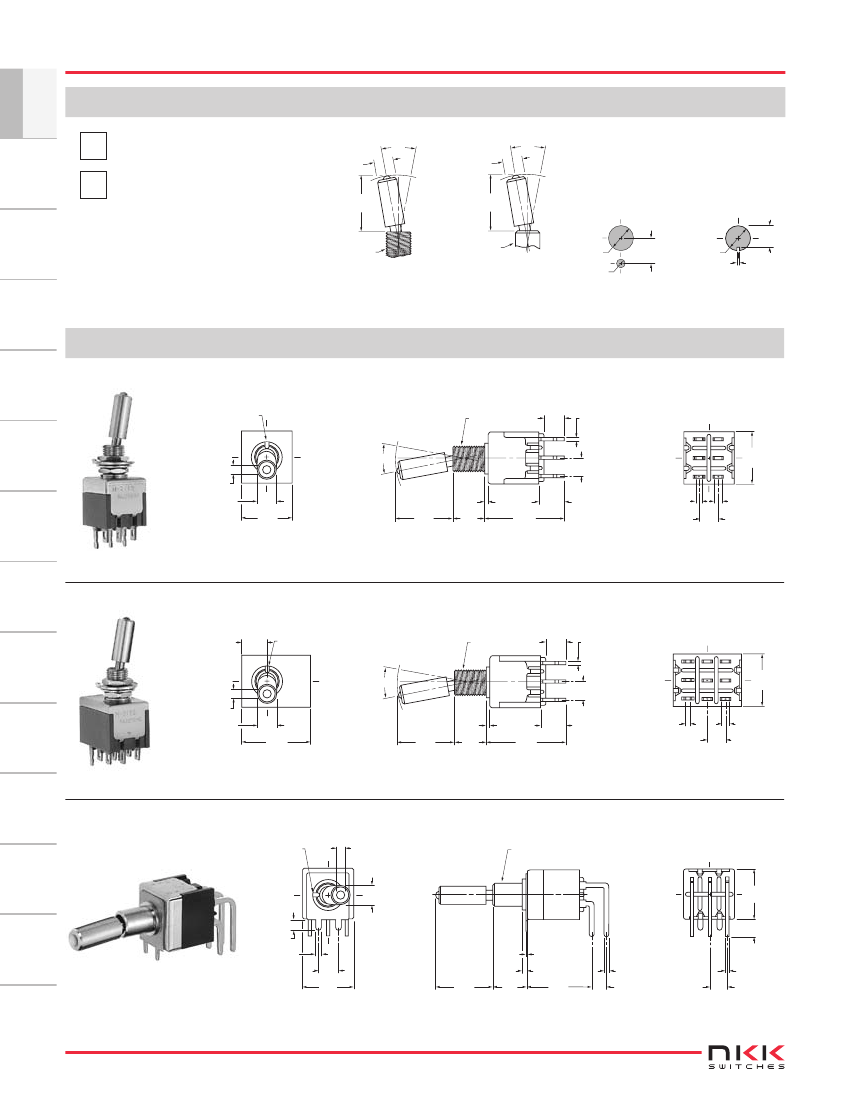

POLES & CIRCUITS & LED ILLUMINATION
Toggle Position & Terminal Numbers
Down
Keyway
A
Schematics
Model
M2112
Pole & Throw
SPDT
ON
2-3
ON
4-6
ON
4-6
Red
5-6
ON
2-3
ON
4-6
ON
4-6
Red
5-6
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
OFF
OPEN
ON
4-6
OFF
OPEN
OFF
OPEN
ON
2-1
ON
4-6
OFF
OPEN
Green
5-4
ON
2-1
ON
4-6
ON
4-6
Green
5-4
LED Circuit
Isolated LEDs
(see schematics)
Connected LED Terminals
Synchronous Single Color LED
Connected LED Terminals
Synchronous Bicolor LED
Connected LED Terminals
L(+)
3
1
4
6
L(-)
3
1
4 COM
(+) Red
6 ( ) Green
Connected Power Terminals
LED Circuit
M2113
SPDT
Isolated LEDs
(see schematics)
Connected LED Terminals
Synchronous Single Color LED
Connected LED Terminals
Synchronous Bicolor LED
Connected LED Terminals
Synchronous
Single Color
LED
2 (COM)
L(+)
3
1
4
6
L(-)
2 (COM)
3
1
6
5 COM (+)
4
External Connection
M2122
DPDT
Connected Power Terminals
LED Circuit
Isolated LEDs
(see schematics)
Connected LED Terminals
Synchronous Single Color LED
Connected LED Terminals
Synchronous Bicolor LED
Connected LED Terminals
ON
2-3 5-6
ON
7-9
ON
7-9
Red
8-9
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
ON
2-1 5-4
ON
7-9
OFF
OPEN
Green
8-7
3
1
6
4
7
9
Isolated
Bicolor LED
3
2 (COM)
5
Red
Green
M2123
DPDT
Connected Power Terminals
LED Circuit
Isolated LEDs
(see schematics)
Connected LED Terminals
Synchronous Single Color LED
Connected LED Terminals
Synchronous Bicolor LED
Connected LED Terminals
ON
2-3 5-6
ON
7-9
ON
7-9
Red
8-9
OFF
OPEN
ON
7-9
OPEN
OFF
OPEN
ON
2-1 5-4
ON
7-9
ON
7-9
Green
8-7
Synchronous
Single Color
LED
3
2 (COM)
5
1
6
4
7
9
OFF
Synchronous
Bicolor LED
3
2 (COM)
5
Red
Green
1
6
4
External Connection
9
8 COM (+)
7
LED COLORS & SPECIFICATIONS
Touch
Supplement
Accessories
Indicators
The electrical specifications shown are determined at a basic temperature of 25°C. LED circuit is isolated and requires an external power source. If the
source voltage exceeds the rated voltage, a ballast resistor is required. The resistor value can be calculated by using the formula in Supplement Section.
The LED is an integral part of the switch
and not available separately.
Bicolor LED is translucent white when unlit.
Single Color
Bicolor
C
Color
Red
25
20
2.1
4
0.33
I
FM
I
F
V
F
V
RM
∆I
F
E
Yellow
30
20
2.1
4
0.40
F
Green
30
20
2.1
4
0.40
–10° ~ +55°C
CF
Red/Green
25
10
1.7/2.0
–––
0.33/0.33
Units
mA
mA
V
V
mA/°C
Maximum Forward Current
Typical Forward Current
Forward Voltage
Maximum Reverse Voltage
Current Reduction Rate Above 25°C
Ambient Temperature Range
www.nkk.com
A79
Tilt
Tactiles
L(+)
L(-)
Slides
1
6
4
7 COM
(+) Red
9 ( ) Green
Rotaries
Isolated
Single Color
LED
2 (COM)
5
L(+)
L(-)
Keylocks
Synchronous
Bicolor LED
Red
Green
Programmable Illuminated PB
Isolated
Bicolor LED
2 (COM)
Red
Green
Pushbuttons
Connected Power Terminals
Isolated
Single Color
LED
2 (COM)
Rockers
Center
Up
Notes: Terminal numbers are not actually on the switch.
