5-104817-2 datasheet, PDF - EEWORLD Datasheet

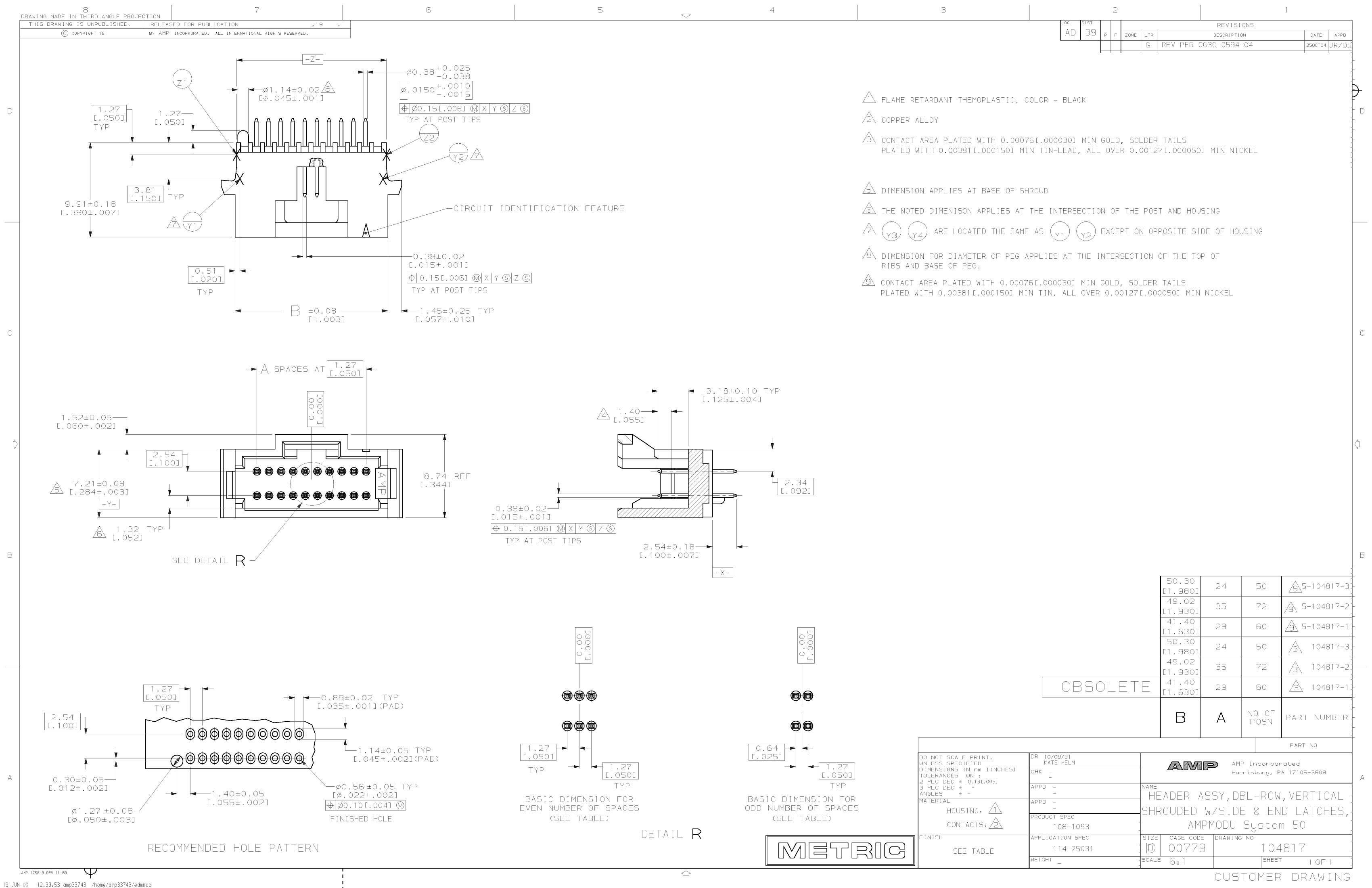

5-104817-2: DescriptionCONNECTOR, 72 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-104817-2 Overview

CONNECTOR, 72 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Objectid	1466316342
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	104817
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	72

	5-104817-2	5-104817-3	5-104817-1	104817-3	104817-1
Description	CONNECTOR, 72 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	60 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	60 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknow	unknown	unknow	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	TIN (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL	TIN LEAD (150) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e0	e0
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	104817	104817	104817	104817	104817
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	72	50	60	50	60
Objectid	1466316342	-	1466316341	-	1466316178
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-
