20-823-45TWR datasheet, PDF - EEWORLD Datasheet

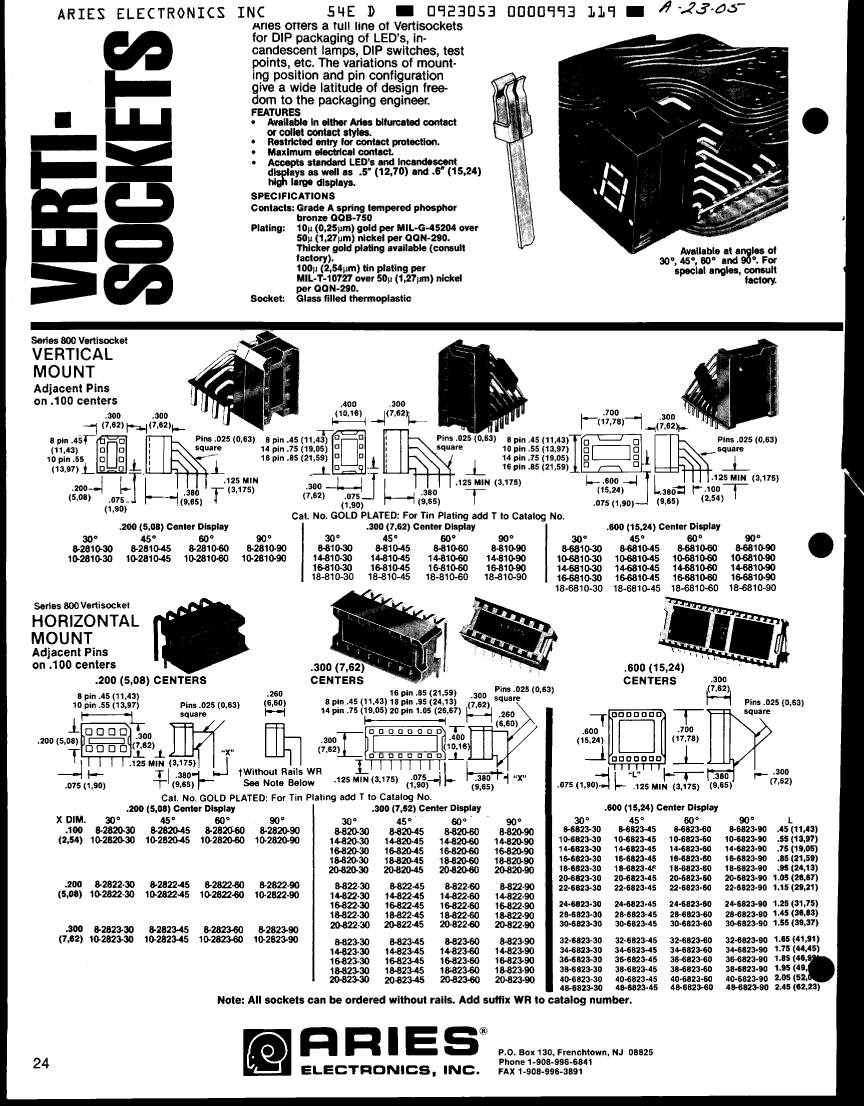

20-823-45TWR: DescriptionIC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size193KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

20-823-45TWR Overview

IC Socket, DIP20, 20 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

Parameter Name	Attribute value
Objectid	1149742576
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	7.13
Other features	WITHOUT RAILS
body width	0.4 inch
subject depth	0.56 inch
body length	1.05 inch
Contact to complete cooperation	SN ON NI
Contact material	P-CUSN
Contact style	SQ PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP20
Shell material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	823
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	20
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
