Network cable - NBC-M 8MS/ 8,0-93C/M 8MS - 1426305
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

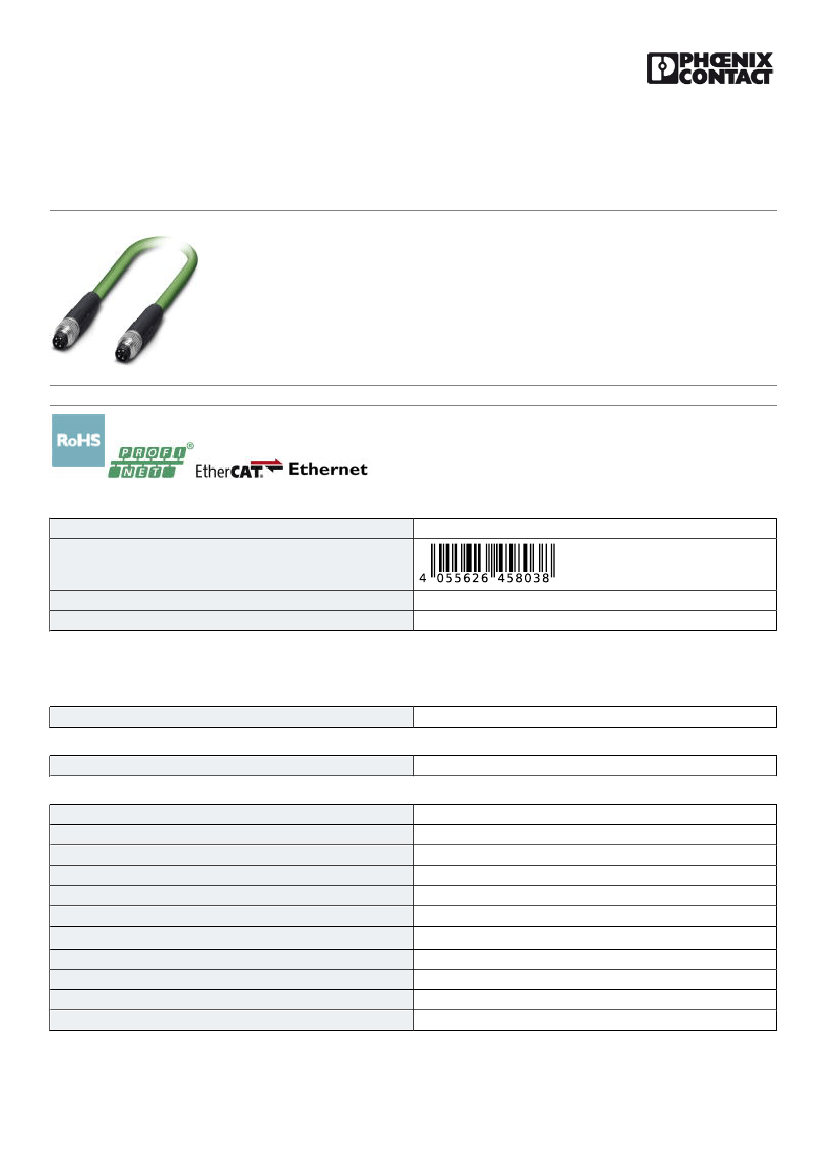

Network cable, Ethernet (100 Mbps), PROFINET (100 Mbps), EtherCAT (100 Mbps), 4-position, PUR/
FRNC halogen-free, green RAL 6018, shielded, Plug straight M8 / IP67, coding: A, on Plug straight M8 / IP67,
coding: A, cable length: 8 m
®
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626458038
85444290
1
Technical data
Dimensions
Length of cable
8m
Ambient conditions
Ambient temperature (operation)
-25 °C ... 90 °C (Plug / socket)
General data
Rated current at 40°C
Rated voltage
Number of positions
Signal type/category
4A
30 V AC
30 V DC
4
Ethernet, 100 Mbps
PROFINET, 100 Mbps
EtherCAT , 100 Mbps
Standards/regulations
Contact material
Contact carrier material
Contact surface material
M8 connector IEC 61076-2-104
CuSn
TPU GF
Ni/Au
01/06/2019 Page 1 / 6
®
https://www.phoenixcontact.com/in/products/1426305
Network cable - NBC-M 8MS/ 8,0-93C/M 8MS - 1426305
Technical data
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Coding
Color
Material (component)
Plug straight M8 / IP67
4
A (Standard)
black
CuSn (Contact)
Ni/Au (Contact surface)
TPU GF (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
≥ 100 MΩ
≥ 100
0.2 Nm
-25 °C ... 90 °C
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Coding
Color
Material (component)
Plug straight M8 / IP67
4
A (Standard)
black
CuSn (Contact)
Ni/Au (Contact surface)
TPU GF (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance
Insertion/withdrawal cycles
Torque
Ambient temperature (operation)
≥ 100 MΩ
≥ 100
0.2 Nm
-25 °C ... 90 °C
Standards and Regulations
Standard designation
Standards/regulations
M8 connector
IEC 61076-2-104
Cable
Product labeling
Cable type
Cable type (abbreviation)
Signal type/category
"sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7
Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED
(UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier)
PROFINET drag chain CAT5
93C
PROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT CAT5 (IEC 11801), 100 Mbps
Cable structure
Conductor cross section
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
01/06/2019 Page 2 / 6
®
https://www.phoenixcontact.com/in/products/1426305
Network cable - NBC-M 8MS/ 8,0-93C/M 8MS - 1426305
Technical data
Cable
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Torsion force
Tensile strength GRP
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
Loop resistance
Wave impedance
Near end crosstalk attenuation (NEXT)
22
7x 0.25 mm
1.5 mm
White, yellow, blue, orange
Star quad
Aluminum-coated foil, tinned copper braided shield
85 %
green RAL 6018
approx. 0.9 mm
6.5 mm ±0.2 mm
5xD
7.5 x D
3000000
100 mm
10 m
4 m/s
4 m/s²
± 30 °/m
≤ 150 N
61 kg/km
PUR
FRNC
PE
Tin-plated Cu litz wires
≥ 500 MΩ*km
≤ 120.00 Ω/km
100 Ω ±15 Ω (at 1 ... 100 MHz)
80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Attenuation
2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
01/06/2019 Page 3 / 6
https://www.phoenixcontact.com/in/products/1426305
Network cable - NBC-M 8MS/ 8,0-93C/M 8MS - 1426305
Technical data
Cable
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Signal speed
Signal runtime
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Special properties
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
0.66 c
5.3 ns/m
≤ 20.00 mΩ/m (at 10 MHz)
600 V (UL rating)
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
Electrical properties according to EN 50288-2-2
according to IEC 60332-1-2
yes
in accordance with DIN EN 60811-2-1
UV resistant
-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C
-50 °C ... 70 °C
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
Cable cross section
2
4
1
3

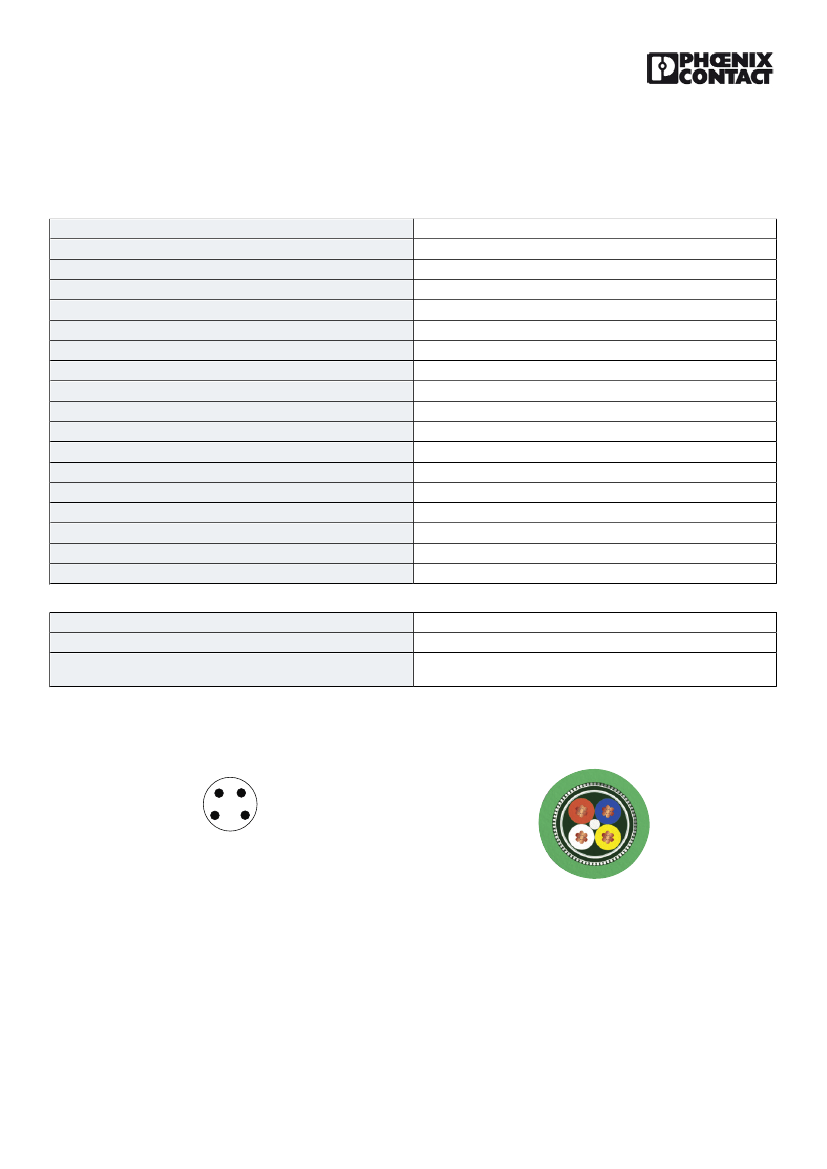

Pin assignment M8 plug, 4-pos., view male side
PROFINET drag chain CAT5 [93C]
01/06/2019 Page 4 / 6
https://www.phoenixcontact.com/in/products/1426305
Network cable - NBC-M 8MS/ 8,0-93C/M 8MS - 1426305
Circuit diagram
M8
1
2
3
4
M8
1 YE
38,7

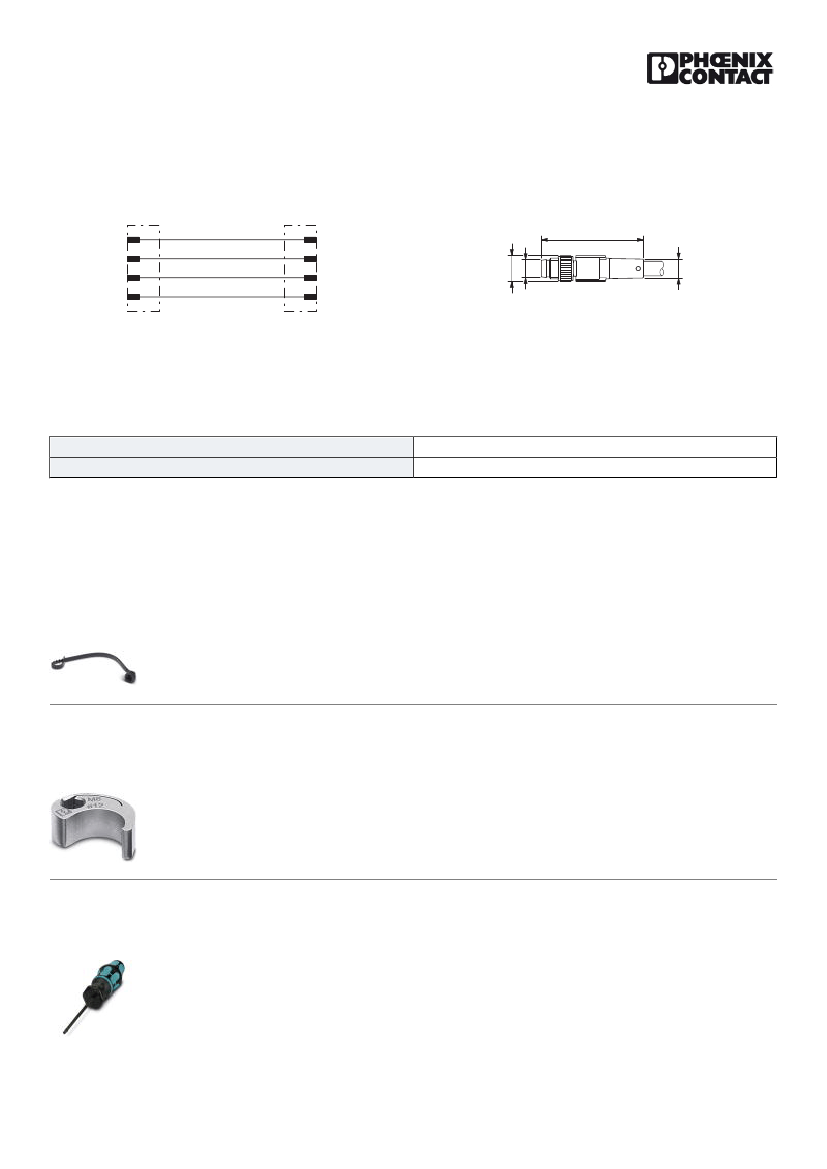

Dimensional drawing
3 BU
4 OG
Contact assignment of M8 plugs
M8 x 1 male plug, straight version
Classifications
eCl@ss
eCl@ss 7.0
eCl@ss 9.0
27060308
27060308
Accessories
Accessories
Protective cap
Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857
M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs
Ø7,5
Ø10
2 WH
M8
Screwdriver tools
Tool - SAC BIT M8-D10 - 1208461
Nut for assembling M8 connectors with longitudinal knurl and a knurl diameter of 10 mm, for 4 mm hexagonal drive
Torque tool
Torque screwdriver - TSD 02 SAC - 1208487
Torque screwdriver, with preset torque of 0.2 Nm and 4 mm hexagonal drive for M8 connectors
01/06/2019 Page 5 / 6
