XStream
®
OEM
RF Modules
900 MHz and 2.4 GHz Embedded RF Modules for OEMs
Embedded RF modules provide outstanding range
(up to 20 miles) in a low-cost wireless solution.
Overview
Digi’s XStream embedded RF modules enable easy and reliable
serial wireless connectivity between devices with minimal
development out-of-the-box. With 900 MHz and 2.4 GHz
configurations, XStream RF modules provide transmission
ranges of up to 20 miles in a low-cost wireless solution.
Innovations stamped in their design enable XStream RF modules
to yield two- to eight-times the range of competing RF devices.
This allows OEMs and integrators to cover more ground with
fewer devices, with increased reliability. Additionally, XStream
RF modules are easy to use, thereby reducing the complexity of
data system development and time to market.
Available in a variety of configurations, including Commercial
or Industrial temperature ratings, and multiple antenna variants,
XStream RF modules can wirelessly connect a variety of devices
across many applications including remote monitoring, building
automation/security, industrial automation/SCADA, fleet
management/asset tracking and sensor data capture in embedded
systems.

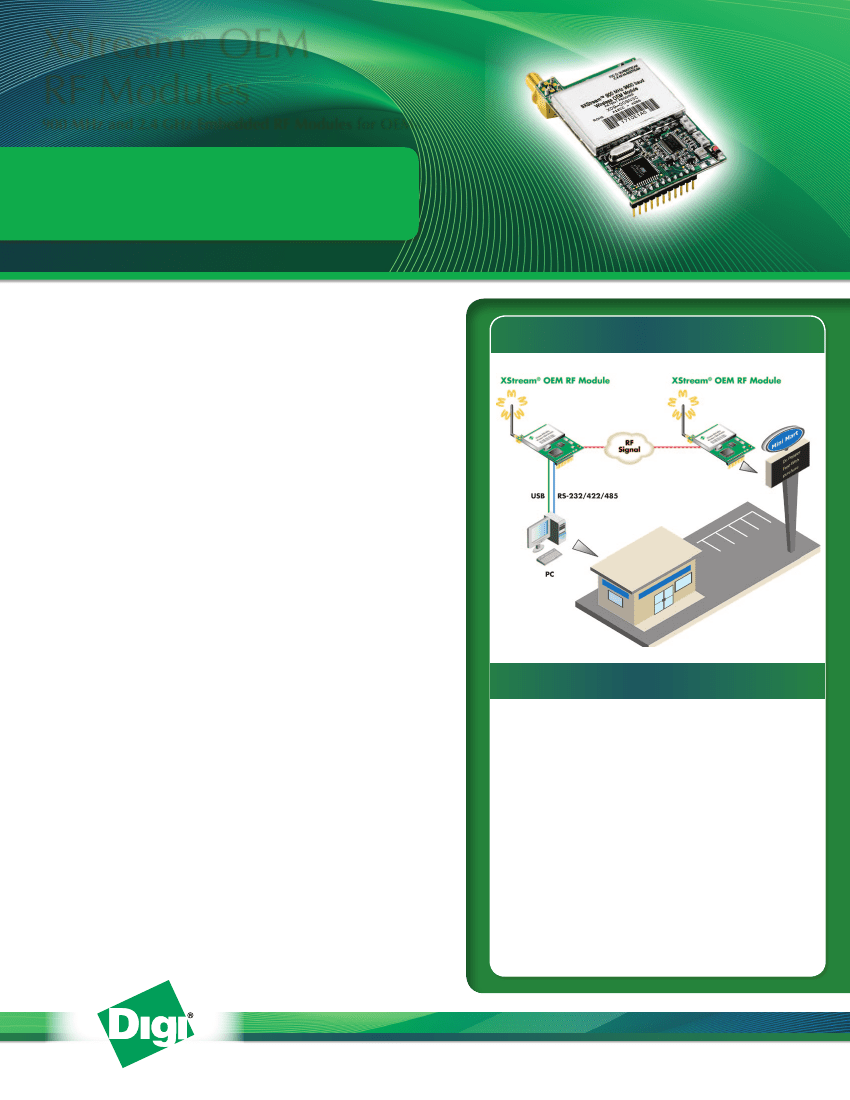

Application Highlight
Features/Benefits
• Indoor/Urban range up to 1500 feet (900 MHz model)
- Outdoor line-of-sight range up to 20 miles
(with high gain antenna)
available addresses
• 7 frequency hopping channels each with 65K
• Outstanding receiver sensitivity (-110 dB @ 9600 bps)
• Low-power features for power-sensitive applications
- Pin, serial port and cyclic sleep modes available
• Performs retries and acknowledgments for reliable
packet delivery
• Multiple antenna options (Wire Whip, MMCX, RPSMA)
• Commercial (0º C to 70º C) and Industrial temperature
ratings (-40º C to 85º C)
www.digi.com

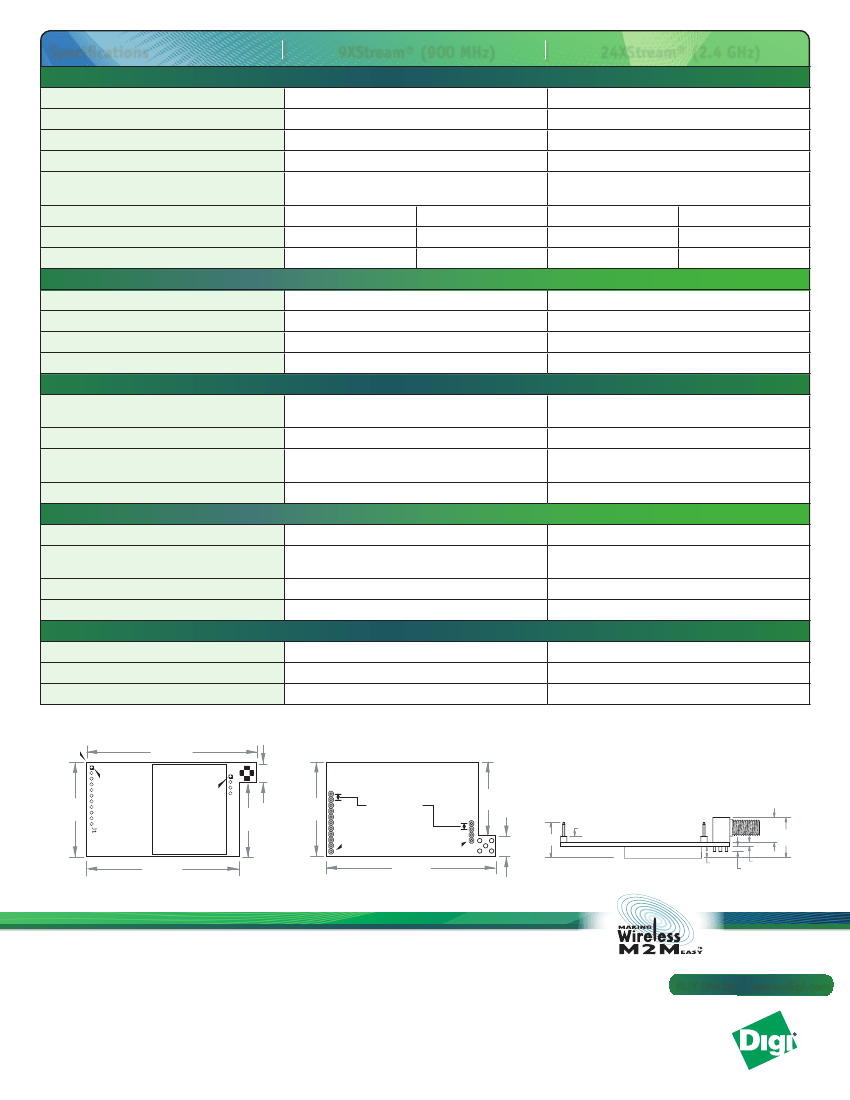

Specifications
Performance
Indoor/Urban Range
(w/ 2.1 dB dipole antenna)
Outdoor RF Line-of-Sight Range
(w/ 2.1 dB dipole antenna)
Outdoor RF Line-of-Sight Range
(w/ high-gain antenna)
Transmit Power Output
Interface Data Rate
(software selectable)
Throughput Data Rate
RF Data Rate
Receiver Sensitivity
Power Requirements
Supply Voltage
Receive Current
Transmit Current
Power-down Current
General
Dimensions (L x W x H)
Weight
Operating Temperature
Antenna Options
Networking & Security
Operating Frequency
Supported Network Topologies
Number of Channels
(software selectable)
Network Filtration Layers
Agency Approvals
FCC Part 15.247
Industry Canada (IC)
Europe
TOP VIEW
(0,0)
2.825"
9XStream® (900 MHz)
Up to 1500 ft (450 m)
Up to 7 miles (11 km)
Up to 20 miles (32 km)
100 mW (20 dBm)
10 - 57600 bps
(including non-standard baud rates)
9,600 bps
10,000 bps
-110 dBm
19,200 bps
20,000 bps
-107 dBm
24XStream® (2.4 GHz)
Up to 600 ft (180 m)
Up to 3 miles (5 km)
Up to 10 miles (16 km)
50 mW (17 dBm)
10 - 57600 bps
(including non-standard baud rates)
9,600 bps
10,000 bps
-105 dBm
19,200 bps
20,000 bps
-102 dBm
5V (± 0.25V) regulated
50 mA
140 mA
< 26 μA
5V (± 0.25V) regulated
80 mA
150 mA
< 26 μA
1.600 in x 2.825 in x 0.350 in
(4.06 cm x 7.18 cm x 0.89 cm)
0.8 oz (24 g)
0º C to 70º C (commercial) or
-40º C to 85º C (industrial)
RPSMA, MMCX or Wire Antenna
1.600 in x 2.825 in x 0.350 in
(4.06 cm x 7.18 cm x 0.89 cm)
0.8 oz (24 g)
0º C to 70º C (commercial) or
-40º C to 85º C (industrial)
RPSMA, MMCX or Wire Antenna
ISM 902 - 928 MHz
Peer-to-Peer (no master/slave dependencies),
Point-to-Point, Point-to-Multipoint, Multidrop
7 Frequency Hopping Channels
VID, Channel, Destination Address
ISM 2.4000 - 2.4835 GHz
Peer-to-Peer (no master/slave dependencies),
Point-to-Point, Point-to-Multipoint, Multidrop
7 Frequency Hopping Channels
VID, Channel, Destination Address
OUR9XSTREAM
4214A-9XSTREAM
N/A
BOTTOM VIEW
(pins protruding)
OUR-24XSTREAM
4214A 12008
ETSI
pin 1
(0.060”, 0.070”)
0.345”
pin 1
(0.250”, 2.395”)
J2
1.600"
1.255"
1.600"
note: all headers
are 0.100 inch spacing
J2
1.255"
SIDE VIEW
(with RPSMA Connector)
J1
.100"
.600"
.411"
.665"
note: all headers
are 0.100” spacing
2.560"
pin 1
pin 1
0.345”
2.825"
.192"
.062"
.093"
Visit www.digi.com for part numbers.
