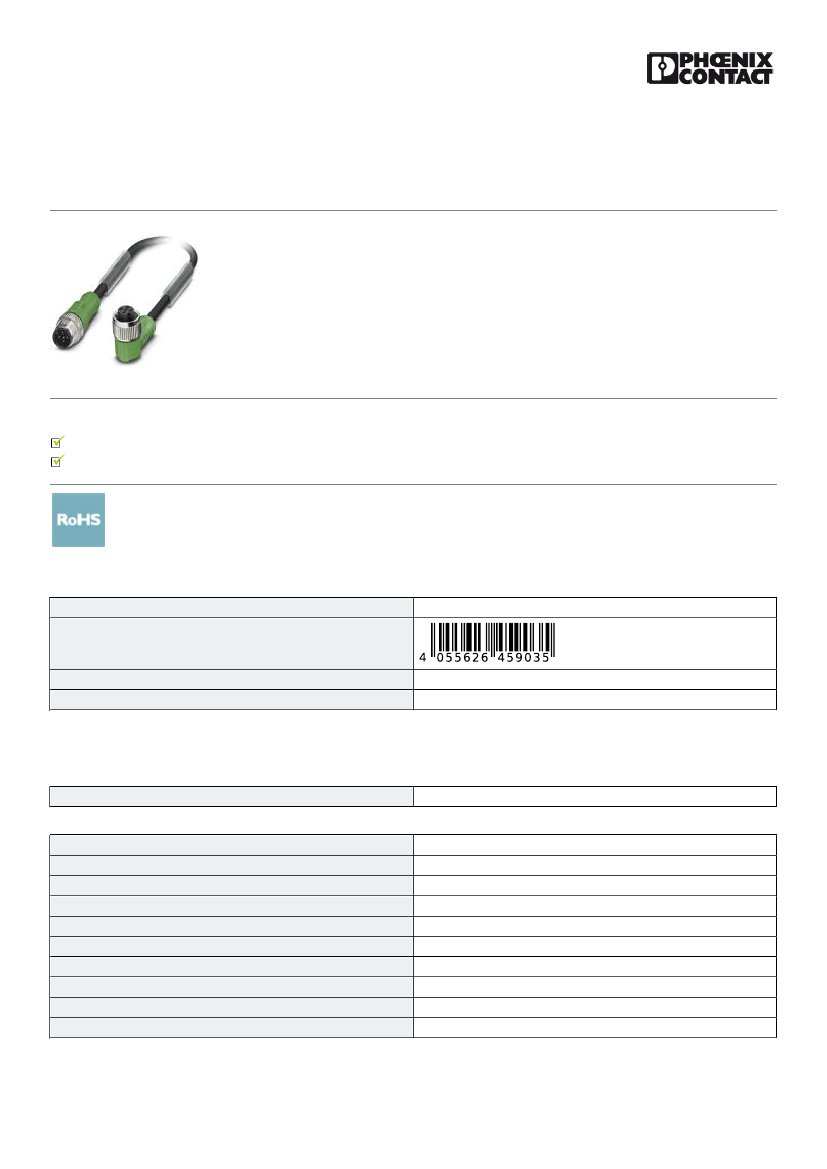

Sensor/actuator cable - SAC-5P-M12MS/ 5,7-PUR/M12FR VA - 1426355
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, cable length: 5.7 m
As illustrated but with VA knurl
Your advantages
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626459035
85444290
1
Technical data
Dimensions
Length of cable
5.7 m
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
4A
48 V AC
60 V DC
5
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
unwired
II
01/06/2019 Page 1 / 7
https://www.phoenixcontact.com/in/products/1426355
Sensor/actuator cable - SAC-5P-M12MS/ 5,7-PUR/M12FR VA - 1426355
Technical data
General
Degree of pollution
3
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
PUR halogen-free black
PUR
Li9Y11Y
20549 / 10493 (80°C/300 V)
5x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm
brown, white, blue, black, green-yellow
5 wires around filler to the core
black-gray RAL 7021
approx. 0.7 mm
5 mm ±0.15 mm
25 mm
50 mm
4000000
50 mm
10 m
3 m/s
10 m/s²
35 kg/km
PUR
PP
Bare Cu litz wires
01/06/2019 Page 2 / 7
https://www.phoenixcontact.com/in/products/1426355
Sensor/actuator cable - SAC-5P-M12MS/ 5,7-PUR/M12FR VA - 1426355
Technical data
Cable
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
≥ 16 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
300 V
3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

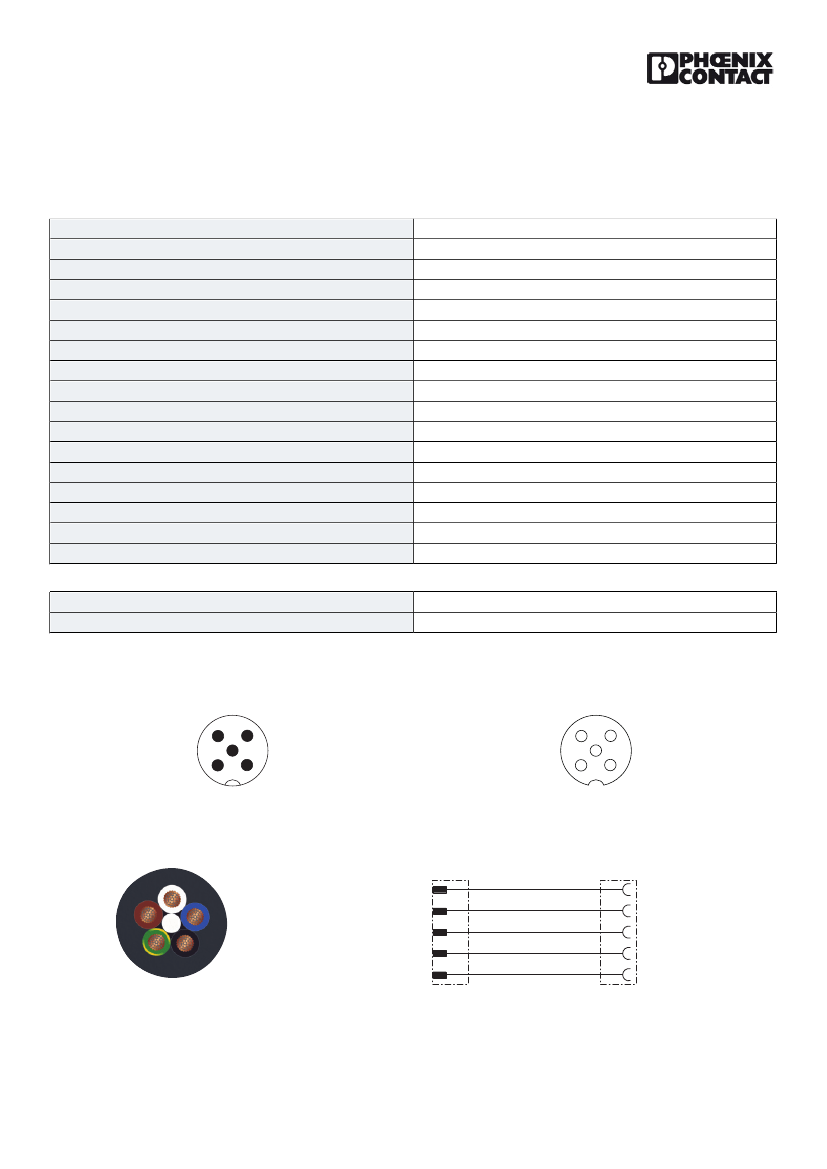

Drawings
Schematic diagram
4
5
3
Schematic diagram
3
5
4
1
2
2
1
Pin assignment M12 male connector, 5-pos., A-coded, male side
Pin assignment M12 socket, 5-pos., A-coded, socket side view
Cable cross section
1
2
4
3
5
Circuit diagram
1
2
4
3
5
PUR halogen-free black [PUR]
Contact assignment of the M12 plug and the M12 socket
01/06/2019 Page 3 / 7
https://www.phoenixcontact.com/in/products/1426355
Sensor/actuator cable - SAC-5P-M12MS/ 5,7-PUR/M12FR VA - 1426355
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 9.0
27279200
27279218
27060311
ETIM
ETIM 5.0
ETIM 6.0
EC001855
EC001855
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
125 V
4A
FILE E 221474
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
125 V
4A
FILE E 221474
cULus Listed
Accessories
Accessories
Conductor marking
01/06/2019 Page 4 / 7
https://www.phoenixcontact.com/in/products/1426355
Sensor/actuator cable - SAC-5P-M12MS/ 5,7-PUR/M12FR VA - 1426355
Accessories

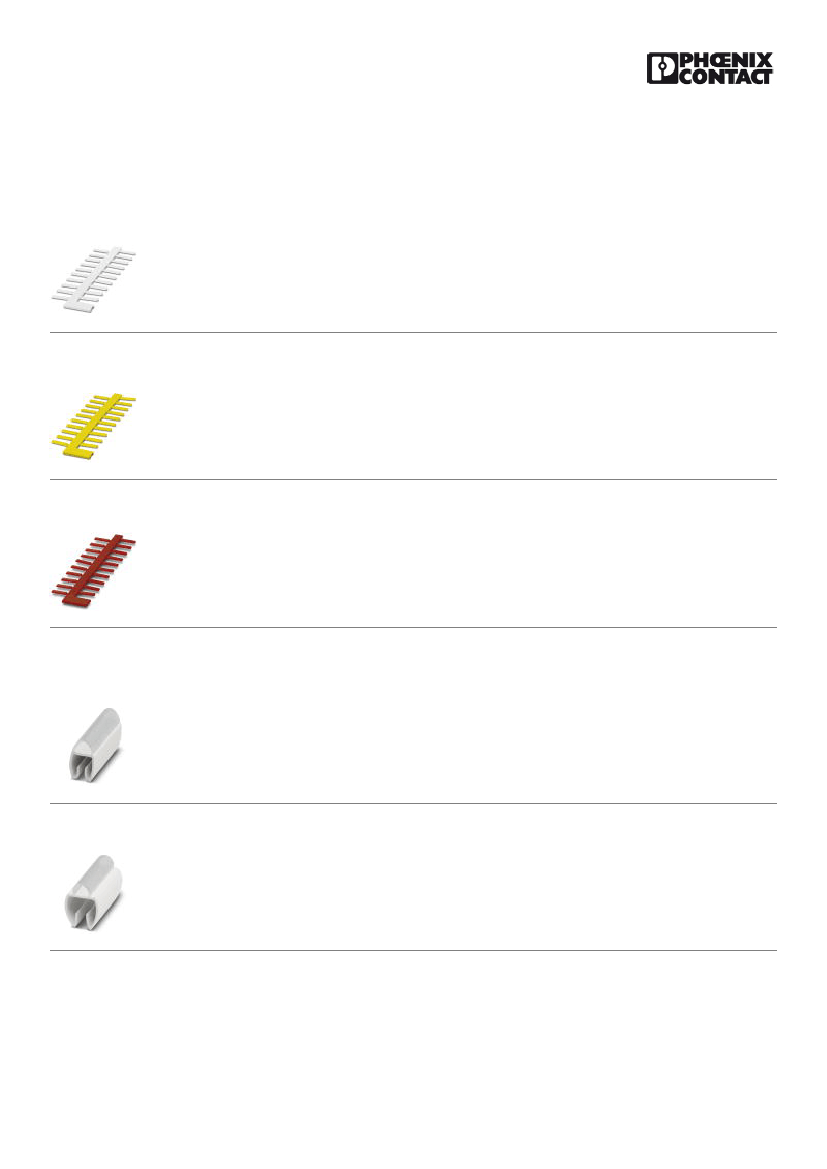

Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable
diameter range: 0.6 - 50 mm, lettering field size: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable
diameter range: 0.6 - 50 mm, lettering field size: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable diameter
range: 0.6 - 50 mm, lettering field size: 15 x 4 mm
Marker carrier cable
Conductor marker carrier - PATO 2/15 - 1013122
Conductor marker carrier, transparent, unlabeled, mounting type: clip on, cable diameter range: 2.8 - 4.4 mm,
lettering field size: 4 x 15 mm
Conductor marker carrier - PATO 3/15 - 1013135
Conductor marker carrier, transparent, unlabeled, mounting type: clip on, cable diameter range: 4.4 - 6.7 mm,
lettering field size: 4 x 15 mm
01/06/2019 Page 5 / 7
