Vectron offers a High Temperature Crystal Oscillator (PX-610) product platform for extreme environment applications. In addition to its wide
operating temperature range, PX-610 HTXO is also ideal for high shock & vibration applications. The foot print of the PX-610 design is based on
an industry standard TO-39 package.
Vectron’s vertical integration in the following technical areas ensures the ability to design and manufacture state of the art high temperature
frequency control products:
•
•
•
•
•
BAW & SAW Design & Fabrication to produce high quality resonators.
RF Oscillator Circuit Design.
Established 250°C High Temperature Electronics Packaging Expertise.
Established 250°C High Temperature Electronics Assembly & Test Expertise.
Environmental Screening.
Vectron’s manufacturing processes, from quartz resonator fabrication to oscillator electronics assembly and test, are painstakingly controlled
via ISO and SPC procedures. Vectron fabricates high temperature quartz resonators using proprietary manufacturing processes designed
specifically for high temperature and harsh environment applications. In order to ensure high reliability in the field, critical electrode
metallization and testing processes are conducted inside state-of-the-art Class 1K cleanrooms, while oscillator assembly is conducted in Class
10K cleanrooms. All high temperature oscillators are 100% tested before delivery.
Features
• Continuous operating temperature range -55°C to 230°C
• Low jitter and phase noise
• 1.8Vdc, 2.5Vdc, 3.3Vdc or 5Vdc operation
• Compliant crystal mount for high shock & vibration
• Output frequency 32kHz to 40MHz standard
• 0.380” diameter x 0.185” high resistance welded 3 pin TO-39 package
• RoHS Compliant
• Made in USA
Applications
• Oil / Gas downhole tool
• Geophysical services
•
High temperature industrial process control
• Extended temperature Military/Aerospace
•
Avionics
•
Engine control

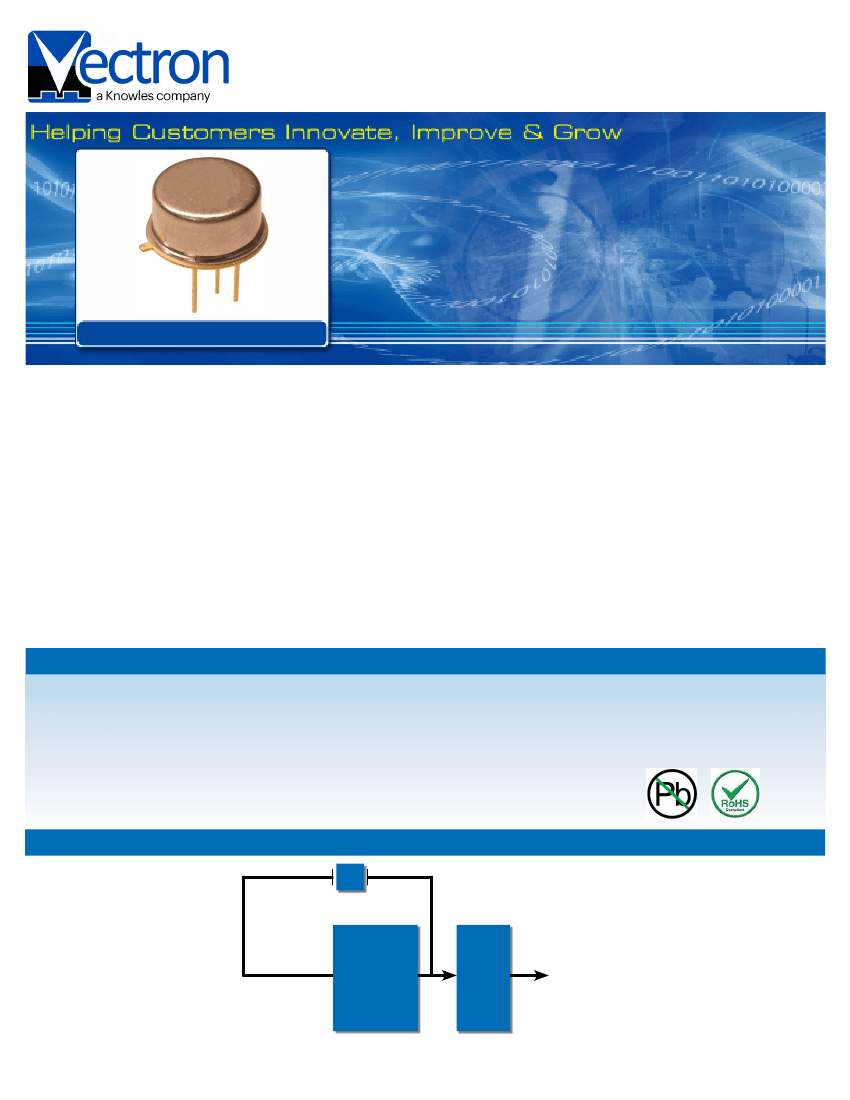

Block Diagram
Crystal
Oscillator
Circuit
Output
Buffer
RF
Output
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
1 of 5
Performance Specifications
Specification Parameters
Frequency Range
Supply (Vdd)
Current
Level “0” & “1”
Output
Rise & Fall Time
Symmetry
Operating Temperature
0°C to +150°C (1)
-20°C to +180°C (Z)
-55°C to +180°C (Y)
32kHz to 40MHz
+5.0Vdc ±5% (D)
+3.3Vdc ±5% (E)
<0.4V / >Vdd - 0.5V
HCMOS compatibility (A)
1ns typical / 5ns Max
45/55%
0°C to +200°C (2)
0°C to +230°C (3)
+2.5Vdc ±5% (H)
+1.8Vdc ±5% (J)
Values
5mA typical @ 20MHz, 3.3V
(low current option is available, consult factory)
(other custom temperature ranges are
available, consult factory)
Jitter (12kHz - 20MHz)
Phase Noise (Typical @40MHz, HCMOS, 3.3V)
10Hz -80 dBc/Hz
100Hz -120 dBc/Hz
1kHz -140 dBc/Hz
±40ppm (J)
±100ppm (S)
±150ppm (U)
<0.5ps
10kHz -155 dBc/Hz
100kHz -160 dBc/Hz
1MHz -160 dBc/Hz
±250ppm (W)
±350ppm (Y)
Temperature Stability
Package Size (mm)
Storage Temperature
0.38” x .0185” 3 pin TO-39 resistance weld package
-55°C to +125°C
Environmental Compliance
Vibration-Sine
Vibration-Random
Shock
Seal Test
Seal Test
Temperature Cycling
Acceleration
20g, 10Hz to 2kHz Sine
20grms, 10Hz to 2kHz Random
1000g, 0.5ms
Fine
Gross
10 Cycles minimum
5000g Y1 axis
MIL-STD-202 Method 204 Condition D
MIL-STD-202 Method 214 Condition I-F
MIL-STD-202 Method 213 Condition E
MIL-STD-883 Method 1014 Condition A2
MIL-STD-202 Method 112 Condition D
MIL-STD-883 Method 1010 Condition B
MIL-STD-883 Method 2001 Condition A

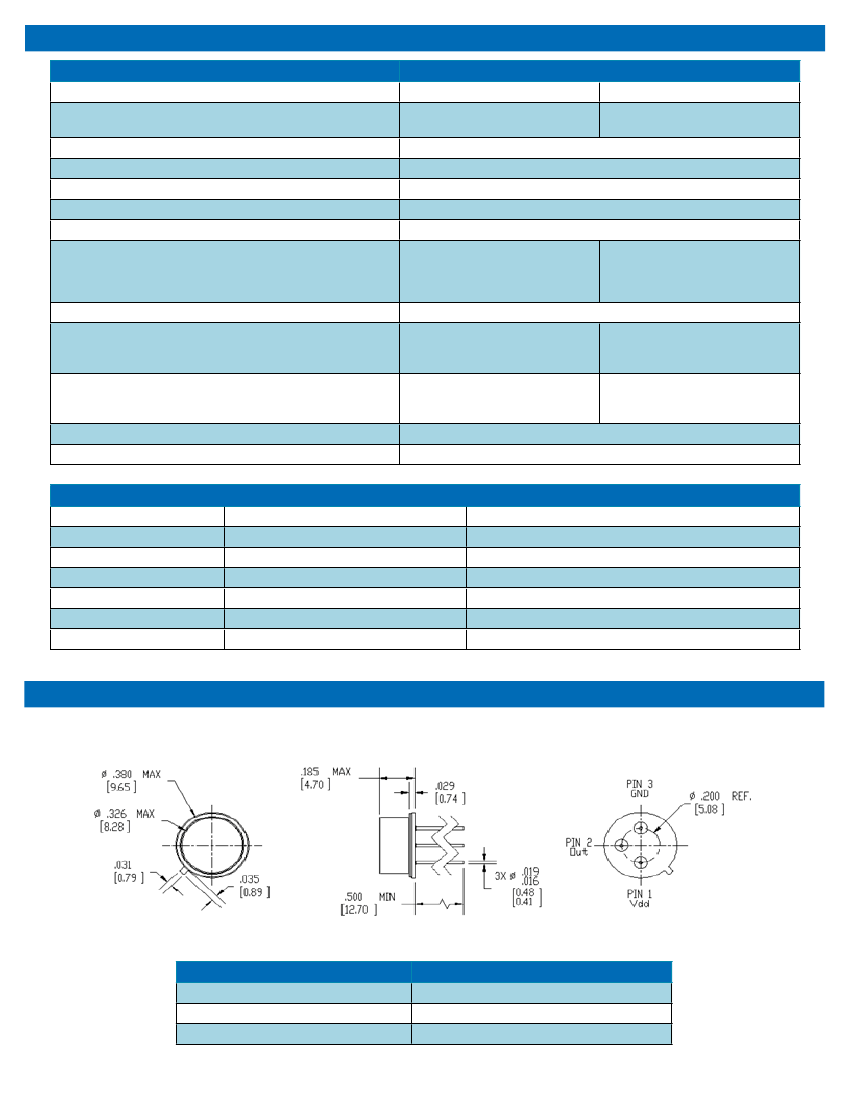

Physical Specifications
Pin
1
2
3
Function
Vdd Power Supply Voltage
RF Output
Case & Electrical Ground
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
2 of 5

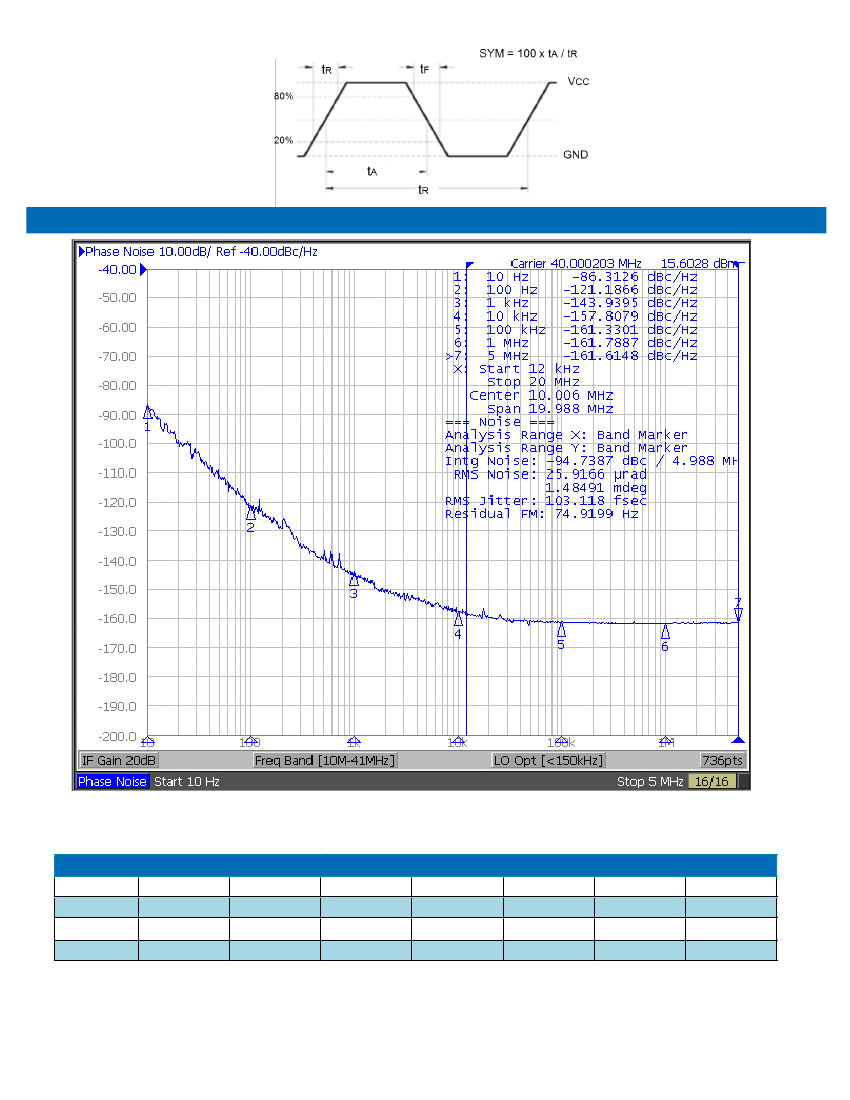

Typical Phase Noise Performance
Standard Frequency List
32.768kHz
4.096MHz
12.000MHz
48.000MHz
512.000kHz
4.9152MHz
16.000MHz
1.000MHz
5.000MHz
16.384MHz
1.024MHz
7.3728MHz
20.000MHz
2.000MHz
7.500MHz
24.000MHz
2.048MHz
8.000MHz
32.000MHz
3.6864MHz
8.192MHz
32.768MHz
4.000MHz
10.000MHz
40.000MHz
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
3 of 5
Ordering Information
PX - 610 0 - D A Y - W X X X - 10M0000000
Product Family
Crystal Oscillator
Package Type
610: 3 pin TO-39
Factory Use
Frequency
Factory Use
Factory Use
Enable
A: Enable Hi, Tristate
X: No Enable
Temp Stability (PX)
J: ± 40ppm
S: ± 100ppm
U: ± 150ppm
V: ± 200ppm
W: ± 250ppm
Y: ± 350ppm
Supply Voltage
D: 5.0V ±5%
E: 3.3V ±5%
H: 2.5V ±5%
J: 1.8V ±5%
Output
A: HCMOS/ACMOS
Temperature Range
1: 0°C to 150°C
Z: -20°C to 180°C
Y: -55°C to 180°C
2: 0°C to 200°C
5: -55°C to 200°C
3: 0°C to 230°C
6: -55°C to 230°C
Temperature Range and Stability Table
Temp Range
J: ±
40ppm
1: 0°C to 150°C
S:
±
100ppm
U: ±
150ppm
W:
±
250ppm
J: ±
40ppm
Z: -20°C to 180°C
S:
±
100ppm
U: ±
150ppm
W:
±
250ppm
S:
±
100ppm
Y: -55°C to 180°C
U: ±
150ppm
W:
±
250ppm
S:
±
100ppm
2: 0°C to 200°C
U: ±
150ppm
V:
±
200ppm
W:
±
250ppm
S:
±
100ppm
5: -55°C to 200°C
U: ±
150ppm
V:
±
200ppm
W:
±
250ppm
V:
±
200ppm
3: 0°C to 230°C
W:
±
250ppm
Y: ±
350ppm
V:
±
200ppm
6: -55°C to 230°C
W:
±
250ppm
Y: ±
350ppm
Temp Stability
Tight Stability
Standard
Standard
Standard
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Standard
Tight Stability
Tight Stability
Standard
Tight Stability
Tight Stability
Standard
PX-570
*Note: not all combination of options are available.
Other specifications may be available upon request.
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
4 of 5
This Page Intentionally Left Blank
For Additional Information, Please Contact
Vectron International
267 Lowell Road, Unit 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Europe:
Vectron International
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: 86.21.6194.6886
Fax: 86.21.6194.6699
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Vectron International • 267 Lowell Road, Unit 102, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
