82D
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose
FEATURES
•
Economical
•
General purpose design
•
Wide voltage range
Pb-free
Available
Fig.1 Component Outlines
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
ØD x L in mm
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range,
U
R
Termination
Life validation test
at 85 °C
VALUE
0.87" x 1.00" (22.0 x 25.0)
to 1.38" x 3.15" (35.0 x 80.0)
- 40 °C to + 85 °C
39 µF to 180 000 µF
± 20 %
6.3 WVDC to 450 WVDC
Snap in
2000 hours:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.5 x initial
specified limit.
Δ
DCL
≤
initial specified
limit
500 hours:
Δ
CAP
≤
15 % from initial
measurement.
Δ
ESR
≤
1.3 x initial
specified limit.
Δ
DCL
≤
2 x initial
specified limit
I = K CV
DC leakage current
K = 4.0 at + 25 °C
I in µA, C in µF, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 55 °C
+ 65 °C
+ 75 °C
+ 85 °C
FREQUENCY (Hz)
WVDC
16 - 49
50 - 199
200 - 400
50 TO 60
0.85
0.83
0.80
300 TO 1000
1.10
1.15
1.30
1000 AND
UP
1.15
1.20
1.40
MULTIPLIERS
2.0
1.7
1.4
1.0
Shelf life at 85 °C
ESL (TYPICAL VALUES AT 1 MHz TO 10 MHz)
Nominal
Diameter
Typical
ESL (nH)
0.87
(22.0)
6.0
0.98
(25.0)
8.0
1.18
(30.0)
10.0
1.38
(35.0)
12.0
DIMENSIONS
in inches (millimeters)
CASE
CODE
HA
HB
HD
JA
JB
JC
JD
JE
KA
KB
www.vishay.com
222
DIAMETER
D + 0.04 - 0 (+ 1.0 - 0)
0.87 (22.0)
0.87 (22.0)
0.87 (22.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.00 (25.0)
1.18 (30.0)
1.18 (30.0)
LENGTH
L ± 0.08 (2.0)
1.00 (25.0)
1.18 (30.0)
1.57 (40.0)
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
1.00 (25.0)
1.18 (30.0)
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42062
Revision: 27-Aug-08
CASE
CODE
KC
KD
KE
MB
MC
MD
ME
MF
MG
DIAMETER
D + 0.04 - 0 (+ 1.0 - 0)
1.18 (30.0)
1.18 (30.0)
1.18 (30.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
1.38 (35.0)
LENGTH
L ± 0.08 (2.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
1.18 (30.0)
1.38 (35.0)
1.57 (40.0)
2.00 (50.0)
2.50 (63.0)
3.18 (80.0)
82D
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose
DIMENSIONS
in inches (millimeters)

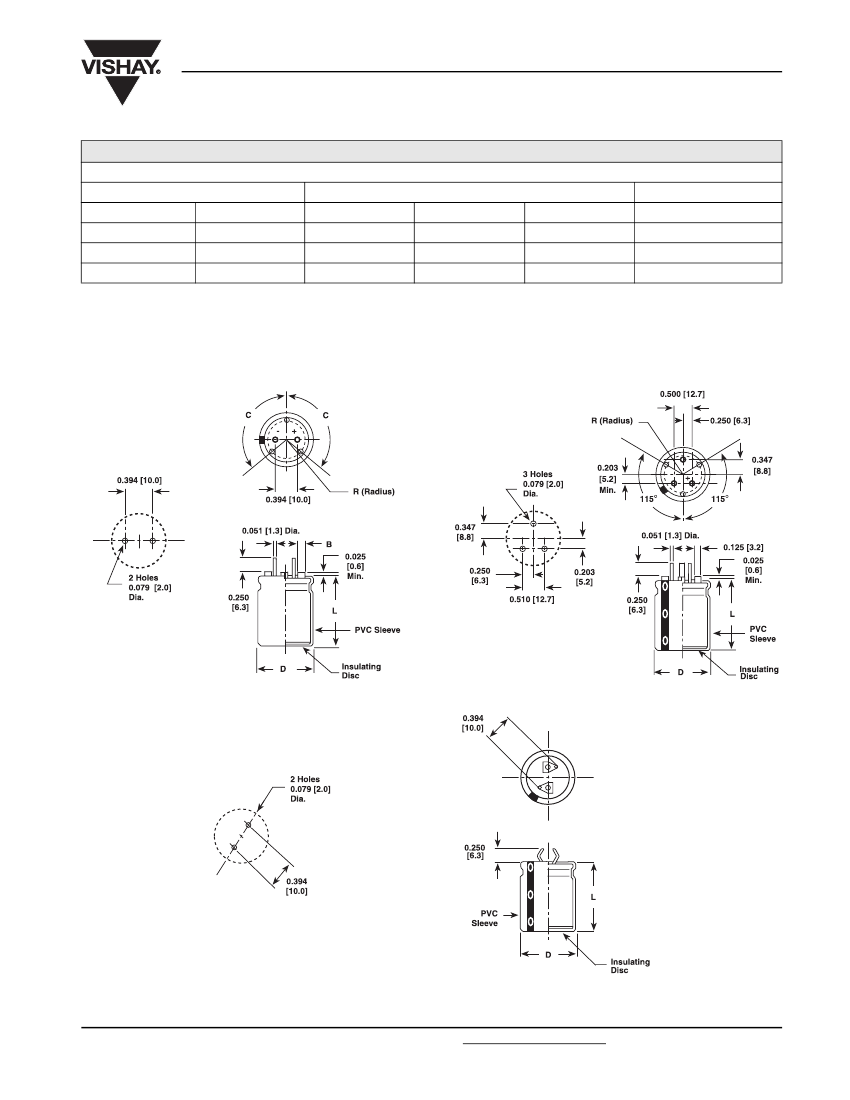

CIRCUIT BOARD MOUNT TERMINAL DIMENSIONS
(1)
DIAMETER
D
1.00 (25.0)
1.18 (30.0)
1.38 (35.0)
CASE CODE
J
K
M
B
0.093 (2.4)
0.125 (3.2)
0.125 (3.2)
STYLE A
R
0.301 (7.6)
0.363 (9.2)
0.458 (11.6)
C
140°
120°
120°
STYLE B
R
N/A
0.391 (9.9)
0.458 (11.6)
Vishay Sprague
Note
(1)
Style A and B not available in 0.87" (22.0mm) diameter units
DIMENSIONS AND AVAILABLE FORMS
Style A
Style B
Style D
Document Number: 42062
Revision: 27-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
www.vishay.com
223
82D
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose

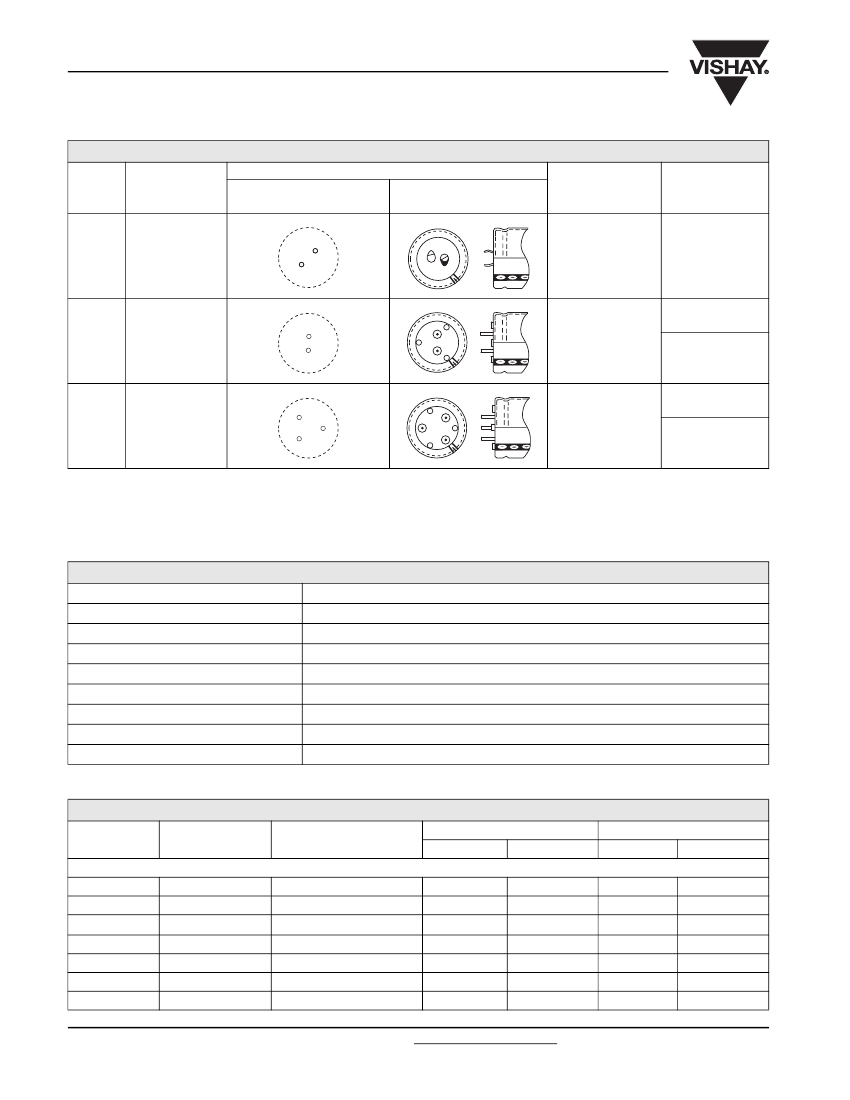

TERMINAL CONFIGURATION
(numbers in brackets indicate millimeters)
LEAD
CODE
OUTLINE DRAWINGS
DESCRIPTION
MOUNTING
CONFIGURATION
TERMINAL
CONFIGURATION
AVAILABLE
DIAMETERS
AVAILABLE
VOLTAGES AND
TYPES
D
Standard
2 pin snap-in
0.87 (22.0) - H
0.98 (25.0) - J
1.18 (30.0) - K
1.38 (35.0) - M
All voltages
81D, 81DA
82D, 82DA
A
2 straight wire lead
molded cover with
standoffs
+
0.98 (25.0) - J
1.18 (30.0) - K
1.38 (35.0) - M
All voltages
82D, 82DA
V
≤
250 V
DC
81D, 81DA
All voltages
82D, 82DA
B
3 straight wire lead
molded cover with
standoffs
+
1.18 (30.0) - K
1.38 (35.0) - M
V
≤
250 V
DC
81D, 81DA
ORDERING EXAMPLE
Electrolytic capacitor 82D series:
82D 122 M 050 HA 2 D E3
DESCRIPTION
CODE
82D
122
M
50
HA
2
D
E3
EXPLANATION
product type
capacitance value (1200 µF)
tolerance (M = ± 20 %)
voltage rating at 85 °C (50 V)
can size (see dimensions table)
pvc insulating sleeve
terminal style (D = 2 pin snap-in)
RoHS compliant
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
MAX. ESR at 25 °C (mΩ)
120 H
Z
86.0
57.7
58.0
53.7
35.3
28.0
23.0
20 to 40 kH
Z
63.0
42.0
43.0
41.0
27.0
21.0
17.0
MAX. RIPPLE at + 85 °C (A)
120 H
Z
2.38
3.25
3.33
3.70
5.00
5.96
6.86
20 to 40 kH
Z
2.80
3.83
3.87
4.20
5.77
6.87
6.65
16 WVDC at + 85 °C, SURGE = 20 V
10 000.0
15 000.0
15 000.0
(1)
22 000.0
33 000.0
33 000.0
47 000.0
82D103M016HB2D
82D153M016HD2D
82D153M016JC2D
82D223M016KB2D
82D333M016KD2D
82D333M016MC2D
82D473M016MD2D
0.866 x 1.181 (22.0 x 30.0)
0.866 x 1.575 (22.0 x 40.0)
0.984 x 1.378 (25.0 x 35.0)
1.181 x 1.181 (30.0 x 30.0)
1.181 x 1.575 (30.0 x 40.0)
1.378 x 1.378 (35.0 x 35.0)
1.378 x 1.575 (35.0 x 40.0)
www.vishay.com
224
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42062
Revision: 27-Aug-08
82D
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
MAX. ESR at 25 °C (mΩ)
120 H
Z
110.0
85.0
67.0
43.4
33.9
71.0
54.0
36.4
23.0
121.0
92.0
72.0
46.6
36.3
75.0
37.7
36.0
25.0
148.0
108.0
85.0
53.6
85.0
43.0
28.0
22.0
20 to 40 kH
Z
76.0
58.0
47.0
31.0
24.0
54.0
41.0
27.0
17.0
76.0
57.0
47.0
30.0
24.0
54.0
27.0
24.0
16.3
79.0
58.0
48.0
31.0
54.0
24.0
16.0
13.0
MAX. RIPPLE at + 85 °C (A)
120 H
Z
1.98
2.40
2.94
4.22
4.97
3.00
3.70
5.00
6.84
1.88
2.30
2.82
4.08
4.87
2.92
4.89
4.97
6.57
1.71
2.12
2.61
3.79
2.73
4.56
6.21
7.60
20 to 40 kH
Z
2.39
2.91
3.49
4.96
5.96
3.47
4.20
5.77
7.96
2.39
2.94
3.49
5.08
5.96
3.42
5.77
6.10
8.13
2.32
2.90
3.49
4.96
3.42
6.10
8.21
9.87
Vishay Sprague
25 WVDC at + 85 °C, SURGE = 30 V
3300.0
4700.0
(1)
6800.0
10 000.0
15 000.0
6800.0
10 000.0
15 000.0
22 000.0
2200.0
3300.0
4700.0
6800.0
10000.0
4700.0
12 000.0
10 000.0
(1)
15 000.0
1200.0
1800.0
2200.0
3900.0
2700.0
4700.0
(1)
6800.0
10 000.0
1000.0
(1)
1500.0
2200.0
3300.0
3300.0
6800.0
4700.0
470.0
680.0
1000.0
1500.0
2200.0
82D332M025HA2D
82D472M025HB2D
82D682M025JB2D
82D103M025JD2D
82D153M025JE2D
82D682M025KA2D
82D103M025KB2D
82D153M025KD2D
82D223M025MD2D
82D222M035HA2D
82D332M035HB2D
82D472M035JB2D
82D682M035JD2D
82D103M035JE2D
82D472M035KA2D
82D123M035KD2D
82D103M035MB2D
82D153M035MD2D
82D122M050HA2D
82D182M050HB2D
82D222M050JB2D
82D392M050JD2D
82D272M050KA2D
82D472M050MB2D
82D682M050MD2D
82D103M050ME2D
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.181 (22.0 x 30.0)
0.984 x 1.181 (25.0 x 30.0)
0.984 x 1.545 (25.0 x 40.0)
0.984 x 1.969 (25.0 x 50.0)
1.181 x 0.984 (30.0 x 25.0)
1.181 x 1.181 (30.0 x 30.0)
1.181 x 1.575 (30.0 x 40.0)
1.378 x 1.575 (35.0 x 40.0)
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.181 (22.0 x 30.0)
0.984 x 1.181 (25.0 x 30.0)
0.984 x 1.575 (25.0 x 40.0)
0.984 x 1.969 (25.0 x 50.0)
1.181 x 0.984 (30.0 x 25.0)
1.181 x 1.575 (30.0 x 40.0)
1.378 x 1.181 (35.0 x 30.0)
1.378 x 1.575 (35.0 x 40.0)
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.181 (22.0 x 30.0)
0.984 x 1.181 (25.0 x 30.0)
0.984 x 1.575 (25.0 x 40.0)
1.181 x 0.984 (30.0 x 25.0)
1.378 x 1.181 (35.0 x 30.0)
1.378 x 1.575 (35.0 x 40.0)
1.378 x 1.969 (35.0 x 50.0)
35 WVDC at + 85 °C, SURGE = 40 V
50 WVDC at + 85 °C, SURGE = 63 V
63 WVDC at + 85 °C, SURGE = 79 V
82D102M063HA2D
82D152M063JA2D
82D222M063JC2D
82D332M063JD2D
82D332M063KB2D
82D682M063KE2D
82D472M063MC2D
82D471M100HB2D
82D681M100JB2D
82D102M100KB2D
82D152M100KC2D
82D222M100KE2D
0.866 x 0.984 (22.0 x 25.0)
0.984 x 0.984 (25.0 x 25.0)
0.984 x 1.378 (25.0 x 35.0)
0.984 x 1.575 (25.0 x 40.0)
1.181 x 1.181 (30.0 x 30.0)
1.181 x 1.969 (30.0 x 50.0)
1.378 x 1.378 (35.0 x 35.0)
0.866 x 1.181 (22.0 x 30.0)
0.984 x 1.181 (25.0 x 30.0)
1.181 x 1.181 (30.0 x 30.0)
1.181 x 1.378 (30.0 x 35.0)
1.181 x 1.969 (30.0 x 50.0)
151.0
121.0
72.0
57.0
68.0
34.0
36.0
258.0
188.0
136.0
106.0
66.0
75.0
63.0
38.0
30.0
41.0
22.0
20.0
114.0
86.0
66.0
52.0
33.0
1.69
2.05
2.97
3.69
3.28
5.56
5.24
1.37
1.75
2.31
2.75
4.02
2.39
2.86
4.09
5.08
4.20
6.89
7.04
2.07
2.59
3.31
3.95
5.69
100 WVDC at + 85 °C, SURGE = 125 V
Document Number: 42062
Revision: 27-Aug-08
For technical questions, contact: aluminumcaps4@vishay.com
www.vishay.com
225
82D
Vishay Sprague
Aluminum Capacitors
+ 85 °C, Snap-In, General Purpose
ELECTRICAL DATA AND ORDERING INFORMATION
CAPACITANCE
(µF)
PART NUMBER
NOMINAL CASE SIZE
DxL
MAX. ESR at 25 °C (mΩ)
120 H
Z
1012.0
594.0
381.0
625.0
271.0
498.0
294.0
221.0
142.0
189.0
149.0
1077.0
722.0
513.0
382.0
281.0
209.0
132.0
4310.0
3020.0
2060.0
1430.0
820.0
630.0
4690.0
3280.0
1730.0
1150.0
870.0
510.0
20 to 40 kH
Z
361.0
255.0
165.0
272.0
121.0
192.0
136.0
87.0
67.0
93.0
74.0
385.0
261.0
189.0
121.0
117.0
74.0
58.0
2450.0
1720.0
1176.0
820.0
470.0
360.0
2460.0
1730.0
915.0
610.0
460.0
274.0
MAX. RIPPLE at + 85 °C (A)
120 H
Z
0.697
0.967
1.35
0.967
1.79
1.21
1.64
2.14
2.89
2.46
2.88
68.00
88.00
1.13
1.51
1.92
2.43
3.32
0.34
0.44
0.56
0.76
1.10
1.39
0.32
0.42
0.65
0.89
1.14
1.68
20 to 40 kH
Z
1.17
1.48
2.06
1.46
2.68
1.96
2.48
3.41
4.22
3.51
3.41
1.17
1.52
1.94
2.79
3.07
4.26
5.21
0.45
0.58
0.74
1.00
1.46
1.85
0.45
0.58
0.89
1.22
1.56
2.29
200 WVDC at + 85 °C, SURGE = 250V
150.0
220.0
330.0
220.0
470.0
330.0
470.0
680.0
1000.0
820.0
1000.0
120.0
180.0
220.0
330.0
470.0
680.0
1000.0
47.0
68.0
100.0
150.0
220.0
330.0
39.0
56.0
100.0
150.0
220.0
330.0
82D151M200HA2D
82D221M200HB2D
82D331M200HD2D
82D221M200JA2D
82D471M200JD2D
82D331M200KA2D
82D471M200KB2D
82D681M200KD2D
82D102M200KE2D
82D821M200MC2D
82D102M200MD2D
82D121M250HA2D
82D181M250HB2D
82D221M250JB2D
82D331M250JD2D
82D471M250MB2D
82D681M250MD2D
82D102M250ME2D
82D470M400HA2D
82D680M400JA2D
82D101M400JB2D
82D151M400KB2D
82D221M400KD2D
82D331M400MD2D
82D390M450HA2D
82D560M450JA2D
82D101M450JC2D
82D151M450KC2D
82D221M450MC2D
82D331M450ME2D
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.181 (22.0 x 30.0)
0.866 x 1.575 (22.0 x 40.0)
0.984 x 0.984 (25.0 x 25.0)
0.984 x 1.575 (25.0 x 40.0)
1.181 x 0.984 (30.0 x 25.0)
1.181 x 1.181 (30.0 x 30.0)
1.181 x 1575 (30.0 x 40.0)
1.181 x 1.969 (30.0 x 50.0)
1.378 x 1.378 (35.0 x 35.0)
1.378 x 1.575 (35.0 x 40.0)
0.866 x 0.984 (22.0 x 25.0)
0.866 x 1.181 (22.0 x 30.0)
0.984 x 1.181 (25.0 x 30.0)
0.984 x 1.575 (25.0 x 40.0)
1.378 x 1.181 (35.0 x 30.0)
1.378 x 1.575 (35.0 x 40.0)
1.378 x 1.969 (35.0 x 50.0)
0.866 x 0.984 (22.0 x 25.0)
0.984 x 0.984 (25.0 x 25.0)
0.984 x 1.181 (25.0 x 30.0)
1.181 x 1.181 (30.0 x 30.0)
1.181 x 1.575 (30.0 x 40.0)
1.378 x 1.575 (35.0 x 40.0)
0.866 x 0.984 (22.0 x 25.0)
0.984 x 0.984 (25.0 x 25.0)
0.984 x 1.378 (25.0 x 35.0)
1.181 x 1.378 (30.0 x 35.0)
1.378 x 1.378 (35.0 x 35.0)
1.378 x 1.969 (35.0 x 50.0)
250 WVDC at + 85 °C, SURGE = 300V
400 WVDC at + 85°C, SURGE = 450 V
450 WVDC at + 85°C, SURGE = 500 V
Note
• Additional Part Numbers in stock include 82D222M050HD2D, 82D472M050JE2D and 82D681M250MD2D. Many other capacitance ratings
and voltages are available upon request. Please call for a quotation.
www.vishay.com
226
For technical questions, contact: aluminumcaps4@vishay.com
Document Number: 42062
Revision: 27-Aug-08
京公网安备 11010802033920号
EEWORLD
