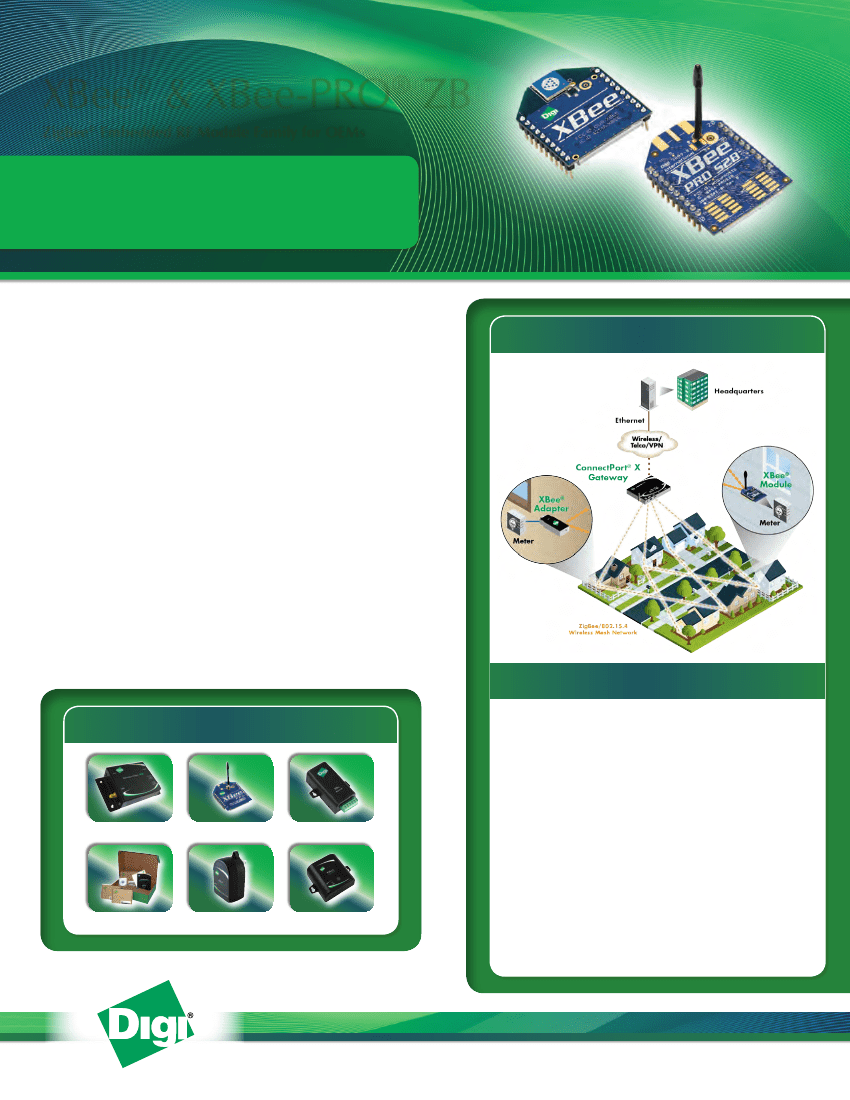

XBee & XBee-PRO ZB
®
®
ZigBee
®
Embedded RF Module Family for OEMs
Embedded RF modules provide low-cost, low-power
wireless connectivity using the ZigBee PRO Feature Set.
Overview
XBee and XBee-PRO ZB embedded RF modules provide cost-effective
wireless connectivity to devices in ZigBee mesh networks. Utilizing the
ZigBee PRO Feature Set, these modules are interoperable with other
ZigBee devices, including devices from other vendors*.
Products in the XBee family are easy to use. They require no
configuration or additional development; users can have their network
up and running in a matter of minutes.
Programmable versions of the XBee-PRO ZB module make
customizing ZigBee applications easy. Programming directly on the
module eliminates the need for a separate processor. Because the
wireless software is isolated, applications can be developed with no
risk to RF performance or security.
XBee modules are available in a variety of protocols and frequencies.
The common hardware footprint shared by Digi’s XBee modules
means users can substitute one XBee for another with minimal
development time and risk.
*Interoperability requires the ZigBee Feature Set or ZigBee PRO Feature Set to be
deployed on all devices. Contact Digi Support for details.
Application Highlight
Features/Benefits
Related Products
• Interoperability with ZigBee compliant devices*
• No configuration needed for out-of-the-box RF
communications
• Common XBee footprint for a variety of RF modules
•
•
ZigBee mesh networking protocol
- Improved data traffic management
- Remote firmware updates
- Self-healing and discovery for network stability
Programmable versions of the XBee-PRO ZB enable
custom ZigBee application development
- 8-bit Freescale™ S08 microprocessor brings
intelligence to devices
®
- CodeWarrior development tools for easy
customization
Gateways
Modules
Adapters
Development Kits
Network Extenders
Sensors
www.digi.com

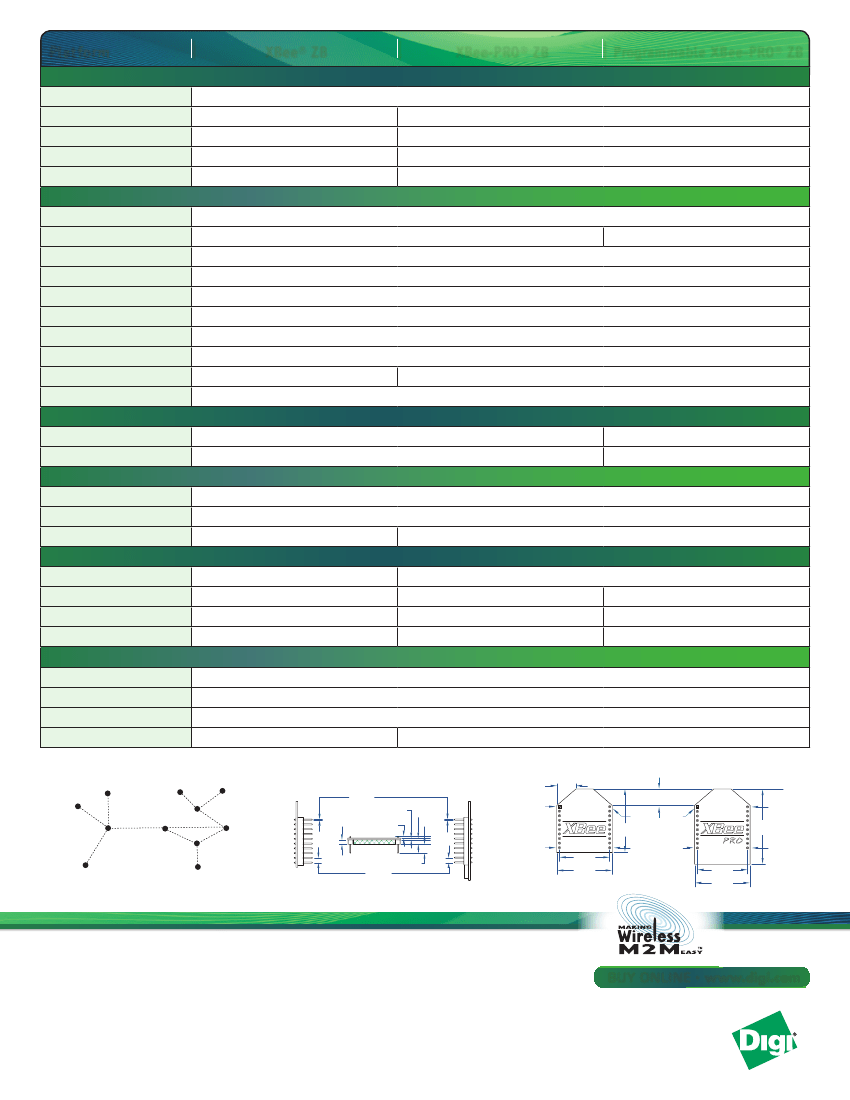

Platform
Performance
RF Data Rate
Indoor/Urban Range
Outdoor/RF Line-of-Sight Range
Transmit Power
Receiver Sensitivity (1% PER)
Features
Adjustable Power
I/O Interface
Configuration Method
Frequency Band
Interference Immunity
Serial Data Rate
ADC Inputs
Digital I/O
Antenna Options
Operating Temperature
Programmability
Memory
CPU/Clock Speed
Networking & Security
Encryption
Reliable Packet Delivery
IDs and Channels
Power Requirements
Supply Voltage
Transmit Current
Receive Current
Power-Down Current
Regulatory Approvals
FCC, IC (North America)
ETSI (Europe)
C-TICK (Australia)
TELEC (Japan)
XBee® ZB
XBee-PRO® ZB
250 Kbps
Programmable XBee-PRO® ZB
133 ft (40 m)
400 ft (120 m)
1.25 mW (+1 dBm) / 2 mW (+3 dBm) boost mode
-96 dBm in boost mode
300 ft (90 m)
2 miles (3200 m) / Int’l 5000 ft (1500 m)
63 mW (+18 dBm) / Int’l 10 mW (+10 dBm)
-102 dBm
Yes
3.3V CMOS UART, ADC, DIO
API or AT commands, local or over-the-air
2.4 GHz
DSSS (Direct Sequence Spread Spectrum)
1200 bps - 1 Mbps
(4) 10-bit ADC inputs
10
Chip, Wire Whip, U.FL, RPSMA
PCB Embedded Antenna, Wire Whip, U.FL, RPSMA
-40º C to +85º C, 0-95% humidity non-condensing
3.3V CMOS UART, SPI, I2C, PWM, DIO, ADC
N/A
N/A
32 KB Flash / 2 KB RAM
HCS08 / Up to 50.33 MHz
128-bit AES
Retries/Acknowledgments
PAN ID, 64-bit IEEE MAC, 16 channels
PAN ID, 64-bit IEEE MAC, 15 channels
2.1 - 3.6VDC
35 mA / 45 mA boost mode @ 3.3VDC
38 mA / 40 mA boost mode @ 3.3VDC
<1 uA @ 25º C
205 mA
47 mA
3.5 uA @ 25º C
2.7 - 3.6VDC
220 mA
62 mA
4 uA @ 25º C
Yes
Yes
Yes
Yes
Yes (int’l unit only)
(top view)
0.299”
(7.59mm)
ZigBee – Mesh
0.257”
(6.53mm)
(top view)
XBee
(side views)
0.020”
(0.51mm)
shield-to-PCB
0.080” ±0.020
(2.03mm ±0.51)
0.031”
0.110”
(0.79mm) (2.79mm)
0.050”
(1.27mm)
XBee-PRO
(top view)
0.299”
(7.59mm)
0.257”
(6.53mm)
(top view)
XBee
PIN 1
1.087”
(27.61mm)
PIN 20
1.297”
(32.94mm)
PIN 1
1.087”
(27.61mm)
PIN 20
1.297”
(32.94mm)
PIN 20
PIN 1
PIN 20
PIN 1
shie
0.08
(2.03
PIN 10
0.866”
(22.00mm)
0.960”
(24.38mm)
PIN 11 PIN 10
0.866”
(22.00mm)
0.960”
PIN 11
0.160”
(4.06mm)
PIN 10
0.866”
(22.00mm)
0.960”
(24.38mm)
PIN 11 PIN 10
0.866”
(22.00mm)
0.960”
PIN 11
0.079”
(2.00mm)
