2855.11.1010.191 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2855.11.1010.191

2855.11.1010.191: DescriptionRF SMB Connector, Male, Panel Mount, Plug; CategoryThe connector The connector; File Size371KB，6 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

2855.11.1010.191 Overview

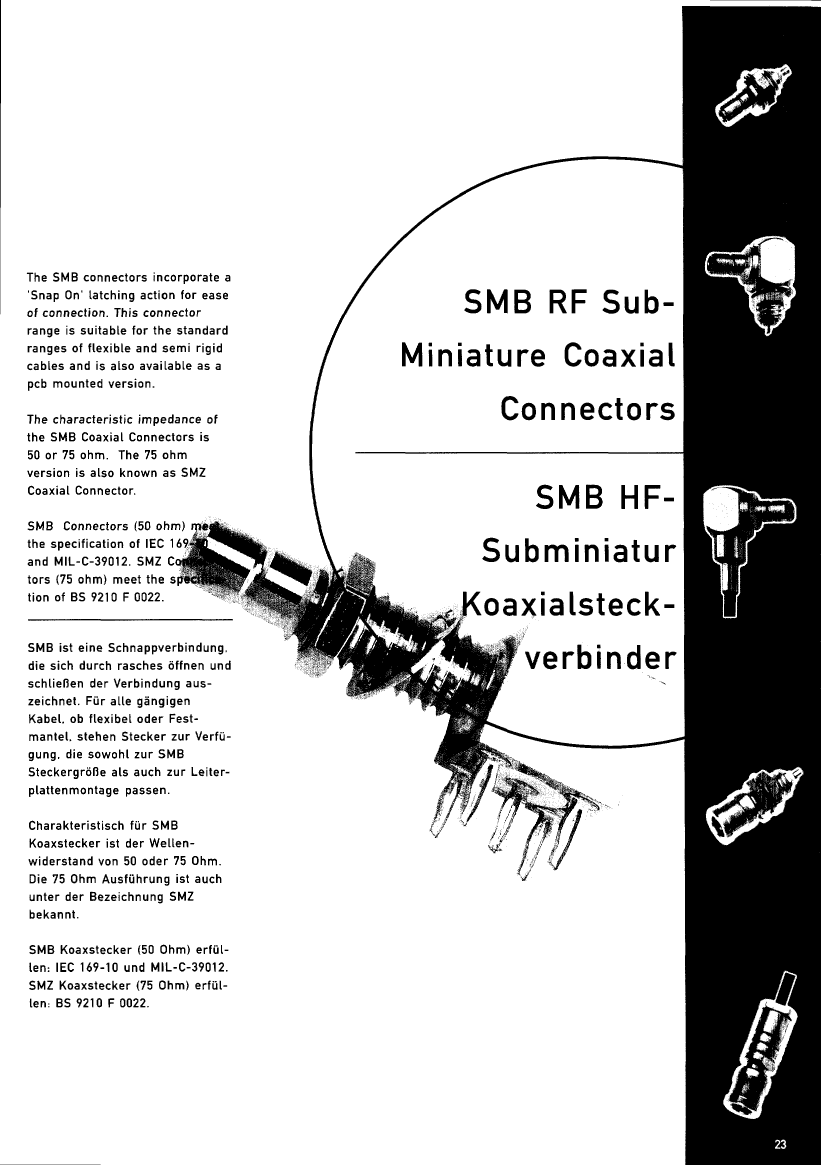

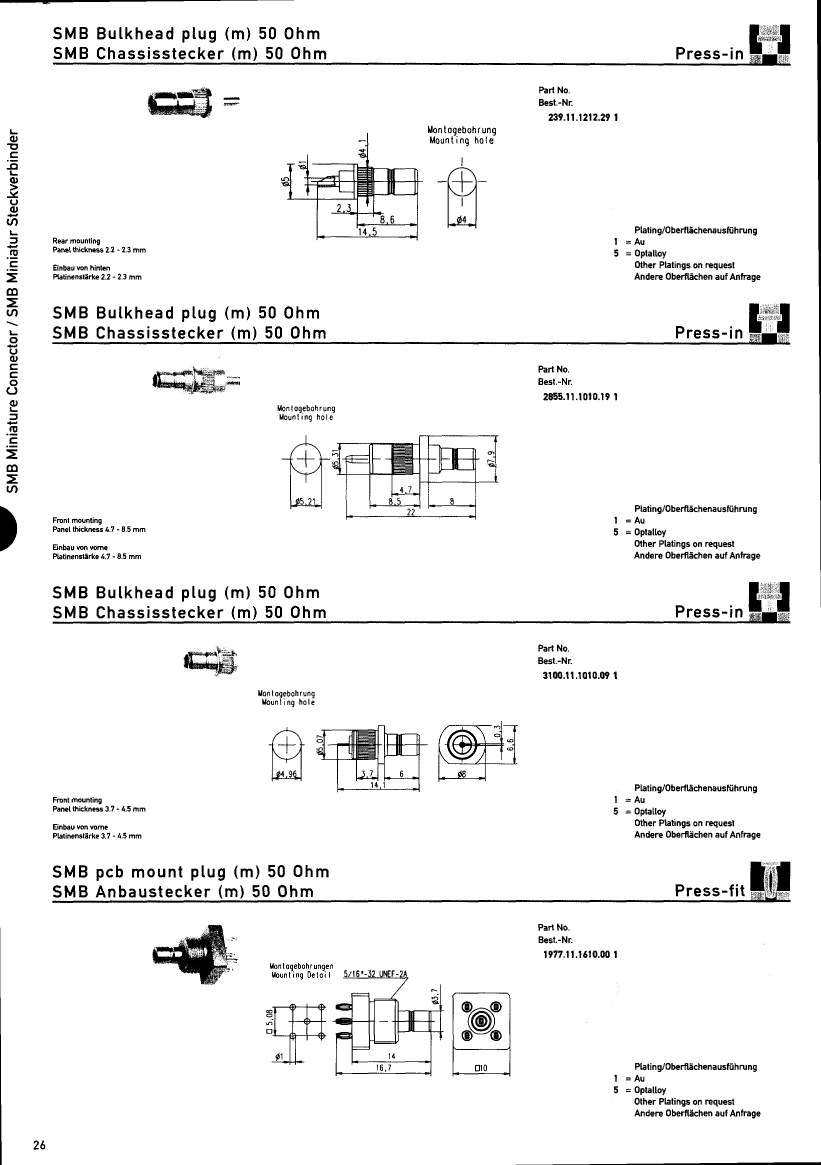

RF SMB Connector, Male, Panel Mount, Plug

2855.11.1010.191 Parametric

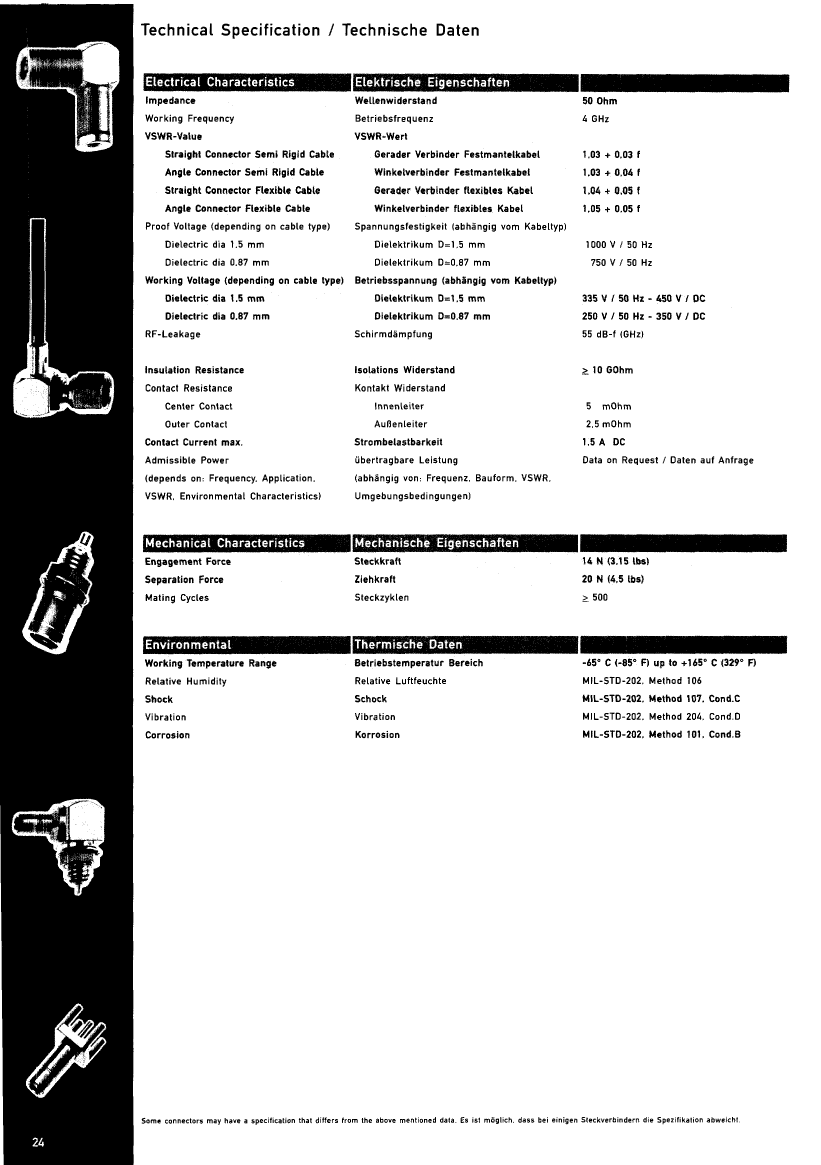

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARDS: MIL-C-39012; IEC 169-10, VSWR FOR SEMI RIGID CABLE: 1.15
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	YES

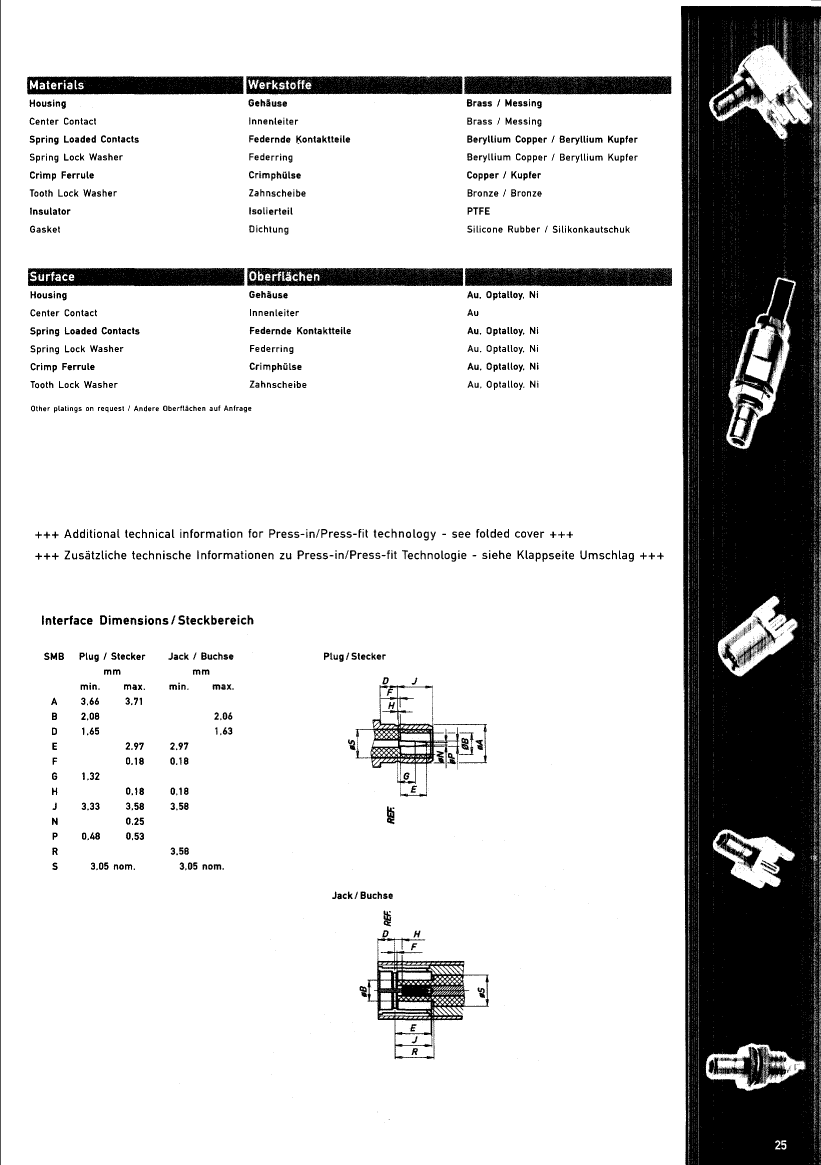

insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	2855
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.24
Base Number Matches	1

Preview

Download Datasheet

View All

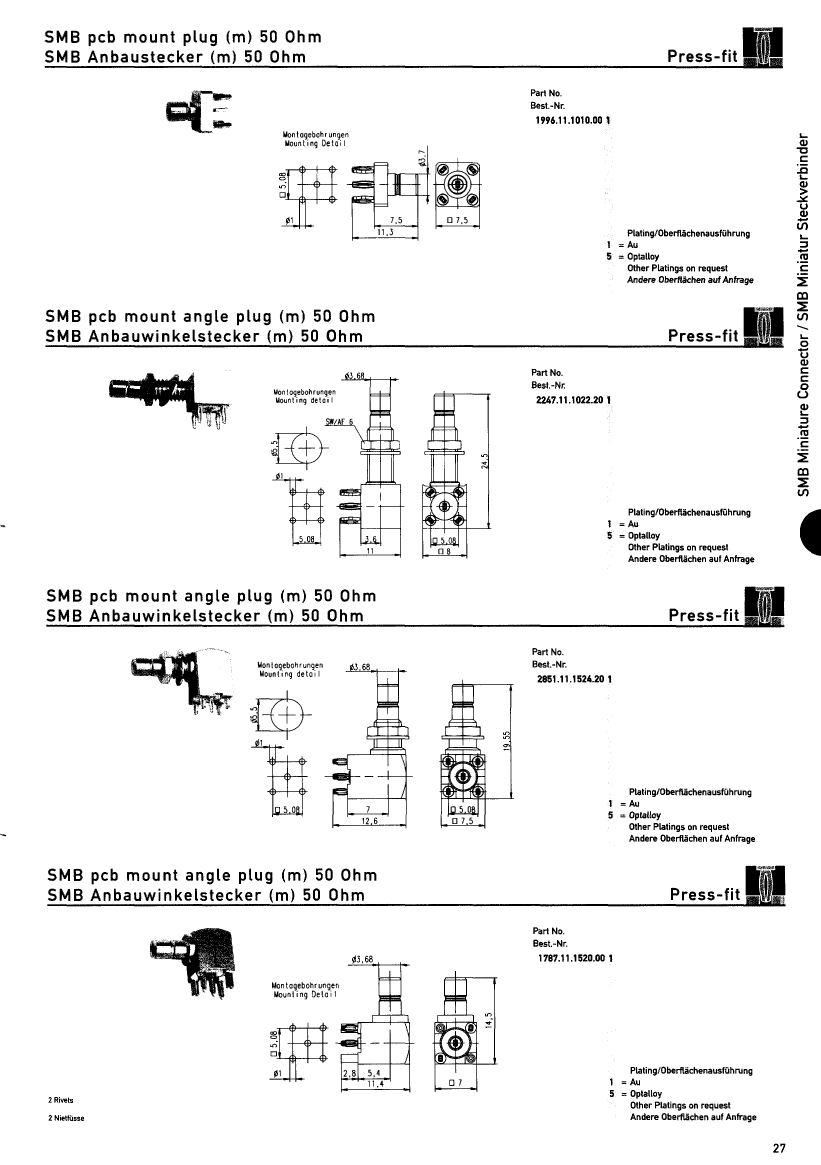

2855.11.1010.191 Related Products

	2855.11.1010.191	1784.11.1610.001	1787.11.1520.001	1976.11.1015.001	1977.11.1610.001	1996.11.1010.001	2091.81.1523.201	2247.11.1022.201	2851.11.1524.201	RS002383R0AE70
Description	RF SMB Connector, Male, Panel Mount, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Press Fit Terminal, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Press Fit Terminal, Plug	RF SMB Connector, Male, Board Mount, Press Fit Terminal, Plug	RF SMB Connector, Male, Board Mount, Press Fit Terminal, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Press Fit Terminal, Plug	RF SMB Connector, 1 Contact(s), Male, Board Mount, Press Fit Terminal, Locking, Plug	RF SMB Connector, Male, Board Mount, Press Fit Terminal, Plug	RF SMB Connector, Male, Board Mount, Press Fit Terminal, Plug	RESISTOR, WIRE WOUND, 4 W, 0.05 %, 20 ppm, 383 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, GREEN
Reach Compliance Code	unknow	compli	compli	unknow	unknow	compli	compli	unknow	unknow	compliant
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e3
Other features	STANDARDS: MIL-C-39012; IEC 169-10, VSWR FOR SEMI RIGID CABLE: 1.15	-	STANDARDS: MIL-C-39012; IEC 169-10	-	STANDARDS: MIL-C-39012; IEC 169-10	STANDARDS: MIL-C-39012; IEC 169-10	-	STANDARDS: MIL-C-39012; IEC 169-10	STANDARDS: MIL-C-39012; IEC 169-10	PRECISION
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-
Characteristic impedance	50 Ω	75 Ω	50 Ω	75 Ω	50 Ω	50 Ω	75 Ω	50 Ω	50 Ω	-
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	-
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	-
IEC compliance	YES	NO	YES	NO	YES	YES	NO	YES	YES	-
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	-
MIL compliance	YES	NO	YES	NO	YES	YES	NO	YES	YES	-
Manufacturer's serial number	2855	1784	1787	1976	1977	1996	2091	2247	2851	-
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Panel mounting	YES	NO	NO	NO	NO	NO	NO	NO	NO	-
Base Number Matches	1	1	1	1	1	1	1	1	1	-
Installation type	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-
Termination type	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-
