8579-1-15-00-21-00-10-0 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 8579-1-15-00-21-00-10-0

Preview

8579-1-15-00-21-00-10-0: Descriptioncircuit board hardware - pcb 21 con; CategoryTopical application Mechanical and electrical/engineering/automation; File Size238KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8579-1-15-00-21-00-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8579-1-15-00-21-00-10-0	-	-	View	Buy Now

8579-1-15-00-21-00-10-0 Overview

circuit board hardware - pcb 21 con

8579-1-15-00-21-00-10-0 Parametric

Parameter Name	Attribute value
Manufacture	Mill-Max
Product Category	Circuit Board Hardware - PCB
RoHS	Yes
Produc	Receptacles
Packaging	Bulk
Factory Pack Quantity	500

Preview

Download Datasheet

View All

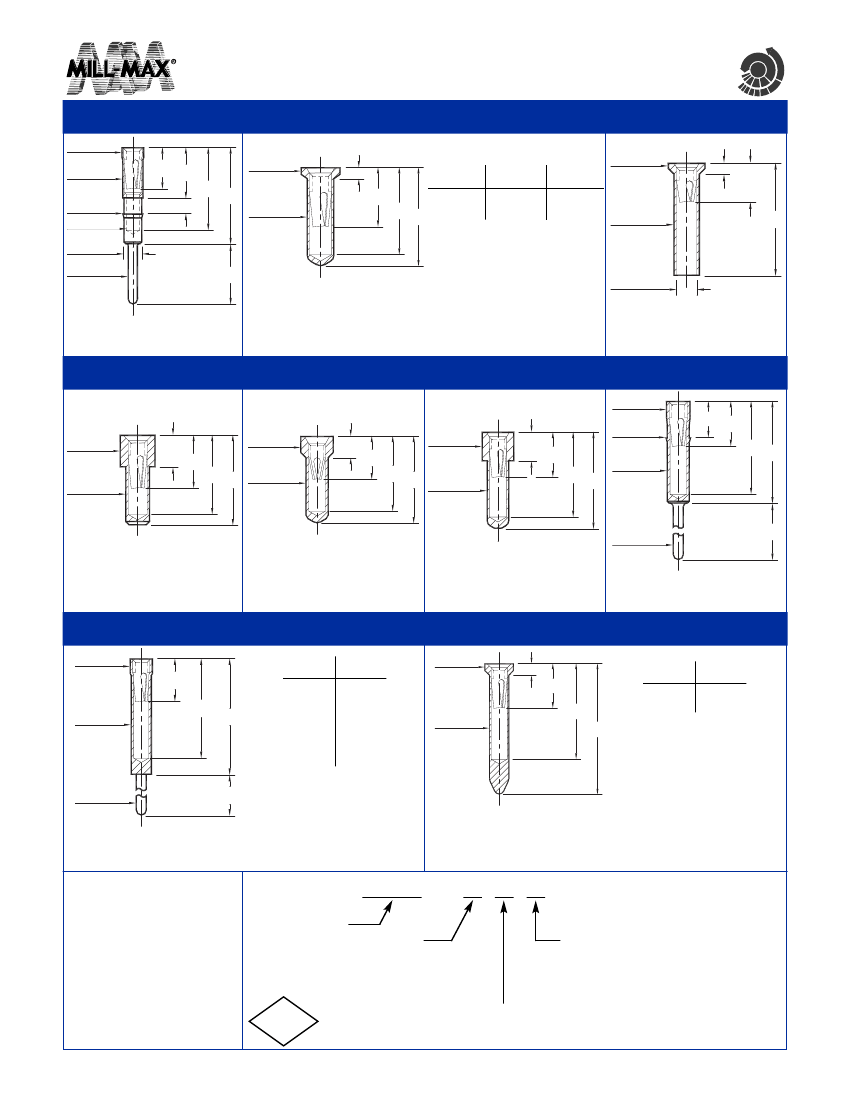

PIN RECEPTACLES

for 0,38 - 0,46 diameter pins (#09 contact)

for 0,38 - 0,51 diameter pins (#11 contact)

and 0,38 - 0,56 diameter pins (#21 contact)

(see specific contact range on pages 216 & 217)

CHI

PINS

0467

1,04 DIA.

MAX.

0,97 DIA.

1,90

2,34

3,81

0,97 DIA.

0,61 DIA.

HOLE

0,86 DIA.

0,46 DIA.

3,18

0,71

4,45

0552

1,4 DIA.

0,46

2,11

0,97 DIA.

5522

1,42 DIA.

Basic Part

Number

Length

Depth

0,41

1,5

0552-1

0552-2

3,45

4,32

3,05

3,81

0,97 DIA.

4,32

0,79 DIA.

0552-X-15-XX-X1-XX-10-0

0467-0-15-XX-21-XX-04-0

Press-fit in 0,94 mounting hole

Solder mount in 1,02 min. mounting hole

Also available on 16mm wide carrier

tape: 1,500 parts per 330mm reel.

Order as: 0552-X-57-XX-X1-XX-10-0

HOLE

5522-0-15-XX-09-XX-10-0

Solder mount in 1,02 min.

mounting hole

0569

1,4 DIA.

1,27

6023

1,4 DIA.

2,11

3,12

3,56

0,97 DIA.

0,91

2,29

3,0

3,45

6214

1,4 DIA.

1,27

2,11

3,94

0,97 DIA.

2086

1,04 DIA.

MAX.

1,09 DIA.

1,57

1,93

4,06

1,0 DIA.

4,45

0,97 DIA.

4,45

0,46 DIA.

4,57

0569-0-15-XX-X1-XX-10-0

Solder mount in 1,02 min

mounting hole

6023-0-15-XX-21-XX-10-0

Solder mount in 1,02 min

mounting hole

6214-0-15-XX-21-XX-10-0

Solder mount in 1,02 min

mounting hole

2086-0-15-XX-21-XX-04-0

Press-fit in 1,02 mounting hole

0461

1,04 DIA.

MAX.

1,91

3,81

0,97 DIA.

8579

Basic Part

Number

Length

1,4 DIA.

0,56

2,13

4,95

4,45

0461-0

0461-1

0461-2

0461-3

0461-4

0461-5

10,16

6,99

4,57

3,18

1,52

11,18

Basic Part

Number

Length

8579-0

8579-1

5,94

7,49

0,97 DIA.

0,46 DIA.

8579-X-15-XX-X1-XX-10-0

0461-X-15-XX-X1-XX-04-0

Solder mount in 0,51 min.

mounting hole

Solder mount in 1,02 min. mounting hole

Also available on 24mm wide carrier

tape: 1,200 parts per 330mm reel.

Order as: 8579-0-57-XX-X1-XX-10-0

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL



5,08μmTIN OVER NICKEL (RoHS)



0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

2,54μm TIN/LEAD OVER NICKEL



2,54μm TIN OVER NICKEL (RoHS)



0,76μm GOLD OVER NICKEL (RoHS)

RoHS

SELECT CONTACT

#09, #11 or #21

CONTACT (DATA ON PAGES 216 & 217)

w w w. m i l l - m a x . c o m

129



516-922-6000
