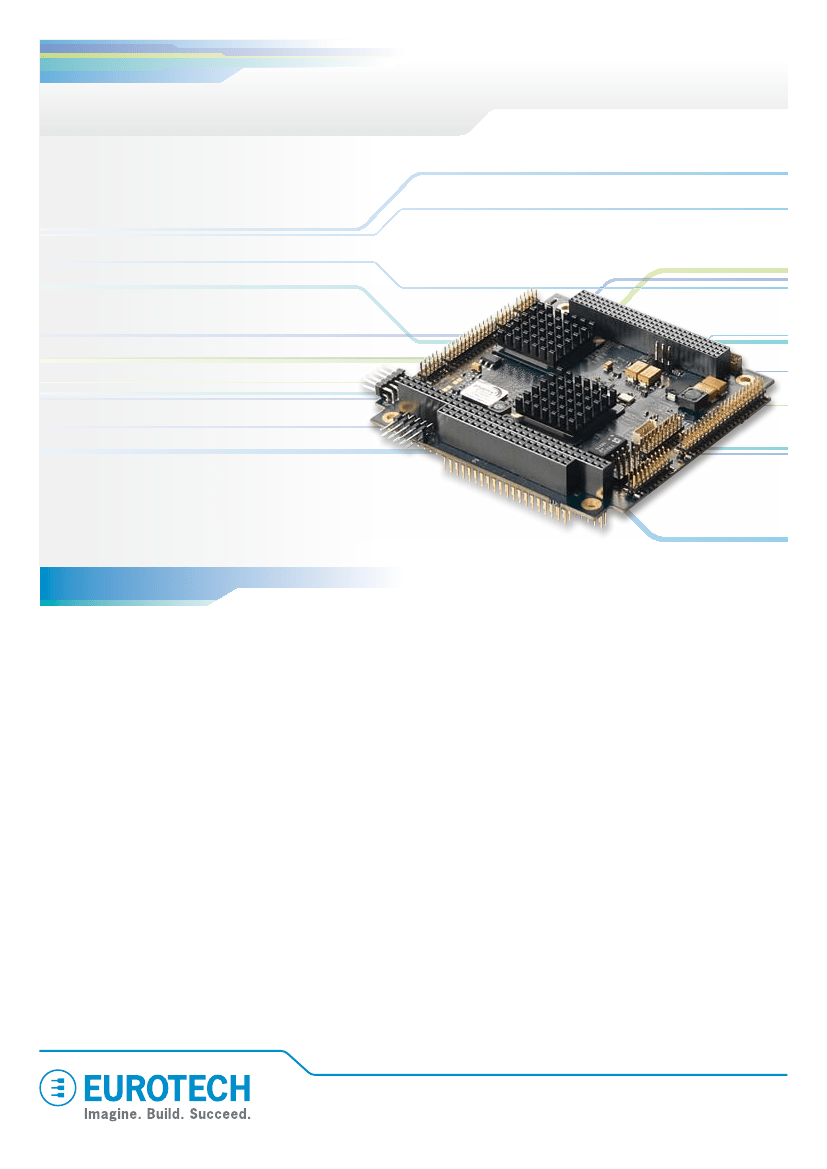

CPU-1440
•
•
•
•
•
•
Vortex86DX processor at 600MHz
x86 compatibility
True ISA and DOS compatibility
Very low power consumption
Integrated video
Long term availability
PC/104+ Module with
Vortex86DX processor
F EATU RES
Bring new life into existing systems
– With 128MB RAM and
2MB Flash Disk the CPU-1440 is the ideal upgrade platform for
legacy x86 DOS, Linux and Win CE systems
Low power fanless design
– At less than 4W and operating
with 5V only, it is ideally suited for low power systems and
sealed applications
Simple and rugged
– With a rugged and streamlined design
that delivers compatibility and reliable operation, the CPU-1440
is the perfect choice whenever downtime and glitches are
simply not acceptable
Expandability and true ISA
– With PC/104 (ISA) and
PC/104+ (PCI) bus expansions, it is simple to interface the
CPU-1440 with existing systems and to add more peripherals
and functions
Application-ready Development Kits
– Cut development
time with Eurotech development kits: fully featured and available
both for Win CE and Linux, they provide an easy access to all
interfaces and peripherals
•
•
•
•
•
•
Upgrade platform for legacy x86 DOS
PLC and machine controllers
Industrial gateways
POS, MMI
Rugged Thin Client PCs
Low Power, fanless systems
The CPU-1440 is a low power processor aimed at PC/104 embedded
applications. It provides x86 compatibility for legacy applications using DOS,
as well as supporting Linux and Windows CE for more current applications.
Featuring soldered down RAM and flash, and with options for extended
temperature (-40 to +70C) operation, it is ideal for installations requiring rugged
construction and high reliability, such as those in industrial and transportation
applications.
The CPU-1440 supports Microsoft DOS 6.22, Windows CE 6.0 and Linux 2.6.

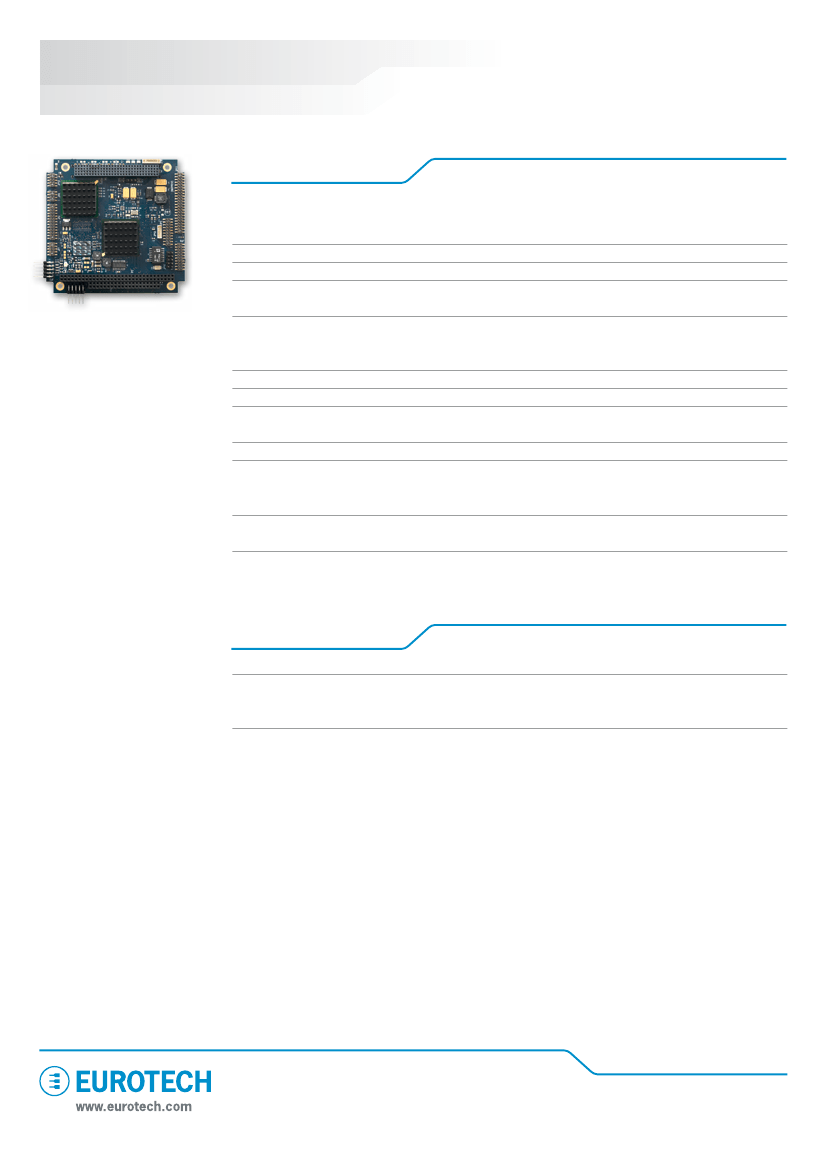

CPU-1440
Specifications
PC/104+ Module with
Vortex86DX processor
Board Architecture
PROCESSOR
Vortex86DX
600MHz
2x16KB L1 cache, 256KB L2 cache)
SYSTEM MEMORY
BIOS
EXPANSION BUSES
GRAPHICS
DDR2 SDRAM 128MB
Phoenix / General Software Embedded BIOS
PC/104-Plus (32-bit PCI)
PC/104 (16-bit ISA)
Analog VGA Interface
18-bit TFT and LVDS interfaces
Composite TV PAL or NTSC output
USB SUPPORTS
ETHERNET
STANDARD I/O
FLASH DISK
POWER SUPPLY
4x USB 2.0 ports supporting low/full/high speed mode
1x fast Ethernet port supporting 10/100BaseT
4x high speed serial ports, 16C550 compatible (1x RS-232, 3x TTL)
1x parallel port
2MB SPI on-board flash disk
5V only operation
Power consumption less than 4W
External battery for RTC back up
MECHANICAL
ENVIRONMENTAL
PC/104-Plus form factor
97x100mm
Operating temperature: -40°C to +70°C
RoHS directive: lead free
Order Codes
BOARD
PERIPHERAL & ACCESSORIES
• CPU-1440-00: 600MHz Vortex86DX, 128MB RAM, 2MB Flash Disk
• CBL-1440-00: cable kit with interfaces for COM1, COM2, COM3, COM4
(RS-232), 4x USB, VGA, Ethernet RJ45, keyboard and mouse connections
• CDADAIDECFCPU144001: IDE/Compact Flash Interface
DEV KIT
• DEVKITCPU1440CE1.0: CPU board, breakout board, LCD display,
power supply and Win CE BSP
• DEVKITCPU1440LX1.0: CPU board, breakout board, LCD display,
power supply and Linux BSP
Note: The information in this document is subject to change without notice and should not be construed as a commitment by EUROTECH.
While reasonable precautions have been taken, EUROTECH assumes no responsibility for any error that may appear in this document.
All trademarks or registered trademarks are the properties of their respective companies.
ETH_CPU1440_DS_05/2011
