Y09441R27000B9L datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> Y09441R27000B9L

Y09441R27000B9L: DescriptionFixed Resistor, Metal Foil, 3W, 1.27ohm, 0.1% +/-Tol, 2ppm/Cel, Through Hole Mount, RADIAL LEADED-4, ROHS COMPLIANT; CategoryPassive components The resistor; File Size351KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

Y09441R27000B9L Overview

Fixed Resistor, Metal Foil, 3W, 1.27ohm, 0.1% +/-Tol, 2ppm/Cel, Through Hole Mount, RADIAL LEADED-4, ROHS COMPLIANT

Y09441R27000B9L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1629347721
package instruction	RADIAL LEADED-4, ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
Other features	HIGH PRECISION, NON-INDUCTIVE, RATED CURRENT: 5A, FREE AIR POWER: 3W
structure	Rectangular
Lead length	25.4 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	26.01 mm
Package length	34.04 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	5.33 mm
method of packing	BULK
Rated power dissipation(P)	10 W
Rated temperature	25 °C
resistance	1.27 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FOIL
Temperature Coefficient	2 ppm/°C
Terminal shape	WIRE
Tolerance	0.1%

Preview

Download Datasheet

View All

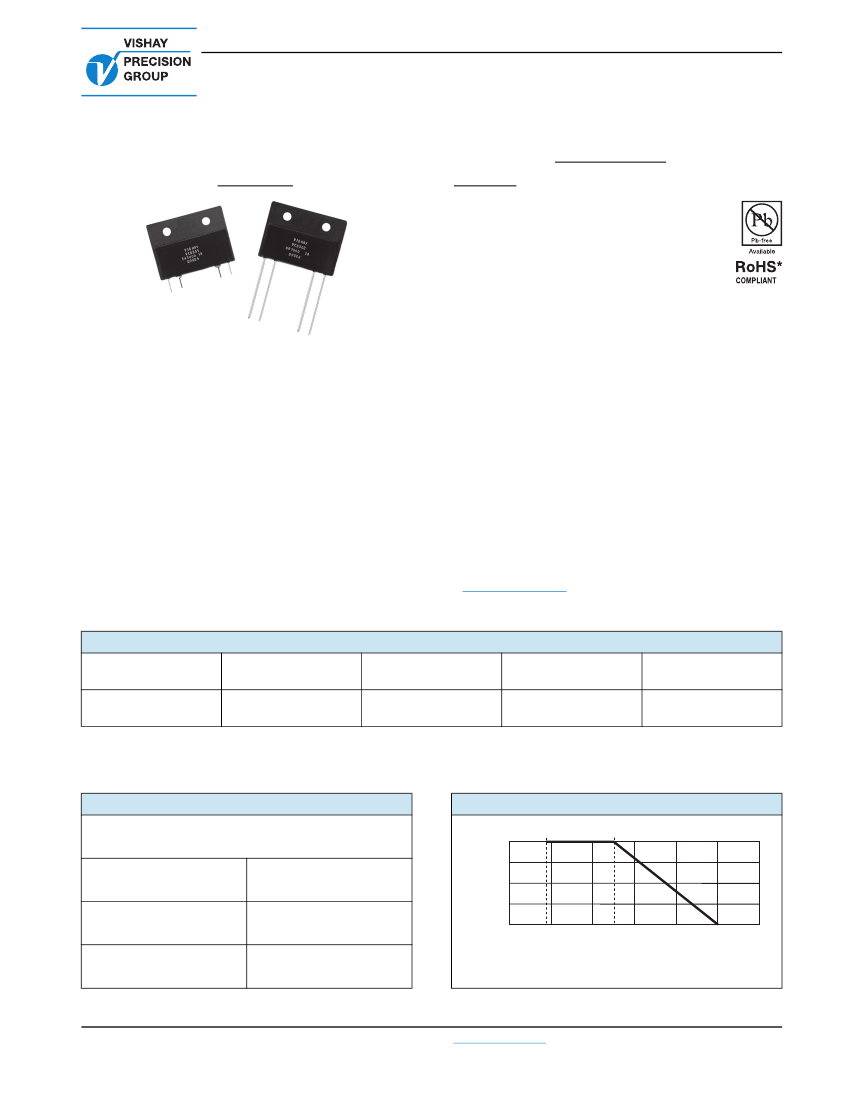

VCS331, VCS332

Vishay Foil Resistors

Bulk Metal

Foil Technology High Precision 4-Terminal Power

Current Sensing Resistors with TCR as low as ± 1 ppm/°C Maximum,

Tolerance ± 0.1 % and Rise Time 1.0 ns Effectively No Ringing

FEATURES

INTRODUCTION

The VCS331 and VCS332 offer precision Bulk Metal

Foil

technology resistors as low as 0.25



with a temperature

coefficient down to 1 ppm/°C maximum and unmatched long

term stability. The 4 terminal current sensing resistors, when

mounted on a heat sink, can sustain 10 W continuously

without an appreciable change in resistance (0.15 %

maximum). The typical 50 % power derating specification

associated with other technologies is not necessary. A

choice of lead configurations is available.

Our application engineering department is available to

advise and make recommendations. For non-standard

technical requirements and special applications, please

TABLE 1 - CHARACTERISTICS

MODEL NUMBER

VCS331, VCS332

RESISTANCE RANGE

0.25



< R < 500



BEST TOLERANCE

(1)

± 0.1 %

Notes

(1)

Tighter tolerance is available - for more details contact application engineering

(2)

The lower of the two limitations (power or current) is decisive

(3)

Heatsink - aluminum (6" length x 4" width x 2" height x 0.04" thick)

TABLE 2 - TCR CHART

(maximum)

(0 °C TO + 60 °C)

Percent of

Rated Power



0.25



± 3 ppm/°C





< 10



± 2 ppm/°C





< 500



± 1 ppm/°C

* Pb containing materials are not RoHS compliant, exemptions may apply

Document Number: 63153

Revision: 29-Mar-10

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com



Temperature coefficient of resistance (TCR):

down to ± 1 ppm/°C max. (see table 2)

Tolerance: to ± 0.1 % (see table 1)

Power rating (heat-sinked): 10 W

Load life stability: ± 0.01 % (100 ppm) at 25 °C,

2000 h at rated power

Resistance range: 0.25



to 500



Vishay Foil resistors are not restricted to standard

values; specific “as required” values can be supplied

at no extra cost or delivery (e.g. 1R2345 vs. 1R)

Electrostatic discharge (ESD) up to 25 000 V

Non-inductive, non-capacitive design

Rise time: 1.0 ns effectively no ringing

Current noise: 0.010 µV

RMS

/V of applied voltage (< - 40 dB)

Thermal EMF: 0.05 µV/°C typical

Voltage coefficient: < 0.1 ppm/V

Non-inductive: 0.08 µH

Non hot spot design

Thermal stabilization time < 1 s (nominal value achieved

within 10 ppm of steady state value)

Terminal finish: lead (Pb)-free or tin/lead alloy

Prototype quantities available in just 5 working days

or sooner. For more information, please contact

foil@vishaypg.com

For better performances, please contact application

engineering

POWER RATING

(2)

at + 25 °C

10 W on heat sink

(3)

or 3 W in free air

MAXIMUM CURRENT

(2)

FIGURE 1 - POWER DERATING CURVE

- 55 °C

+ 100

+ 75

+ 50

+ 25

- 50

+ 50

+ 100

+ 150

+ 200

+ 25 °C

Ambient Temperature °C

(Further Derating Not Necessary)
