NEC's
HIGH POWER SINGLE CONTROL UPG2010TB
L-BAND SPDT SWITCH
FEATURES
• SUPPLY VOLTAGE:
V
DD
= 2.7 to 3.0 V (2.8 V TYP.)
• SWITCH CONTROL VOLTAGE:
V
cont (H)
= 2.7 to 3.0 V (2.8 V TYP.)
V
cont (L)
=
−0.2
to +0.2 V (0 V TYP.)
• LOW INSERTION LOSS:
L
INS1
= 0.25 dB TYP. @ f = 0.5 to 1.0 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
L
INS2
= 0.30 dB TYP. @ f = 2.0 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
L
INS3
= 0.35 dB TYP. @ f = 2.5 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
(Reference value)
• HIGH ISOLATION:
ISL
1
= = 28 dB TYP. @ f = 0.5 to 2.0 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
ISL
2
= 25 dB TYP. @ f = 2.5 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
(Reference value)
• POWER HANDLING:
P
in (0.1 dB)
= +33.0 dBm TYP. @ f = 1.0 GHz, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V
• HIGH-DENSITY SURFACE MOUNTING:
6-pin super minimold package (2.0
×
1.25
×
0.9 mm)
DESCRIPTION
NEC's UPG2010TB is a single control GaAs MMIC L-band
SPDT (Single Pole Double Throw) switch for mobile phone
and L-band applications.
This device can operate from 0.5 to 2.5 GHz, with low inser-
tion loss and high isolation.
This device is housed in a 6-pin super minimold package,
suitable for high-density surface mounting.
APPLICATIONS
• L-band digital cellular or cordless handsets
• PCS, W-LAN, WLL and Bluetooth
TM
• Short Range Wireless
ORDERING INFORMATION
Part Number
µPG2010TB-E3
Package
6-pin super minimold
Marking
G2Y
Supplying Form
•
Embossed tape 8 mm wide
•
Pin 1, 2, 3 face the perforation side of the tape
•
Qty 3 kpcs/reel
Remark
To order evaluation samples, contact your nearby sales office.
Part number for sample order: UPG2010TB
Caution
Observe precautions when handling because these devices are sensitive to electrostatic discharge.
California Eastern Laboratories
UPG2010TB
PIN CONNECTIONS AND INTERNAL BLOCK DIAGRAM
(Top View)
3
2
1
4 3
5 2
6 1
(Top View)
4 4
5 5
6 6
(Bottom View)
3
2
1
Pin No.
1
Pin Name
OUTPUT1
GND
OUTPUT2
V
Cont
INPUT
V
DD
G2Y
2
3
4
5
6
TRUTH TABLE
Vcont1
Low
High
INPUT−OUTPUT1
ON
OFF
INPUT−OUTPUT2
OFF
ON
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C, unless otherwise specified)
Parameter
Supply Voltage
Switch Control Voltage
Input Power
Power Dissipation
Operating Ambient Temperature
Storage Temperature
Symbol
V
DD
V
cont
P
in
P
D
T
A
T
stg
Ratings
6.0
6.0
+36
150
Note
−45
to +85
−55
to +150
Unit
V
V
dBm
mW
°C
°C
Note
Mounted on double-sided copper-clad 50
×
50
×
1.6 mm epoxy glass PWB, T
A
= +85°C
RECOMMENDED OPERATING RANGE
(T
A
= 25°C, unless otherwise specified)
Parameter
Switch Voltage
Switch Control Voltage (H)
Switch Control Voltage (L)
Symbol
V
DD
V
cont (H)
V
cont (L)
MIN.
2.7
2.7
−0.2
TYP.
2.8
2.8
0
MAX.
3.0
3.0
0.2
Unit
V
V
V
UPG2010TB
ELECTRICAL CHARACTERISTICS
(T
A
= +25°C, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V, DC blocking capacitors = 56 pF, unless otherwise specified)
Parameter
Insertion Loss 1
Insertion Loss 2
Isolation 1
Input Return Loss
Output Return Loss
0.1 dB Gain Compression
Input Power
Note
2nd Harmonics
3rd Harmonics
Supply Current
Switch Control Current
Symbol
L
INS1
L
INS2
ISL1
RL
in
RL
out
P
in (0.1 dB)
2f
0
3f
0
I
DD
I
cont
Test Conditions
f = 0.5 to 1.0 GHz
f = 2.0 GHz
f = 0.5 to 2.0 GHz
f = 0.5 to 2.5 GHz
f = 0.5 to 2.5 GHz
f = 1.0 GHz
f = 1.0 GHz, P
in
= +30.5 dBm
f = 1.0 GHz, P
in
= +30.5 dBm
MIN.
−
−
24
15
15
+31.5
65
65
−
−
TYP.
0.25
0.30
28
20
20
+33.0
75
75
50
4
MAX.
0.45
0.50
−
−
−
−
−
−
100
20
Unit
dB
dB
dB
dB
dB
dBm
dBc
dBc
µA
µA
Note
P
in (0.1 dB)
is the measured input power level when the insertion loss increases 0.1 dB more than that of linear
range.
STANDARD CHARACTERISTICS FOR REFERENCE
(T
A
= +25°C, V
DD
= 2.8 V, V
cont
= 2.8 V/0 V, DC blocking capacitors = 51 pF, unless otherwise specified)
Parameter
Insertion Loss 3
Isolation 2
Switch Control Speed
Symbol
L
INS3
ISL2
t
SW
Test Conditions
f = 2.5 GHz
f = 2.5 GHz
MIN.
−
−
−
TYP.
0.35
25
1
MAX.
−
−
−
Unit
dB
dB
µs

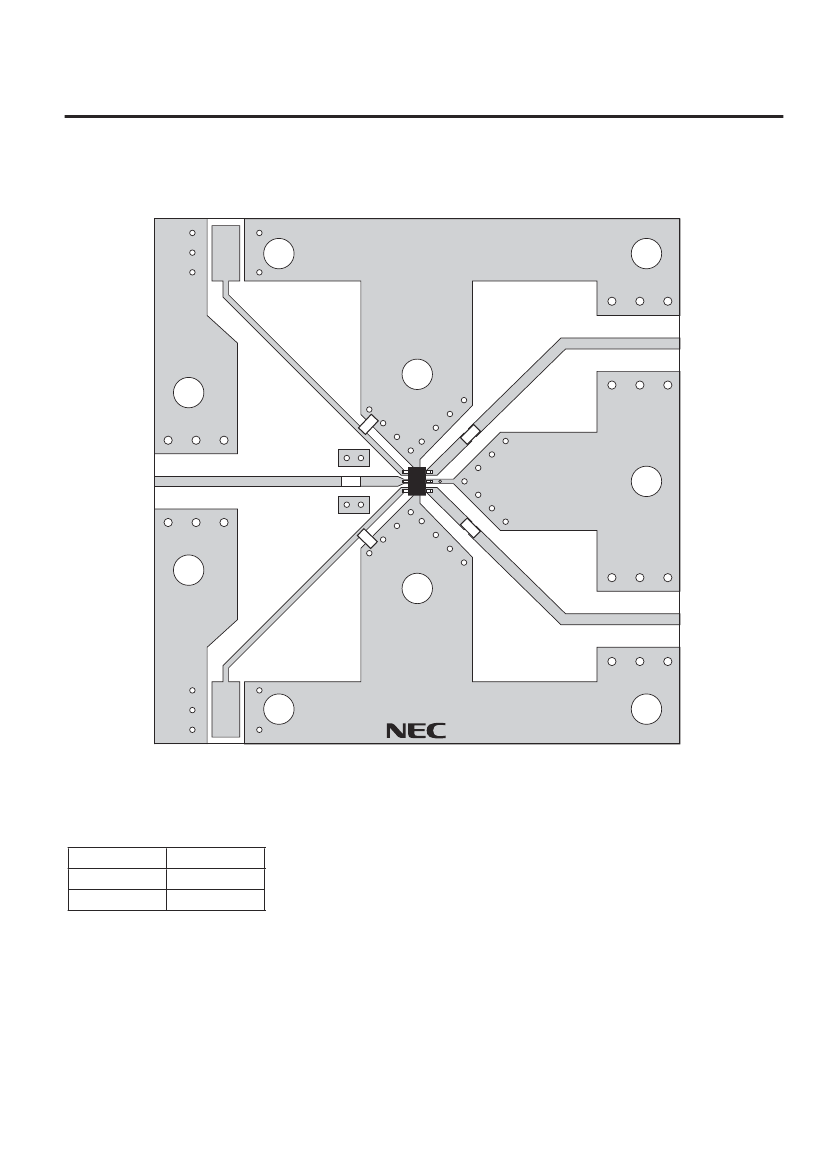

Caution
It is necessary to use DC blocking capacitors with the device.
The value of DC blocking capacitors should be chosen to accommodate the frequency of operation,
bandwidth, switching speed and the condition with actual board of your system. The range of recommended
DC blocking capacitor value is less than 100 pF.
