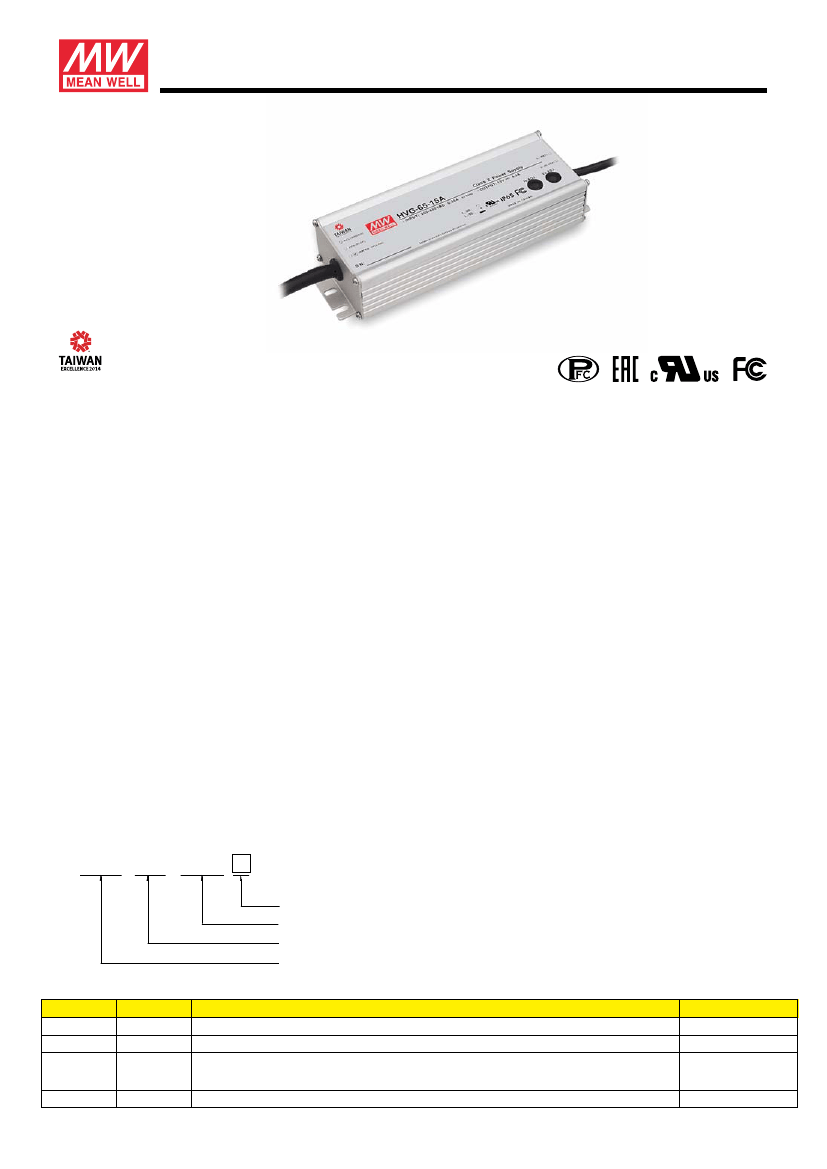

65W Constant Voltage + Constant Current LED Driver
HVG-65
series
IP65 IP67
■
Features
Wide input range 180 ~ 528VAC
Constant Voltage + Constant Current mode output
Metal housing with Class
Ⅰ
design
Built-in active PFC function
Type HL
■
Applications
LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming (dim-to-off); Timer dimming
Typical lifetime>50000 hours
5 years warranty
■
Description
HVG-65 series is a 65W AC/DC LED driver featuring the dual mode constant voltage and constant
current output. HVG-65 operates from 180~528 VAC and offers models with different rated voltage
ranging between 12V and 54V. Thanks to the high efficiency up to 90%, with the fanless design, the
entire series is able to operate for -40
℃
~ +80
℃
case temperature under free air convection. The design
of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor
applications. HVG-65 is equipped with various function options, such as dimming methodologies, so as
to provide the optimal design flexibility for LED lighting system.
■
Model Encoding
HVG - 65 - 15
A
Function options
Rated output
voltage(12/15/20/24/30/36/42/48/54V)
Rated
wattage
Series name
Type
A
B
AB
D
IP Level
IP65
IP67
IP65
IP67
Function
Io and Vo adjustable through built-in potentiometer.
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)
Io adjustable through built-in potentiometer &
3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)
Built-in Smart timer dimming function by user request.
Note
In Stock
In Stock
In Stock
By request
File Name:HVG-65-SPEC 2018-10-19
65W Constant Voltage + Constant Current LED Driver
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HVG-65-12
12V
5A
60W
CONSTANT CURRENT REGION
Note.4
7.2 ~12V
HVG-65-15
15V
9 ~ 15V
4.3A
64.5W
150mVp-p
HVG-65-20
20V
12 ~ 20V
3.25A
65W
150mVp-p
17 ~ 22V
HVG-65-24
24V
14.4 ~ 24V
2.71A
65W
150mVp-p
22 ~ 27V
HVG-65-30
30V
18 ~ 30V
2.17A
65.1W
200mVp-p
27 ~ 33V
HVG-65
HVG-65-36
36V
21.6 ~ 36V
1.81A
65.2W
200mVp-p
33 ~ 40V
HVG-65-42
42V
25.2 ~ 42V
1.55A
65.1W
300mVp-p
38 ~ 46V
HVG-65-48
48V
28.8 ~ 48V
1.36A
65.3W
300mVp-p
43 ~ 53V
series
HVG-65-54
54V
32.4 ~ 54V
1.21A
65.3W
300mVp-p
49 ~ 58V
RIPPLE & NOISE (max.)
Note.2
120mVp-p
VOLTAGE ADJ. RANGE
OUTPUT
CURRENT ADJ. RANGE
Adjustable for A-Type only (via the built-in potentiometer)
10.8 ~ 13.5V 13.5 ~ 17V
3 ~ 5A
±0.5%
±1.5%
2.58 ~ 4.3A
±2.0%
±0.5%
±1.5%
Adjustable for A/AB-Type only (via the built-in potentiometer)
1.95 ~ 3.25A 1.62 ~ 2.71A 1.3 ~ 2.17A
±1.0%
±0.5%
±0.5%
±1.0%
±0.5%
±0.5%
±1.0%
±0.5%
±0.5%
1.08 ~ 1.81A 0.93 ~ 1.55A 0.81 ~ 1.36A 0.72 ~ 1.21A
±1.0%
±1.0%
±1.0%
±1.0%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
INPUT
TOTAL HARMONIC DISTORTION
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER CURRENT
PROTECTION
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
MAX. CASE TEMP.
ENVIRONMENT
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
Note.5
500ms, 80ms /230VAC
16ms / 347VAC
400ms, 80ms /347VAC, 480VAC
30ms / 480VAC
180 ~ 528VAC
254VDC ~ 747VDC
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF
≧
0.98/230VAC, PF
≧
0.97/277VAC, PF
≧
0.97/347VAC, PF
≧
0.93/480VAC @full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20%(@ load
≧
60%/230VAC, 277VAC, 347VAC; @ load
≧
75%/480VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
89%
89.5%
89%
88.5%
0.22A / 347VAC
0.18A / 480VAC
COLD START 25A(t
width
=420 s measured at 50% I
peak
) at 480VAC; Per NEMA 410
μ
12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 480VAC
<0.75mA / 480VAC
95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
Constant current limiting, recovers automatically after fault condition is removed
41 ~ 46V
28 ~ 34V
23 ~ 27V
34 ~ 38V
14.4 ~ 16.8V 18 ~ 21V
Shut down o/p voltage with auto-recovery or re-power on to recovery
Shut down o/p voltage, recovers automatically after temperature goes down
Tcase=-40 ~ +80
℃
(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Tcase=+80℃
20 ~ 95% RH non-condensing
86.5%
87.5%
89.5%
90%
90%
47 ~ 53V
54 ~ 60V
59 ~ 65V
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 60
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750(type”HL”), CSA C22.2 No. 250.0-13, EAC TP TC 004, IP65 or IP67 approved
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015, EN61000-3-2 Class C (
@ load
≧
60%) ; EN61000-3-3, FCC Part 15 Subpart B, EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
612.6K hrs min. Telcordia SR-332 (Bellcore) ; 208K hrs min. MIL-HDBK-217F (25
℃
)
189*61.5*36.8mm (L*W*H)
0.77Kg; 18pcs/14.9Kg/0.89CUFT
1. All parameters NOT specially mentioned are measured at 347VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Please refer to STATIC CHARACTERISTIC sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75
℃
or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.
https://www.meanwell.com/Upload/PDF/LED_EN.pdf
File Name:HVG-65-SPEC 2018-10-19
65W Constant Voltage + Constant Current LED Driver
Block Diagram
HVG-65
series
PFC fosc : 65KHz
PWM fosc : 65KHz
I/P
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
POWER
SWITCHING
RECTIFIERS
&
FILTER
O.L.P.
+V
-V
DIM+
DIM-
(B Type)
FG
PFC
CONTROL
O.L.P.
PWM & PFC
CONTROL
DETECTION
CIRCUIT
O.V.P.
O.T.P.
DRIVING METHODS OF LED MODULE
※
This series is able to work in either Constant Current mode (a direct drive way) or
Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.
100
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
(A) Constant
Voltage area
(B)
Constant
Current region
Vo(%)
50
100
Io (%)
Typical output current normalized by rated current (%)
File Name:HVG-65-SPEC 2018-10-19
65W Constant Voltage + Constant Current LED Driver

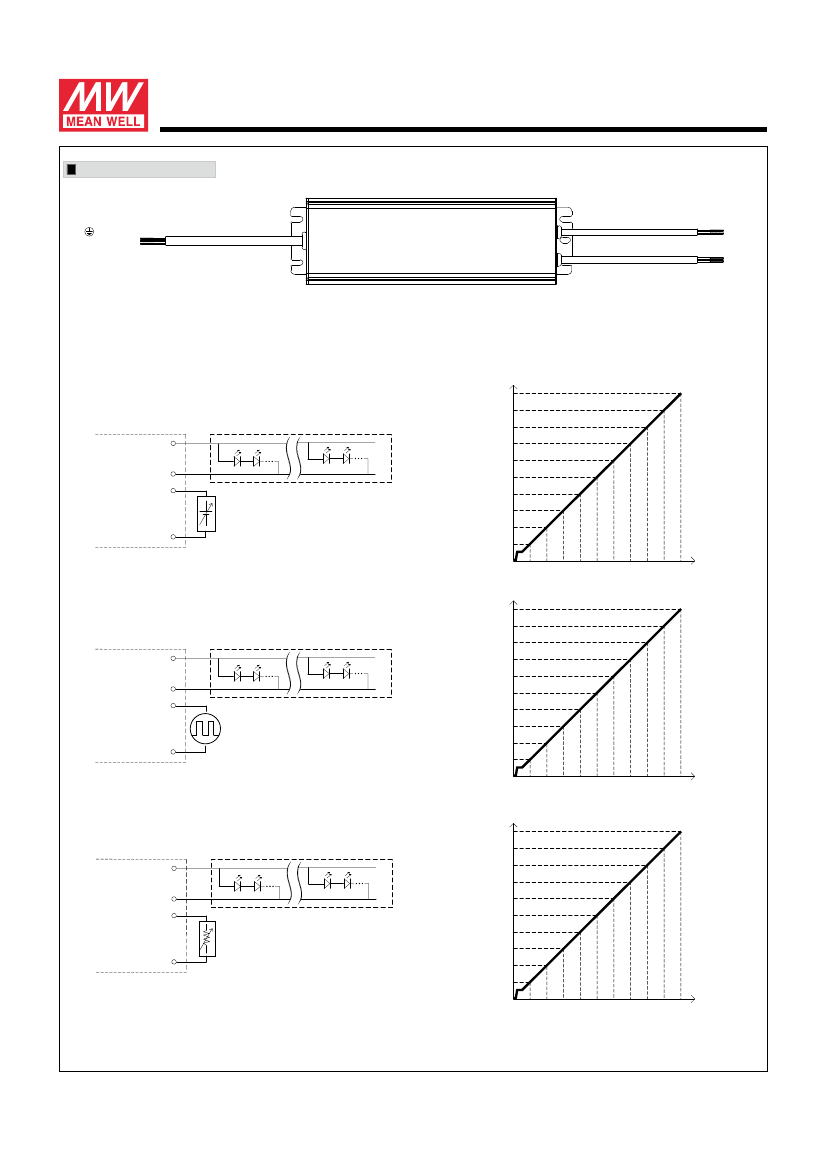

DIMMING OPERATION
HVG-65
series
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
HVG-65
-V(Black)
+V(Red)
DIM+(Blue)
DIM-(White)
※
3 in 1 dimming function (for B/AB-Type)
Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
0 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 1 0 0
μ
A (typ.)
◎
Applying additive 0 ~ 10VDC
100%
90%
80%
Output current (%)
+V
-V
DIM+
+
-
+
Additive Voltage
-
+
-
70%
60%
50%
40%
30%
20%
10%
0%
0V 1V
2V 3V 4V 5V 6V 7V 8V 9V 10V
Dimming input: Additive voltage
DIM-
“DO
NOT connect "DIM- to -V"
◎
Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
100%
90%
80%
Output current (%)
+V
-V
DIM+
+
-
+
-
70%
60%
50%
40%
30%
20%
Additive PWM signal
DIM-
“DO
NOT connect "DIM- to -V"
10%
0%
0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Duty cycle of additive 10V PWM signal dimming input
◎
Applying additive resistance:
+
-
100%
90%
+V
-V
DIM+
+
Output current (%)
80%
70%
60%
50%
40%
30%
-
Additive Resistance
DIM-
“DO
NOT connect "DIM- to -V"
20%
10%
0%
Short
10K/N 20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
(N=driver quantity for
synchronized
dimming operation
)
Dimming input: Additive resistance
Note : 1. Min. dimming level is about 8% and the output current is not defined when 0%<
I
out<8%.
2. The output current could drop down to 0% when dimming input is about 0k
Ω
or 0Vdc, or 10V PWM signal with 0% duty cycle.
File Name:HVG-65-SPEC 2018-10-19
65W Constant Voltage + Constant Current LED Driver
HVG-65
series

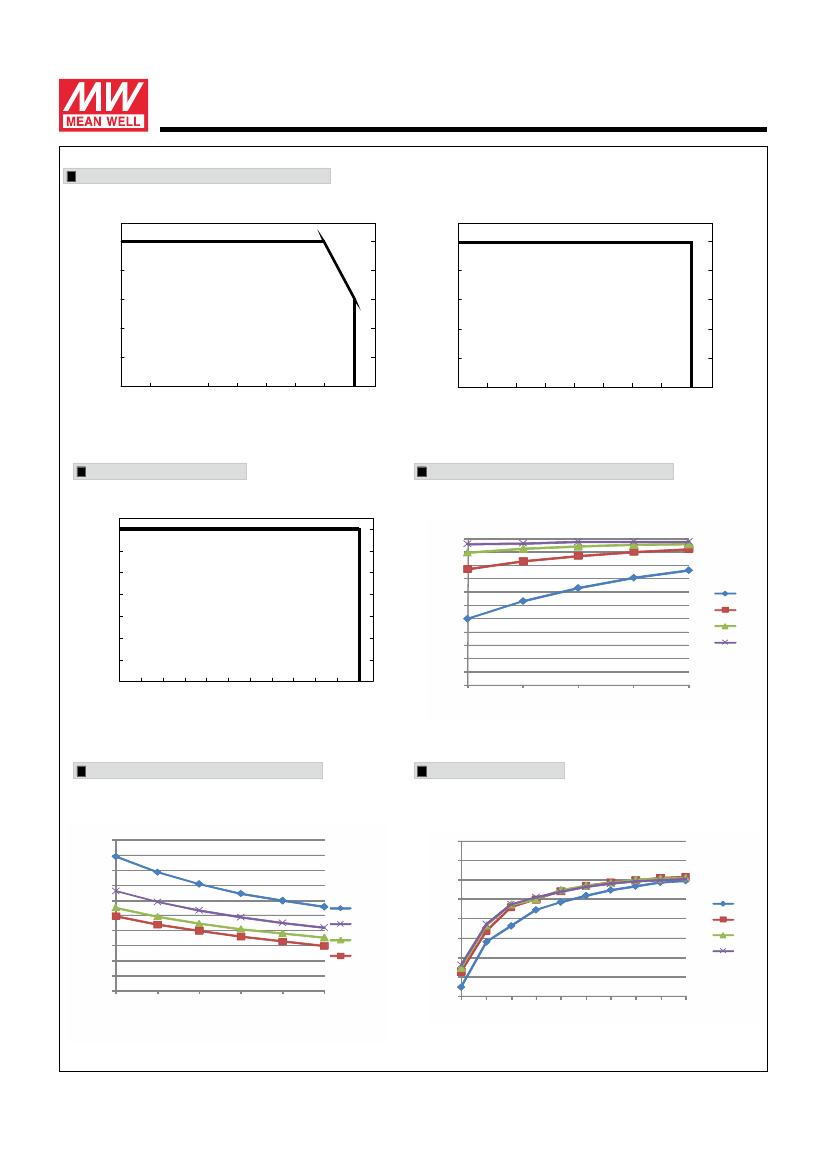

OUTPUT LOAD vs TEMPERATURE(Note.9)
100
100
80
80
60
60
LOAD (%)
40
LOAD (%)
(HORIZONTAL)
40
20
20
-40
-25
-10
0
15
30
50
60
70
-40
-25
0
20
45
55
65
75
80 (HORIZONTAL)
AMBIENT TEMPERATURE,Ta (
℃
)
Tcase (
℃
)
STATIC CHARACTERISTIC
POWER FACTOR (PF) CHARACTERISTIC
※
Tcase at 70℃
Constant Current Mode
100
90
80
70
PF
60
50
40
180
347
440
480
528
1.00
0.98
0.96
0.94
0.92
0.90
0.88
0.86
0.84
0.82
0.80
0.78
60%
70%
80%
90%
100%
(65W)
480V
347V
277V
230V
LOAD (%)
INPUT VOLTAGE (V) 60Hz
LOAD
TOTAL HARMONIC DISTORTION (THD)
EFFICIENCY vs LOAD
HVG-65 series possess superior working efficiency that up to 90% can
be reached in field applications.
※
48V Model, Tcase at 70℃
100
95
※
48V Model, Tcase at 70℃
20
18
16
14
EFFICIENCY(%)
90
85
80
75
70
65
480V
347V
277V
230V
THD(%)
12
10
8
6
4
2
0
50%
60%
70%
80%
90%
100%
480VAC
347VAC
277VAC
230VAC
60
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
LOAD
LOAD
File Name:HVG-65-SPEC 2018-10-19
