Z-POWER LED Series
Technical Datasheet for X92050
Z-Power series is designed for high current operation and
high flux output applications. Furthermore, its thermal
management characteristic is better than other LED
Solutions. By package SMD design and good thermal
emission material.
According to these advantages, it enables to apply various
lighting applications and design solution, automotive
lighting, and large size LCD backlight etc.
Application
• Mobile phone flash
• Automotive interior / exterior lighting
• Automotive signal lighting
• Automotive forward lighting
• General Torch
• Architectural lighting
• LCD TV / Monitor Backlight
• Projector light source
• Traffic signals
• Task lighting
• Decorative / Pathway lighting
• Remote / Solar powered lighting
• Household appliances
Features
• Super high Flux output
and high Luminance
• Designed for high
current operation
• Low thermal resistance
• SMT solderbility
• Lead Free product
• RoHS compliant
*The appearance and specifications of the product may be changed
for improvement without notice.
1
Rev 00 – 2007 / 08
www.zled.com
Full Code of Z-Power LED Series
Full code form : X
1
X
2
X
3
X
4
X
5
X
6
X
7
– X
8
X
9
–X
10
X
11
X
12
X
13
X
14
1. Part Number
- X
1
: Color
- X
2
: Z-Power LED series number
- X
3
: LENS type
- X
4
: Chip quantity or Watt
- X
5
: Package outline size
- X
6
: Type of PCB
- X
7 :
Grade of characteristic code
2. Internal Number
- X
8
- X
9
3. Code Labeling
- X
10
: Luminous flux (or Radiant flux for royal blue)
- X
11
X
12
X
13
: Dominant wavelength (or x,y coordinates rank code)
- X
14
: Forward voltage
4. Sticker Diagram on Reel & Aluminum Vinyl Bag
PART NO. :
X
1
X
2
X
3
X
4
X
5
X
6
X
7
– X
8
X
9
QUANTITY : ###
LOT NUMBER : ##########
BIN CODE :
X
10
X
11
X
12
X
13
X
14
For more information about binning and labeling, refer to the Application Note -1
2
Rev 00 – 2007 / 08
www.zled.com

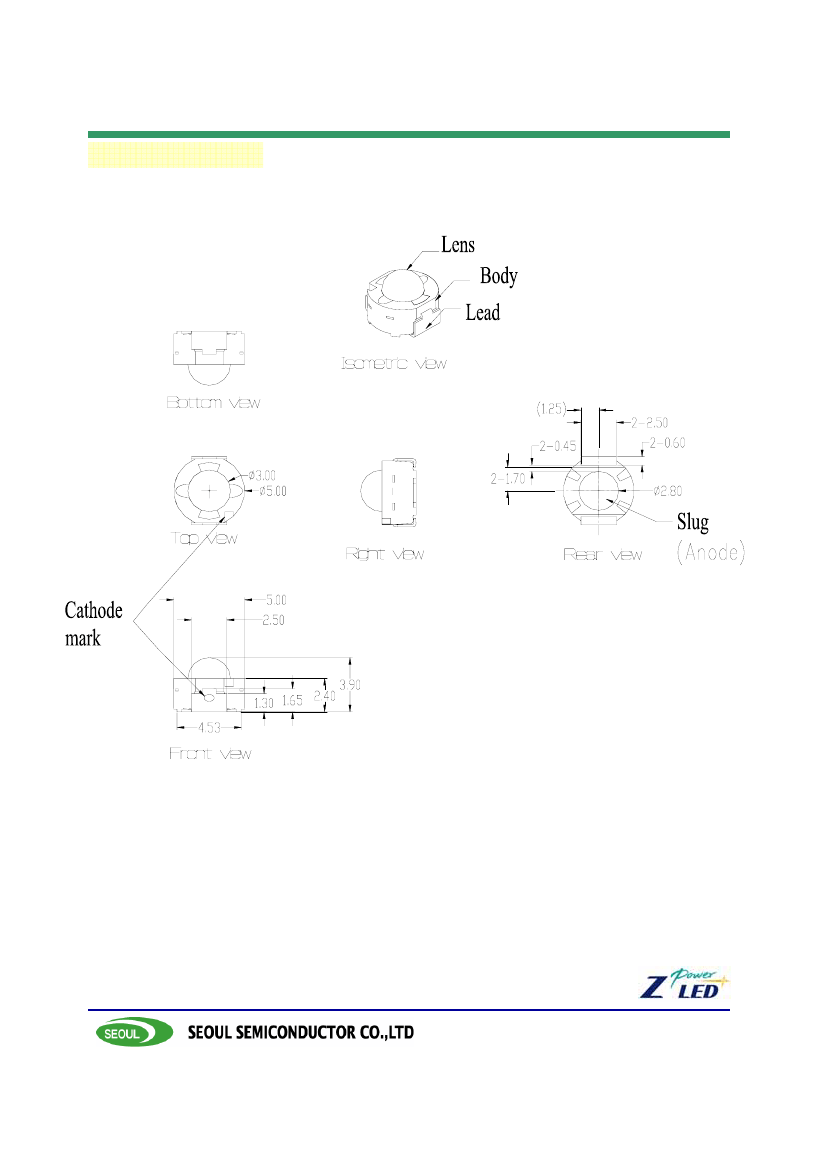

Outline Dimensions
Notes : Notes :
1. All dimensions are in millimeters. ( Lens tolerance : +0.25 Package tolerance :
±0.2
)
2. Scale : none
3. Slug of package is connected to anode.
3
Rev 00 – 2007 / 08
www.zled.com
Characteristics for Z-Power LED
1. Blue (B92050)
1-1 Electro-Optical characteristics at I
F
=150mA, T
A
=25ºC
Parameter
Luminous Flux
[1]
Symbol
Ф
V [2]
λ
D
V
F
2Θ 1/2
Value
Min
-
455
-
Typ
7
465
3.65
-
Max
-
-
-
Unit
lm
nm
V
deg.
Dominant Wavelength
[3]
Forward Voltage
View Angle
[4]
1-2 Absolute Maximum Ratings
Parameter
Forward Current
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
[7]
Symbol
I
F
P
d
T
j
T
opr
T
stg
-
Value
0.2
0.8
125
-40 ~ +85
-40 ~ +120
±15,000V
HBM
Unit
A
W
ºC
ºC
ºC
-
*Notes :
[1] SSC maintains a tolerance of
±10%
on flux and power measurements.
[2]
Ф
V
is the total luminous flux output as measured with an integrating sphere.
[3] CCT
±5%
tester tolerance
[4] A tolerance of
±0.06V
on forward voltage measurements
[5] Rθ is measured with a SSC metal core pcb.(25 ºC
≤T
J
≤
110 ºC)
Break voltage of Metal PCB is 6.5kVAC
[6] It is included the zener chip to protect the product from ESD.
* Caution
1. Please do not drive at rated current more than 5 sec. without proper heat sink
4
Rev 00 – 2007 / 08
www.zled.com
Characteristics for Z-Power LED
2. Green (G92050)
2-1 Electro-Optical characteristics at I
F
=150mA, T
A
=25ºC
Parameter
Luminous Flux
[1]
Symbol
Ф
V [2]
λ
D
V
F
2Θ 1/2
Value
Min
-
520
-
Typ
22
525
3.65
-
Max
-
535
-
Unit
lm
nm
V
deg.
Dominant Wavelength
[3]
Forward Voltage
View Angle
[4]
2-2 Absolute Maximum Ratings
Parameter
Forward Current
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
ESD Sensitivity
[7]
Symbol
I
F
P
d
T
j
T
opr
T
stg
-
Value
0.2
0.8
125
-40 ~ +85
-40 ~ +120
±15,000V
HBM
Unit
A
W
ºC
ºC
ºC
-
*Notes :
[1] SSC maintains a tolerance of
±10%
on flux and power measurements.
[2]
Ф
V
is the total luminous flux output as measured with an integrating sphere.
[3] CCT
±5%
tester tolerance
[4] A tolerance of
±0.06V
on forward voltage measurements
[5] Rθ is measured with a SSC metal core pcb.(25 ºC
≤T
J
≤
110 ºC)
Break voltage of Metal PCB is 6.5kVAC
[6] It is included the zener chip to protect the product from ESD.
* Caution
1. Please do not drive at rated current more than 5 sec. without proper heat sink
5
Rev 00 – 2007 / 08
www.zled.com
