Z86C0508PSC datasheet, PDF - EEWORLD Datasheet

Z86C0508PSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18, DIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size873KB，29 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

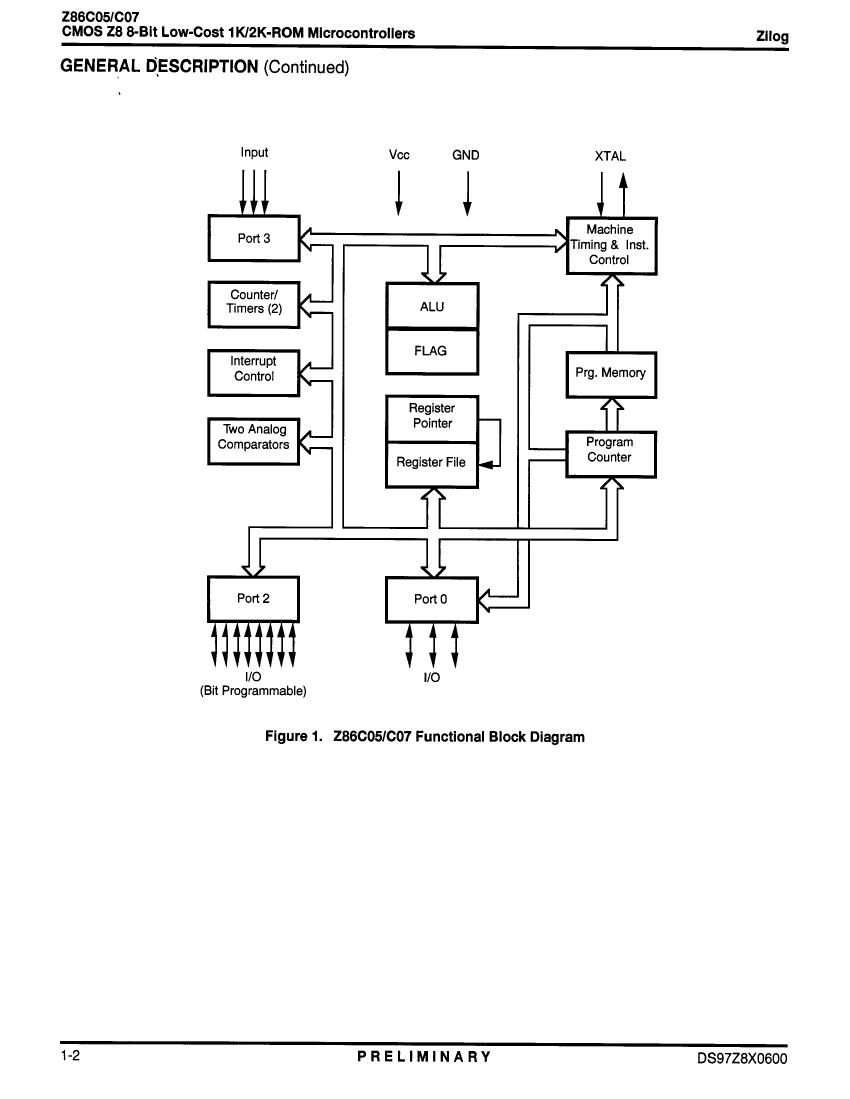

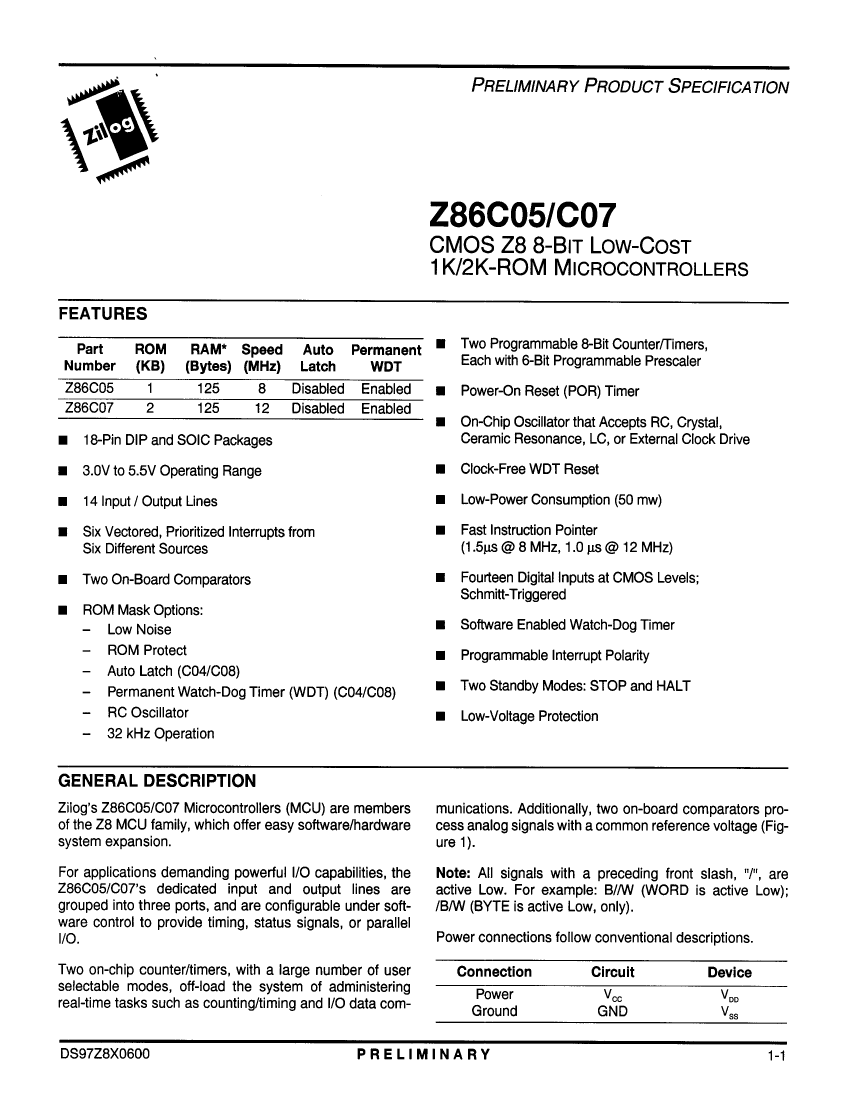

Z86C0508PSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 8MHz, CMOS, PDIP18, DIP-18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1440248074
Parts packaging code	DIP
package instruction	DIP, DIP18,.3

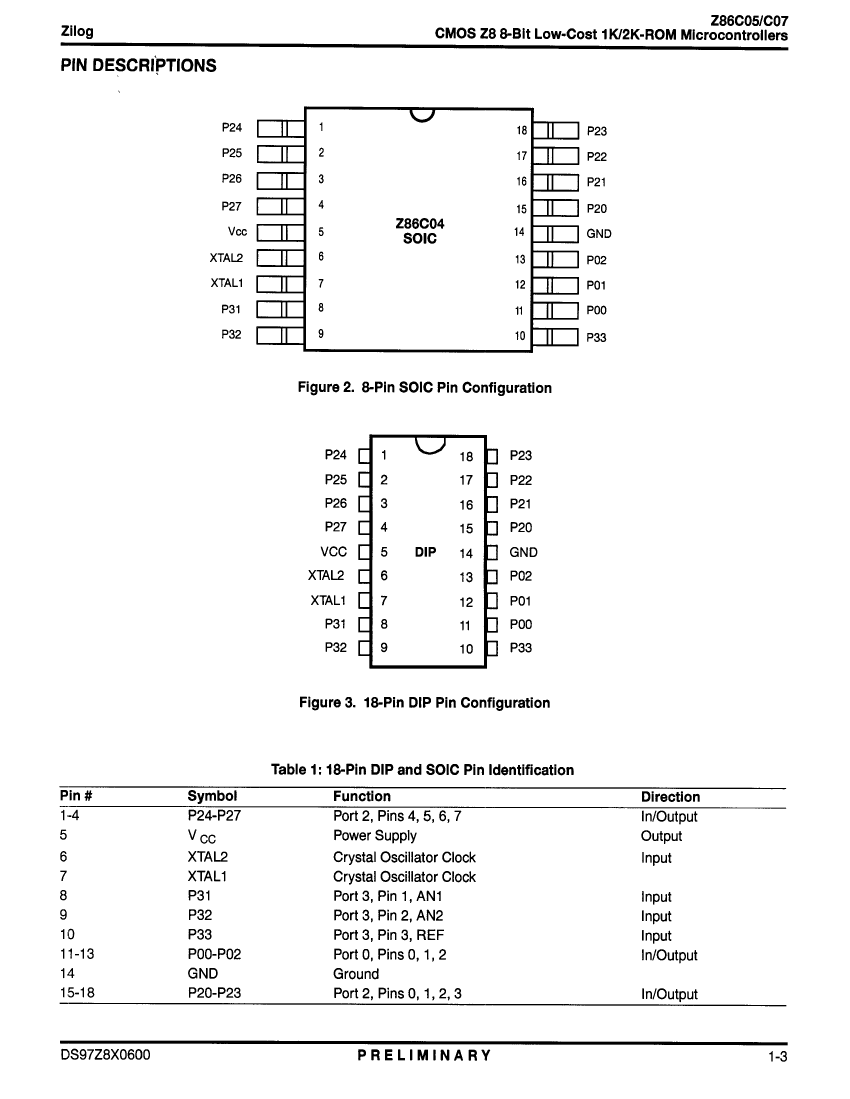

Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	Z8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
length	22.86 mm
Number of I/O lines	14
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	124
rom(word)	1024
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	8 MHz
Maximum slew rate	11 mA

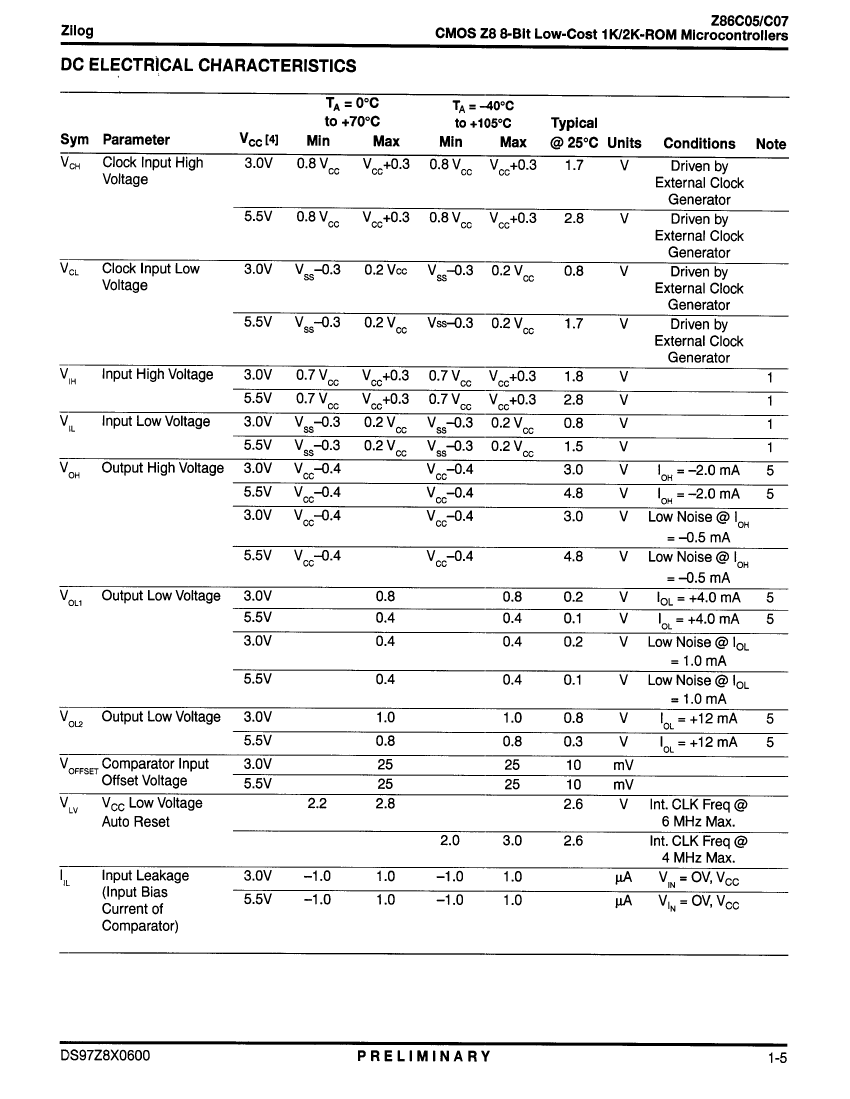

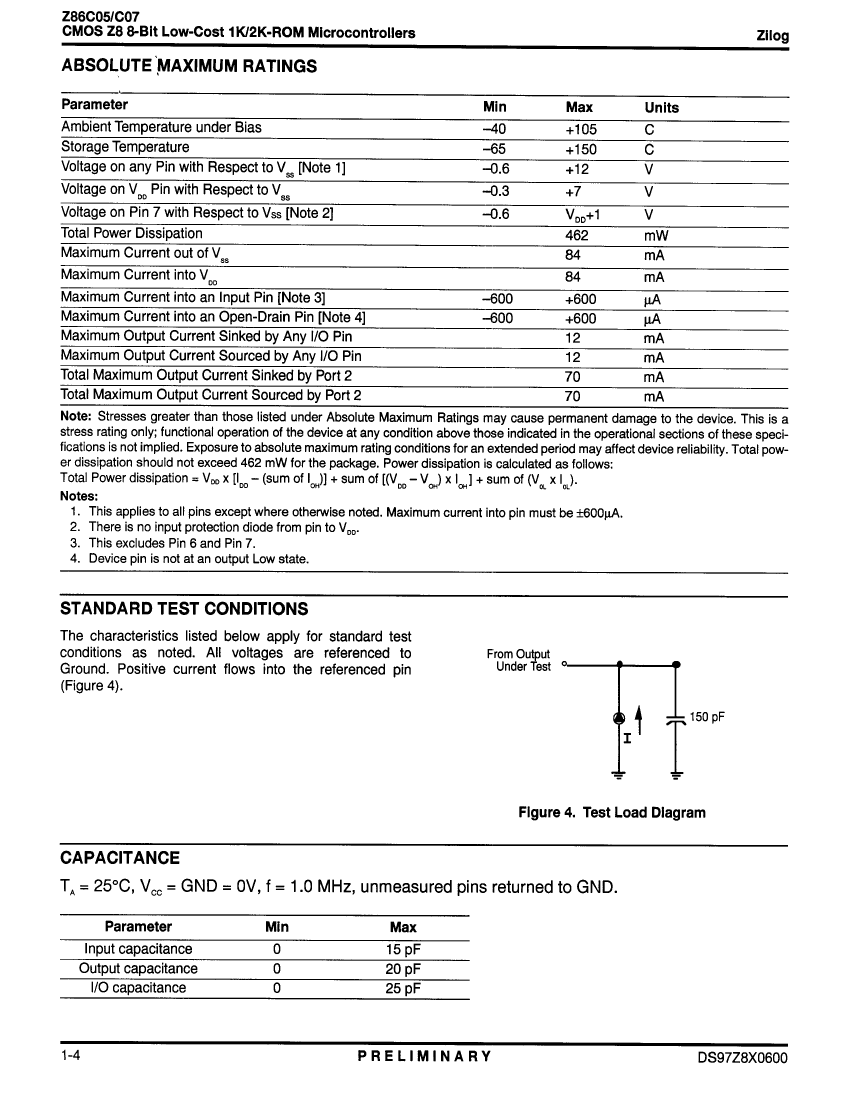

Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
