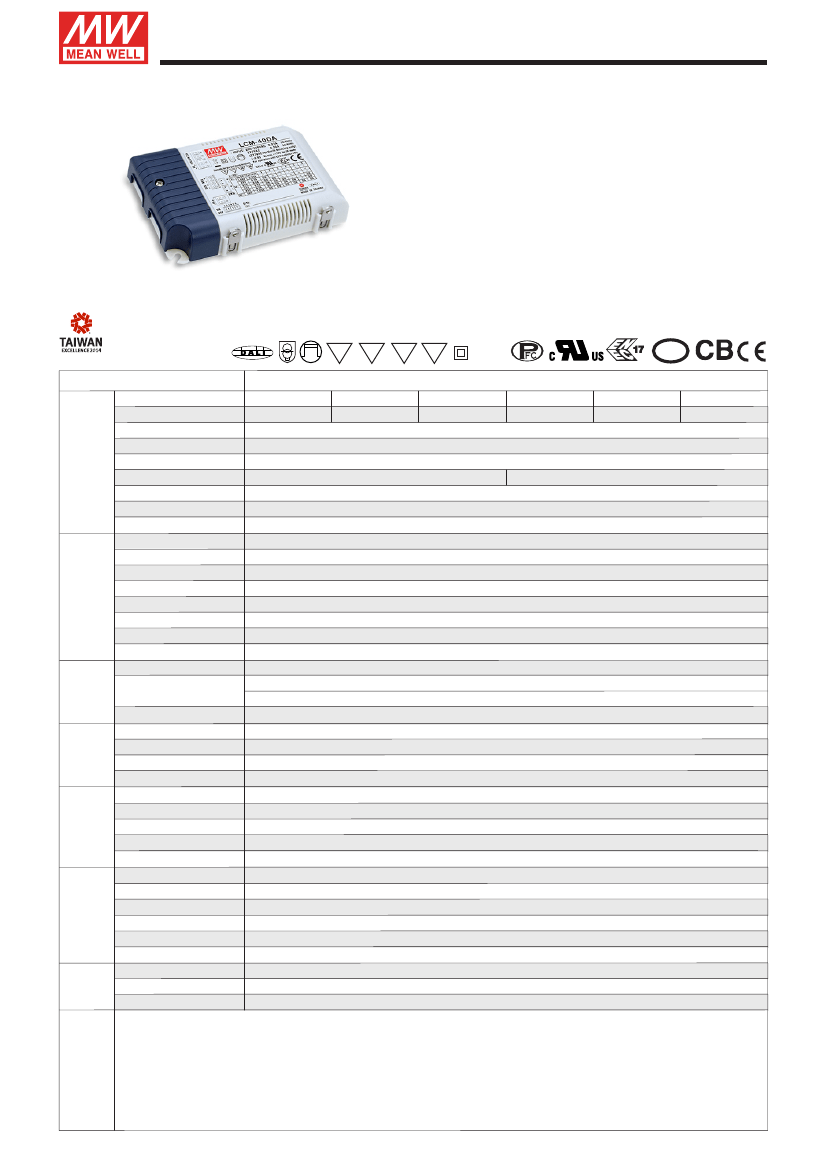

40W Multiple-Stage Output Current LED Power Supply
LCM-40DA
series
F
110
SPECIFICATION
MODEL
DC VOLTAGE RANGE
RATED POWER
RIPPLE CURRENT
OUTPUT
LCM-40DA
SELECTABLE CURRENT
Note.3
350mA
2 ~ 100V
42W
±5%
500mA
2 ~ 80V
■
Features :
‧
Output current level selectable by DIP S.W.
‧
180~295VAC input only
‧
Built-in active PFC function
‧
Protections: Short circuit / Over voltage / Over temperature
‧
Cooling by free air convection
‧
Fully isolated plastic case
‧
Class
Ⅱ
power unit, no FG
‧
Built-in DALI interface and push dimming function
‧
Optional 12V/50mA auxiliary output (Model No.: LCM-40DA-AUX)
‧
IP20 design
‧
Logarithm or linear dimming curve selectable(Meet IEC62386-207)
‧
Temperature compensation function by external NTC
‧
No load power consumption <0.5W(<1.2W for LCM-40DA-AUX)(Note.7)
‧
Power supplies synchronization function up to 10 units
‧
Suitable for indoor LED lighting applications
‧
3 years warranty
CQC
M
M
SELV
S
&
E
600mA
2 ~ 67V
700mA
2 ~ 57V
900mA
2 ~ 45V
1050mA
2 ~ 40V
RIPPLE & NOISE (max.)
Note.2
700mVp-p
NO LOAD OUTPUT VOLTAGE (max.)
110V
CURRENT ACCURACY
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
±5%
Note.5
500ms, 80ms / 230VAC at
rated power
16ms/230VAC at
rated power
Note.4
180 ~ 295VAC
65V
254 ~ 417VDC
47 ~ 63Hz
INPUT
PF≧0.975/230VAC, PF≧0.96/277VAC at
rated power
(Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
Total harmonic distortion will be lower than 20% when output loading is 75% or higher
EFFICIENCY (Typ.)
Note.6
91%
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
SHORT CIRCUIT
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
0.23A/230VAC
0.2A/277VAC
COLD START 20A(t
width
=260μs measured at 50% I
peak
) at 230VAC
<0.5mA / 240VAC
Constant current limiting, recovers automatically after fault condition is removed
110 ~ 130V
Protection type : Shutdown o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
FUNCTION
AUXILIARY POWER (optional)
12V @ 50mA for driving fan; Tolerance
±5%
By external NTC(not provide with the power supply), please see "Temperature compensation operation"
TEMP. COMPENSATION
DIMMING
SYNCHRONIZATION
WORKING TEMP.
Please see "Dimming Operation"
Please see "Synchronization Operation"
-30 ~ +60℃ (Refer to "Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +80℃, 10 ~ 95% RH
±0.03%/℃
(0 ~ 50℃)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 independent, GB19510.14,GB19510.1 approved
Comply with IEC62386-101, 102, 207
I/P-O/P:3.75KVAC
I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
Compliance to EN55015, EN61000-3-2 Class C(≧40%
rated power)
; EN61000-3-3; GB17625.1,GB17743
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61547 light industry level (surge 2KV), criteria A
193.6K hrs min. MIL-HDBK-217F (25℃)
123.5*81.5*23mm (L*W*H)
0.24Kg ; 54pcs/15Kg/1.12CUFT
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
DALI STANDARDS
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS

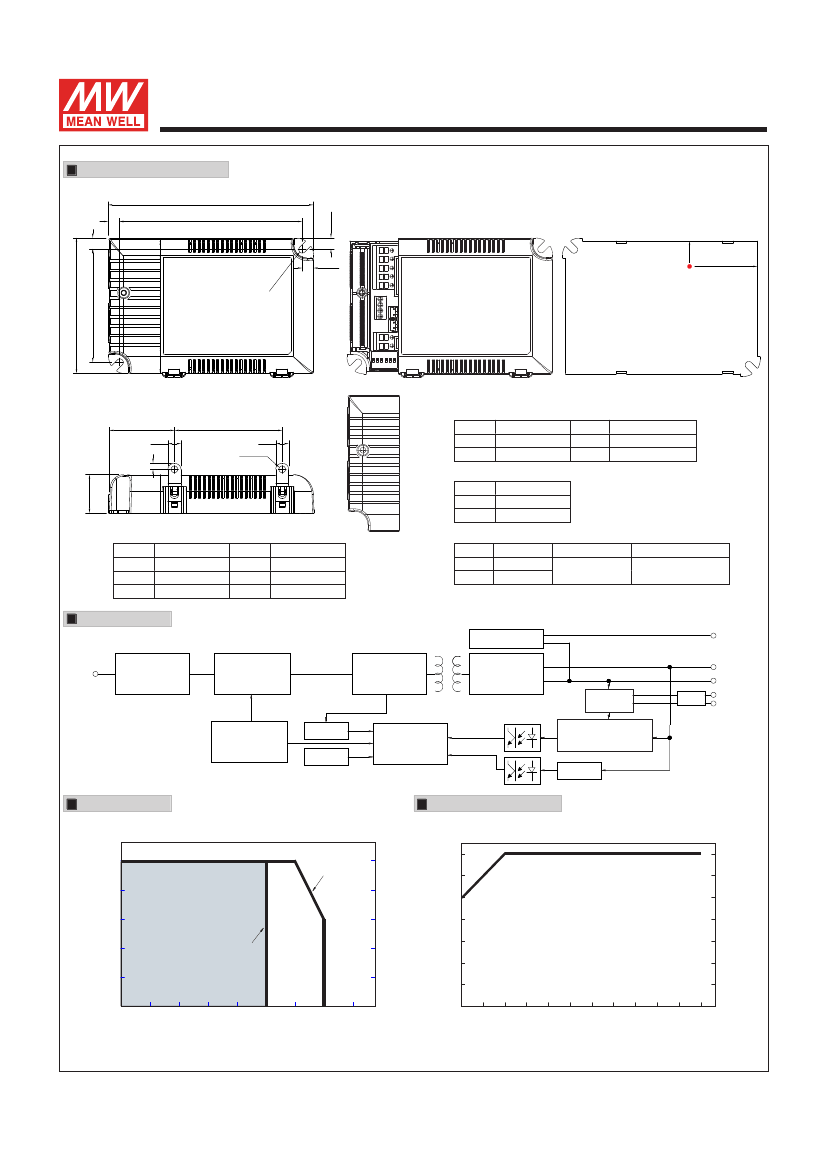

DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.

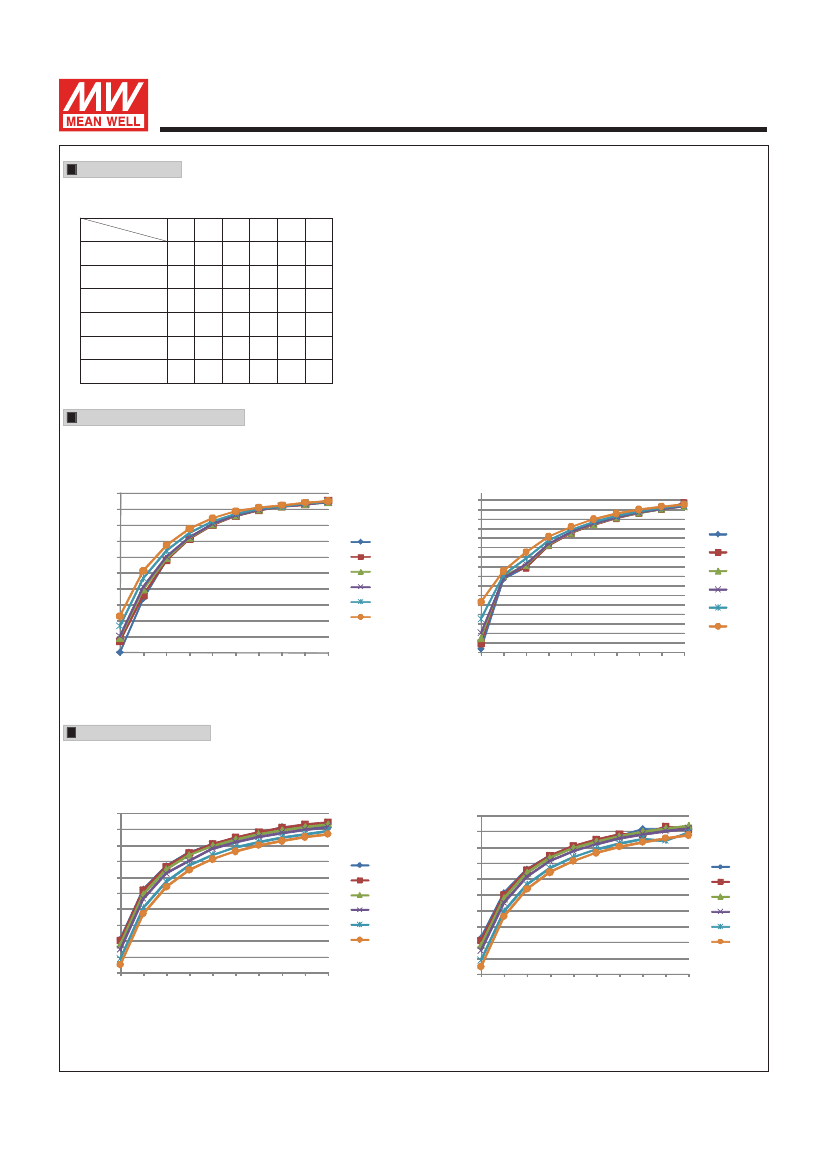

3. Please see "DIP switch table".
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. Efficiency is measured at 500mA/80V output set by DIP switch.
7. No load power consumption<0.5W(LCM-40DA) and <1.2W(LCM-40DA-AUX) is measured at 180
~
277VAC, with lighting fixture connected and output
current dimmed to 0%.
8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
File Name:LCM-40DA-SPEC 2014-03-28
40W Multiple-Stage Output Current LED Power Supply
DIMMING OPERATION
※
PUSH dim(primary side)
Ignore
Short push
Long push
Reset push
To avoid reaction on AC spike
Push to turn ON-OFF
Dimming up or down
Setting light to 100%
<0.05 sec.
0.1~1 sec.
1.5~10 sec.
>11 sec.
LCM-40DA
series
‧Maximum
number of drivers up to 10 pcs.
‧Maximum
length of the cable, from push button to last driver is 20 meter.
‧Factory
setting at 100%.
‧When
the light is lower than 10% it will always dim up, or when the light output is higher than 90% it will always dim down.
LCM-40DA
DA-
DA+
PUSH
AC/N
AC/L
Push Button
AC/N
AC/L
Warning: The pushbutton can only be connected in between the PUSH terminal of LCM-40DA and AC/L (brown or black color). It would cause short
circuit if it is connected to AC/N.
※
DALI interface(primary side)
‧DALI
protocol including 16 groups and 64 addresses.
‧First
step is fixed at 6% of output.
SYNCHRONIZATION OPERATION
‧10
drivers(max.) synchronization (1 master + 9 slaves)
‧Maximum
cable length between each units : 20 meter.
LCM-40DA
(Slave 2)
SYN.
- -
LCM-40DA
(Master)
SYN.
- -
LCM-40DA
(Slave 1)
SYN.
- -
+
+
+
+
20m
20m
NOTE: Please make sure all units are set to 100% dimming setting(factory default) before synchronizing.
+
+
File Name:LCM-40DA-SPEC 2014-03-28
40W Multiple-Stage Output Current LED Power Supply
TEMPERATURE COMPENSATION OPERATION
NTC derating curve
105
100
95
220KO
220KΩ
330KO
330KΩ
470KO
470KΩ
LCM-40DA
series
Output Io (%)
90
85
80
75
70
65
55
60
65
70
75
80
85
90
95
Sensed Temperature(degree)
LCM-40DA have the built-in temperature compensation function (T↑,Io↓). By connecting a temperature sensor (NTC resistor) between the NTC +/-
terminal of LCM-40DA and the detecting point on the lighting system or the surrounding environment, output current of LCM-40DA could be
correspondingly changed to ensure the long life of LED.
1.LCM-40DA can still be operated well when the NTC resistor is not connected and the value of output current will be the current level that you set
through the DIP switch.
2.
NTC resistance
220K
330K
470K
Output Current
< 60
℃
, 100% of the rated current (corresponds to the setting current level)
> 60
℃
, output current begin to reduce, details please refer to the curve.
< 70
℃
, 100% of the rated current (corresponds to the setting current level)
> 70
℃
, output current begin to reduce, details please refer to the curve.
< 80
℃
, 100% of the rated current (corresponds to the setting current level)
> 80
℃
, output current begin to reduce, details please refer to the curve.
Notes: 1. MW does not offer the NTC resistor and all the data above are measured by using THINKING TTC03 series.
2. If other brands of NTC resistor is applied,please check the temperature curve first.
3. Synchronization function of the power supply will be invalid when the "temperature compensation" function is in use.
File Name:LCM-40DA-SPEC 2014-03-28
