PTC
Princeton Technology Corp.
Tel : 886-2-29162151
Fax : 886-2-29174598
Synchronous Signal Discriminator
for Multi-Sync Display Monitor
PT 8501
PT 8501 is a frequency discriminator IC utilizing CMOS Technology specially
designed for multi-sync display monitors. It supports a wide variety of display
modes -- from VGA‘s 640 x 350 to work station’s 1280 x 1024. By checking the
frequency and/or polarity of the horizontal and/or vertical synchronous signals,
PT 8501 can decide the proper display mode. It then drives the corresponding
output pins from high impedance to low level. PT8501 also sends out negative
polarity horizontal/vertical synchronous signals. PT8501’s highly comprehensive
features make it very reliable in performance.
r
r
r
r
r
r
r
r
r
r
Supports VESA VGA (640 x 350 / 640 x 640 / 640 x 480)
Supports IBM VGA (640 x 350 / 640 x 400 / 640 x 480)
Supports IBM 8514/A (Interlace / Non-Interlaced)
Supports VESA Super VGA
Supports VESA New Super VGA
Supports European Super VGA
Supports VESA XGA (1024 x 768)
Supports Work Station (1280 x 1024)
The Open-Drain Output Pin can be pulled up to 14 Volts (with Pull-High
Resistor)
Supports User-Defined Special Display Mode/Frequency Discrimination
r
Multi-Sync Display Monitor

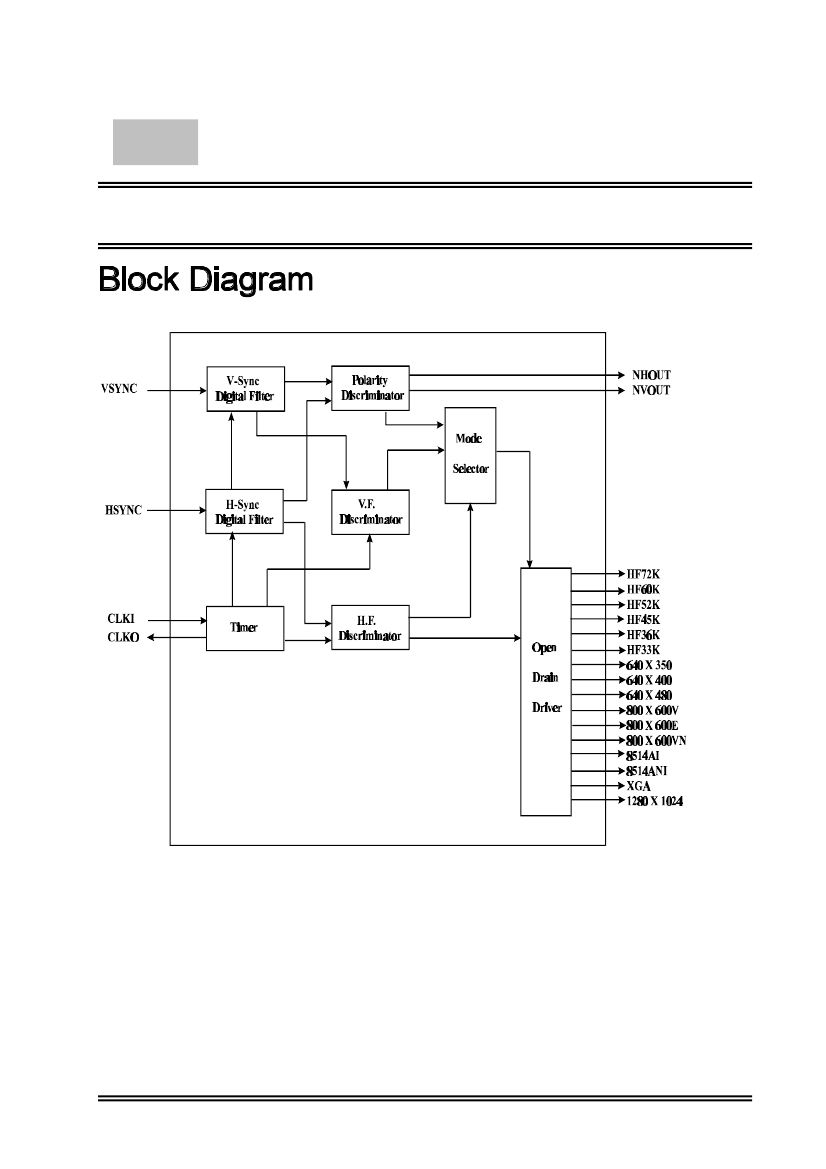

PTC
Princeton Technology Corp.
Tel : 886-2-29162151
Fax : 886-2-29174598
Synchronous Signal Discriminator
for Multi-Sync Display Monitor
PT 8501

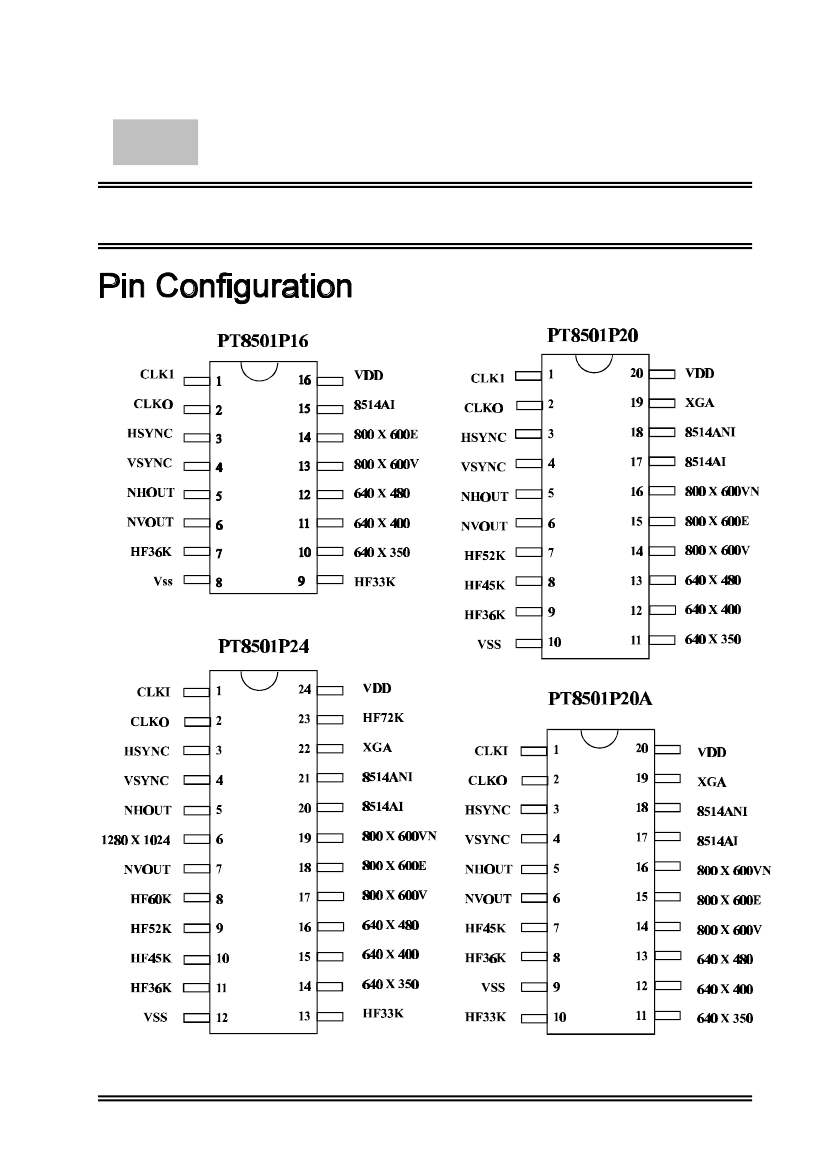

PTC
Princeton Technology Corp.
Tel : 886-2-29162151
Fax : 886-2-29174598
Synchronous Signal Discriminator
for Multi-Sync Display Monitor
PT 8501
PTC
Princeton Technology Corp.
Tel : 886-2-29162151
Fax : 886-2-29174598
Synchronous Signal Discriminator
for Multi-Sync Display Monitor
PT 8501
