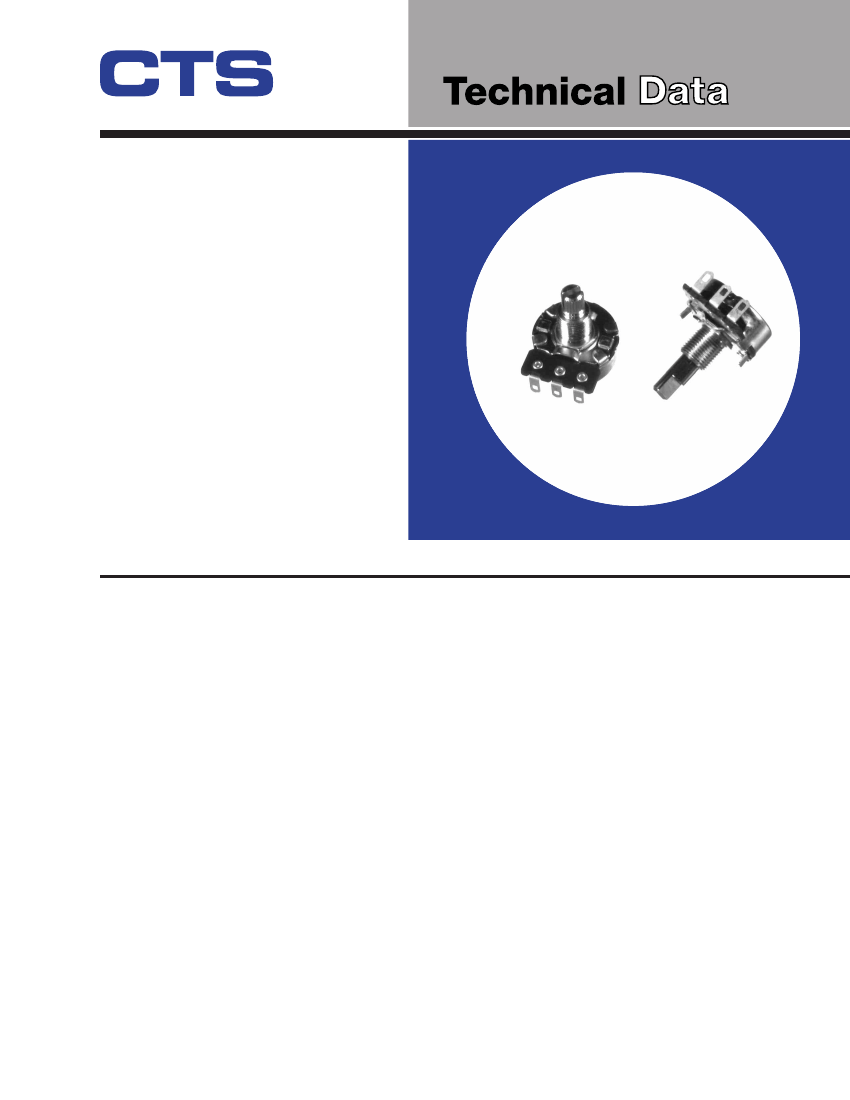

Series 295
®
Commercial
24mm Diameter
Composition
Long Life
Variable Resistor
• Low cost
• Long life
• Joy stick applications
• Wide resistance range
Electrical and Mechanical Specifications
Resistance Range
10K ohms through 1 megohms (linear taper)
Resistance Tolerance
Standard: ±20%
Special: Available at extra cost
Power Rating, Watts
10K ohms through 100K ohms,
1
/
3
watt;
above 100K ohms,
1
/
4
watt @ 55°C
Joystick Applications:
1
/
6
watt @ 55°C
Across End Terminals: 350 VDC, resistance
values under 1 megohms. Load not to exceed
wattage rating.
Shaft Information
Flatted or knurled metal shafts
Diameter: 6.35mm (.250")
Angle of Rotation
Total Rotation: 300° ± 5°
*Effective Rotation: 50° approximate
(typical joystick control use). Special are
available at extra cost.
Mounting Information
Bushing Mount
Diameter: EIA standard
3
/
8
" – 32 UNEF-2A thread
Standard Length: 9.53mm (.375") or
6.35mm (.250")
Special Length: Available as required
Locating Lugs
Standard Position: Left side (terminals down)
supplied, unless otherwise specified, on all
bushing mounted controls.
Other Position: Available with lug right side
(terminals down).
Mounting Hardware
Available upon request. Unless specified,
controls will be supplied less hardware.
Long Life
*1,000,000 cycles, joystick applications only,
limited effective rotation
Technical Data Sheet 1448C
Technical Data Sheet 1295
CTS CORPORATION /
MANUFACTURER OF RELIABLE ELECTRONIC COMPONENTS

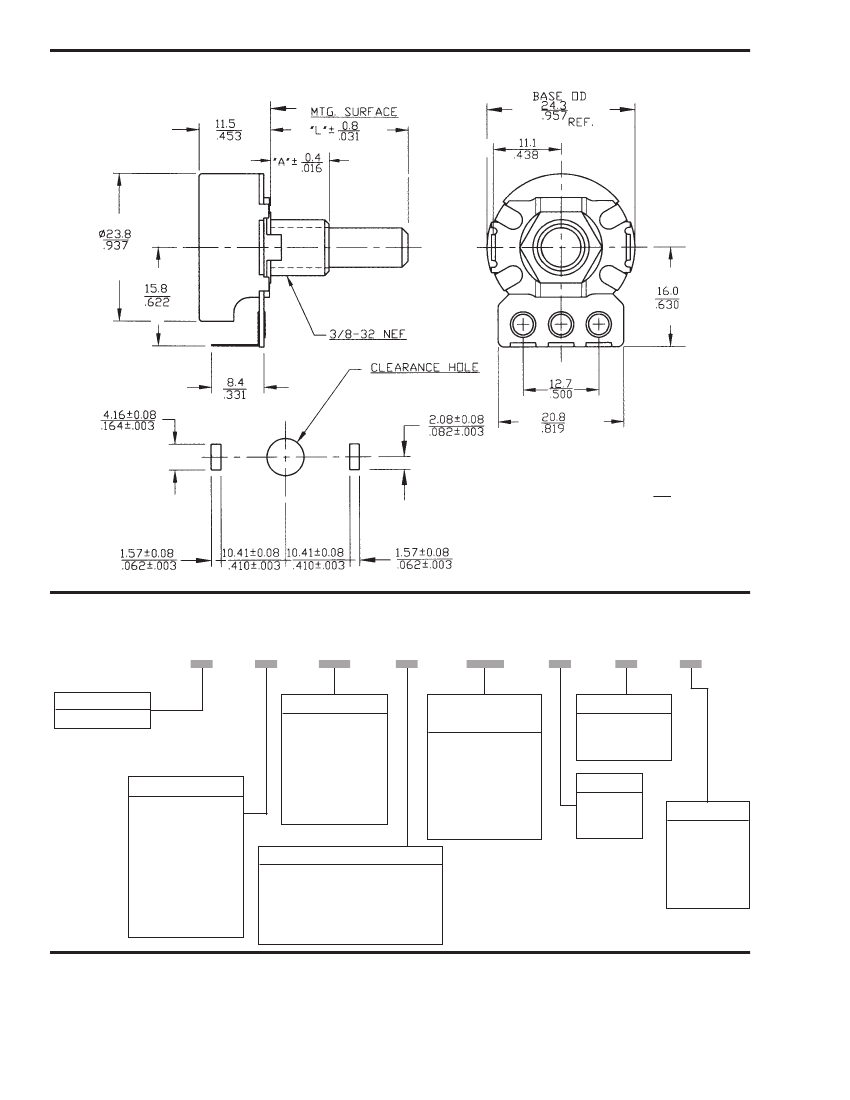

Bushing Mounting, Standard Solder Lug Terminals
DIMENSION:
MM
INCH
Ordering Information
295
TERMINAL STYLE
T
– SOLDER LUG
T
2
20
SHAFT LENGTH
FROM MOUNTING
SURFACE
1/32" INCREMENTS
EXAMPLES:
20
– .625" (15.9MM)
24
– .750" (19.1MM)
28
– .875" (22.2MM)
32
– 1.000" (25.4MM)
R
103
RESISTANCE CODE
EXAMPLES
CODE
103
253
503
104
504
105
RESISTANCE
10K
25K
50K
100K
500k
1Meg
B
1
TAPER
1
– LINEAR
2
– 10% AUD
3
– 10% CCW AUD
1
MOUNTING STYLE
BUSHING LENGTH:
1/8" INCREMENTS
EXAMPLES:
2
– .250" (6.35MM)
3
– .375" (9.5MM)
8
– 1.000" (25.4MM)
1
– .500” (12.7MM) FMS
LOCKING
BUSHING MOUNT SUPPLIED
WITH LOCATING LUG LEFT
SIDE TERMINALS DOWN
RESIST TOL
A
– ±10%
B
– ±20%
C
– ±30%
SPECIALS
1
– NONE
2
– LOCATING
LUG RIGHT
SIDE
3
– NO
LOCATING
LUG
SHAFT TRIM
R
– ROUND
F
– FLATTED .250" X .156"
(6.35MM X 4.0MM)
K
– KNURLED EIA S148
S
– SD SLOT .047" WIDE X .063" DEEP
(1.2MM X 1.6MM)
Order From:
CTS CORPORATION, ELECTROCOMPONENTS
/ 1601 Mishawaka Street / Elkhart, Indiana 46514
North America Toll Free (888) 287-4690 / (219) 296-6700 / FAX: (219) 293-1240 http://www.ctscorp.com
CTS COMPONENTS TAIWAN, LTD.
/ 7, Central 6th Road (Chung Liu Road) / P.O. Box 26-20
Kaohsiung Export Processing Zone / Kaohsiung, Taiwan, Rep. of China
(07) 8216145 / FAX: (07) 8417642.8110040
2.5M - 6 - 99I
