GU2AD

Description
led lighting modules amber, 1.5W diffused lens
CategoryLED optoelectronic/LED
File Size305KB，2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Download Datasheet Parametric Compare View All

GU2AD Online Shopping

Suppliers Part Number Price MOQ In stock
GU2AD - - View Buy Now

GU2AD Overview

led lighting modules amber, 1.5W diffused lens

GU2AD Parametric

Parameter NameAttribute value
ManufactureDialigh
Product CategoryLED Lighting Modules
RoHSN
ProducLED Modules, Circul
Number of LEDs1
Illumination ColAmbe
PackagingBulk
Diamete50 mm
Forward Curre128 mA
Forward Voltage12 V
Heigh11.7 mm
Power Rating1.5 W
Size50 mm x 11.7 mm

Preview

Download Datasheet

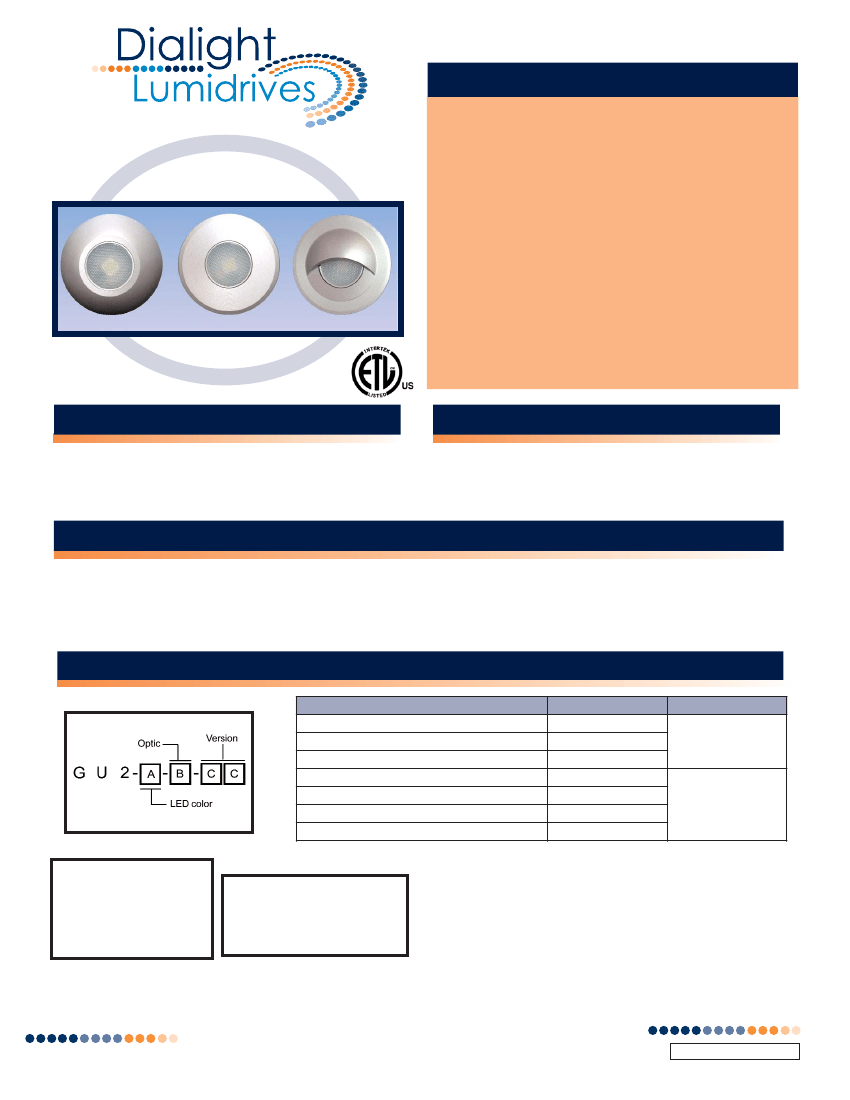

FEATURES / BENEFITS
Onboard drive accepts low voltage input
GU2 SERIES
SINGLE LED MODULE
Long life, up to 60,000 hours
Low 1.5 watt power consumption
Low profile - ADA compliant
Optional niche mounting box available for direct burial
in concrete or ground
Uses the latest LUXEON
®
Rebel LED technology
ETL listed to UL2108 standards for dry, damp or wet
locations
DOME
FLUSH
EYELID
IP67 rated for interior or exterior use
40 lumen output for white.
Consult factory for additional options
APPLICATIONS
Ideal for any difficult to maintain location low level pathway
systems, architectural accent, staircases, decks, kitchens,
etc. Easily mounts to wood, tile, stone, glass,
stainless steel, etc
MATERIALS/FINISH
Anodized aluminum base and “snap-on” top cover
PMMA lens
PTFE Lead Wires 20” (508mm) long, 20 AWG
OPERATING CONDITIONS
Runs off 8-24 VDC or 10-14 VAC
Current draw = 0.128A@ 12 VDC, 1.5 watts
Ambient Temperature limits -30ºC to +55ºC
(-22ºF to +131ºF)
Multiple modules can be connected in parallel for
longer runs off a single supply.
ORDERING INFORMATION
Guida 2 Base
LED Color (A)
Optical Pattern (B)
Version (CC)
C
= Cool White 5300K / *40 lumen min
D
= Diffused
“Blank”
=
N
= Neutral White 4000K / *40 lumen min
S
= Spot
European Market
Version
W
= Warm White 3050K / *40 lumen min
R
= Red
US
=
G
= Green
North America
B
= Blue
Version
A
= Amber
Base & cover purchased separately
Guida 2 Covers
Series - Cover Type
GU - Dome
GU - Flush
GU - Eyelid
Dialight Lumidrives
York House • Weatherby Road • Long Marston, York, YO26 7NH
Tel: 0845 6346161 • Fax: 0845 6346160 • www.dialight.com

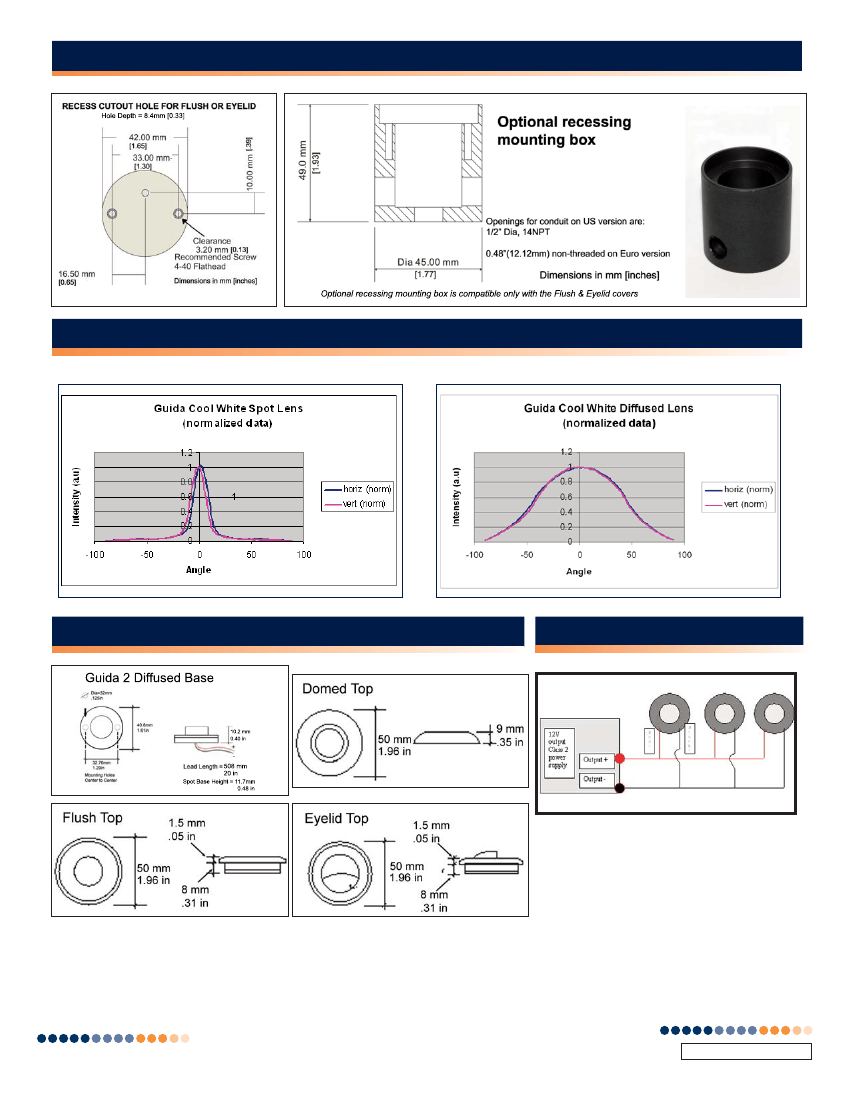

Mounting Box
GU-MBX
= Euro version
GU-MBX-US
= US version
* LED flux data is manufacturers test data @ 25ºC T
J
. Light output at max
acceptable ambient temp will be approximately 25-30% lower, depending on
thermal conductivity of mounting surface and lens type.
PRIVATE LABEL
OEM PROGRAM
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEXLUMGU2_B
