2764.23.2615.405 datasheet, PDF

2764.23.2615.405: DescriptionRF Connector, Female, Panel Mount, Board Mount, Press Fit Terminal, Jack; CategoryThe connector The connector; File Size167KB，3 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

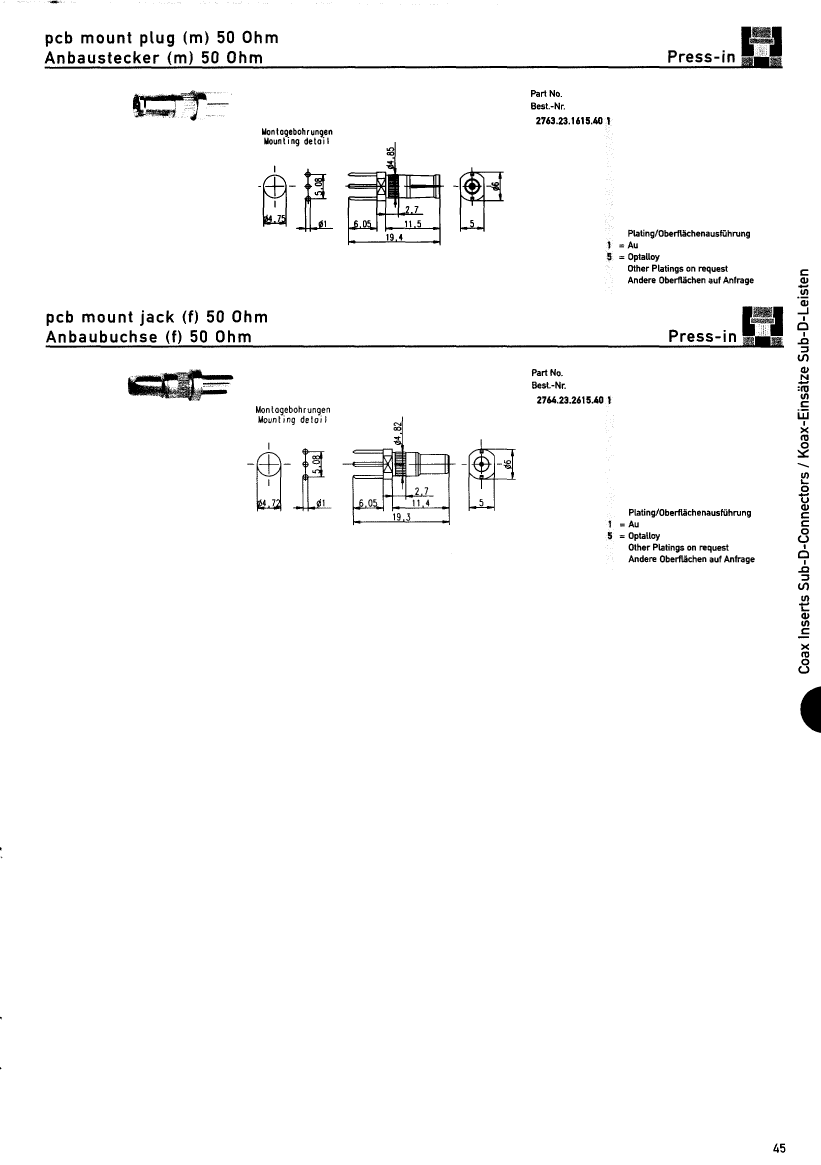

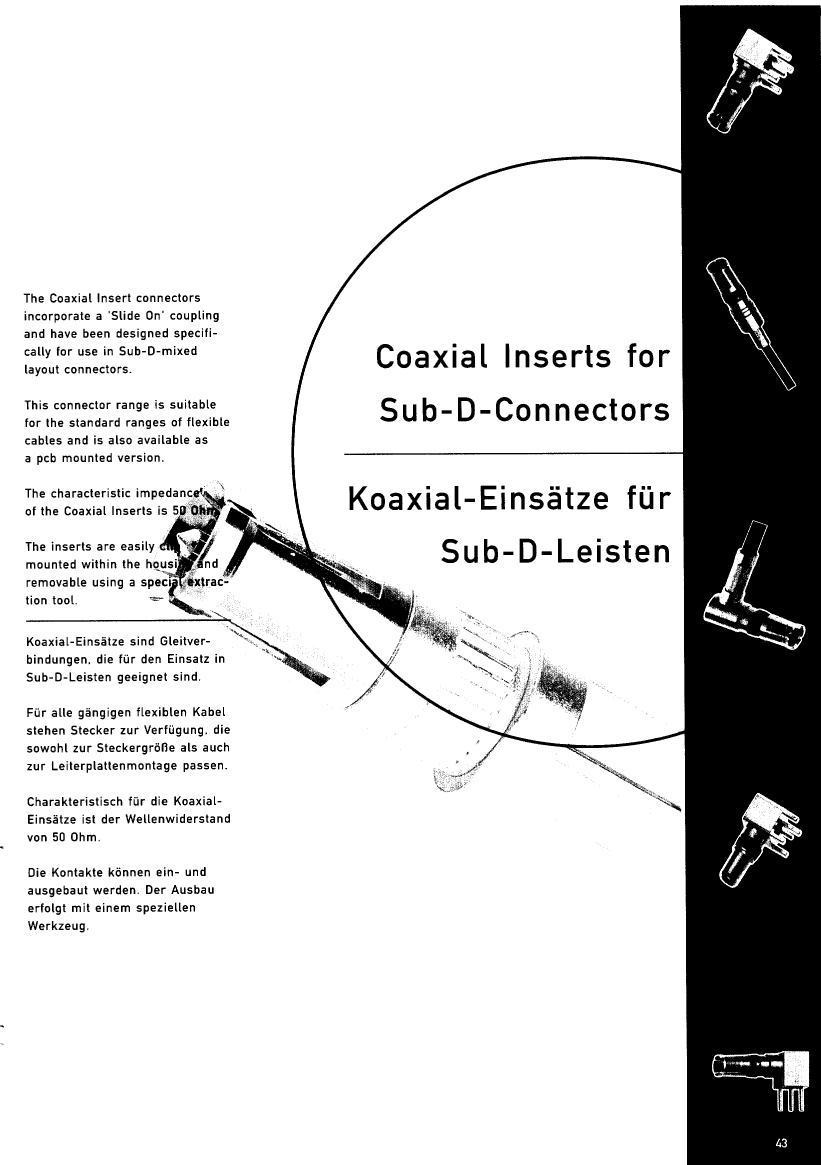

2764.23.2615.405 Overview

RF Connector, Female, Panel Mount, Board Mount, Press Fit Terminal, Jack

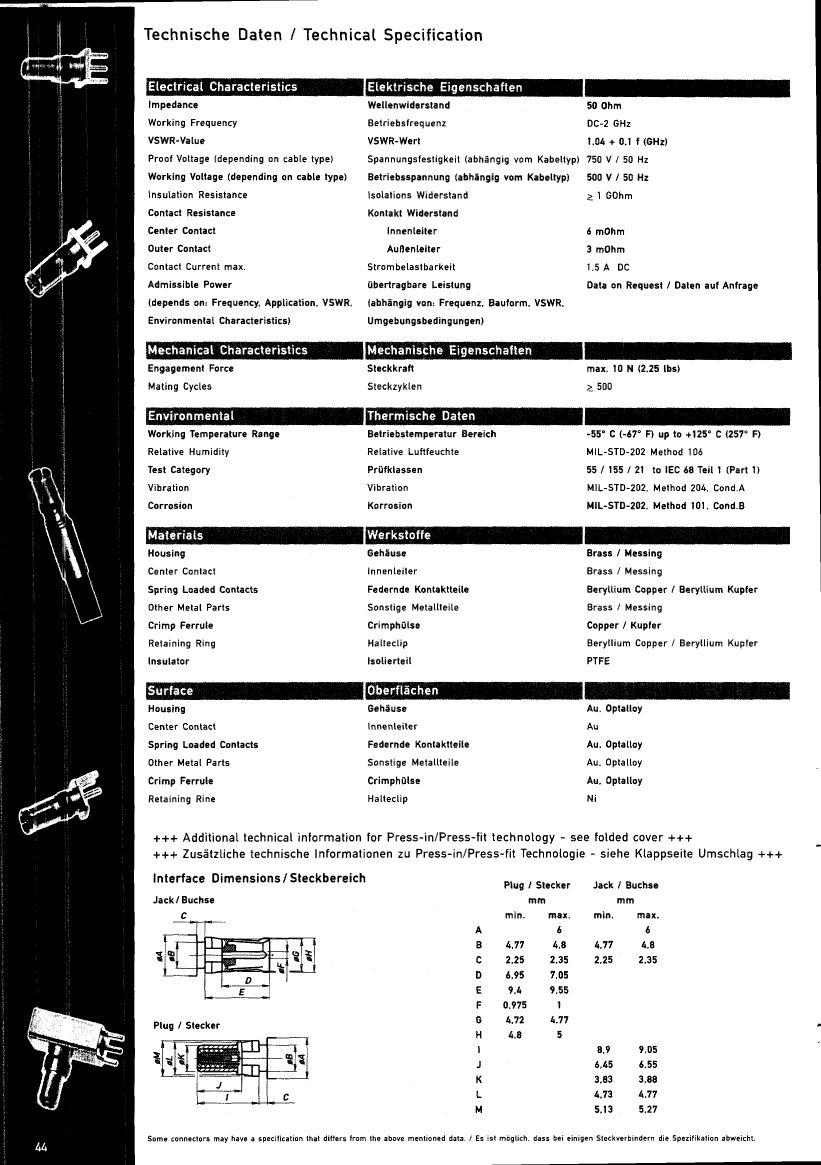

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2764
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	PRESS FIT
voltage standing wave ratio	1.24
Base Number Matches	1

	2764.23.2615.405	2763.23.1615.401	2763.23.1615.405	2764.23.2615.401
Description	RF Connector, Female, Panel Mount, Board Mount, Press Fit Terminal, Jack	RF Connector, Male, Panel Mount, Board Mount, Press Fit Terminal, Plug	RF Connector, Male, Panel Mount, Board Mount, Press Fit Terminal, Plug	RF Connector, Female, Panel Mount, Board Mount, Press Fit Terminal, Jack
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Body/casing type	JACK	PLUG	PLUG	JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	MALE	MALE	FEMALE
Coupling type	SLIDE ON	SLIDE ON	SLIDE ON	SLIDE ON
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	2764	2763	2763	2764
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	2 GHz	2 GHz	2 GHz	2 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
voltage standing wave ratio	1.24	1.24	1.24	1.24
Base Number Matches	1	1	1	1
