ZDM-01

Description
led drivers power supplies 12-24v led dimmer
CategoryLED optoelectronic/LED
File Size161KB,1 Pages
ManufacturerJKL Components Corporation
Environmental Compliance
Download Datasheet Parametric View All

ZDM-01 Online Shopping

Suppliers Part Number Price MOQ In stock
ZDM-01 - - View Buy Now

ZDM-01 Overview

led drivers power supplies 12-24v led dimmer

ZDM-01 Parametric

Parameter NameAttribute value
ManufactureJKL Components
Product CategoryLED Drivers Power Supplies
RoHSYes
Output Power Rating192 W
Input Voltage5 V to 24 V
Number of Outputs1
Output Voltage-Channel 15 V to 24 V
Output Current-Channel 18 A
Mounting StyleScrew
Dimensions89 mm L x 60 mm W x 57.4 mm H
Commercial/MedicalCommercial
Lowest Light Level20 %
Open Frame/EnclosedEnclosed
ProducDimme
Factory Pack Quantity5

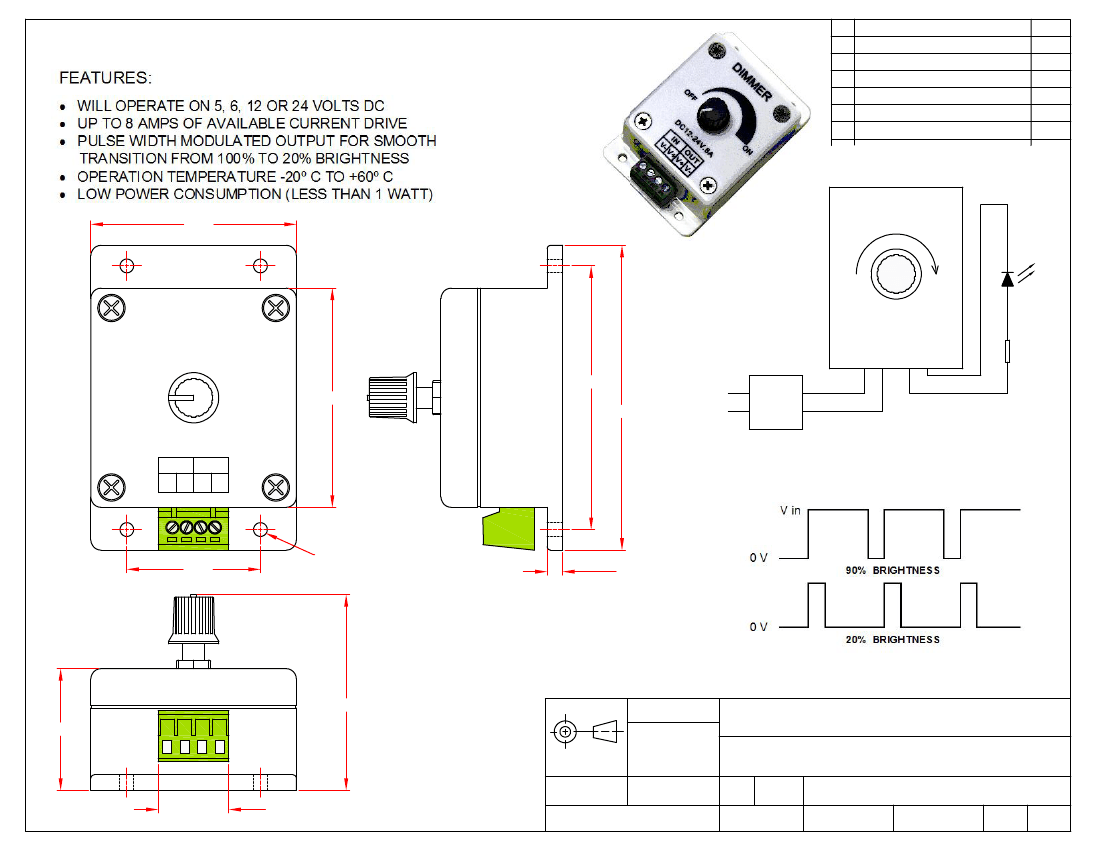

PWM LED DIMMER
REV.
DESCRIPTION/ECO NO.
RELEASED
DATE
6/15/10
4/14/11
4/26/11
6/24/13
12/19/14
7/19/16
A
B
C
D
E
ADD ELECTRICAL CHART
CHANGE 24V ON ELECT. CHART
ADD FEATURES NOTE & PHOTO
ADDED DIMENSIONS
NEW PHOTO
DIMMER
60.0
POWER
- +
LOAD
+ -
64.0
77.0
89.0
AC
-
+
POWER
SUPPLY
DC
IN OUT
V- V+ V+ V-
T
YPICAL APPLICATION
39.0
4 Plcs.
Ø 3.6
Shaft Diameter - 6.0mm
Rotation Angle - 120°
2 Plcs.
4.5
JKL PART NO.: ZDM-01
57.4 MAX.
35.4
THIRD ANGLE
PROJECTION
DRAWN BY
METRIC
DIMENSIONS ARE
IN MILLIMETERS
TOLERANCE UNLESS
OTHERWISE SPECIFIED
1 PL +/- REF.
2 PL +/- REF.
ANGLE +/- REF.
TITLE
JKL
COMPONENTS CORPORATION
PWM LED DIMMER
55335
FSCM NO.
APPV'D BY
DATE
SIZE
SCALE
20.7
L. WENGSTROM L.R.
- CAD DRAWING -
7/19/16
A
DRAWING
NO.
RELEASED
DATE
ZDM-01
REVISION
DATE
MANUAL REVISIONS NOT PERMITTED
NOT TO SCALE
6/15/10
7/19/16
REV.
NO.
E
SHEET
1
OF
1
