28S147-3Y8N3-RO datasheet, PDF

Datasheet> All Categories > The connector> The connector> 28S147-3Y8N3-RO

28S147-3Y8N3-RO: DescriptionRF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size115KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

28S147-3Y8N3-RO Overview

RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug,

28S147-3Y8N3-RO Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT 6GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF QMA CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.21 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	QMA
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.53
Base Number Matches	1

Preview

Download Datasheet

View All

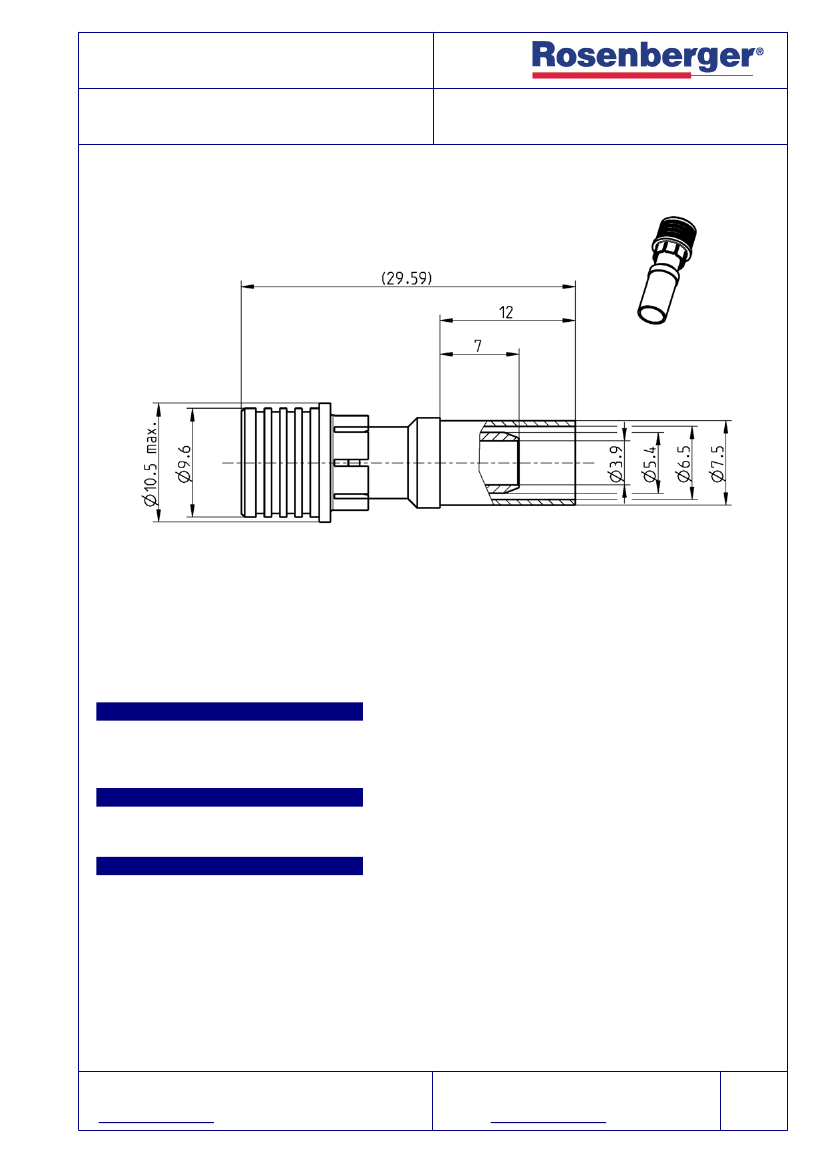

TECHNICAL DATA SHEET

QMA

STRAIGHT PLUG

28S147-3Y8N3-YY *

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

Rosenberger 28S000-000, series QMA

Rosenberger is an authorised QLF manufacturer

Documents

Assembly instruction

28 D1

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Crimping ferrule

Unlocking sleeve

Material

Brass

Spring bronze

Brass

PTFE

Copper

POM

Plating

Gold, min. 1.27 µm, over chemical nickel

White bronze(e.g. Optalloy®)

Flash white bronze over silver(e.g. Optargen®)

available in different colours *

* The colour is defined in the part number by the colour code YY: bl=blue, gn=green, ro=red, sw=black

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2

28S147-3Y8N3-RO Related Products

	28S147-3Y8N3-RO	28S147-3Y8N3-BL	28S147-3Y8N3-GN	28S147-3Y8N3-SW
Description	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF QMA Connector, Male, Cable Mount, Crimp Terminal, Plug,
Reach Compliance Code	compli	compli	compli	compli
Other features	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT 6GHZ	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT 6GHZ	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT 6GHZ	CAPTIVE CENTER CONTACT, INSERTION LOSS MAX AT 6GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
Insertion loss	0.21 dB	0.21 dB	0.21 dB	0.21 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	QMA	QMA	QMA	QMA
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.53	1.53	1.53	1.53
Base Number Matches	1	1	1	1
