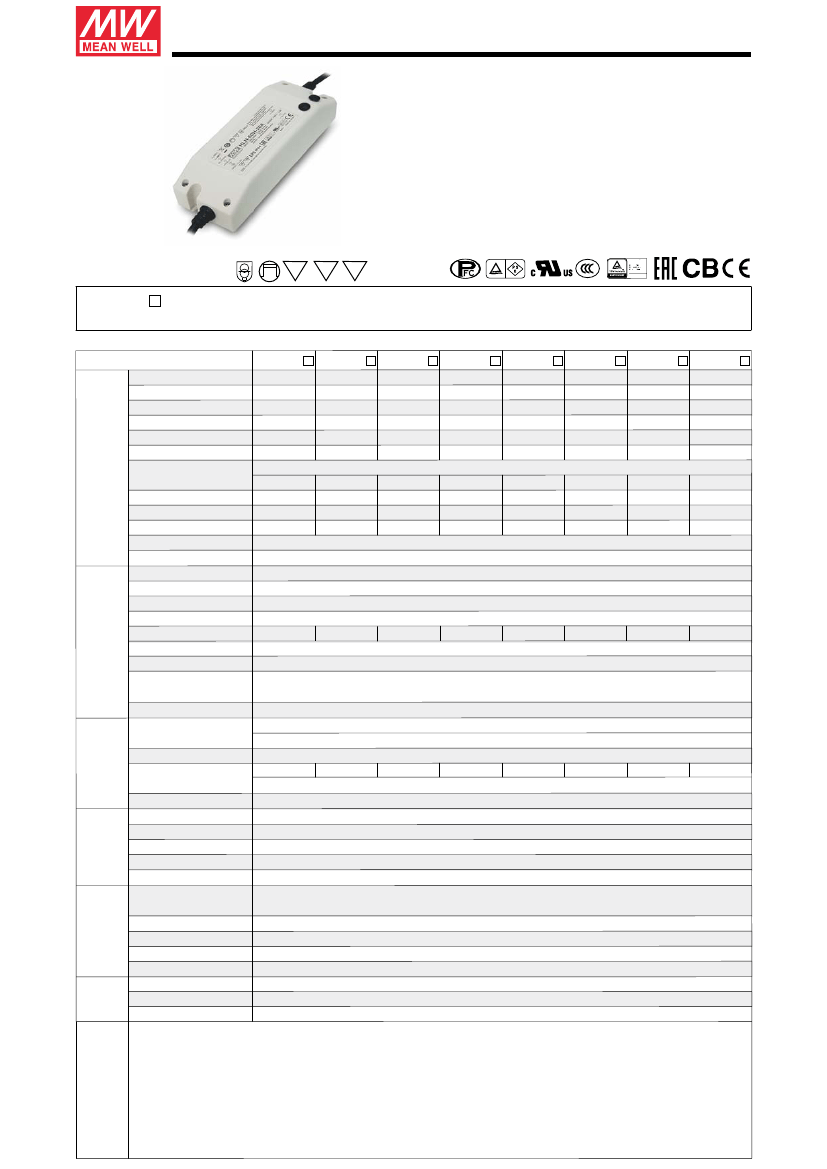

60W Single Output Switching Power Supply
HLN-60H
series
■
Features :
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
Fully isolated plastic case with IP64 level
Class 2 power unit
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp locations or outdoor application
3 years warranty
110
M
M
SELV
(CCC optional)
IP64
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www.tuv.com
ID 2000000000
HLN-60H-15 A
A : IP64 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP64 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLN-60H-15
15V
4A
60W
CONSTANT CURRENT REGION
Note.4
9 ~ 15V
HLN-60H-20
20V
12 ~ 20V
3A
60W
150mVp-p
17 ~ 22V
1.8 ~ 3A
±1.0%
±0.5%
±1.0%
HLN-60H-24
24V
14.4 ~ 24V
2.5A
60W
150mVp-p
22 ~ 27V
1.5 ~ 2.5A
±1.0%
±0.5%
±0.5%
230VAC / 115VAC
HLN-60H-30
30V
18 ~ 30V
2A
60W
200mVp-p
27 ~ 33V
1.2 ~ 2A
±1.0%
±0.5%
±0.5%
HLN-60H-36
36V
21.6 ~ 36V
1.7A
61.2W
200mVp-p
33 ~ 40V
1 ~ 1.7A
±1.0%
±0.5%
±0.5%
HLN-60H-42
42V
25.2 ~ 42V
1.45A
60.9W
300mVp-p
40 ~ 46V
0.87 ~ 1.45A
±1.0%
±0.5%
±0.5%
HLN-60H-48
48V
28.8 ~ 48V
1.3A
62.4W
300mVp-p
44 ~ 53V
0.78 ~ 1.3A
±1.0%
±0.5%
±0.5%
HLN-60H-54
54V
32.4 ~ 54V
1.15A
62.1W
300mVp-p
49 ~ 58V
0.69 ~ 1.15A
±1.0%
±0.5%
±0.5%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
VOLTAGE ADJ. RANGE
Note.6
13.5 ~ 17V
OUTPUT
CURRENT ADJ. RANGE
2.4 ~ 4A
±0.5%
±1.5%
16ms/230VAC
Note.5
90 ~ 305VAC
Can be adjusted by internal potentiometer A type only
VOLTAGE TOLERANCE
Note.3
±2.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
TOTAL HARMONIC DISTORTION
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT(Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER CURRENT
SHORT CIRCUIT
Note.4
Note.7
500ms, 80ms at full load
16ms/115VAC at full load
127 ~ 431VDC
47 ~ 63Hz
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
THD< 20% when output loading
≧
60% at 115VAC/230VAC input and output loading
≧
75% at 277VAC input
88.5%
89.5%
87%
90%
89%
0.64A / 115VAC
0.32A / 230VAC
0.3A / 277VAC
COLD START 55A(twidth=265
μ
s measured at 50% Ipeak) at 230VAC
9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
<0.75mA / 277VAC
95 ~ 108%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
48 ~ 58V
35 ~ 43V
18 ~ 24V
28 ~ 35V
41 ~ 49V
23 ~ 30V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
-40 ~ +50
℃
(Refer to "Derating Curve")
20 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 40
℃
)
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP64, J61347-1, J61347-2-13,
EAC TP TC 004,GB19510.1,GB19510.14 approved ; design refer to UL60950-1, TUV EN60950-1, EN60335-1
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015, EN61000-3-2 Class C (
≧
60% load) ; EN61000-3-3,
GB17743 and GB17625.1
, EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A, EAC TP TC 020
338Khrs min. MIL-HDBK-217F (25
℃
)
161*61.5*35mm (L*W*H)
0.46Kg;32pcs/15.7Kg/1.10CUFT
90%
90.5%
90.5%
PROTECTION
54 ~ 65V
59 ~ 68V
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type only.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
connected to the mains.
10.The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using.
https://www.meanwell.com/Upload/PDF/LED_EN.pdf
File Name:HLN-60H-SPEC 2018-09-30

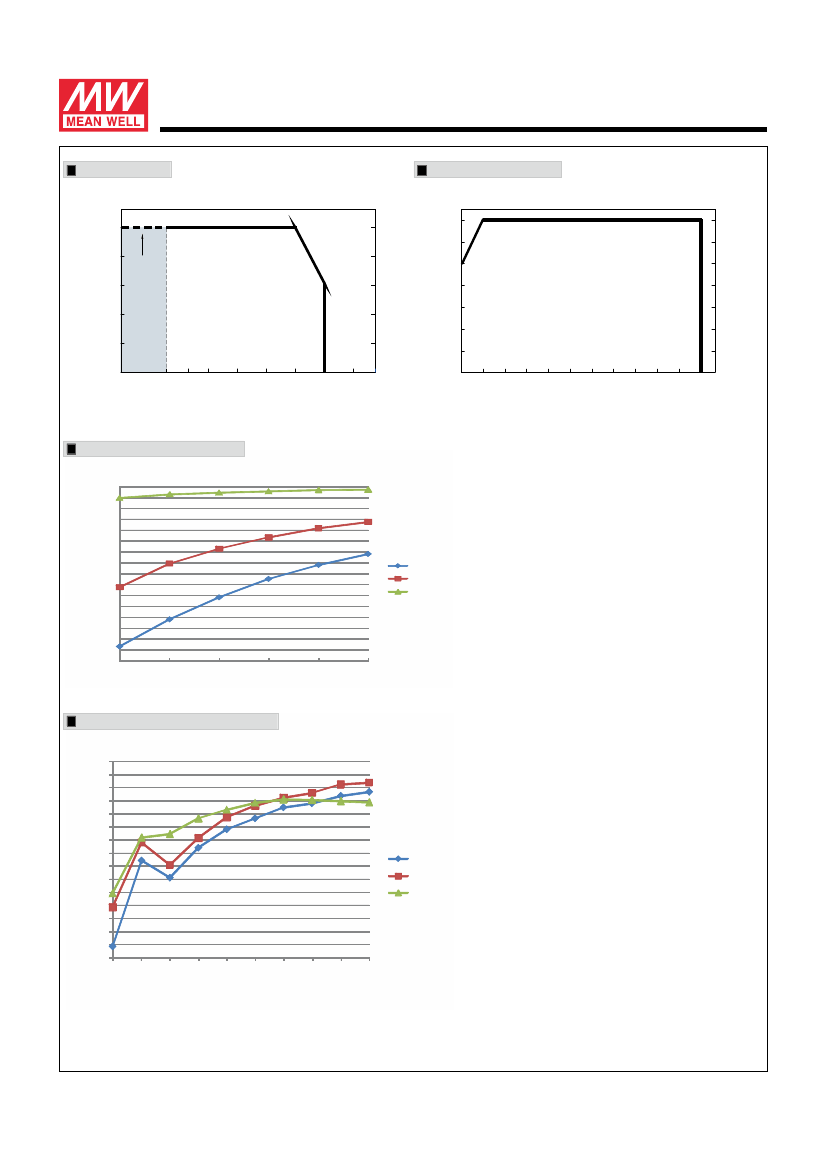

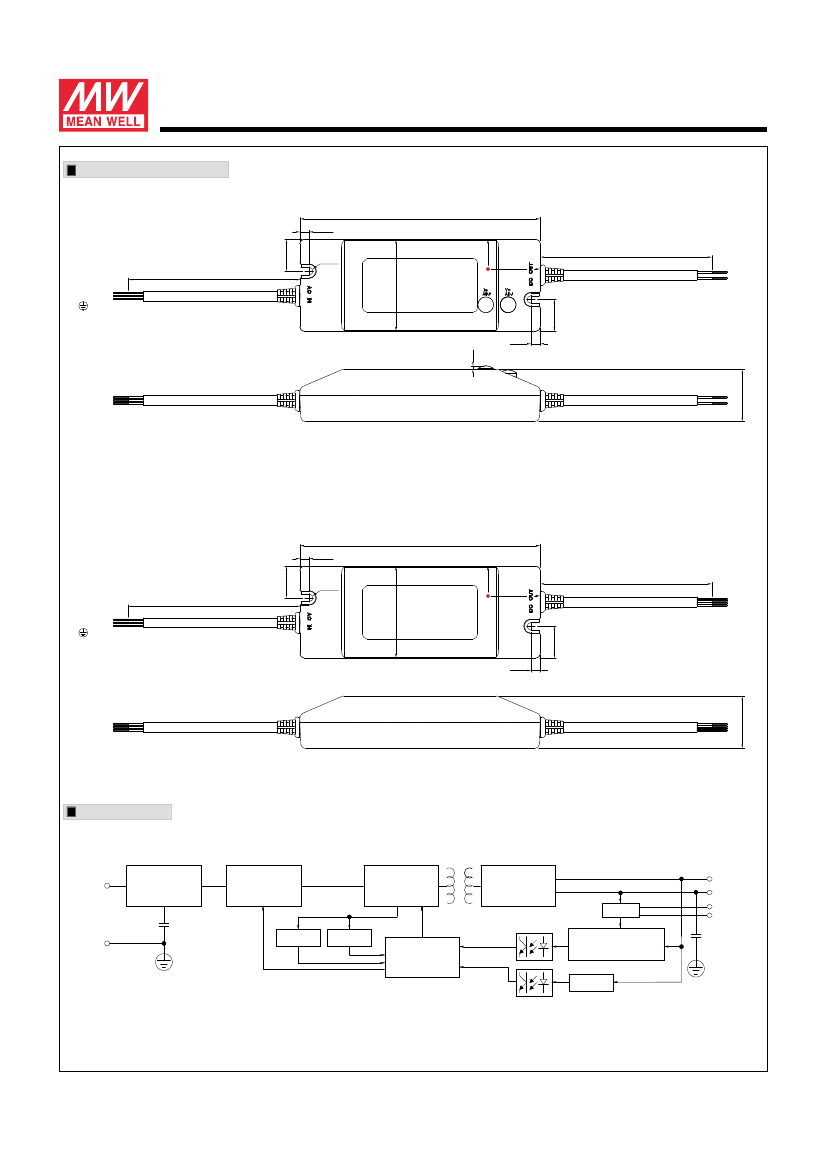

60W Single Output Switching Power Supply
DRIVING METHODS OF LED MODULE
HLN-60H
series
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode (with LED driver, at area (A) and CC mode (direct drive, at area (B).
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
(A) Constant
Voltage area
(B)
Constant
Current area
100
Should there be any compatibility issues, please contact MEAN WELL.
60
(min.)
(C)
Hiccup
Protection
50
100
Io (%)
Vo(%)
Typical LED power supply I-V curve
DIMMING OPERATION(for B-type only)
AC/L(Brown)
AC/N(Blue)
FG (Green/Yellow)
HLN-60H
+V(Red)
-V(Black)
DIM+(Blue)
DIM-(White)
※
Built-in 3 in 1 dimming function, IP64 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
※
Please DO NOT connect "DIM-" to "-V".
※
Reference resistance value for output current adjustment (Typical)
10KΩ 20KΩ 30KΩ 40KΩ 50KΩ 60KΩ 70KΩ 80KΩ 90KΩ 100KΩ
Single driver
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
Ω
/N 20K
Ω
/N 30K
Ω
/N 40K
Ω
/N 50K
Ω
/N 60K
Ω
/N 70K
Ω
/N 80K
Ω
/N 90K
Ω
/N 100K
Ω
/N
dimming operation)
OPEN
-----
95%~108%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
※
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
95%~108%
※
10V PWM signal for output current adjustment (Typical): Frequency range:100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
95%~108%
File Name:HLN-60H-SPEC 2018-09-30
