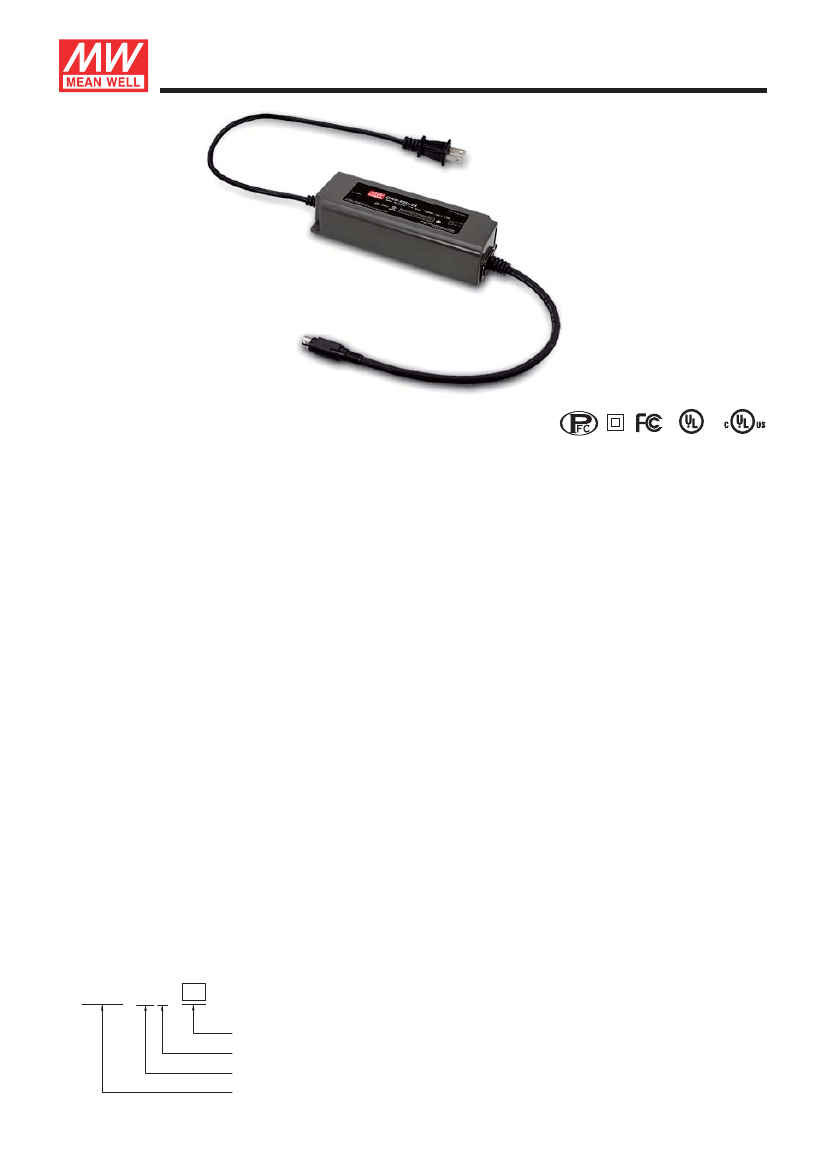

90W Single Output Moistureproof Adaptor

O WA - 9 0 U

series

IP67

■

Features

Universal AC input / Full range

Built-in active PFC function

High efficiency up to 91%

Protections: Short circuit / Over current /

Over voltage / Over temperature

Class

Ⅱ

power unit, no FG

Fanless design, cooling by free air convection

No load power consumption <0.15W

NRCan compliant

Meet EISA 2007 (Energy Independence and Security Act)

UL LISTED, suitable for dry, damp locations

5 years warranty

( for 42V,48V,54V ) ( except for 42V,

48V,54V )

■

Applications

LED lighting fixture

General electronic products in dry or

damp environment

■

Description

OWA-90U is one 90W single-output external LED power supply series. Pairing the North American type

of AC plug and the prevailing DC connectors, OWA-90U, working like an adaptor, simplifies the connection

with LED lighting fixtures without extra wiring efforts. The entire series is certified with the UL LISTED

for dry and damp locations.

As a class II (without earth pin) design, the enclosure of OWA-90U is a 94V-0 flame retardant plastic case.

The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up

to 91%, OWA-90U is cooled by free air convection; the working temperature ranges from -40

℃

to +70

℃

■

Model Encoding

OWA - 90 U - 12

Output voltage

North American type of AC plug

Output wattage

Series name

File Name:OWA-90U-SPEC 2014-06-20
