29S101-271E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 29S101-271E3

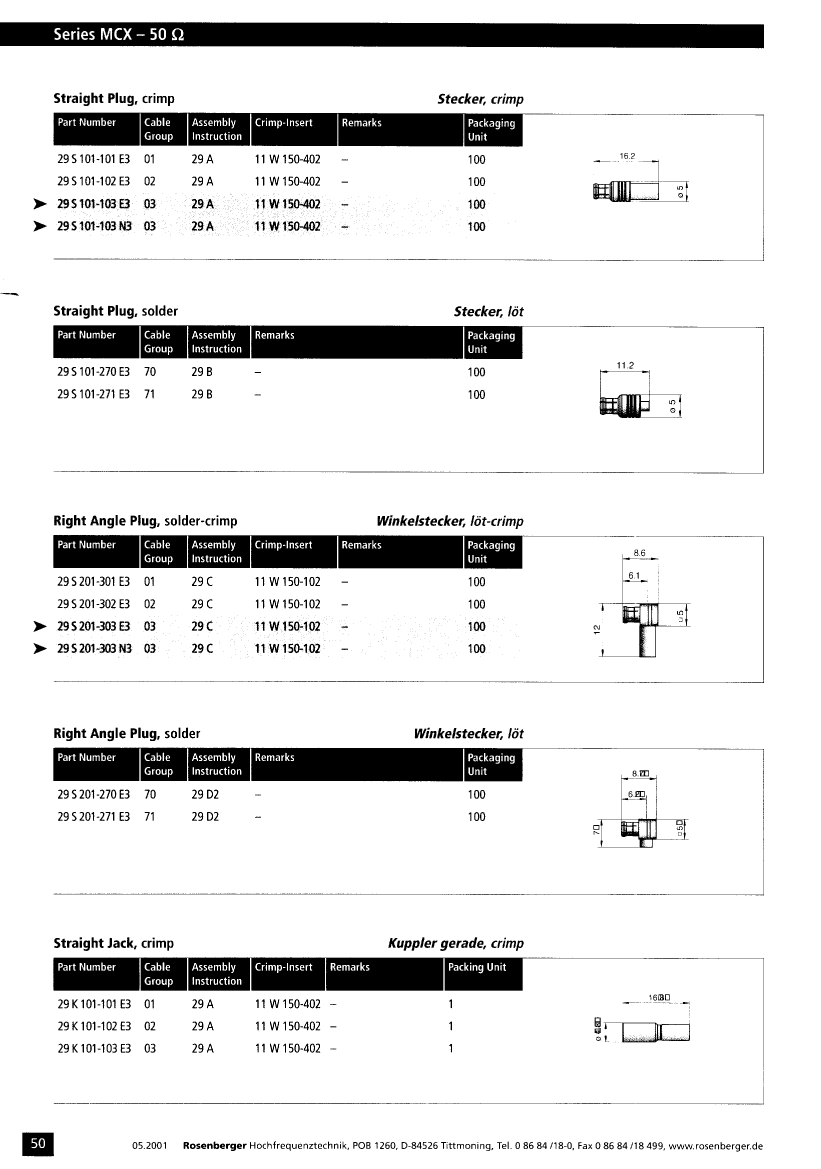

29S101-271E3: DescriptionRF MCX Connector, Male, Cable Mount, Solder Terminal, Plug,; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

29S101-271E3 Overview

RF MCX Connector, Male, Cable Mount, Solder Terminal, Plug,

29S101-271E3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	APPLICABLE CABLE: RG 405/U, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MCX
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

29S101-271E3 Related Products

	29S101-271E3	29S101-303N3	29S101-102E3	29S101-103N3	29S101-301E3	29S101-302E3	29S101-303E3
Description	RF MCX Connector, Male, Cable Mount, Solder Terminal, Plug,	RF MCX Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF MCX Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,	RF MCX Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,	RF MCX Connector, Male, Cable Mount, Crimp Solder Terminal, Plug,
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
Other features	APPLICABLE CABLE: RG 405/U, INSERTION LOSS MAX AT 1 GHZ	APPLICABLE CABLE: RG 316-D, INSERTION LOSS MAX AT 1 GHZ	APPLICABLE CABLES: RG 174; RG 188; RG 316, INSERTION LOSS MAX AT 1 GHZ	APPLICABLE CABLE: RG 316-D, INSERTION LOSS MAX AT 1 GHZ	APPLICABLE CABLES: RG 178; RG 196, INSERTION LOSS MAX AT 1 GHZ	APPLICABLE CABLES: RG 174; RG 188; RG 316, INSERTION LOSS MAX AT 1 GHZ	APPLICABLE CABLE: RG 316-D, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insertion loss	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO
Termination type	SOLDER	CRIMP SOLDER	CRIMP	CRIMP	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER
Base Number Matches	1	1	1	1	1	1	1
Manufacturer's serial number	MCX	MCX	-	-	MCX	MCX	MCX
