Features
■
Ultra-low lead (Pb) content*
■
Green technology
■
High reliability and stability
■
Thick film paste on high grade ceramic
Additional Information
Click these links for more information:
Ro
HS
HA
LO
Electrical Characteristics
Characteristic
Power Rating @ 70 °C
Operating Temperature Range
Derated to Zero Load at
Maximum Working Voltage
Maximum Overload Voltage
Model
CR0402-PF
0.0625 W
CR0603-PF
CR0805-PF
0.10 W
0.125 W
-55 °C to +155 °C
+155 °C
75 V
150 V
150 V
300 V
1
Ω
≤
R
≤
9.76
Ω
±400 PPM/°C
10
Ω
≤
R
≤
1 MΩ
±100 PPM/°C
--
--
1 MΩ < R
≤
10 MΩ
±200 PPM/°C
1
Ω
≤
R
≤
9.1
Ω
±400 PPM/°C
10
Ω
≤
R
≤
10 MΩ
±200 PPM/°C
2A/5A
CR1206-PF
0.25 W
Resistance Range
(±1 %, E24 + E96 Series)
Resistance Range
(±5 %, E24 Series)
Zero Ohm Jumper
≤
0.05
Ω
Rated/Maximum Current
For Standard Values Used in Capacitors, Inductors and Resistors,
click here.
Product Dimensions
Model
CR0402-PF
CR0603-PF
CR0805-PF
CR1206-PF
L
W
C
d
t
L
1.00 ± 0.10
0.50 ± 0.05
0.20 ± 0.10
0.25 ± 0.10
0.32 ± 0.05
(0.039 ± 0.004) (0.020 ± 0.002) (0.008 ± 0.004) (0.010 ± 0.004) (0.013 ± 0.002)
1.60 ± 0.10
0.80 ± 0.05
0.30 ± 0.20
0.30 ± 0.20
0.45 ± 0.10
(0.063 ± 0.004) (0.031 ± 0.002) (0.012 ± 0.008) (0.012 ± 0.008) (0.018 ± 0.04)
2.00 ± 0.10
1.25 ± 0.10
0.40 ± 0.20
0.40 ± 0.20
0.50 ± 0.10
(0.079 ± 0.004) (0.049 ± 0.004) (0.016 ± 0.008) (0.016 ± 0.008) (0.020 ± 0.004)
3.10 ± 0.10
1.55 ± 0.10
0.50 ± 0.30
0.40 ± 0.20
0.55 ± 0.10
(0.122 ± 0.004) (0.061 ± 0.004) (0.020 ± 0.012) (0.016 ± 0.008) (0.022 ± 0.004)
DIMENSIONS:
MM
(INCHES)
C
C
t
W
Recommended Solder Pad Layout
Model
CR0402-PF
CR0603-PF
CR0805-PF
CR1206-PF
a
0.5 ~ 0.6
(0.020 ~ 0.024)
0.7 ~ 0.9
(0.028 ~ 0.035)
1.0 ~ 1.4
(0.039 ~ 0.055)
2.0 ~ 2.4
(0.079 ~ 0.094)
b
1.4 ~ 1.6
(0.055 ~ 0.063)
2.0 ~ 2.2
(0.079 ~ 0.087)
3.2 ~ 3.8
(0.126 ~ 0.150)
4.4 ~ 5.0
(0.173 ~ 0.197)
c
0.4 ~ 0.6
(0.016 ~ 0.024)
0.8 ~ 1.0
(0.031 ~ 0.039)
0.9 ~ 1.4
(0.035 ~ 0.055)
1.2 ~ 1.8
(0.047 ~ 0.071)
a
b
RESISTOR
c
WARNING
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
* Such products may contain trace amounts of lead of less than 100 ppm.
** RoHS Directive 2015/863, Mar 31, 2015 and Annex.
10
2
substrate
■
RoHS compliant** without exemptions
■
Halogen free***
PRODUCT TECHNICAL INVENTORY SAMPLES
SELECTOR LIBRARY
CONTACT

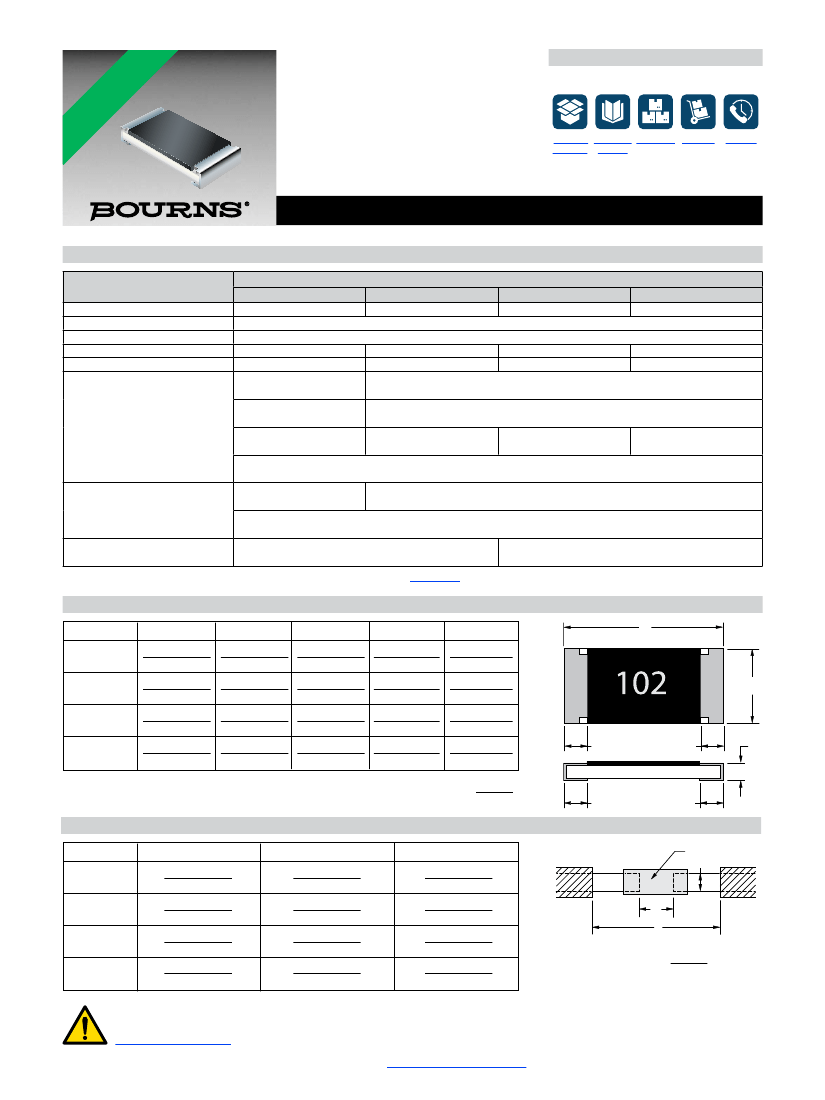

CR-PF Series Ultra-Low Lead Content Thick Film Resistor
50 V
100 V
1
Ω
≤
R
≤
9.76
Ω
-200 to +500 PPM/°C
10
Ω
≤
R < 100
Ω
±200 PPM/°C
100
Ω
≤
R
≤
1 MΩ
±100 PPM/°C
200 V
400 V
--
1
Ω
≤
R
≤
9.1
Ω
-200 to +500 PPM/°C
1 A / 2.5 A
d
d
DIMENSIONS:
MM
(INCHES)
*** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the
Chlorine (Cl) content is 900 ppm or less; (c) the total Bromine (Br) & Chlorine (Cl) content is 1500 ppm or less.
Specifications are subject to change without notice. Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this
document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
Applications
■
General purpose
■
Consumer
■
Industrial
■
Telecommunications
■
Computer technology

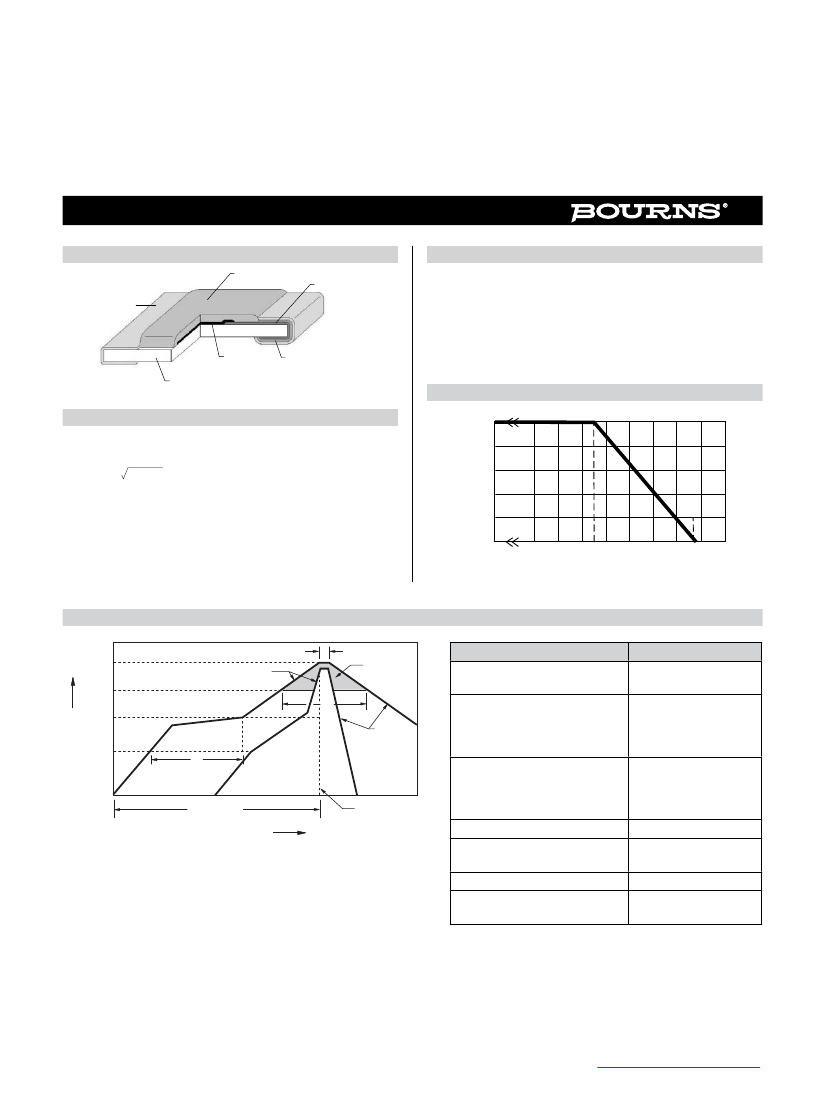

CR-PF Series Ultra-Low Lead Content Thick Film Resistor
Construction
OVERCOAT
(BLACK)
Sn PLATING
CONDUCTOR
Environmental Characteristics
Moisture Sensitivity Level ...........................................................1
Storage Conditions
Temperature ................................................... +5 °C ~ +35 °C
Humidity ............................................................ 40 % ~ 75 %
Shelf Life...................................2 years from manufacturing date
Solder Recommendations ......................................Reflow profile
(Solder: Sn96.5 / Ag3 / Cu05)
Derating Curve
RESISTIVE
ELEMENT
CERAMIC SUBSTRATE
Ni PLATING
Rated Voltage
100
Power Ratio (%)
80
60
40
20
0
-55
70
The rated voltage is calculated by the following formula:
V= P
X
R
V:
Rated Voltage (V)
P:
Rated Power (W)
R:
Resistance Value (Ω)
155
20 40 60 80 100 120 140 160
Ambient Temperature (°C)
Solder Reflow Recommendations
tp
RAMP-UP
TL
tL
CRITICAL ZONE
T L TO TP
TP
Solder Profile
Average ramp-up rate
(T
smax
to T
p
)
Preheat:
- Temperature Min. (T
smin
)
- Temperature Max. (T
smax
)
- Time (T
smin
to T
smax
) (t
s
)
Time maintained above:
- Temperature (T
L
)
- Time (T
L
)
Peak Temperature (T
p
)
Time within +0/-5 °C of actual
Peak Temperature (T
p
)
2
Ramp-down rate
Time 25 °C to Peak
Temperature
Lead Free Assembly
3 °C / second max.
150 °C
200 °C
60~150 seconds
Temperature
TS MAX.
RAMP-DOWN
TS MIN.
ts
PREHEAT
25 °C
t 25 *C TO PEAK
8 MINUTES MAX.
217 °C
60~120 seconds
260 °C
10 seconds
6 °C / second max.
8 minutes max.
Time
Process
Description
Materials
Temperature
Time
Interval
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
CR-PF Series Ultra-Low Lead Content Thick Film Resistor
How to Order
CR 0402 - F X - 1003 G PF
Model
CR = Thick Film Fixed Resistor Chip
Size
0402 = 0402 Size
0603 = 0603 Size
0805 = 0805 Size
1206 = 1206 Size
Resistance Tolerance
F = ±1 %
J = ±5 %
TCR (See Electrical Characteristics chart)
W = ±200 PPM/°C
X = ±100 PPM/°C
/ = Used for zero ohm (jumper) and values from 1 ohm through 9.1 ohms
Resistance Value
1 % Tolerance:
<100 ohms........“R” represents decimal point
(example: 24R3 = 24.3 ohms)
≥100
ohms ........First three digits are significant, fourth digit represents number of zeros to follow
(example: 8252 = 82.5K ohms)
5 % Tolerance:
<10 ohms..........“R” represents decimal point
(example: 4R7 = 4.7 ohms)
≥10
ohms ..........First two digits are significant, third digit represents number of zeros to follow
(example: 474 = 470K ohms; 000 = Jumper)
Packaging
G = 10,000 pieces on 180 mm (7 inch) plastic reel, paper tape - CR0402-PF
E = 5,000 pieces on 180 mm (7 inch) plastic reel, paper tape - CR0603-PF, CR0805-PF, CR1206-PF
Feature
PF = Ultra-low Lead Content
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
CR-PF Series Ultra-Low Lead Content Thick Film Resistor
Performance Characteristics
Test
Temperature Coefficient
of Resistance
Short Time Overload
Specification
IEC 60115-1-4.8
JIS-C5201-4.8
IEC 60115-1-4.13
JIS-C5201-1-4.13
Procedure
+25 °C ~ +125 °C
Test Limits
ΔR
--
±(1 % + 0.05
Ω)
Remarks:
0402: ±(2 % + 0.1
Ω)
0
Ω:
50 mΩ or less
±(5 % + 0.1
Ω)
Remarks:
0
Ω:
50 mΩ or less
1 %: ±(1 % + 0.05
Ω)
5 %: ±(3 % + 0.1
Ω)
Remarks:
0402: ±(3 % + 0.1
Ω)
0
Ω:
100 mΩ or less
1 %: ±(1 % + 0.05
Ω)
5 %: ±(3 % + 0.1
Ω)
Remarks:
0402: ±(3 % + 0.1
Ω)
0
Ω:
100 mΩ or less
1 %: ±(0.5 % + 0.05
Ω)
5 %: ±(1 % + 0.05
Ω)
Remarks:
0
Ω:
50 mΩ or less
At least 95 % of surface area of
electrode shall be covered with
new solder.
< ±0.5 %
2.5 times rated power for 5 seconds
3 times rated voltage or max. overloading voltage,
1 second “ON”, 25 seconds “OFF”, 10,000 cycles
Intermittent Overload
IEC 60115-1-4.39
JIS-C5201-1-4.39
Remarks:
0402: 2.5 times rated voltage or max. overloading
voltage
1000 hours at rated voltage, +70 °C,
1.5 hours “ON”, 0.5 hour “OFF”
Endurance (Load Life)
IEC 60115-1-4.25.1
JIS-C5201-1-4.25.1
Load Life with Humidity
IEC 60115-1-4.24
JIS-C5201-1-4.24
1000 hours at rated voltage, +40 ±2 °C, 90~95 % RH,
1.5 hours “ON”, 0.5 hour “OFF”
Rapid Change of
Temperature
IEC 60115-1-4.19
JIS-C5201-1-4.19
IEC 60115-1-4.17
JIS-C5201-1-4.17
IEC 60115-1-
4.24.2.1a
JIS-C5201-1-
4.24.2.1a
IEC 60115-1-4.19
JIS-C5201-1-4.19
IEC 60115-1-4.18
JIS-C5201-1-4.18
IEC 60115-1-4.33
JIS-C5201-1-4.33
IEC 60115-1-4.7
JIS-C5201-1-4.7
IEC 60115-1-4.6
JIS-C5201-1-4.6
IEC 60115-1-4.23.2
JIS-C5201-1-4.23.2
-55 °C (30 minutes) / +155 °C (30 minutes)
5 cycles
245 ±5 °C solder for 2 ± 0.5 seconds;
Solder: Sn96.5 / Ag3.0 / Cu0.5
Solderability
Moisture No Load
+85 °C, 85 % RH, 1000 hours
-55 °C and +155 °C, 100 cycles, 15 minutes per
extreme condition
260 ±5 °C for 10 ±1 seconds
Temperature Cycle
Resistance to Soldering
Heat
Robustness of
Termination (Bending)
Dielectric Withstanding
Voltage (Voltage Proof)
Insulation Resistance
< ±0.5 %
< ±0.5 %
1 %: ±(0.5 % + 0.05
Ω)
5 %: ±(1 % + 0.05
Ω)
Remarks:
0
Ω:
50 mΩ or less
No abnormalities such as
flashover, burning, or dielectric
breakdown shall occur.
≥
1 GΩ
1 %: ±(1 % + 0.05
Ω)
5 %: ±(2 % + 0.1
Ω)
Remarks:
0
Ω:
50 mΩ or less
1 %: ±(0.5 % + 0.05
Ω)
5 %: ±(1 % + 0.0.5
Ω)
Remarks:
0
Ω:
50 mΩ or less
3 mm deflection
Applied voltage for 1 minute:
0402 & 0603: 300 V
0805 & 1206: 500 V
Applied voltage for 1 minute: 100 V
Resistance to Dry Heat
155 ±5 °C for 96 ±4 hours
Resistance to Solder
Heat
IEC 60115-1-4.18
JIS-C5201-1-4.18
270 ±5 °C solder for 10 ±1 seconds
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
CR-PF Series Ultra-Low Lead Content Thick Film Resistor
Typical Part Marking
±5 % (E24):
CR0603-PF, CR0805-PF, CR1206-PF
Resistance value is expressed by 3 digits. The first two digits represent the significant figures of the nominal
resistance value in ohms; the third digit represents the exponent for a base of 10.
Example:
102
= 10 x 102 = 1000 ohms = 1K ohms
Note: “R” represents the decimal point for CR1206-PF.
102
±1 % (E96):
01A
CR0603-PF
In cases where the marking space is too small to accommodate 4 digits, the marking shall consist of 2 digits
followed by an alpha character multiplier.
Example:
01A
= 100 x 100 = 100 ohms
Code R Value
01
02
03
04
05
06
07
08
09
10
11
12
100
102
105
107
110
113
115
118
121
124
127
130
Code
13
14
15
16
17
18
19
20
21
22
23
24
R Value
133
137
140
143
147
150
154
158
162
165
169
174
Code
25
26
27
28
29
30
31
32
33
34
35
36
R Value
178
182
187
191
196
200
205
210
215
221
226
232
Code
37
38
39
40
41
42
43
44
45
46
47
48
R Value Code
237
243
249
255
261
267
274
280
287
294
301
309
49
50
51
52
53
54
55
56
57
58
59
60
R Value
316
324
332
340
348
357
365
374
383
392
402
412
Code R Value
61
62
63
64
65
66
67
68
69
70
71
72
422
432
442
453
464
475
487
499
511
523
536
549
Code
73
74
75
76
77
78
79
80
81
82
83
84
R Value
562
576
590
604
619
634
649
665
681
698
715
732
Code R Value
85
86
87
88
89
90
91
92
93
94
95
96
750
768
787
806
825
845
866
887
909
931
953
976
This table shows the first two digits for the three-digit E96 part marking scheme. The third character is a letter multiplier:
A=10
0
B=10
1
C=10
2
D=10
3
E=10
4
F=10
5
G=10
-6
H=10
-7
X=10
-1
Y=10
-2
Z=10
-3
Note: When the resistance value is not in the E96 table, the marking shall consist of 3 digits as in E24 series, with
underline.
Example:
121
= 0603, 120 ohms, 1 %
121
Jumper:
CR0603-PF, CR0805-PF, CR1206-PF
Example:
0
= 0 ohms
0
No Marking:
CR0402-PF
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
京公网安备 11010802033920号
EEWORLD
