21MCX-50-1-11/111NH

Description
CABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP, JACK
CategoryThe connector    The connector
File Size48KB，1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

21MCX-50-1-11/111NH Overview

CABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP, JACK

21MCX-50-1-11/111NH Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Other featuresAPPLICABLE CABLES: RG 178B/U; RG 196A/U
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MCX CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial numberMCX
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
Base Number Matches1

Preview

Download Datasheet
HUBER+SUHNER
®

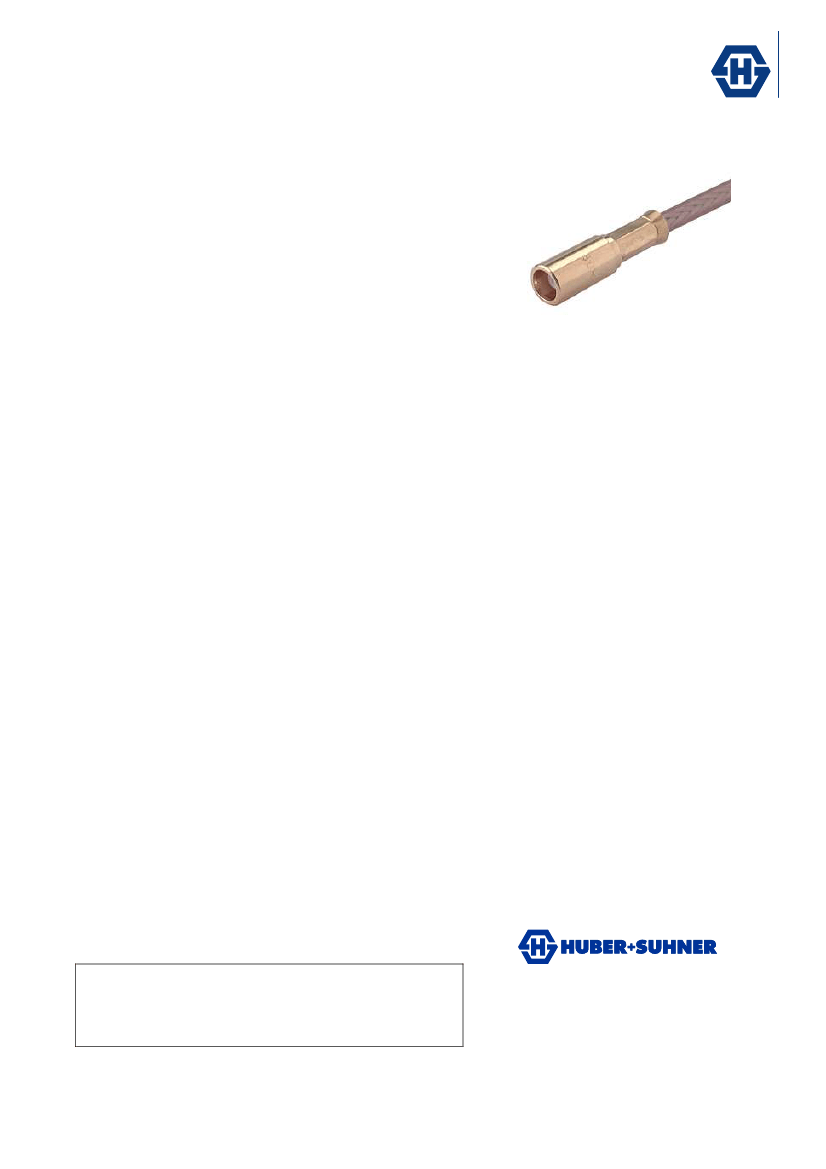

DATA SHEET
Coaxial Cable Connector: 21_MCX-50-1-11/111_N
Description
Rev.: C
Straight cable jack
Interface Standards
IEC 60169-36_CECC 22220
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
Ω
6 GHz
crimped
crimped
0.0015 kg
-55 °C to 155 °C
compliant
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Copper
DOU-00007462
DOU-00006340
DOC-0000182201
21_MCX-50-1-11/111_NH
21_MCX-50-1-11/111_NE
RG_178_B/U, ENVIROFLEX_178, RG_196_A/U
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (without Nickel underplating)
Mechanical Data
Centre contact
Outer contact
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Crimp ferrule
Material Data
Related Documents
Outline drawing
Catalogue drawing
Assembly instruction
Ordering Information
Bulk 100 pcs package
Single package
Suitable cables
Additional Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000182199 S
Issued: 30.10.07
Uncontrolled Copy
Page 1/1
