21MCX-50-1-11/133NH: DescriptionCABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

21MCX-50-1-11/133NH Overview

CABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP, JACK

21MCX-50-1-11/133NH Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLES: RG 178B/U; RG 196A/U
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	MCX
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

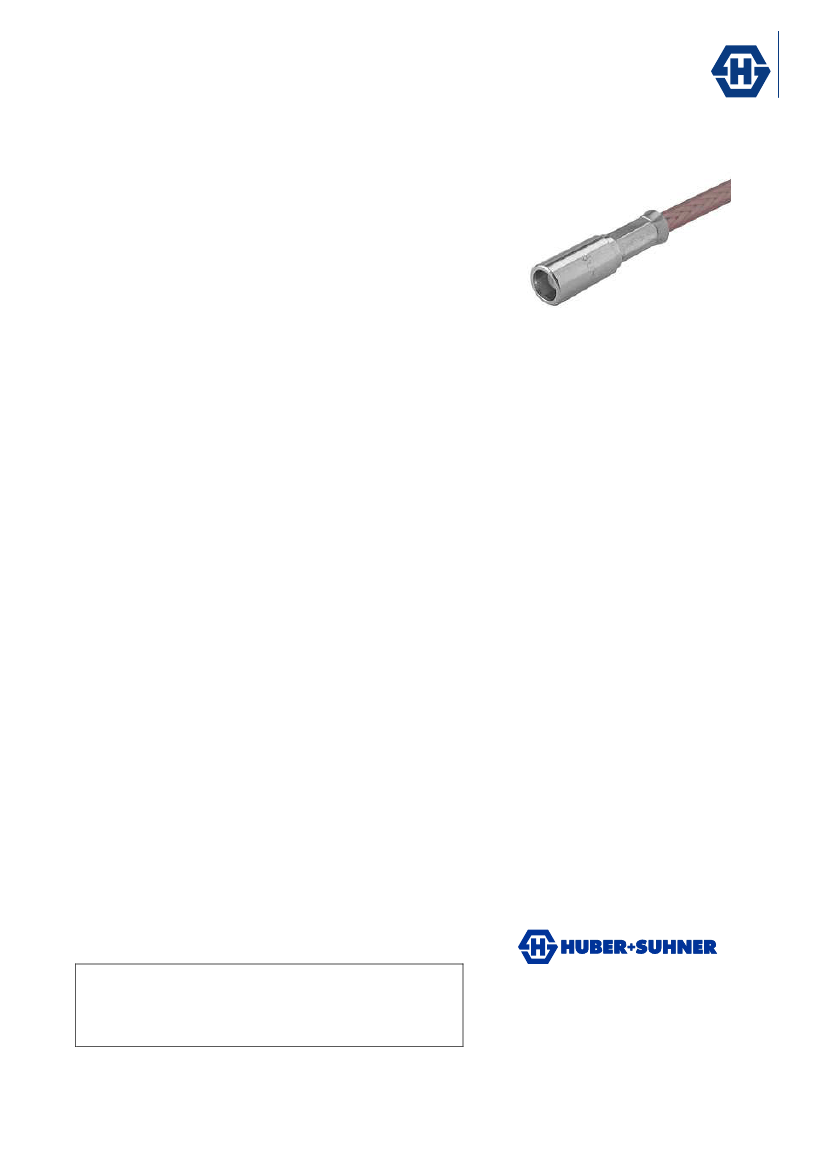

DATA SHEET

Coaxial Cable Connector: 21_MCX-50-1-11/133_N

Description

Rev.: B

Straight cable jack

Interface Standards

IEC 60169-36_CECC 22220

Technical Data

Electrical Data

Impedance

Interface frequency max.

50

Ω

6 GHz

crimped

0.0015 kg

-55 °C to 155 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Copper

DOU-00007462

DOU-00006340

DOC-0000182201

21_MCX-50-1-11/133_NH

ENVIROFLEX_178, RG_178_B/U, RG_196_A/U

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Crimp ferrule

Material Data

21MCX-50-1-11/133NH Related Products

	21MCX-50-1-11/133NH	21_MCX-50-1-11/133_NH
Description	CABLE TERMINATED, FEMALE, MCX CONNECTOR, CRIMP, JACK	RF MCX Connector, Female, Cable Mount, Crimp Terminal, Jack, ROHS COMPLIANT
Reach Compliance Code	unknow	compliant
Other features	APPLICABLE CABLES: RG 178B/U; RG 196A/U	APPLICABLE CABLES: RG 178B/U, RG 196A/U
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE
Coupling type	THREADED	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Manufacturer's serial number	MCX	MCX
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Maximum operating frequency	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	CRIMP	CRIMP
Base Number Matches	1	1
