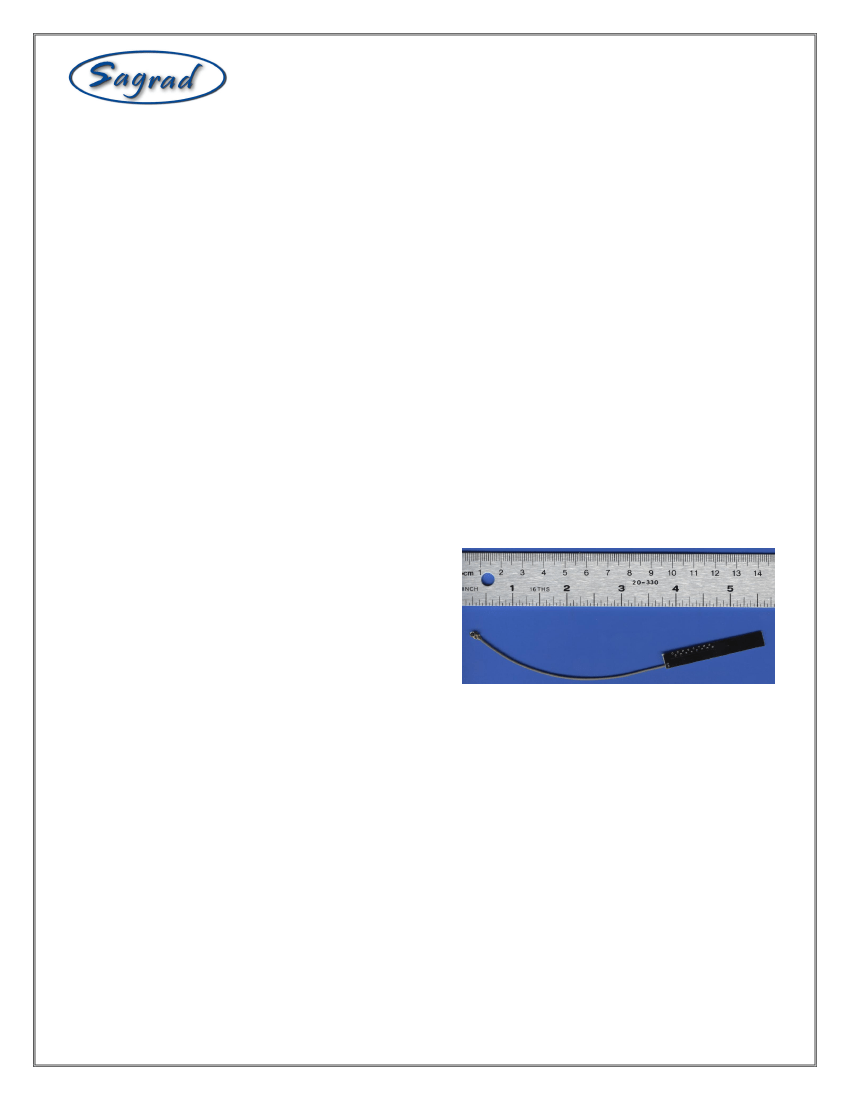

SG901-1066 Integrated Wi-Fi Antenna
Overview
The SG901-1066 is a small highly integrated
high efficiency, low gain, embedded antenna
solution for WLAN products. The focus of this
antenna is for next generation wireless product
design. It provides the flexibility of an embedded
antenna with top performance. The Embedded
Antenna was designed to accommodate most
WLAN applications, such as routers and
gateways. The product can be easily
integrated onto a board or into an ID package
design.
Features
The SG901-1066 Embedded Antenna is
defined by the following features:
IEEE 802.11 b/g/n standards
Case mount with 10 cm cable
3.8 dBi peak gain, 1 db cable loss
excluded
High efficiency
Quick integration
RoHS compliant
Ordering Information
SG901066-C: Bulk only
Note: Cable length is available in different lengths, please
call Sagrad Sales for details.
1-321-255-0515
WWW.SAGRAD.COM
DOC#: SG914-0015 rev. 1

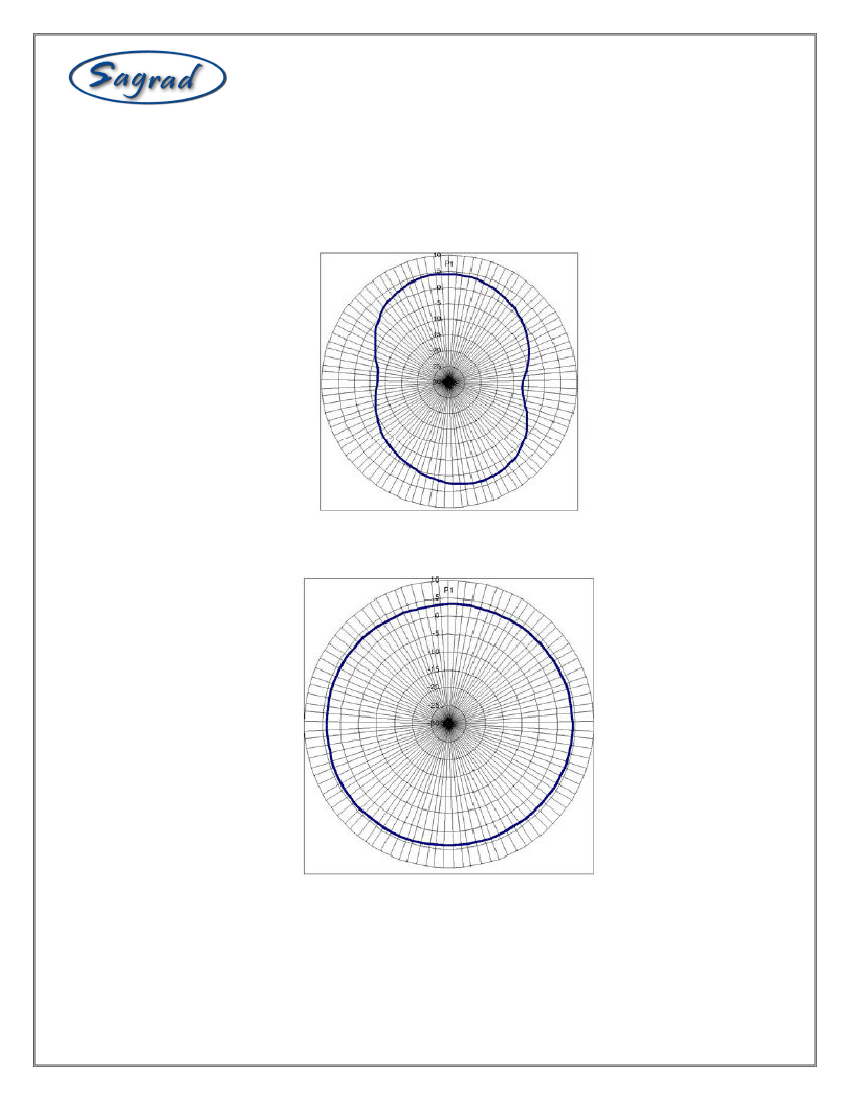

Radiation Patterns
Patterns for Free Standing Antenna
Patterns taken on 90mm x 90mm x 2.2mm thick, ABS Plastic sheet using 1.6mm double
sided tape.
Measured Azimuth Radiation Pattern
Measured Elevation Radiation Pattern
1-321-255-0515
WWW.SAGRAD.COM
DOC#: SG914-0015 rev. 1
General Specifications and Interface
Standard
Frequency Range
Peak Gain
VSWR
Feed Impedance
Power Handling
Interface
Antenna Dimensions
Weight
IEEE 802.11n and 802.11 b/g
2.4 to 2.49 GHz
3.8 dBi, 1 db cable loss excluded
2:1
50 Ohms
30 dBm
One set of soldering pads for 50 ohm, 1.13mm diameter, Micro coax cable
48.3 x 7.3 (mm)
0.4 g (0.014 oz)
Dimensions
SG901-1066 Embedded Antenna Dimensions
1-321-255-0515
WWW.SAGRAD.COM
DOC#: SG914-0015 rev. 1
