MCTC0525B1501T5G

Description
Fixed Resistor,
CategoryPassive components    The resistor
File Size601KB,10 Pages
ManufacturerSPC Multicomp
Download Datasheet Parametric View All

MCTC0525B1501T5G Overview

Fixed Resistor,

MCTC0525B1501T5G Parametric

Parameter NameAttribute value
Objectid7338433978
Reach Compliance Codeunknown
ECCN codeEAR99
structureRectangular
JESD-609 codee3
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.55 mm
Package length2 mm
Package formSMT
Package width1.25 mm
method of packingTR, 7 Inch
Rated power dissipation(P)0.125 W
Rated temperature70 °C
resistance1500 Ω
Resistor typeFIXED RESISTOR
size code0805
surface mountYES
technologyTHIN FILM
Temperature Coefficient25 ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance0.1%
Operating Voltage150 V

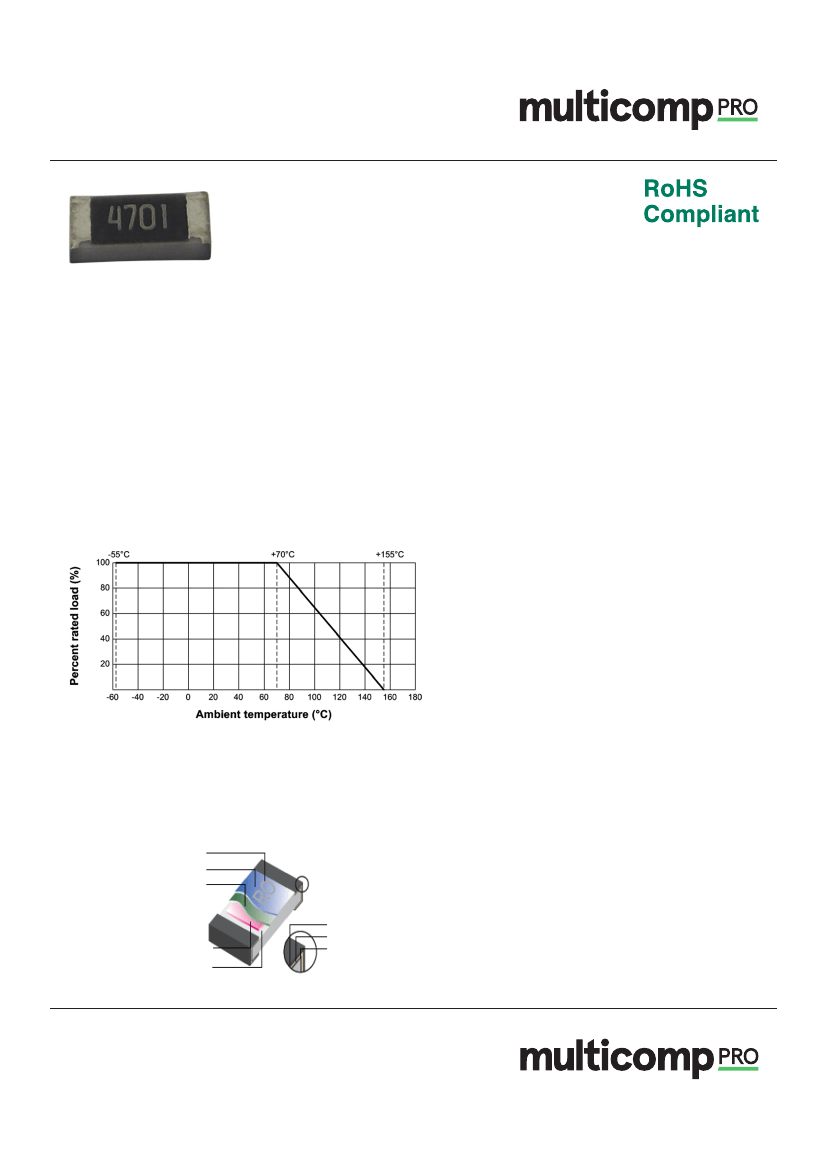

Thin Film Chip Resistors
MCTC05 Series
Specifications
Case Size
Power Rating at 70°C
Max. Working Voltage
Max. Overload Voltage
Dielectric Withstanding Voltage
Temperature Range
Ambient Temperature
Resistance Tolerance
Resistance Range
: 0805
: 0.125W (1/8W)
: 150V
: 300V
: 500V
: -55°C to +155°C
: 70°C
: ±0.1%
: 10Ω to 1MΩ
Power Rating
Resistors shall have a power rating based on continuous load operation at an ambient temperature of 70°C.
The load shall be derate as shown in below figure.
Nominal Resistance
Effective figures of nominal resistance shall be in accordance with E-24 and E-96 series.
E-96 series for 1%, 0.5%, 0.25%, 0.1% and E-24 series for 2%, 5%, 10%
Construction
Marking
G2 coating
G1 coating
Resistive element
High purity Alumina substrate
Termination (Outer) Sn
Termination (Middle) Ni Barrier
Termination (Inner) Ag
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
19/09/19
V1.0
