MCTC0525B191JT5E datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MCTC0525B191JT5E

MCTC0525B191JT5E: DescriptionFixed Resistor, Thin Film, 0.1W, 19.1ohm, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP; CategoryPassive components The resistor; File Size368KB，15 Pages; ManufacturerSPC Multicomp

Download Datasheet Parametric View All

MCTC0525B191JT5E Overview

Fixed Resistor, Thin Film, 0.1W, 19.1ohm, 100V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP

MCTC0525B191JT5E Parametric

Parameter Name	Attribute value
Objectid	1832193096
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PRECISION
JESD-609 code	e3
Manufacturer's serial number	0805
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	19.1 Ω
Resistor type	FIXED RESISTOR
size code	0805
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal surface	TIN OVER NICKEL
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

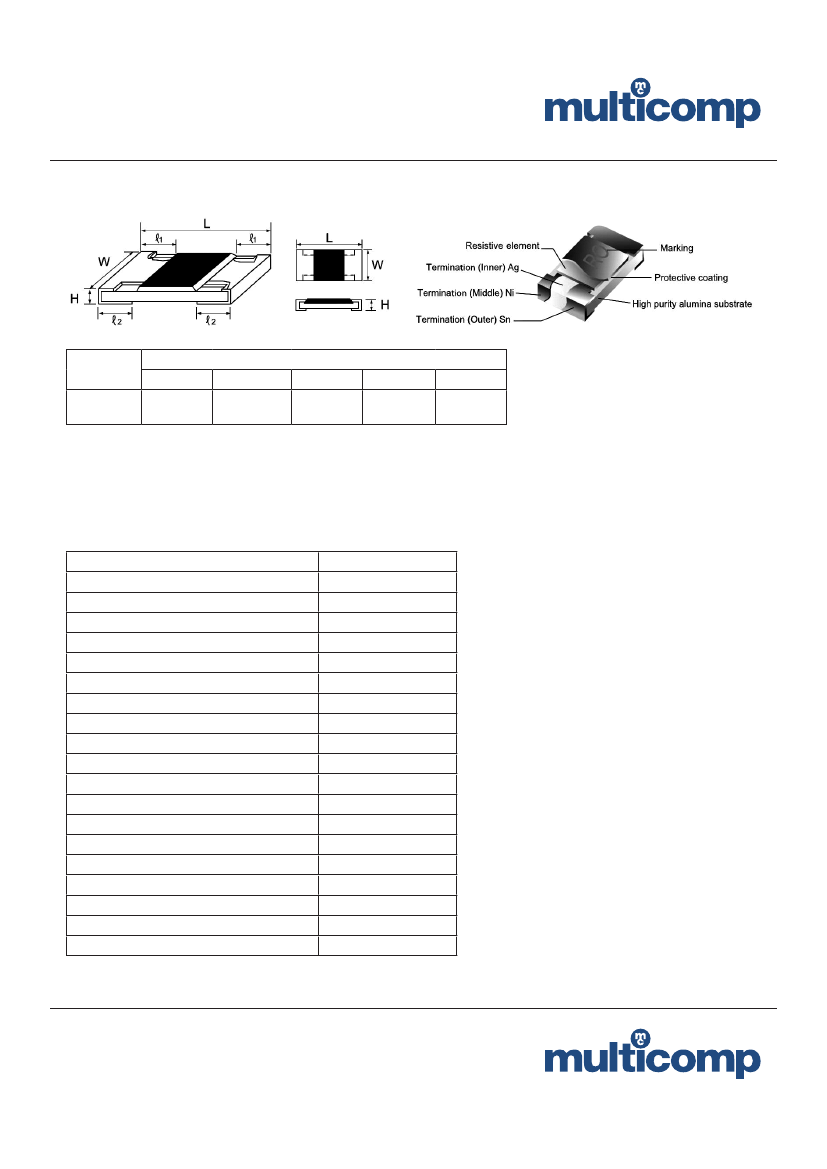

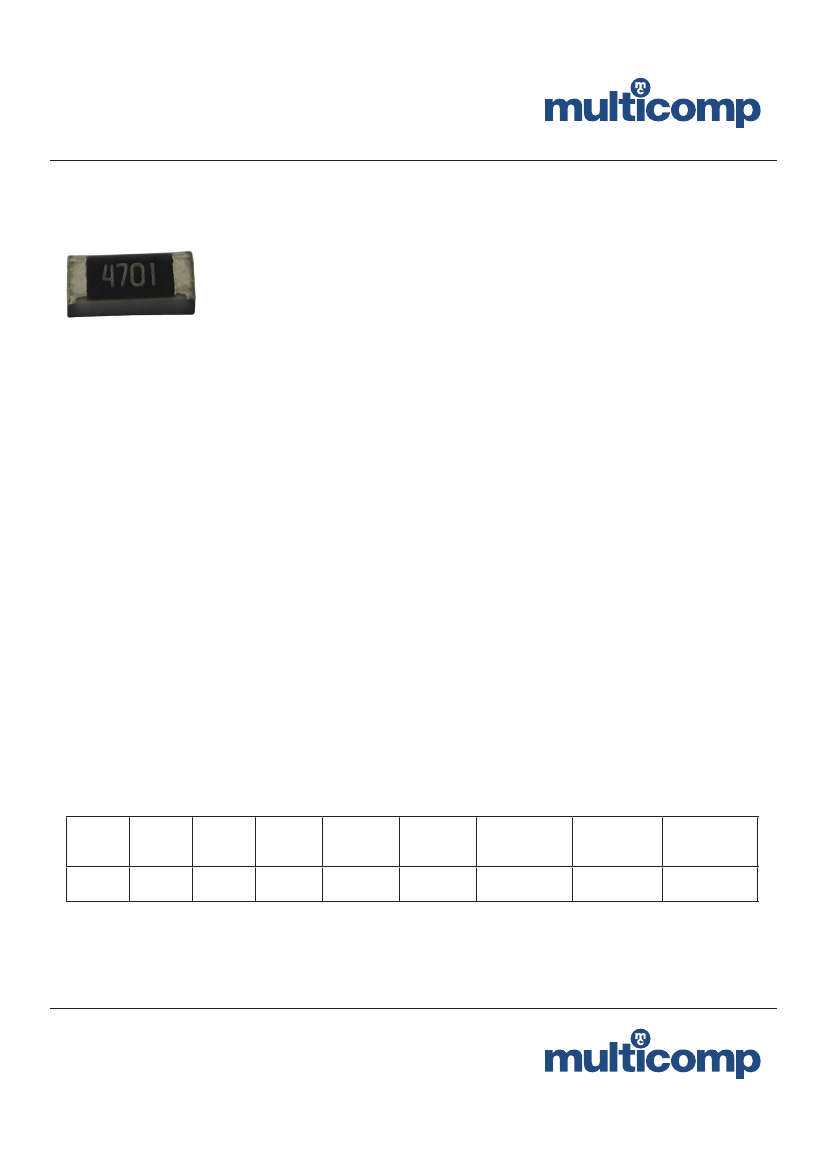

Thin Film Chip Resistor

0805

Features

•

Thin Film NiCr resistance element

Precision tolerance from ±0.1%

Extremly low TCR from ±5 to ±50 PPM/°C

Special packaging 1,000 pcs. / 2,000 pcs. per reel available

Application

Medical equipment

Testing/Measuring equipment

Communication device, cellphone GPS, PDA

Automatic equipment controller

Printer ewuipment

Converters

Performance Specification

Short Time Overload

Insulation Resistance

Humidity (Steady State)

Load Life

Terminal Bending

Solderability

Resistance to Soldering Heat

: ±0.5% Max.

: Min. 1,000MΩ

: ±0.3% Max.

: ±0.2%; >7kΩ ±0.5% Max.

: ±0.2% Max.

: Min. 95% Coverage

: ±0.2% Max.

Standard

Type

MCTC05

0805

Power

Rating

at +70°C

1/10W

Max.

Working

Voltage

100V

Max.

Overload

Voltage

200V

T.C.R.

PPM/°C

±25

±50

Tolerance

±0.1%

Resistance

Range

(Special low)

4.7Ω to 9.76Ω

Resistance

Range

10Ω to 1MΩ

Resistance

Range

(Special High)

1.1MΩ to 2MΩ

www.element14.com

www.farnell.com

www.newark.com

Page <1>

05/06/13

V1.0
