SG-615P9.830MC0

Description
IC,CRYSTAL OSCILLATOR,1-CHANNEL,1.025MHZ-26MHZ,HYBRID,SOJ,4PIN,PLASTIC
CategoryPassive components    oscillator
File Size322KB,2 Pages
ManufacturerSeiko Epson Corporation
Download Datasheet Parametric View All

SG-615P9.830MC0 Overview

IC,CRYSTAL OSCILLATOR,1-CHANNEL,1.025MHZ-26MHZ,HYBRID,SOJ,4PIN,PLASTIC

SG-615P9.830MC0 Parametric

Parameter NameAttribute value
Objectid1148241986
package instructionSOJ4/10,.4
Reach Compliance Codeunknown
Installation featuresSURFACE MOUNT
Number of terminals4
Maximum operating frequency26 MHz
Minimum operating frequency1.025 MHz
Nominal operating frequency9.83 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Maximum output low current16 mA
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSOJ4/10,.4
power supply5 V
Certification statusNot Qualified
Maximum slew rate23 mA
Nominal supply voltage5 V
surface mountYES
technologyHYBRID

SG-615P9.830MC0 Preview

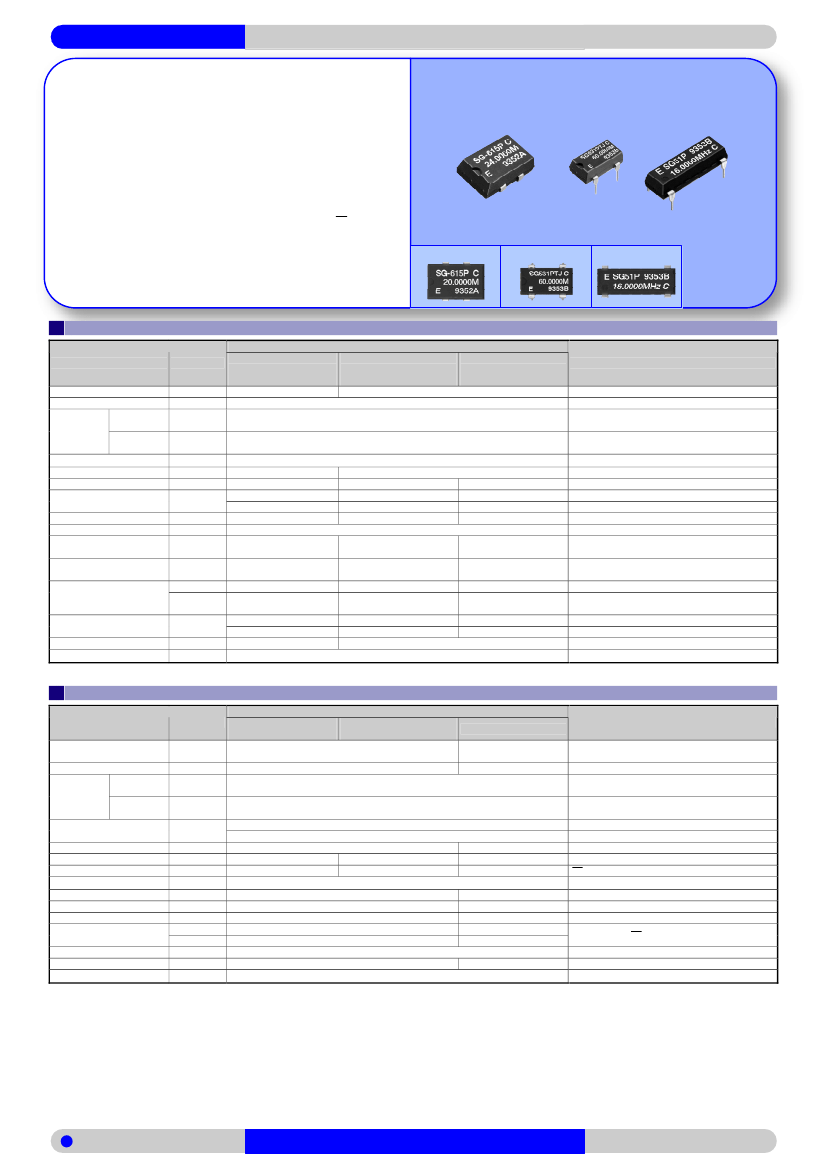

Crystal oscillator
CRYSTAL OSCILLATOR
SPXO
SG - 615
/
531
/
51
series
•Frequency
range
•Supply
voltage
•Function
•Lead(Pb)-free
1.025 MHz to 135 MHz
3.3 V / 5.0 V
Output enable(OE) Standby(
ST
)
Contains high melting temperature type
Actual size
solder (Pb85 %) exempted by RoHS directive.
SG-615
•Pin
compatible with full-size metal can. (SG-51 series)
•Pin
compatible with half-size metal can. (SG-531 series)
:
:
:
:
SG-531
SG-51
Specifications (characteristics)
Item
Output frequency range
Supply voltage
Storage
Temperature temperature
range
Operating
temperature
Frequency tolerance
Current consumption
Output disable current
Symmetry
High output voltage
Low output voltage
Output load condition
(TTL)
Output load condition
(CMOS)
Output enable /
disable input voltage
Output rise and fall time
Oscillation start up time
Frequency aging
Symbol
f
0
V
CC
T_stg
T_use
F_tol(osc)
I
CC
I_dis
SYM
V
OH
V
OL
L_TTL
L_CMOS
V
IH
V
IL
tr / tf
23 mA Max.
12 mA Max.
40 % to 60 %
40 % to 60 %
V
CC
-0.4 V Min.
10 TTL Max.
50 pF Max.
2.0 V Min.
0.8 V Max.
8 ns Max.
8 ns Max.
4 ms Max.
SG-615P
SG-531P
SG-51P
1.0250 MHz to 26 MHz
Specifications
SG-615PTJ
SG-615PH
SG-531PTJ
SG-531PH
SG-51PTJ
SG-51PH
26.001 MHz to 66.667 MHz
5.0 V
±0.5
V
-55
°C
to +125
°C
-20
°C
to +70
°C
B:
±50 ×
10
-6
, C:
±100 ×
10
-6
35 mA Max.
28 mA Max.
20 mA Max.
-
40 % to 60 %
45 % to 55 %
-
2.4 V Min.
V
CC
-0.4 V Min.
0.4 V Max.
5 TTL Max.
-
3.5 V Min.
1.5 V Max.
-
5 ns Max.
10 ms Max.
±5 ×
10
-6
/ year Max.
-
50 pF Max.
2.0 V Min.
0.8 V Max.
7 ns Max.
-
I
IH
= 1
µA
Max. (OE=V
CC
)
I
IL
= -100
µA
Min. (OE=GND),
PTJ:I
IL
= -500
µA
Min.(OE=GND)
CMOS load:20 % V
CC
to 80 % V
CC
level
TTL load:0.4 V to 2.4 V level
Time at minimum supply voltage to be 0 s
+25
°C,
V
CC
=5.0 V, First year
-20
°C
to +70
°C
*1
No load condition
OE=GND
CMOS load:50 % V
CC
level
TTL load: 1.4 V level
I
OH
=-400
µA(P,PTJ)/-4
mA(PH)
I
OL
=16 mA(P)/ 8 mA(PTJ)/ 4 mA(PH)
L_CMOS
15 pF
Remarks
.
Stored as bare product after unpacking
t
OSC
F_aging
*1
“B” tolerance will be available up to 55 MHz.
Specifications (characteristics)
Item
Output frequency range
Supply voltage
Storage
Temperature temperature
range
Operating
temperature
Frequency tolerance
Current consumption
Output disable current
Stand-by current
Symmetry
High output voltage
Low output voltage
Output load condition
Output enable /
disable input voltage
Output rise and fall time
Oscillation start up time
Frequency aging
Symbol
f
0
V
CC
T_stg
T_use
F_tol(osc)
I
CC
I_dis
I_std
SYM
V
OH
V
OL
L_CMOS
V
IH
V
IL
tr / tf
SG-615PCG
SG-531PCG
Specifications
SG-615SCG
SG-531SCG
2.7 V to 3.6 V
-55
°C
to +125
°C
-40
°C
to +85
°C
B:
±50 ×
10
-6
C:
±100 ×
10
-6
M:
±100 ×
10
-6
12 mA Max.
10 mA Max.
-
-
50
µA
Max.
45 % to 55 %
V
CC
-0.4 V Min.
0.4 V Max.
25 pF Max.
70 % V
CC
Min.
20 % V
CC
Max.
4 ns Max.
12 ms Max.
±5 ×
10
-6
/ year Max.
-20
°C
to +70
°C
-40
°C
to +85
°C
No load condition
OE=GND (PCG,PCN)
ST
=GND (SCG)
50 % V
CC
level, L_CMOS=Max.
I
OH
=-8 mA
I
OL
= 8 mA
OE Terminal ,
ST
Terminal
20 % V
CC
to 80 % V
CC
level, L_CMOS
Max.
t=0 at 90% V
CC
+25
°C,
V
CC
=3.3 V, First year
SG-615PCN
26.001 MHz
to 66.667 MHz
3.0 V to 3.6 V
Stored as bare product after unpacking
Remarks
1.500 MHz to 26.000 MHz
20 mA Max.
10 mA Max.
-
V
CC
-0.4 V Min.
0.4 V Max.
15 pF Max.
70 % V
CC
Min.
30 % V
CC
Max.
10 ms Max.
t
OSC
F_aging
40
http://www.epsontoyocom.co.jp
Crystal oscillator
Specifications (characteristics)
Item
Output frequency range
Supply voltage
Storage
Temperature temperature
range
Operating
temperature
Frequency tolerance
Current consumption
Output disable current
Stand-by current
Symmetry
High output voltage
Low output voltage
Output load condition
(TTL)
Output load condition
(CMOS)
Output enable /
disable input voltage
Output rise and fall time
Oscillation start up time
Frequency aging
Symbol
f
0
V
CC
T_stg
T_use
F_tol(osc)
I
CC
I_dis
I_std
SYM
V
OH
V
OL
L_TTL
L_CMOS
V
IH
V
IL
tr / tf
2.0 V Min.
0.8 V Max.
-
4 ns Max.
SG-615PTW
/
STW
SG-531PTW
/
STW
Specifications
SG-615PHW
/
SHW
SG-531PHW
/
SHW
SG-615PCW
/
SCW
SG-531PCW
/
SCW
26.001 MHz to
135.000 MHz
3.3 V
±0.3
V
Remarks
55.001 MHz to 135.000 MHz
5.0 V
±0.5
V
-55
°C
to +125
°C
-20
°C
to +70
°C
-6
Stored as bare product after unpacking
-40
°C
to +85
°C
-6
B:
±50 ×
10 , C: ±100 × 10
-
M:
±100 ×
10
-6
45 mA Max.
28 mA Max.
30 mA Max.
16 mA Max.
50
µA
Max.
-
40 % to 60 %
-
40 % to 60 %
V
CC
-0.4 V Min.
0.4 V Max.
5 TTL Max.
-
15 pF Max.
70 % V
CC
Min.
20 % V
CC
Max.
4 ns Max.
-
-
-20
°C
to +70
°C
*1
-40
°C
to +85
°C
No load condition( Max. frequency range )
OE=GND (PTW,PHW,PCW)
ST
=GND (STW,SHW,SCW)
50 % V
CC
level, L_CMOS=Max.
1.4 V level ,L_CMOS=Max.
I
OH
=-16 mA(PTW,STW,PHW,SHW),-8 mA(PCW,SCW)
I
OL
= 16 mA(PTW,STW,PHW,SHW), 8 mA(PCW,SCW)
f
0
90 MHz , Max.supply voltage
Max.frequency , Max.supply voltage
OE Terminal ,
ST
Terminal
20 % V
CC
to 80 % V
CC
level, L_CMOS
Max.
0.4 V to 2.4 V level
Time at minimum supply voltage to be 0 s
+25
°C,
V
CC
=5.0 V / 3.3 V, First year
t
OSC
F_aging
-
10 ms Max..
±5 ×
10
-6
/ year Max.
*1
“C” tolerance :f
0
≥66.667
MHz(PTW
,
STW,PHW,SHW )
.

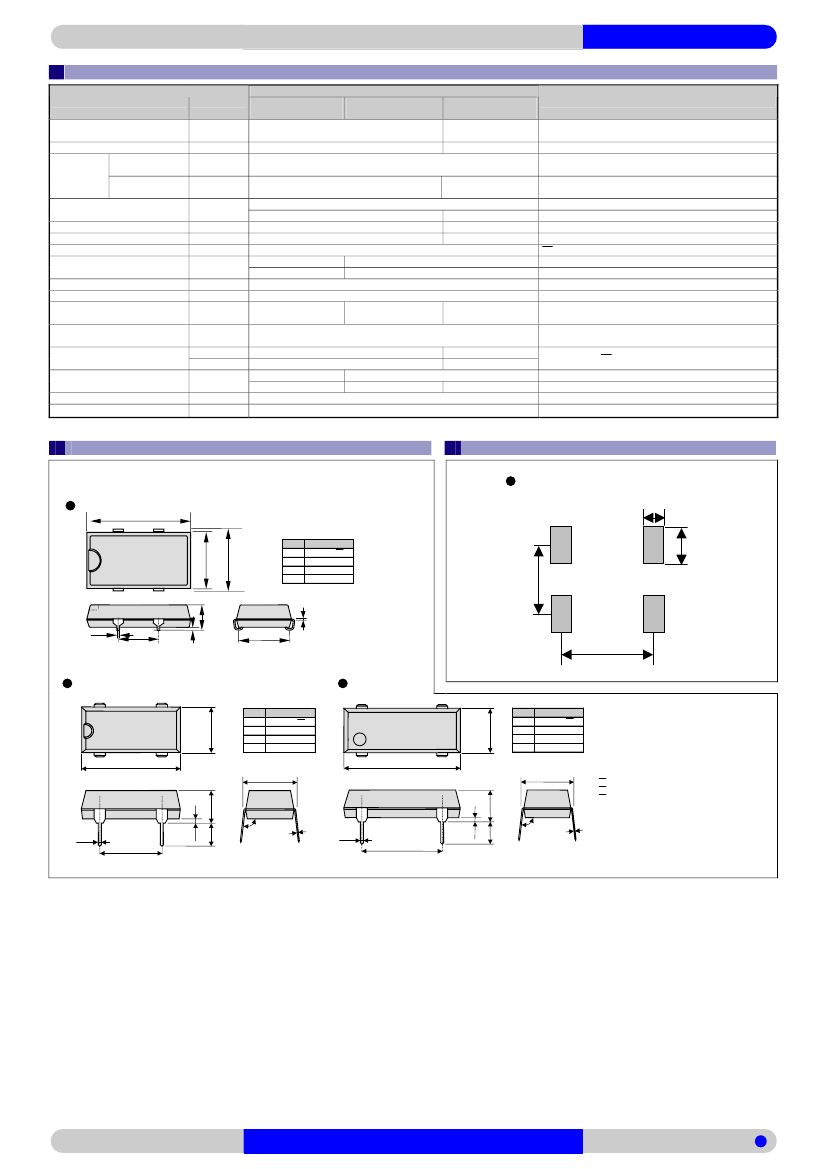

External dimensions
(Unit:mm)
Footprint (Recommended)
SG-615 Series
(Unit:mm)
SG-615 Series
#4
1.3
#3
Pin map
Pin
Connection
1
OE or
ST
2
GND
3
OUT
4
Vcc
14.0 Max.
9.8 Max.
4.7 Max.
#1
#2
0.51
5.08
7.62
0.25
8.8
SG-615P C
20.0000M
E
9352A
8.65
0.25Min.
5.08
SG-51 Series
SG-531 Series
#8
#5
#14
No.
1
4
5
8
Pin terminal
OE or
ST
GND
OUT
Vcc
#8
E
#1
9353B
16.0000MHz C
#1
6.36
6.6
SG531PTJ C
60.0000M
E
SG51P 9353B
Pin map
Pin
Connection
1
OE or
ST
7
GND
8
OUT
14
Vcc
13.7 Max.
#4
5.3Max.
7.62
19.8 Max.
#7
Note.
OE pin (P,PTJ,PH,PTW,PHW,PCW,PCN,PCG)
OE pin = "H" or "open" : Specified frequency output.
OE pin = "L" : Output is high impedance.
ST
pin (STW, SHW, SCW,SCG)
ST
pin = "H" or "open" : Specified frequency output.
ST
pin = "L" : Output is low level
2.54Min. 5.3Max.
7.62
(weak pull - down),oscillation stops.
0.51
7.62
0.2Min.
2.54Min.
0.25
90°~105°
0.51
0.2Min.
15.24
90°~105°
0.25
http://www.epsontoyocom.co.jp
