MAMK2520T2R2M Overview

fixed inductors indctr smd HI cur metal core 2.2uh 20%

MAMK2520T2R2M Parametric

Parameter Name	Attribute value
Manufacture	Taiyo Yude
Product Category	Fixed Inductors
RoHS	Yes
Inductance	2.2 uH
Tolerance	20 %
Maximum DC Curre	2 A
Maximum DC Resistance	117 mOhms
Operating Temperature Range	- 40 C to + 105 C
Termination Style	SMD/SMT
Package / Case	2.5 mm x 2 mm x 1.2 mm
Case Length	2.5 mm
Case Width	2 mm
Case Heigh	1.2 mm
Core Material	Ferrite
Packaging	Reel
Produc	Power Inductor Wire Wound Type
Factory Pack Quantity	3000
Test Frequency	2 MHz
Type	MCoil

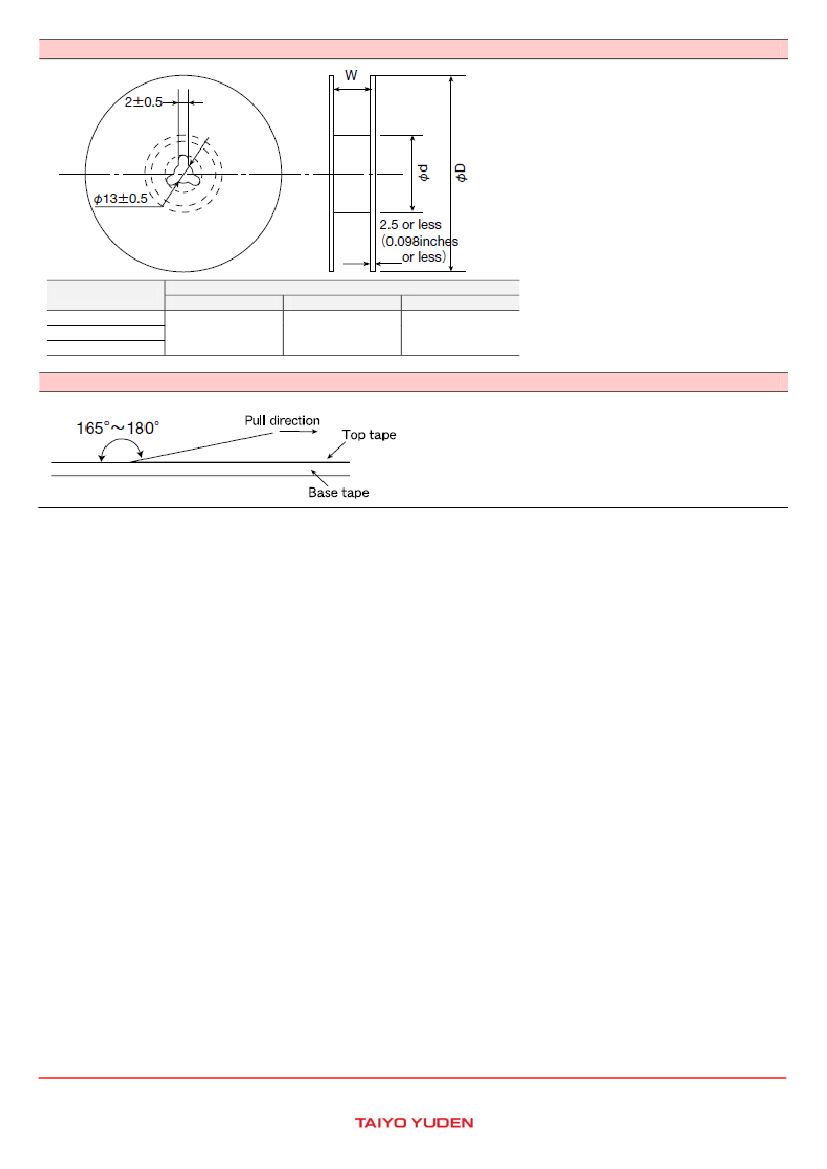

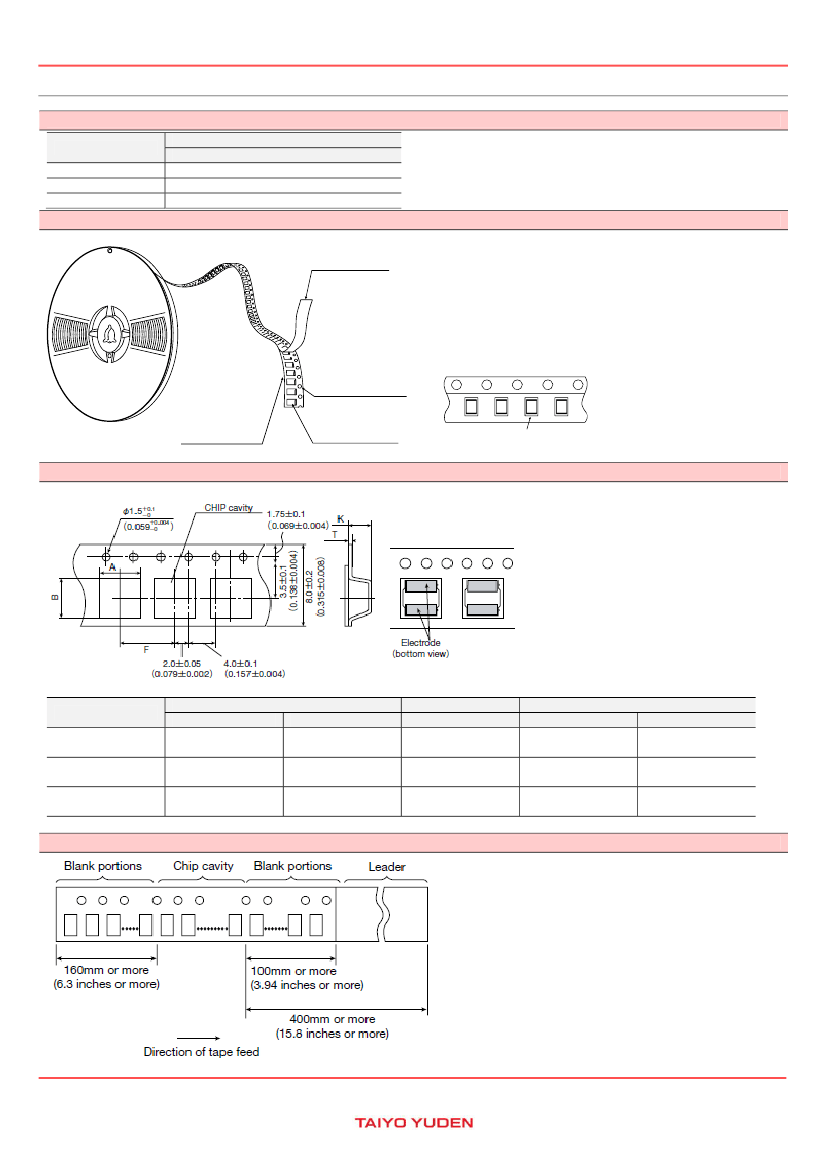

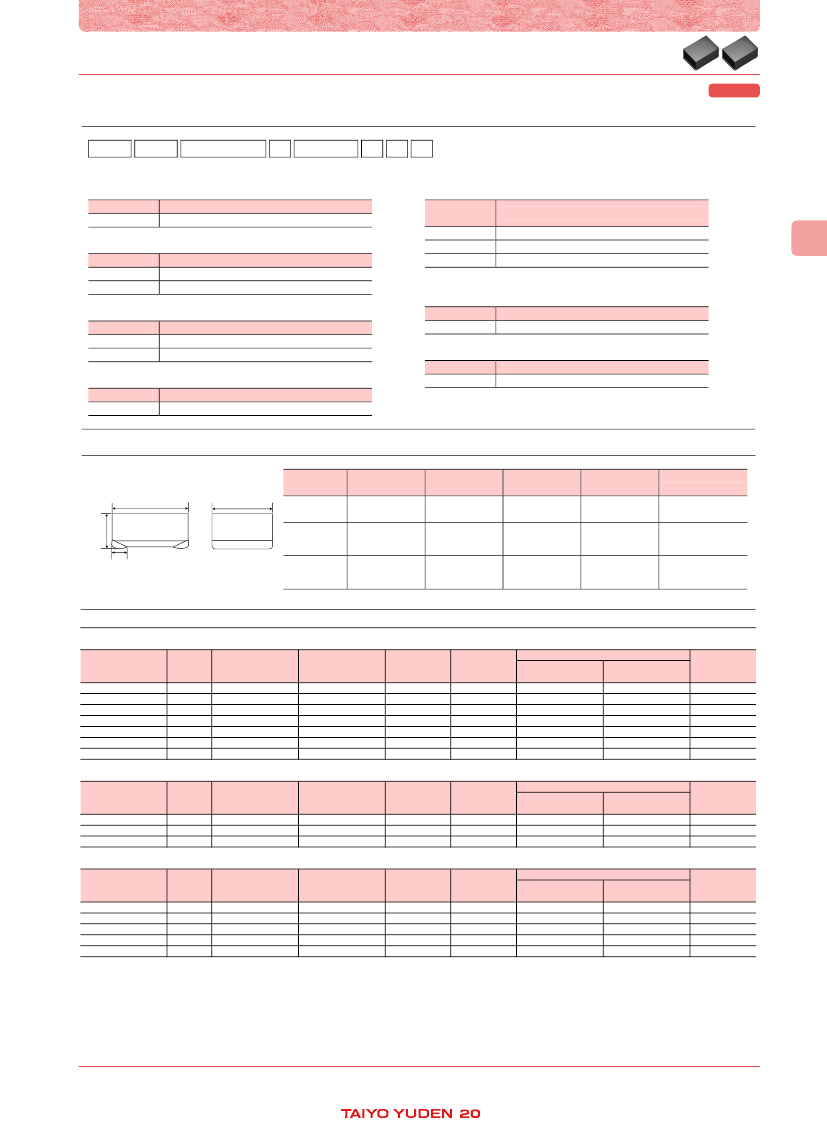

Preview

Download Datasheet

View All

Notice for TAIYO YUDEN products　

Please read this notice before using the TAIYO YUDEN products.

REMINDERS

■

Product information in this catalog is as of October 2013. All of the contents speciﬁed herein are subject to change

without notice due to technical improvements, etc. Therefore, please check for the latest information carefully be-

fore practical application or usage of the Products.

Please note that TAIYO YUDEN CO., LTD. shall not be responsible for any defects in products or equipment incor-

porating such products, which are caused under the conditions other than those speciﬁed in this catalog or indi-

vidual speciﬁcation.

■

Please contact TAIYO YUDEN CO., LTD. for further details of product speciﬁcations as the individual speciﬁcation

is available.

■

Please conduct validation and veriﬁcation of products in actual condition of mounting and operating environment

before commercial shipment of the equipment.

■

All electronic components or functional modules listed in this catalog are developed, designed and intended for

use in general electronics equipment.(for AV, office automation, household, office supply, information service,

telecommunications, (such as mobile phone or PC) etc.). Before incorporating the components or devices into any

equipment in the ﬁeld such as transportation,( automotive control, train control, ship control), transportation signal,

disaster prevention, medical, public information network (telephone exchange, base station) etc. which may have

direct inﬂuence to harm or injure a human body, please contact TAIYO YUDEN CO., LTD. for more detail in ad-

vance.

Do not incorporate the products into any equipment in ﬁelds such as aerospace, aviation, nuclear control, subma-

rine system, military, etc. where higher safety and reliability are especially required.

In addition, even electronic components or functional modules that are used for the general electronic equipment,

if the equipment or the electric circuit require high safety or reliability function or performances, a sufﬁcient reliabil-

ity evaluation check for safety shall be performed before commercial shipment and moreover, due consideration to

install a protective circuit is strongly recommended at customer's design stage.

■

The contents of this catalog are applicable to the products which are purchased from our sales ofﬁces or distribu-

tors (so called

“TAIYO

YUDEN’ ofﬁcial sales channel”

It is only applicable to the products purchased from any of TAIYO YUDEN’ ofﬁcial sales channel.

■

Please note that TAIYO YUDEN CO., LTD. shall have no responsibility for any controversies or disputes that may

occur in connection with a third party's intellectual property rights and other related rights arising from your usage

of products in this catalog. TAIYO YUDEN CO., LTD. grants no license for such rights.

■

Caution for export

Certain items in this catalog may require speciﬁc procedures for export according to

“Foreign

Exchange and For-

eign Trade Control Law”of Japan,

“U.S.

Export Administration Regulations” and other applicable regulations.

Should you have any question or inquiry on this matter, please contact our sales staff.

MAMK2520T2R2M Related Products

	MAMK2520T2R2M	MAMK2520T4R7M	MAMK2520T1R0M
Description	fixed inductors indctr smd HI cur metal core 2.2uh 20%	fixed inductors indctr smd HI cur metal core 4.7uh 20%	fixed inductors indctr smd HI cur metal core 1.0uh 20%
Manufacture	Taiyo Yude	Taiyo Yude	Taiyo Yude
Product Category	Fixed Inductors	Fixed Inductors	Fixed Inductors
RoHS	Yes	Yes	Yes
Inductance	2.2 uH	4.7 uH	1 uH
Tolerance	20 %	20 %	20 %
Maximum DC Curre	2 A	1.5 A	4.2 A
Maximum DC Resistance	117 mOhms	260 mOhms	59 mOhms
Operating Temperature Range	- 40 C to + 105 C	- 40 C to + 105 C	- 40 C to + 105 C
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	2.5 mm x 2 mm x 1.2 mm	2.5 mm x 2 mm x 1.2 mm	2.5 mm x 2 mm x 1.2 mm
Case Length	2.5 mm	2.5 mm	2.5 mm
Case Width	2 mm	2 mm	2 mm
Case Heigh	1.2 mm	1.2 mm	1.2 mm
Core Material	Ferrite	Ferrite	Ferrite
Packaging	Reel	Reel	Reel
Produc	Power Inductor Wire Wound Type	Power Inductor Wire Wound Type	Power Inductor Wire Wound Type
Factory Pack Quantity	3000	3000	3000
Test Frequency	2 MHz	2 MHz	2 MHz
Type	MCoil	MCoil	MCoil
