EMDS23
Series
• MEMS Clock Oscillators
• LVDS Output
• +3.3V Supply Voltage
• Complementary Output
• Output Enable and Standby Options
• 6 Pad Plastic SMD Package
• 30,000 G Shock Resistance
• RoHS Compliant (Pb-free)
H
L
W
EMDS23
0.75
5.0
3.2
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Nominal Frequency (MHz)
Some frequencies within this range may
not be available
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
CC
)
Excluding Load Termination Current
Input Current
Inclusive of All Conditions: Calibration Tolerance at 25°C,
Frequency Tolerance / Stability
Frequency Stability over the Operating Temperature Range,
Some tolerance stability options
Supply Voltage Change, Output Load Change, 1st Year Aging
may not be available
at 25°C, Reflow, Shock, and Vibration
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Differential Output Voltage (V
OD
)
Offset Voltage (V
OS
)
Differential Output Error (
D
V
DD
)
Offset Error (
D
V
OS
)
Output Swing (
D
VO
PP
)
20% to 80% of waveform
Rise Time / Fall Time
at 50% of waveform
Duty Cycle
Between Output and Complementary Output
Load Drive Capability
OE
Logic Control / Additional Output
ST
V
IH
of 70% of V
CC
Minimum
Output Control Input Voltage
No Connection
V
IL
of 30% of V
CC
Maximum
Output Enable Current
Without Load
Standby Current
Without Load
Aging
First Year at 25°C
FJ = 12kHz to 20MHz
Start Up Time
Period Jitter
Deterministic
Random
RMS
pk-pk
RMS Phase Jitter (Random)
1.000MHz to 100.000MHz
Fj=637kHz to 10MHz
100.001MHz to 156.250MHz
156.251MHz to 220.000MHz
RMS Phase Jitter (Random)
1.000MHz to 100.000MHz
Fj=1MHz to 20MHz
100.001MHz to 156.250MHz
156.251MHz to 220.000MHz
RMS Phase Jitter (Random)
1.000MHz to 100.000MHz
Fj=1.875MHz to 20MHz
100.001MHz to 156.250MHz
156.251MHz to 220.000MHz
MANUFACTURER
CATEGORY
SERIES
PACKAGE
1.000MHz to 220.000MHz
0°C to +70°C, -20°C to +70°C, or -40°C to +85°C
-55°C to +125°C
3.3V
DC
±0.3V
DC
80mA Maximum
±100ppm, ±50ppm, ±25ppm, or
±20ppm Maximum
1.425V
DC
Typical
1.075V
DC
Typical
247mV Minimum, 350mV Typical, 454mV Maximum
1.125V Minimum, 1.250V Typical, 1.375V Maximum
50mV Maximum
50mV Maximum
350mVdc Minimum
225pSec Typical, 325pSec Maximum
50 ±5(%)
100 Ohms
Ouput Enable (OE) and Complementary Output or
Standby (ST) and Complementary Output
Enables Outputs
Enables Outputs
Disables Outputs: High Impedance
75mA Maximum (OE)
30µA Maximum (ST)
±1ppm Maximum
10 mSeconds Maximum
0.2pSec Typical
2.0pSec Typical
1.8pSec Typical, 2.5pSec Maximum
25pSec Typical, 30pSec Maximum
2.1pSec Typical
1.7pSec Typical
1.6pSec Typical
1.7pSec Typical
1.2pSec Typical
0.7pSec Typical
1.5pSec Typical
0.7pSec Typical
0.6pSec Typical
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EMDS23
PLASTIC
3.3V
OS8H
10/11
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.

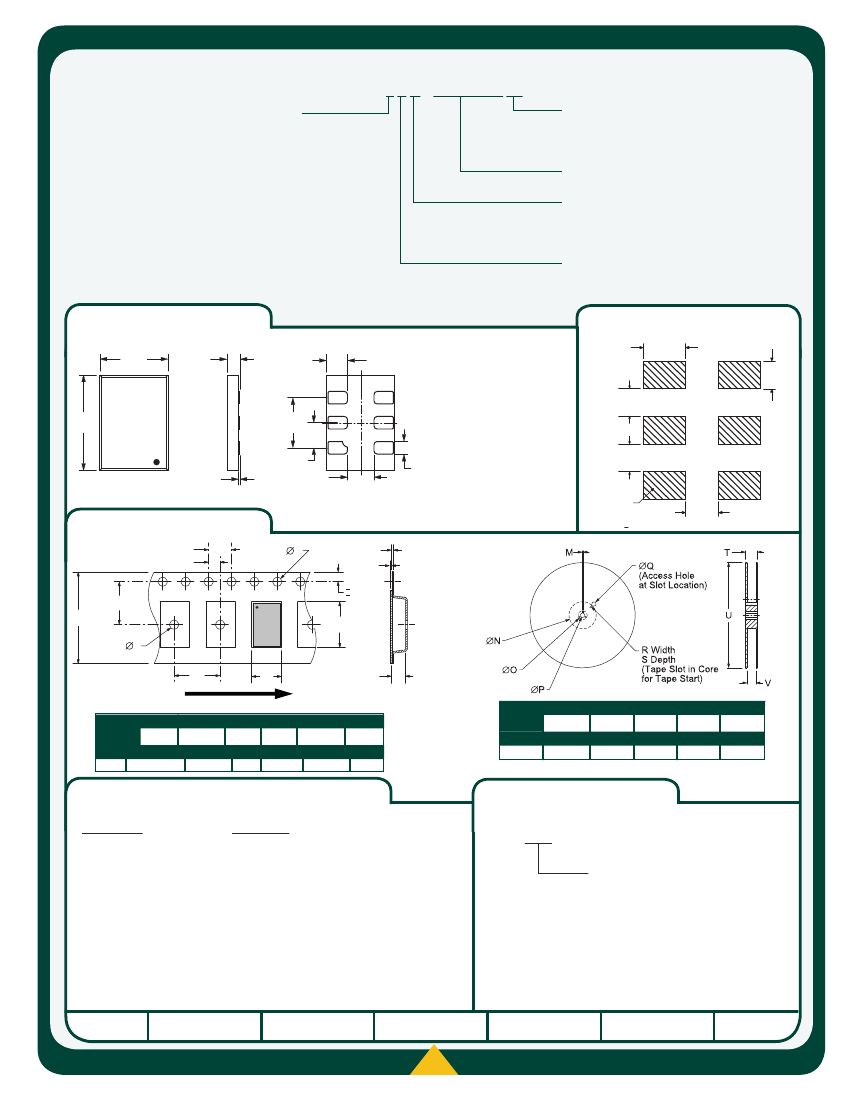

PART NUMBERING GUIDE
EMDS23 C 2 H - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
C = ±100ppm Maximum over 0°C to +70°C
D = ±50ppm Maximum over 0°C to +70°C
E = ±25ppm Maximum over 0°C to +70°C
F = ±20ppm Maximum over 0°C to +70°C
G = ±100ppm Maximum over -40°C to +85°C
H = ±50ppm Maximum over -40°C to +85°C
J = ±25ppm Maximum over -40°C to +85°C
L = ±100ppm Maximum over -20°C to +70°C
M = ±50ppm Maximum over -20°C to +70°C
N = ±25ppm Maximum over -20°C to +70°C
AVAILABLE OPTIONS
Blank = Bulk
TR = Tape and Reel
FREQUENCY
LOGIC CONTROL/ADDITIONAL OUTPUT
H = Output Enable (OE) and Complementary Output
J = Standby (ST) and Complementary Output
DUTY CYCLE
2 = 50 ±5(%)
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
3.20
±0.15
0.75
±0.15
3
1.00 ±0.10 (x6)
1.40
(X6)
4
5
6
0.64
±0.10 (x6)
5.00
±0.15
2.54
±0.10
1.27 TYP
(x4)
1.20
±0.10
2
1
Pin 1: Output Enable (OE) or
Standby (ST)
Pin 2: No Connect
Pin 3: Case Ground
Pad 4: Output
Pad 5: Complementary
Output
Pad 6: Supply Voltage
1.00
(X6)
0.27
0.27
0.08 MAX
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Solder Land
(X6)
Tolerances= +0.1
0.80
D
E
H
K
L
I
B
A
C
F
G
Direction of Unreeling
MARKING
ORIENTATION
J
M
REEL
M
1.5 MIN
N
50 MIN
O
U
180 MAX
P
V
16.4 +2/-0
Q
40 MIN
QTY/REEL
1,000
TAPE
A
16.0 ±0.3
B
7.5 ±0.1
C
I
J
B0*
D
K
0.60 MAX
E
2.0 ±0.1
F
8.0 ±0.1
20.2 MIN 13.0 ±0.2
1.50 MIN 4.0 ±0.1
R
2.5 MIN
S
10 MIN
T
22.4 MAX
G
A0*
H
L
0.10 MAX
M
K0*
1.5 +0.1/-0.0 1.75 ±0.10
*Compliant to EIA 481
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
ESD Susceptibility
Flammability
Mechanical Shock
Moisture Resistance
Moisture Sensitivity Level
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Thermal Shock
Vibration
Specification
MIL-STD-883, Method 3015, Class 2, HBM: 2000V
UL94-V0
MIL-STD-883, Method 2002, Condition G, 30,000G
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003 (Pads on bottom of
package only)
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 1011, Condition B
MIL-STD-883, Method 2007, Condition A, 20G
MARKING SPECIFICATIONS
Line 1: XXXXX
Ecliptek Manufacturing Lot Code
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EMDS23
PLASTIC
3.3V
OS8H
10/11
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
