4-Channel Audio Processor IC
Description
PT2313L
PT2313L is a four-channel digital control audio processor utilizing CMOS Technology. Volume, Bass,
Treble and Balance, Front/Rear Fader Processor are incorporated into a single chip. Loudness Function
and Selectable Input Gain are also provided to build a highly effective electronic audio processor having
the highest performance and reliability with the least external components. All functions are
programmable using the I
2
C Bus. The pin assignments and application circuit are optimized for easy
PCB layout and cost saving advantage for audio application. Housed in a 28-pin DIP/SO Package,
PT2313L is pin-to-pin compatible with TDA7313 and is very similar in performance with the later.
Features
!
!
!
!
!
!
!
!
!
!
!
!
!
CMOS Technology
Least External Components
Treble and Bass Control
Loudness Function
3 Stereo Inputs with Selectable Input Gain
Input/Output for External Noise Reduction System/Equalizer
4 Independent Speaker Controls for Fader and Balance
Independent Mute Function
Volume Control in 1.25 dB/step
Low Distortion
Low Noise and DC Stepping
Controlled by I
2
C Bus Micro-Processor Interface
Pin-to-pin Compatible with TDA7313
Applications
!
!
Car Stereo (Audio)
Hi-Fi Audio System
Note: Purchase of I
2
C Component of Princeton Technology Corporation (PTC) conveys a license under Philips I
2
C Patent Right to use
these components in any I
2
C System, provided that the system conforms to the I
2
C Standard Specification defined by Philips
PT2313L v 1.6
Page 1
Revised Sept. 1999
Princeton Technology Corp.
Tel : 886-2-29162151
Fax: 886-2-29174598
URL:
http://www.princeton.com.tw
4-Channel Audio Processor IC

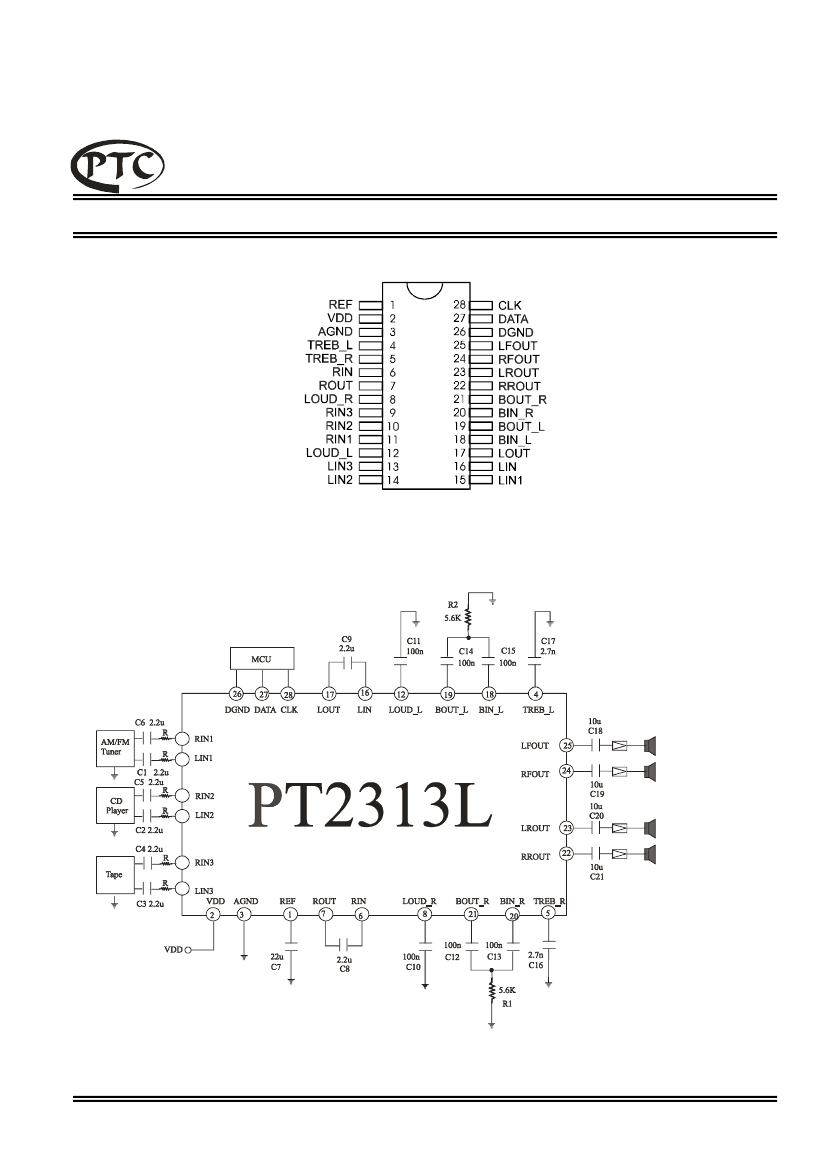

Pin Configuration
PT2313L
PT2313L
Application Circuit
11
15
10
14
9
13
Note: 1. The Resistor ( R ) Range = 2.0K Ohms to 3.6 K Ohms.
2. Resistor ( R ) Recommended Value = 2.4 K Ohms
PT2313L v 1.6
Page 2
Revised Sept. 1999
PCB Design
