54LS78A/BABJC

Description
IC,FLIP-FLOP,DUAL,J/K TYPE,LS-TTL,FP,14PIN,CERAMIC
Categorylogic    logic
File Size88KB,2 Pages
ManufacturerFREESCALE (NXP)
Download Datasheet Parametric View All

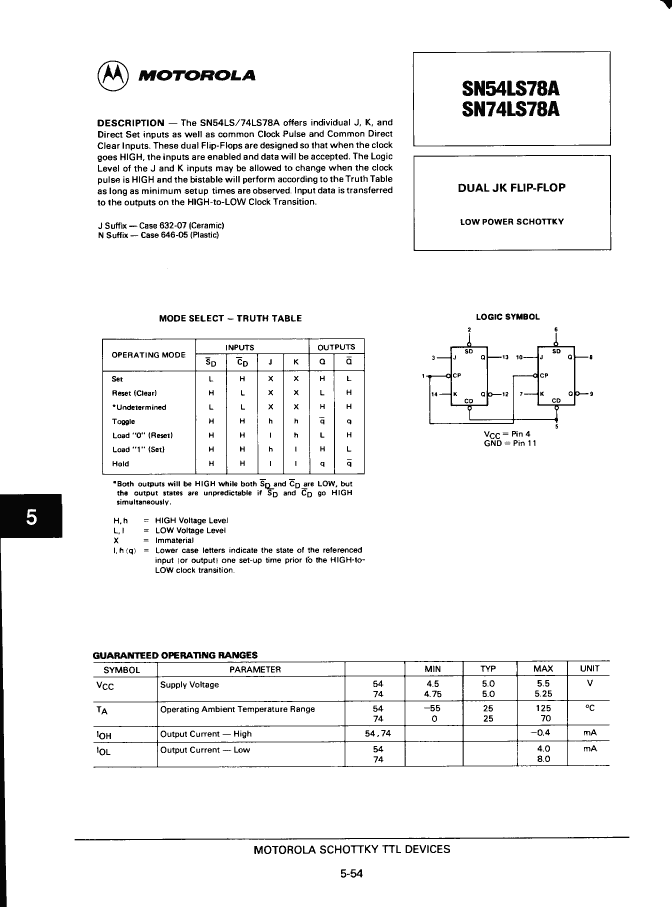

54LS78A/BABJC Overview

IC,FLIP-FLOP,DUAL,J/K TYPE,LS-TTL,FP,14PIN,CERAMIC

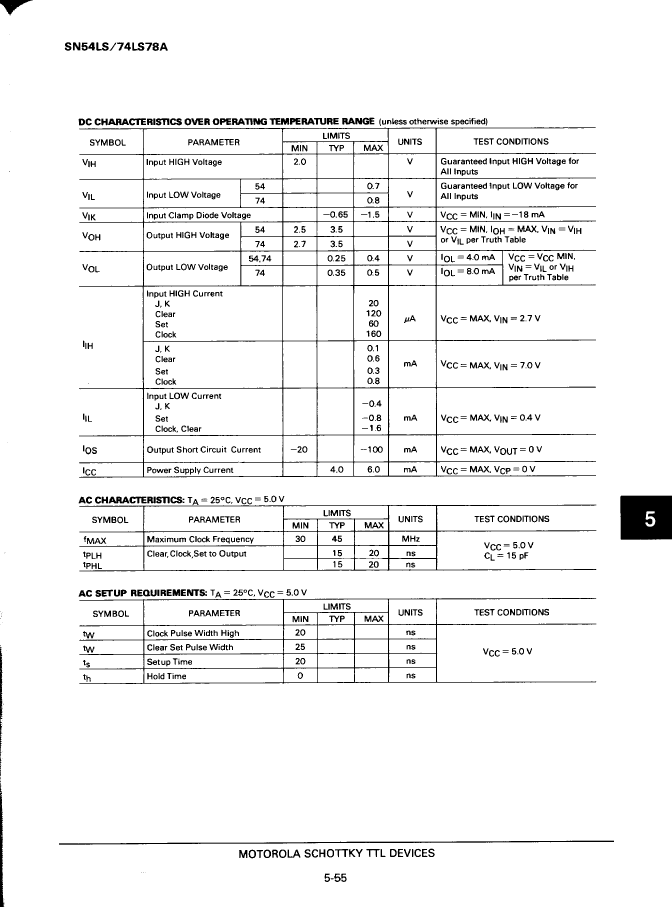

54LS78A/BABJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid105355043
package instructionDFP, FL14,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDFP-F14
JESD-609 codee0
Logic integrated circuit typeJ-K FLIP-FLOP
Number of functions2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Trigger typeNEGATIVE EDGE
