NRSNE2I2J240TRF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> NRSNE2I2J240TRF

NRSNE2I2J240TRF: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.31W, 24ohm, 12.5V, 5% +/-Tol, -200,200ppm/Cel, 0302,; CategoryPassive components The resistor; File Size199KB，3 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NRSNE2I2J240TRF Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.31W, 24ohm, 12.5V, 5% +/-Tol, -200,200ppm/Cel, 0302,

NRSNE2I2J240TRF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	831376169
Reach Compliance Code	compliant
Country Of Origin	Japan, Mainland China, Taiwan
ECCN code	EAR99
YTEOL	8.5
structure	Rectangular
Component power consumption	0.031 W
The first element resistor	24 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	0.8 mm
Package form	SMT
Package width	0.6 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.031 W
Rated temperature	70 °C
resistance	24 Ω
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	24 Ω
size code	0302
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	12.5 V

Preview

Download Datasheet

View All

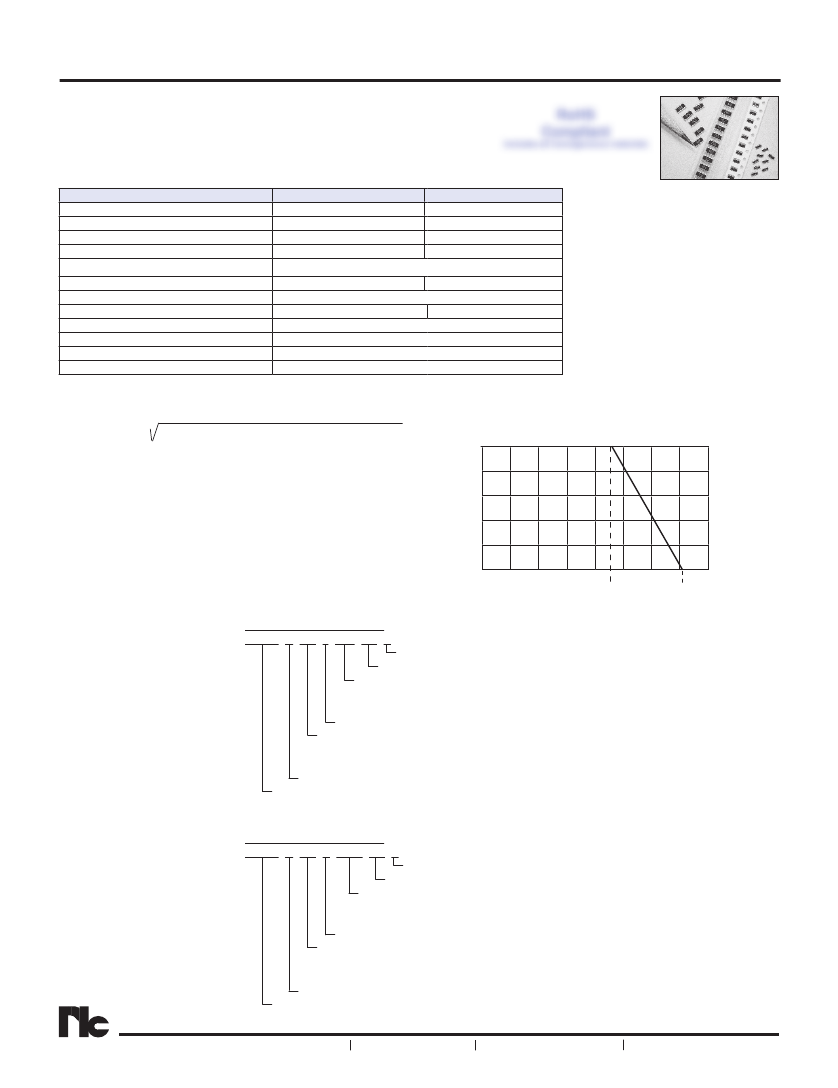

Ultra Miniature Chip Resistor Arrays

FEATURES

• ULTRA MINIATURE SIZE AND LOW PROFILE

• THICK FILM CONSTRUCTION

• HIGH DENSITY PACKAGING OFFERS SIGNIFICANT SPACE SAVINGS

• REFLOW SOLDERING COMPATIBLE

includes all homogeneous materials

NRSNE Series

RoHS

Compliant

SPECIFICATIONS

*See Part Number System for Details

Type

NRSNE2I2

NRSNE2I4

Termination Type

Flat

Size W x L (mm)

0.6 x 0.8

0.6 x 1.4

No. of Resistors & Circuit

2R Isolated

4R Isolated

Power Rating per Resistor @ +70°C

1/32 (.031W)

Resistance Tolerance*

J (±5%)

Resistance Range

10Ω ~ 1MΩ

Jumper

Under 50mΩ

Current Ratings

Rated - 0.5A

Max. Overload - 1.0A

Temperature Coefﬁeient

±200ppm

Maximum Working Voltage**

12.5V

Maximum Overload Voltage

25V

Operating Temperature Range

-55°C ~ +125°C

*1% (F) tolerance available special order. Contact NIC regarding availability.

** Maximum allowable continuous voltage for all resistors is the

lower of the two values: “MAXIMUM WORKING VOLTAGE” as

speciﬁed, or

Power rating (WATTS) x Resistance (OHMS)

Power Derating Curve:

For operation above 70

C, power rating must be

derated according to the following chart:

100

-20

100

140°C

125°C

PART NUMBER SYSTEM (5% TOLERANCE, E-24 VALUES)

NRSN E 2I2 J 103 TR F

RoHS compliant

Tape & Reel Packaging

Resistance Code: First 2 ﬁgures are signiﬁcant,

3rd digit is the multiplier, “R”

indicates a decimal point.

Tolerance Code: J=5%

Conﬁguration Designator

(See circuit schematics and component

diagrams for explanation)

Termination Type (E = Flat Temination)

Series

PART NUMBER SYSTEM (1% TOLERANCE, E-24 VALUES)

NRSN E 2I2 F 1002 TR F

RoHS compliant

Tape & Reel Packaging

Resistance Code: First 3 ﬁgures are signiﬁcant,

4th digit is the multiplier, “R”

indicates a decimal point.

Tolerance Code: F=1%

Conﬁguration Designator

(See circuit schematics and component

diagrams for explanation)

Termination Type (E = Flat Temination)

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE
