85069: Descriptionfixed inductors Hi temp inductor 37 uH.40x.40; CategoryPassive components; File Size210KB，1 Pages; ManufacturerNASCENTechnology; Websitehttps://nascentechnology.com; Environmental Compliance

Download Datasheet Parametric Compare View All

85069 Overview

fixed inductors Hi temp inductor 37 uH.40x.40

85069 Parametric

Parameter Name	Attribute value
Manufacture	NASCENTechnology
Product Category	Fixed Inductors
RoHS	Yes
Inductance	37 uH
Tolerance	25 %
Maximum DC Curre	250 mA
Maximum DC Resistance	1 Ohms
Operating Temperature Range	+ 20 C to + 55 C
Shielding	Shielded
Termination Style	SMD/SMT
Case Length	5.08 mm
Case Width	5.08 mm
Case Heigh	2.54 mm
Core Material	Ceramic
Packaging	Reel
Produc	High Temperature Inductors
Factory Pack Quantity	25
Type	High Temperature Inductors

Preview

Download Datasheet

View All

LTCC

High Temperature Inductors

0.2x0.2 inch (5x5 mm)

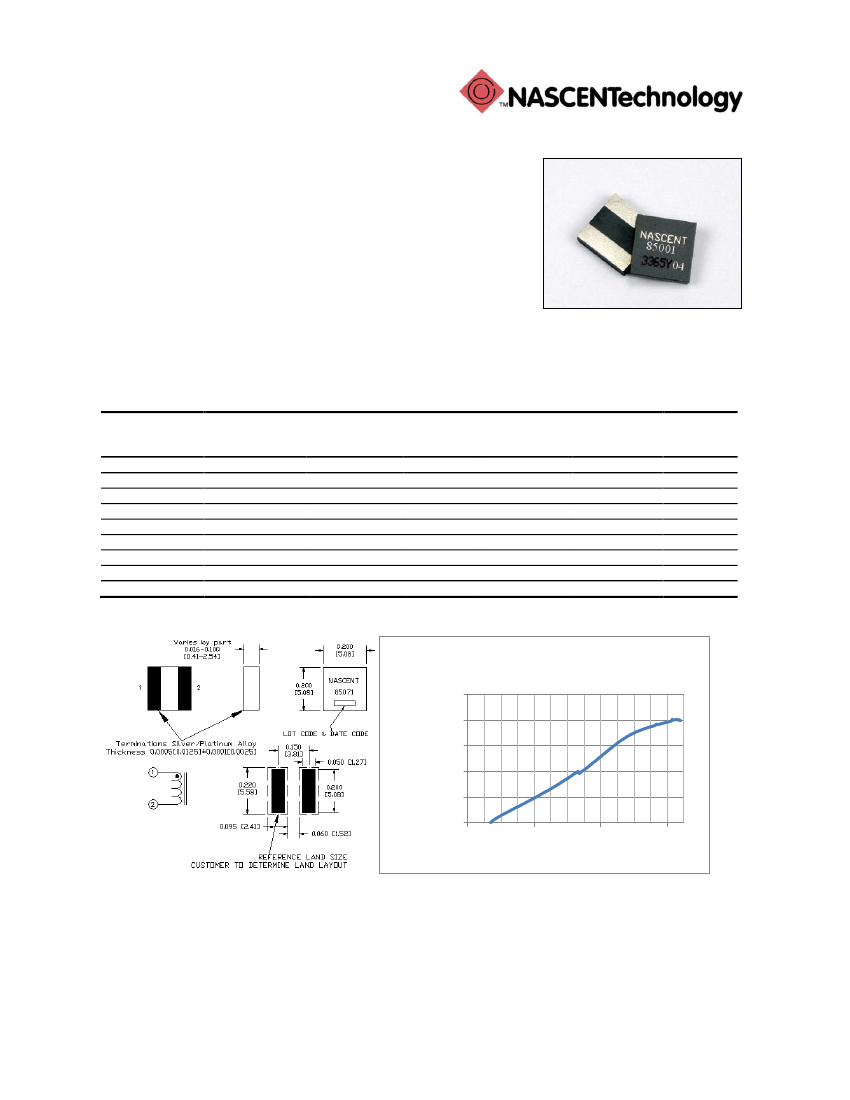

NASCENTechnology, Inc. has developed a series of high temperature, RoHS compliant inductors using

low temperature co-fired ceramic (LTCC) ferrite usable to 300°C that feature low profile, rugged

packaging, and self shielding characteristics.

Electrical Parameters at 25 °C unless otherwise noted

Part No.

85071

85068

85074

85072

85075

85069

85073

85076

85070

†

††

No Load

†

Inductance

µH

3.7

9.7

12

15

32

37

38

71

87

100 mA

Inductance

µH

3.1

7.5

6.6

13

24

29

27

48

57

100 mA

Tolerance

25 %

25%

25 %

Nominal DC

Resistance

ohms

0.14

0.2

0.18

0.7

0.9

1

2

2.5

2.9

Rated

††

Current

mA

-

Saturation

Current*

mA

275

250

200

250

200

225

Tolerance for no load inductance is ±25 %

Current will cause a 35 °C temperature rise over ambient (measured 20 to 55 °C)

* Saturation Current is the current that results in a 35% decrease in inductance over the 100 mA Inductance.

Inductance Change with Temperature

Percent Change in Inductance

100%

80%

60%

40%

20%

0%

0

100

200

Temperature (ºC)

300

Part dimension units: inches [millimeters]

For additional information, contact: Brian Nelson, National Sales Manager

Phone: 605-878-2417, Fax: 605-884-2450, E-mail: bnelson@nascentechnology.com

NASCENTechnology, Inc. 121 Airport Drive, Watertown, SD 57201

www.nascentechnology.com

This product is protected under US Patent #6054914, #6198374 and other international patents.

Specifications subject to change without notice. 07/11
