240-790-070
Series 79 Filtered Cable Plug
with Solder Cup Termination
G
Series 79
Micro-Crimp
Sample Part Number
Series
Contact Type
Insert Arrangement
Shell Material/Finish
EMI Spring
Filter Type
Filter Class
Mating Hardware Options
240-790-070
S
- Socket Contacts
(See Table I)
E
- With EMI Spring
N
- No EMI Spring
C
- C Filter
P
- Pi Filter
X, Y, Z, A, B, C, D, E, F, G, J
(See Table II)

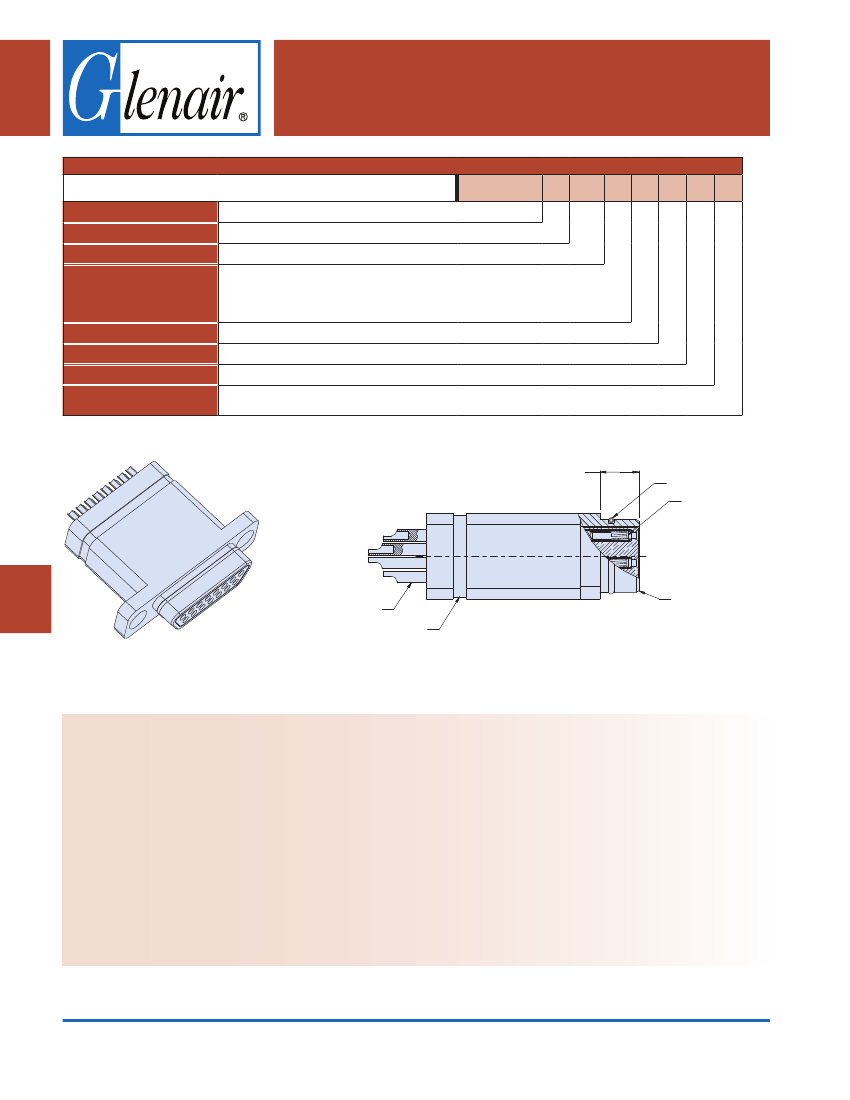

How To Order Filter Series 79 Connectors
240-790-070
S
H-66 ME
E
P
D
S
Aluminum Shell
ME
- Electroless Nickel
MT
- Nickel-PTFE
E
- Chem Film
Z2
- Gold
UC
- Zinc Cobalt with Black Chromate
J
- Cadmium with Yellow Chromate
NF
- Cad/O.D. over Electroless Nickel
L
- Low-Profile Captive Jackscrew
K
- Extended Captive Jackscrew
N
- No Mating Hardware
P
- Jackposts
S
- Low-Profile Captive Screwlock
T
- Extended Captive Screwlock (See Table III)
.183 (4.65)
EMI Spring
Socket Contact
Solder Cup Contacts
Groove For
EMI Adapter
799-015
Shell
Notes
1. Assembly to be identified with Glenair’s name, part number,
and date code, space permitting
2. Ground spring is not compatible with Zinc Cobalt or Cadmium
platings. Ground spring is only available with Nickel, Teflon
Nickel, Gold, or Chem Film plating on the shell.
3. EMI Filtered plug connector designed to meet requirements
of MIL-STD-2120 and Glenair Series 79 specifications. Unless
otherwise specified herein, refer to Glenair specification 799-
008 for additional performance characteristics.
4. All contacts to have identical filter value. Other filter
arrangements available, contact factory
5. Dielectric Withstanding Voltage: 500 VDC (Filter Class X, Y, Z
are 250 VDC)
6. Insulation Resistance: 5,000 megohms @ 200 VDC
7. Current Carrying Capacity
23 Gage - 5 Amps max. for all layouts
16 Gage - 7.5 Amps max. for combo layouts / 13 Amps max. for
all-power layouts
12 Gage - 13 Amps max. for combo layouts / 23 Amps max. for
all-power layouts
8. Other filter styles (C-L, L-C, Unbalanced Pi, Multi-Stage,
Multi-Value) are available. Please consult factory with your
requirements.
Materials/Finishes:
Insulators - High Grade Rigid Dielectric / N.A.
Contacts - Copper Alloy / 50 microinches Gold over Nickel
Mating Hardware - 300 Series Stainless Steel / Passivated
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-44
E-Mail: sales@glenair.com
with Solder Cup Termination

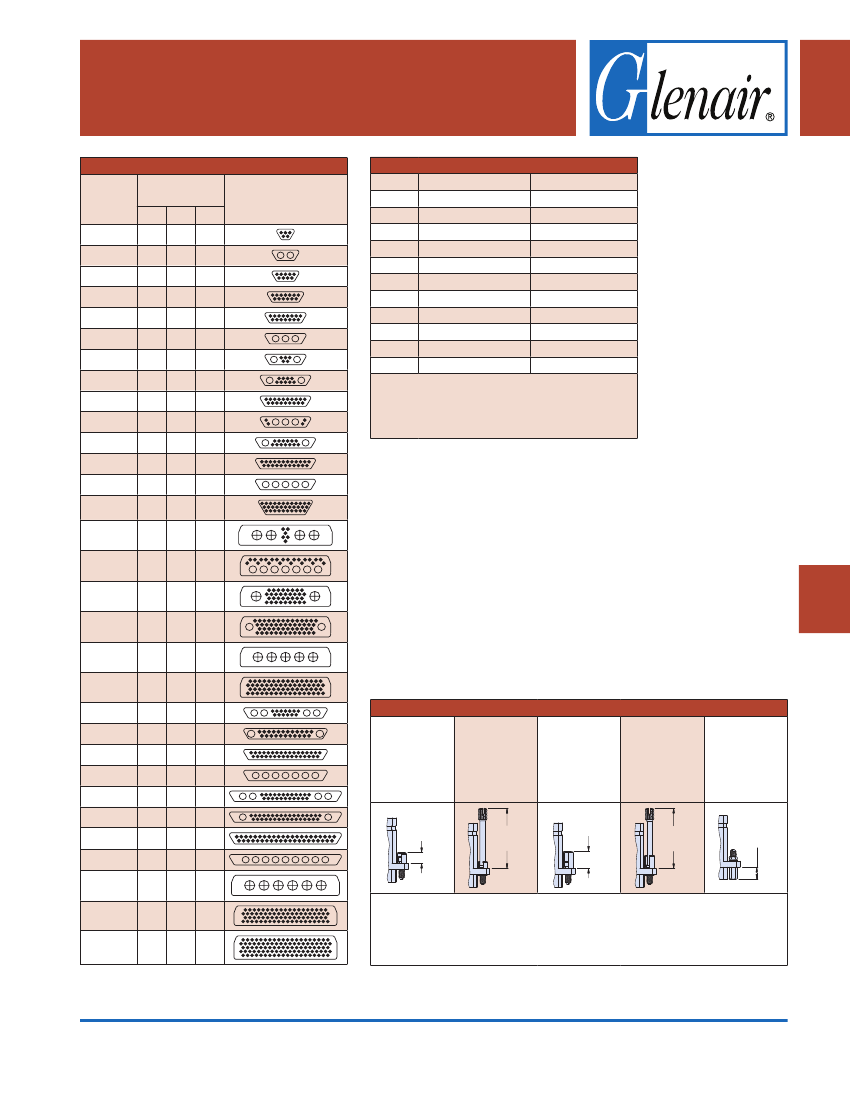

Table I: Contact Arrangements
Layout
#23
A-5
B-2P2
B-9
C-13
D-15
D-3P3
D-7P2
E-11P2
E-19
E-7P3
F-15P2
F-23
F-5P5
G-33
H-10P4
H-29P7
H-36P2
H-54P2
H-5P5
H-66
J-17P4
J-25P2
J-33
J-7P7
K-27P4
K-35P2
K-43
K-9P9
L-6P6
L-78
M-102
78
102
23
33
43
9
6
66
13
23
33
7
4
2
4
2
33
6
22
34
52
2
5
7
2
4
5
9
19
4
13
23
5
3
2
9
13
15
3
2
2
5
2
Contact
Quantity
#16
#12
Face View
Table II: Capacitor Array Code / Capacitance Range
Class
Pi - Circuit (pF)
C - Circuit (pF)
X*†
Y*
Z*
A
B
C
D
E
F
G
J
160,000 - 240,000
80,000 - 120,000
60,000 - 90,000
38,000 - 56,000
32,000 - 45,000
18,000 - 33,000
8,000 - 12,000
3,300 - 5,000
800 - 1,300
400 - 600
70-120
80,000 - 120,000
40,000 - 60,000
30,000 - 45,000
19,000 - 28,000
16,000 - 22,500
9,000 - 16,500
4,000 - 6,000
1,650 - 2,500
400 - 650
200 - 300
35-60
* Filter Classes X, Y and Z are 250 VDC.
All others are 500 VDC
† Class X filters not available for insert
arrangements with 3 or more rows of contacts
Table III: Jackscrew, Screwlock, and Jackpost Options
L
K
S
T
P
Low-Profile
Extended
Low-Profile
Extended
Jackpost with
Captivated
Captivated
Captivated
Captivated
Nut and Split
Jackscrew,
Jackscrew,
Screwlock,
Screwlock,
Washer
Allen Head
Knurled Slot
Allen Head
Knurled Slot
Head
Head
.155
(3.94)
Max
.925
(23.5)
Max
.290
(7.37)
Max
.925
(23.5)
Max
.190
(4.83)
Max
Notes:
1. Thread size is #2-56 for shell sizes A, B, C, D, E, F, G, J, K; #4-40 for shell sizes H and L;
#6-32 for shell size M.
2. Screwlocks allow full mating of the connectors before the screws are fastened.
Jackscrews must be tightened to mate the connectors.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
© 2013 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-45
E-Mail: sales@glenair.com
Series 79
Micro-Crimp
240-790-070
Series 79 Filtered Cable Plug
G
240-790-070
Series 79 Filtered Cable Plug
with Solder Cup Termination
G
Series 79
Micro-Crimp
A Max.
B Basic
C Max.
.308 Max
(7.82)
2x Ø.088/.096 (2.24/2.44)
.183 ±.003
(4.65 ± 0.08)
.093 ±.005
(2.36 ± 0.13)
.847 (21.51)
Max.
Groove For
Attachment Of
EMI Adapter
799-015
D Max.

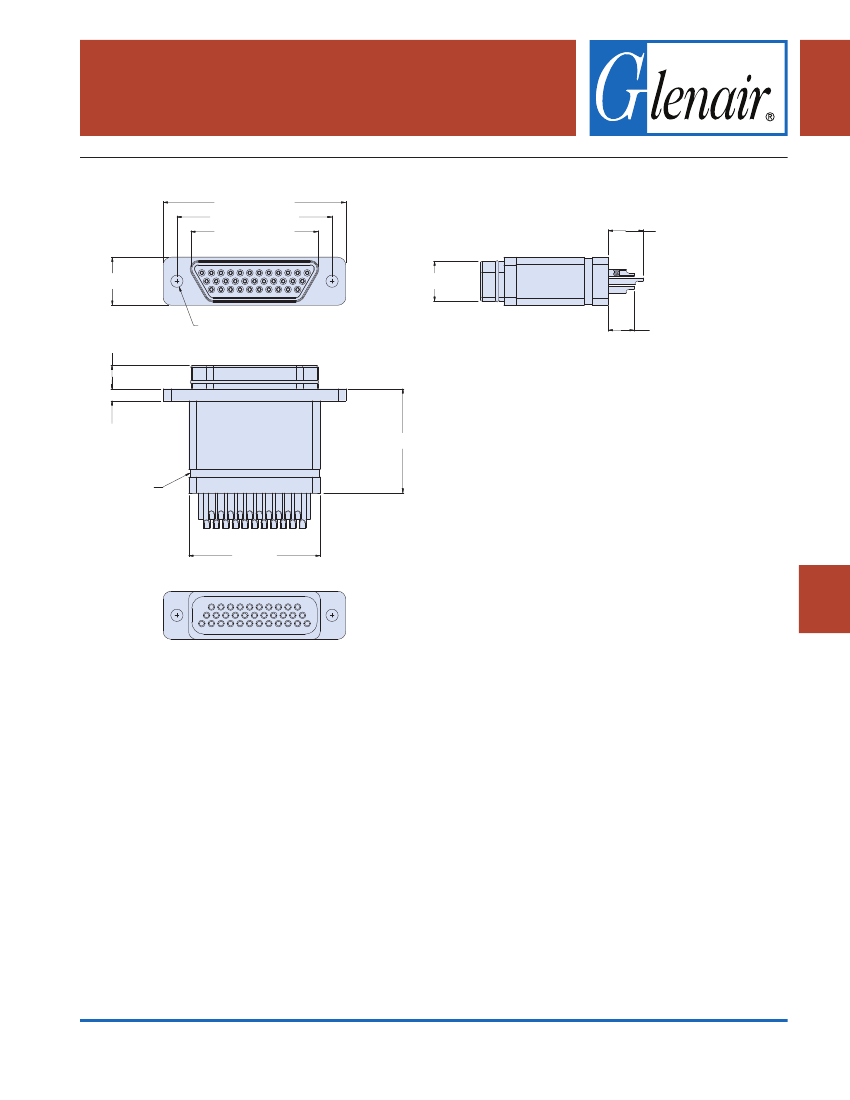

240-790-070S SHELL SIZE A, B, C, D, E, F, J AND K DIMENSIONS
.233 (5.92)
Max.
#23ga For All Layouts
.200 ± .060 (5.08 ± 1.52)
#16ga In Combo Layouts
.250 ± .060 (6.35 ± 1.52)
#16ga In Power Layouts
.340 ± .060 (8.64 ± 1.52)
Shell Sizes A,B,C,D,E,F,J,K
Shell
Size
A
B
C
D
E
F
J
K
790-070S Dimensions for Size A-F, J and K
A Max.
B Basic
C Max
In.
mm.
In.
mm.
In.
mm.
.785
.935
1.085
1.185
1.335
1.485
1.845
2.240
19.94
23.75
27.56
30.10
33.91
37.72
46.86
56.90
.565
.715
.865
.965
1.115
1.265
1.615
2.015
14.35
18.16
21.97
24.51
28.32
32.13
41.02
51.18
.335
.485
.635
.735
.885
1.035
1.390
1.795
8.51
12.32
16.13
18.67
22.48
26.29
35.31
45.59
D Max
In.
mm.
.390
.540
.690
.790
.940
1.090
1.450
1.840
9.91
13.72
17.53
20.07
23.88
27.69
36.83
46.74
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-46
E-Mail: sales@glenair.com
with Solder Cup Termination

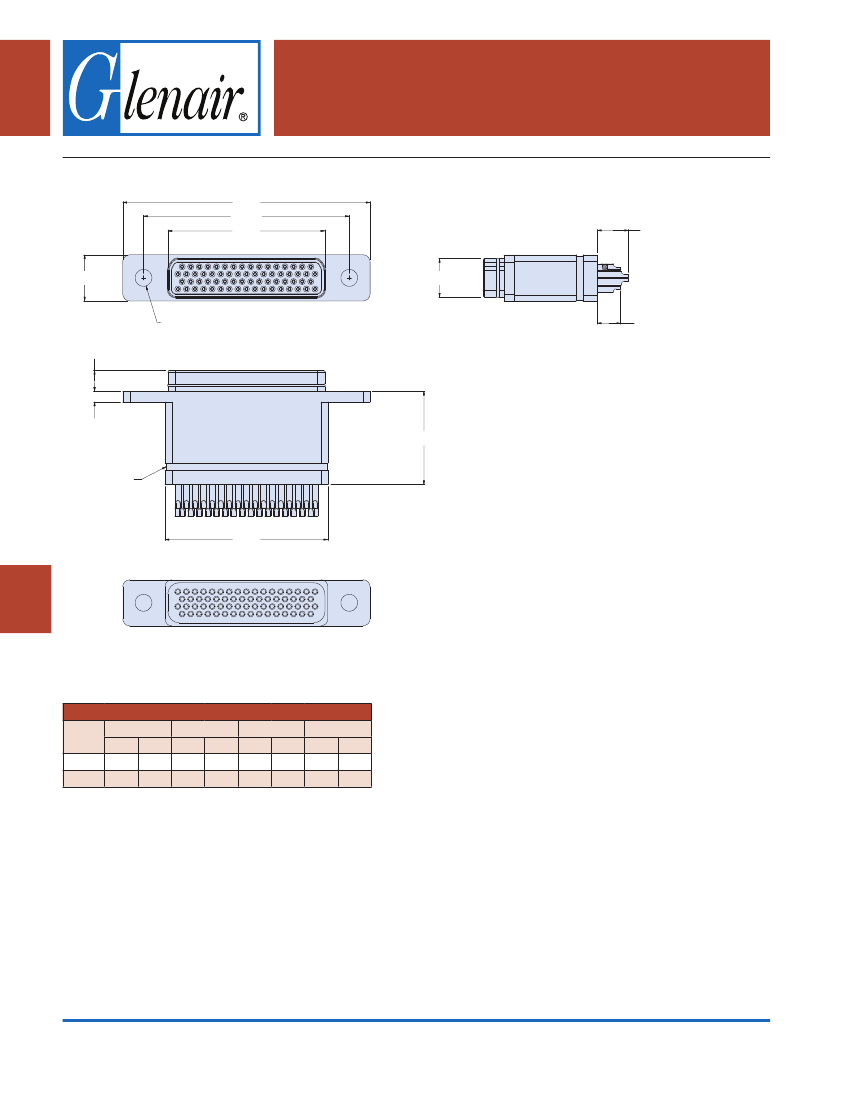

240-790-070S SHELL SIZE G DIMENSIONS
1.435 (36.45) Max
1.215 (30.86) Basic
1.010 (25.65) Max
#23ga For Center Rows
.270 ± .060 (6.89 ± 1.52)
.395 (10.03)
Max
.320 (8.13)
Max.
#23ga For All Layouts
.200 ± .060 (5.08 ± 1.52)
#16ga And #12ga In Combo Layouts
.250 ± .060 (6.35 ± 1.52)
#16ga And #12ga In Power Layouts
.340 ± .060 (8.64 ± 1.52)
2x Ø.088/.096 (2.24/2.44)
.183 ±.003
(4.65 ± 0.08)
.093±.005
(2.36 ± 0.13)
.847 (21.51)
Max.
Groove For
Attachment Of
EMI Adapter
799-015
1.055 Max
(26.80)
Shell Size G
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-47
E-Mail: sales@glenair.com
Series 79
Micro-Crimp
240-790-070
Series 79 Filtered Cable Plug
G
240-790-070
Series 79 Filtered Cable Plug
with Solder Cup Termination
G
Shell Size H & L
Series 79
Micro-Crimp
E Max.
F Basic
G Max.
.410 (10.41)
Max
2x Ø.145/.152 (3.68/3.86)
.183 ±.003
(4.65 ± 0.08)
.093 ±.005
(2.36 ± 0.13)
Groove For
Attachment Of
EMI Adapter
799-015
H Max.
240-790-070S SHELL SIZE H AND L DIMENSIONS
#23ga For Center Rows
.270 ± .060 (6.86 ± 1.52)
.349 (8.86)
Max.
#23ga For All Layouts
.200 ± .060 (5.08 ± 1.52)
#16ga And #12ga In Combo Layouts
.250 ± .060 (6.35 ± 1.52)
#16ga And #12ga In Power Layouts
.340 ± .060 (8.64 ± 1.52)
.847 (21.51)
Max.
790-070S Size H & L Dimensions
Shell
Size
H
L
E Max
F Basic
G Max
H Max
In. mm. In. mm. In. mm. In. mm.
2.175 55.25 1.800 45.72 1.385 35.18 1.440 36.58
2.420 61.47 2.036 51.71 1.623 41.22 1.675 42.55
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-48
E-Mail: sales@glenair.com
