5962F9800801VXX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9800801VXX

5962F9800801VXX: DescriptionAC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERAMIC, DFP-16; Categorylogic logic; File Size48KB，2 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5962F9800801VXX Overview

AC SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERAMIC, DFP-16

5962F9800801VXX Parametric

Parameter Name	Attribute value
Objectid	1536269666
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDFP-F16
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	14 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class V
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
total dose	300k Rad(Si) V

Preview

Download Datasheet

View All

ACS257MS

November 1997

Radiation Hardened

Quad 2-Input Multiplexer with Three-State Outputs

Description

The Radiation Hardened ACS257MS is a Quad 2-Channel

multiplexer which selects four bits of data from one of two

sources under the control of a single select pin. The Output

Enable input is active LOW and controls all outputs. When OE

is set HIGH, all outputs are conﬁgured into a high impedance

state, regardless of all other input conditions. All inputs are buff-

ered and the outputs are designed for balanced propagation

delay and transition times.

The ACS257MS is fabricated on a CMOS Silicon on Sapphire

(SOS) process, which provides an immunity to Single Event

Latch-up and the capability of highly reliable performance in

any radiation environment. These devices offer signiﬁcant

power reduction and faster performance when compared to

ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS257 are

contained in SMD 5962-98008. A “hot-link” is provided

on our homepage with instructions for downloading.

http://www.intersil.com/data/sm/index.htm

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-up Free Under any Conditions

- Total Dose . . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels . . .V

= (0.3)(V

), V

= (0.7)(V

)

• Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . .

±8mA

• Quiescent Supply Current. . . . . . . . . . . . . . . . . . .400µA

• Propagation Delay

- Enable to Output . . . . . . . . . . . . . . . . . . . . . . . . . 13ns

- Input or Address to Output . . . . . . . . . . . . . . . . . 14ns

Applications

• 4-Bit Source Selection

• Data Routing

• High Frequency Switching

Ordering Information

SMD PART NUMBER

5962F9800801VEC

N/A

5962F9800801VXC

N/A

INTERSIL PART NUMBER

ACS257DMSR-02

ACS257D/Sample-02

ACS257KMSR-02

ACS257K/Sample-02

ACS257HMSR-02

TEMP. RANGE (

-55 to 125

PACKAGE

16 Ld SBDIP

16 Ld Flatpack

Die

CASE OUTLINE

CDIP2-T16

CDFP4-F16

N/A

Pinouts

ACS257 (SBDIP)

TOP VIEW

S 1

1Y 4

2Y 7

GND 8

16 V

15 OE

14 4I

13 4I

12 4Y

11 3I

10 3I

9 3Y

ACS257 (FLATPACK)

TOP VIEW

GND

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

File Number

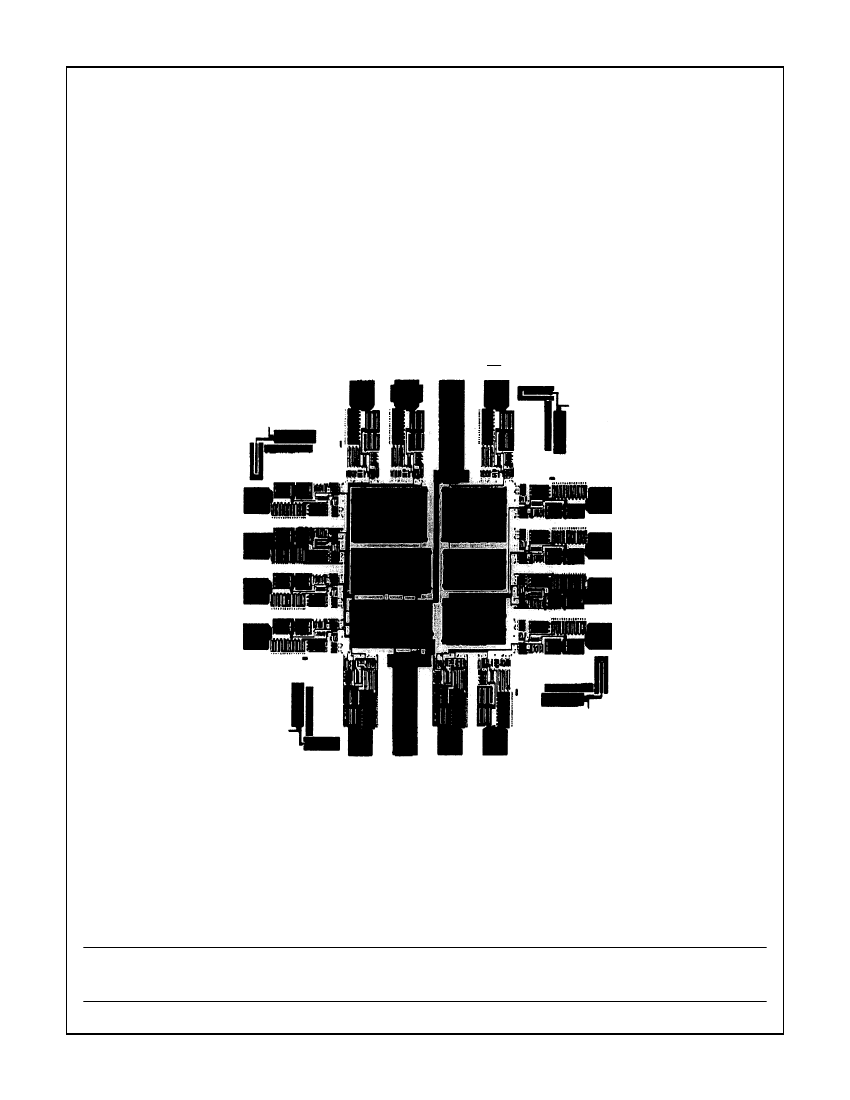

4429
